AirCat 1/2″ Vibrotherm Drive Composite Impact Wrench

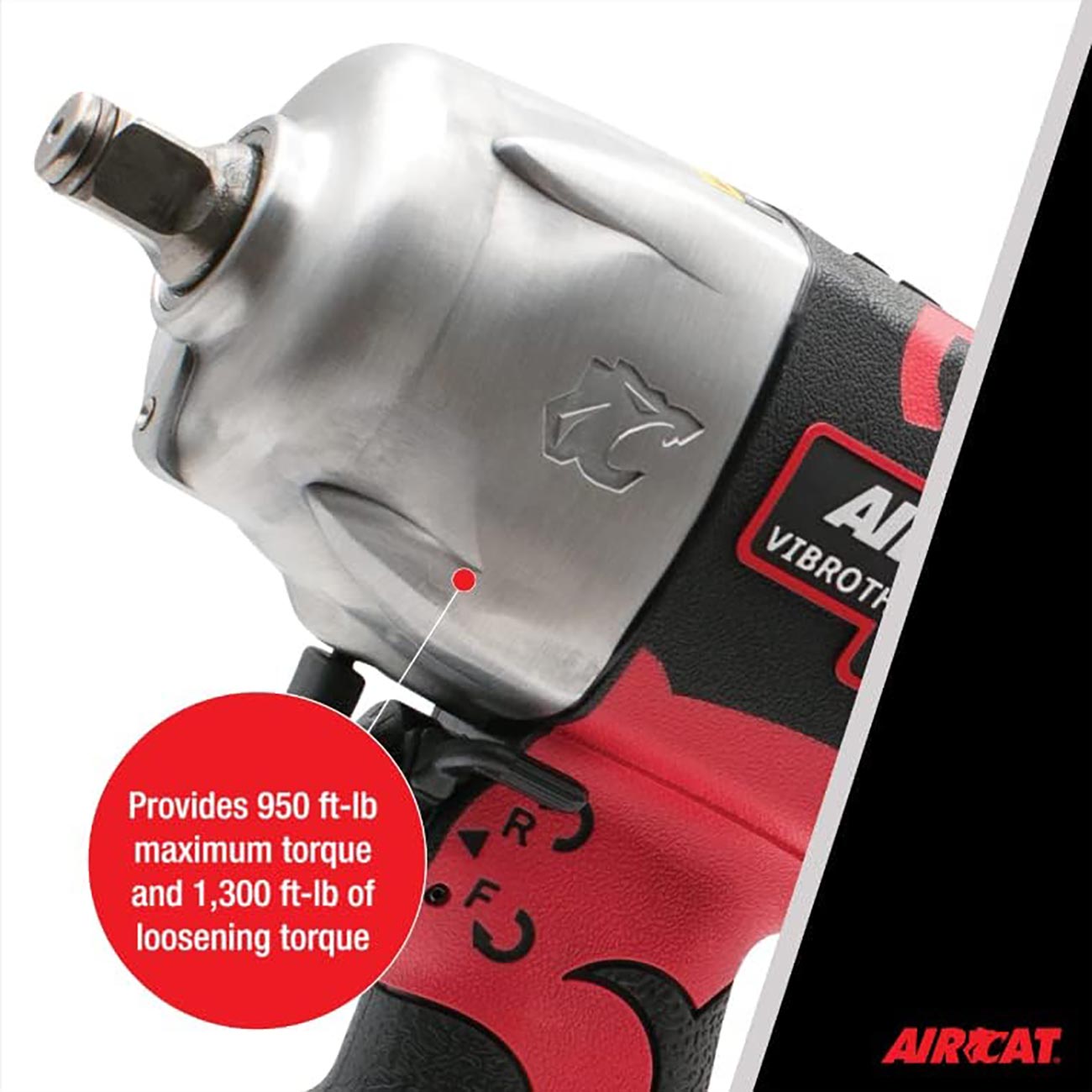

• Provides 950 ft-lb maximum torque and 1,300 ft-lb of loosening torque

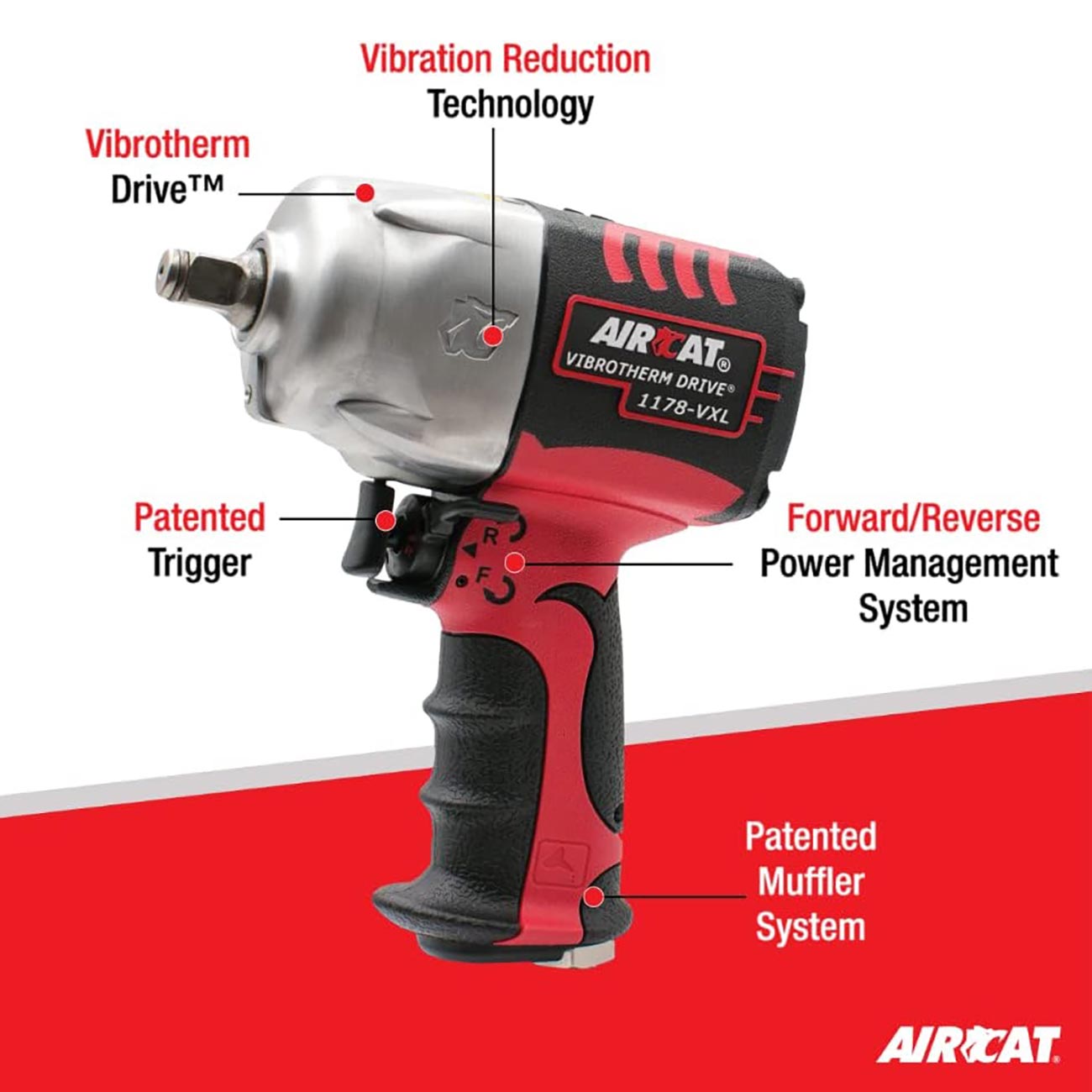

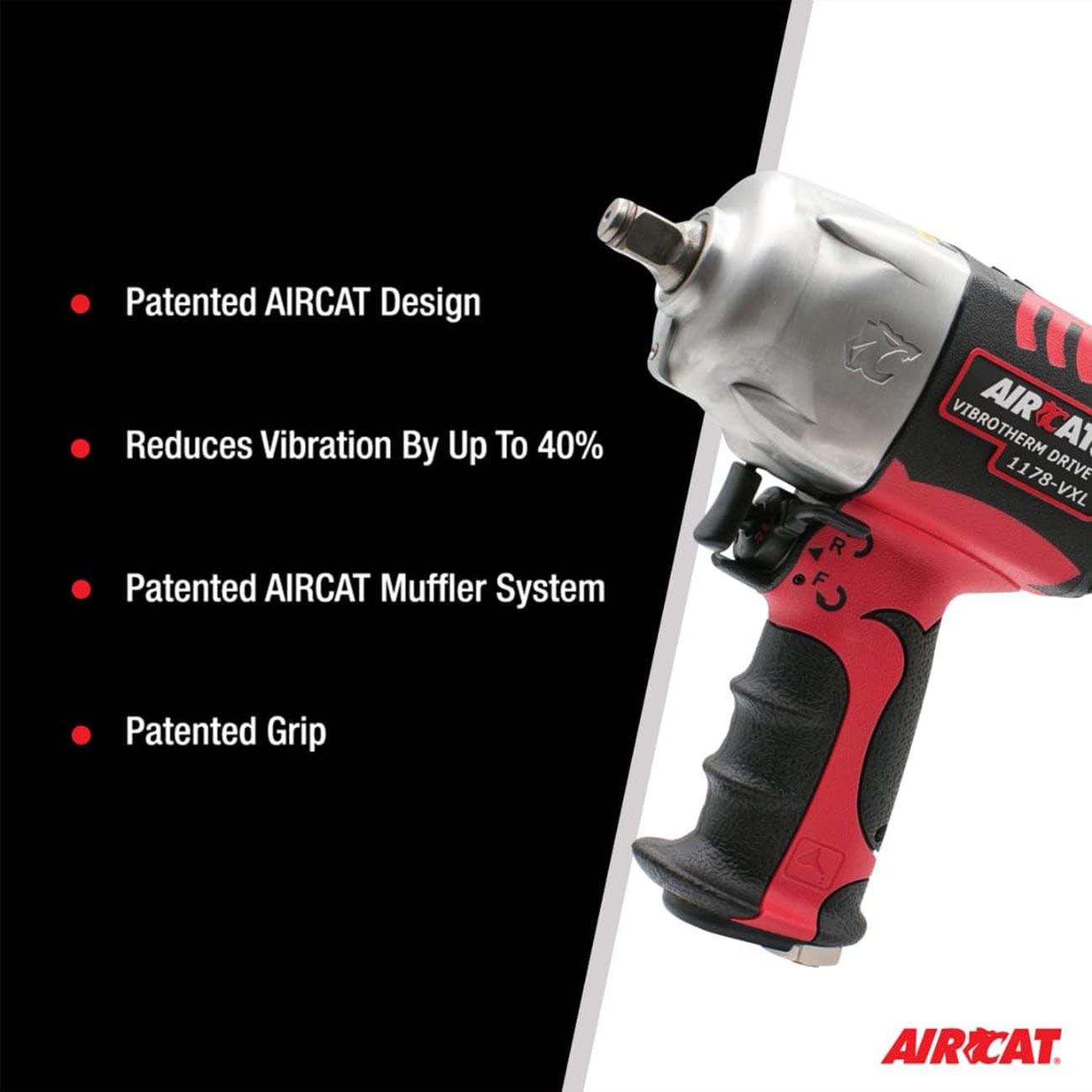

• VIBROTHERM DRIVE®; impact wrenches incorporate the new patented AIRCAT design impact wrench mechanism

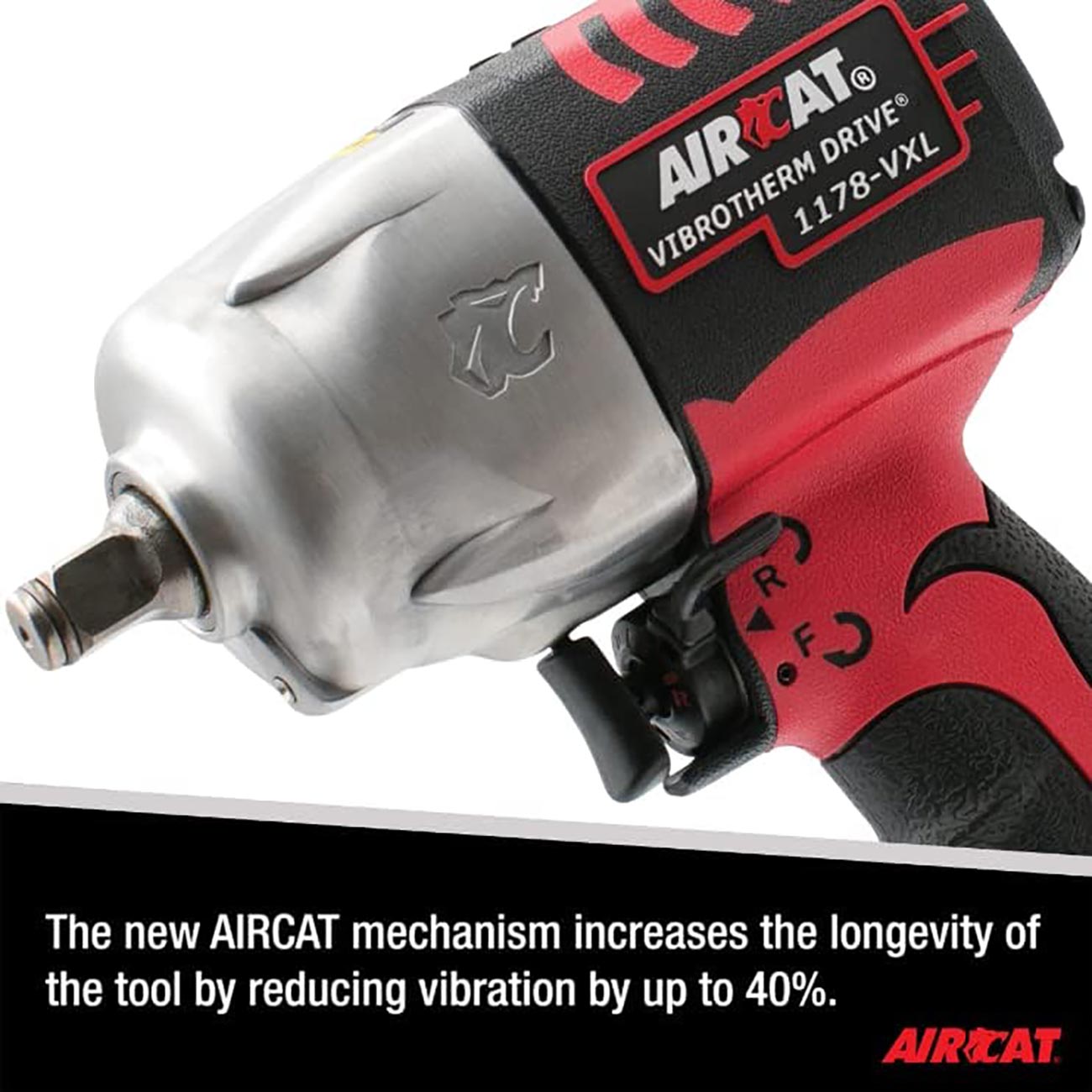

• The new mechanism reduces vibration levels by 30%-40% and increases the life of the mechanism by 50%
• The latest patented AIRCAT muffler system provides the AIRCAT’s unmatched low noise levels (86 dBA)
• The patented grip design provides the customary AIRCAT® operator comfort

Loosening Torque (ft-lb):
Square Drive (in.):
Bolt Capacity (in.):
Free Speed (RPM):
Impacts Per Minute (IPM):
Noise Level d(B)A:
Vibration Level (m/sec2):
Rec. Hose Size (in.):
Air Inlet (in.) NPT/BSP:
Weight (lbs.):
Length (in.):

1300 @90psi
1/2″
9/16″
7,500
1,400
86
7.7
3/8″
1/4″
4.5
6.4″

SKU	1178VXL
Manufacturer Model #	1178-VXL
UPC	722470339892
Case Quantity	1
Brand:	AirCat Pneumatic Tools
Weight	5.20 lbs
Carton Dimensions	8 × 8.25 × 3.25 in
Driver / Collet Size	1/2"
Torque (ft-lb)	950, 1300
Free Speed (RPM):	7,500
Impacts Per Minute (IPM):	1,400
