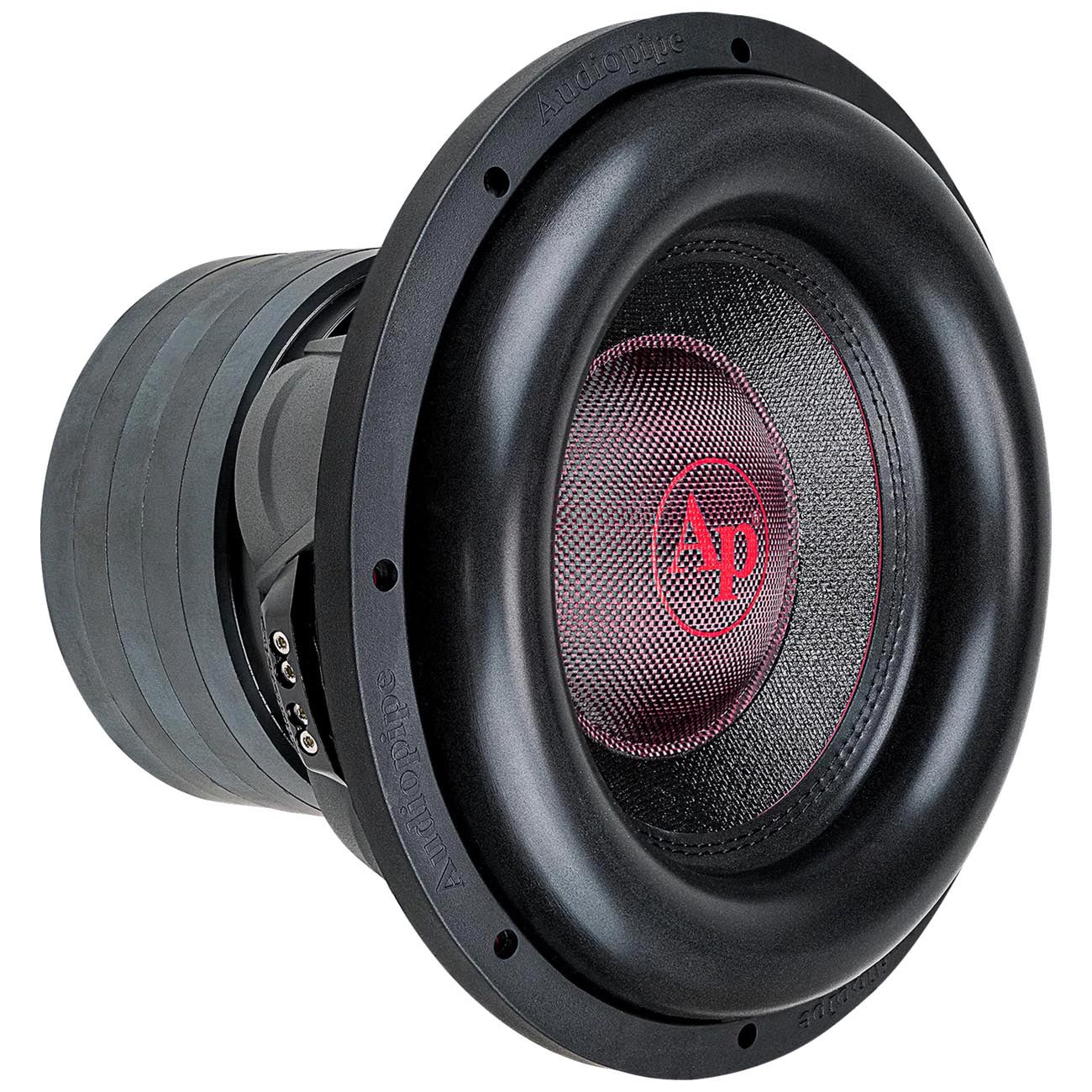

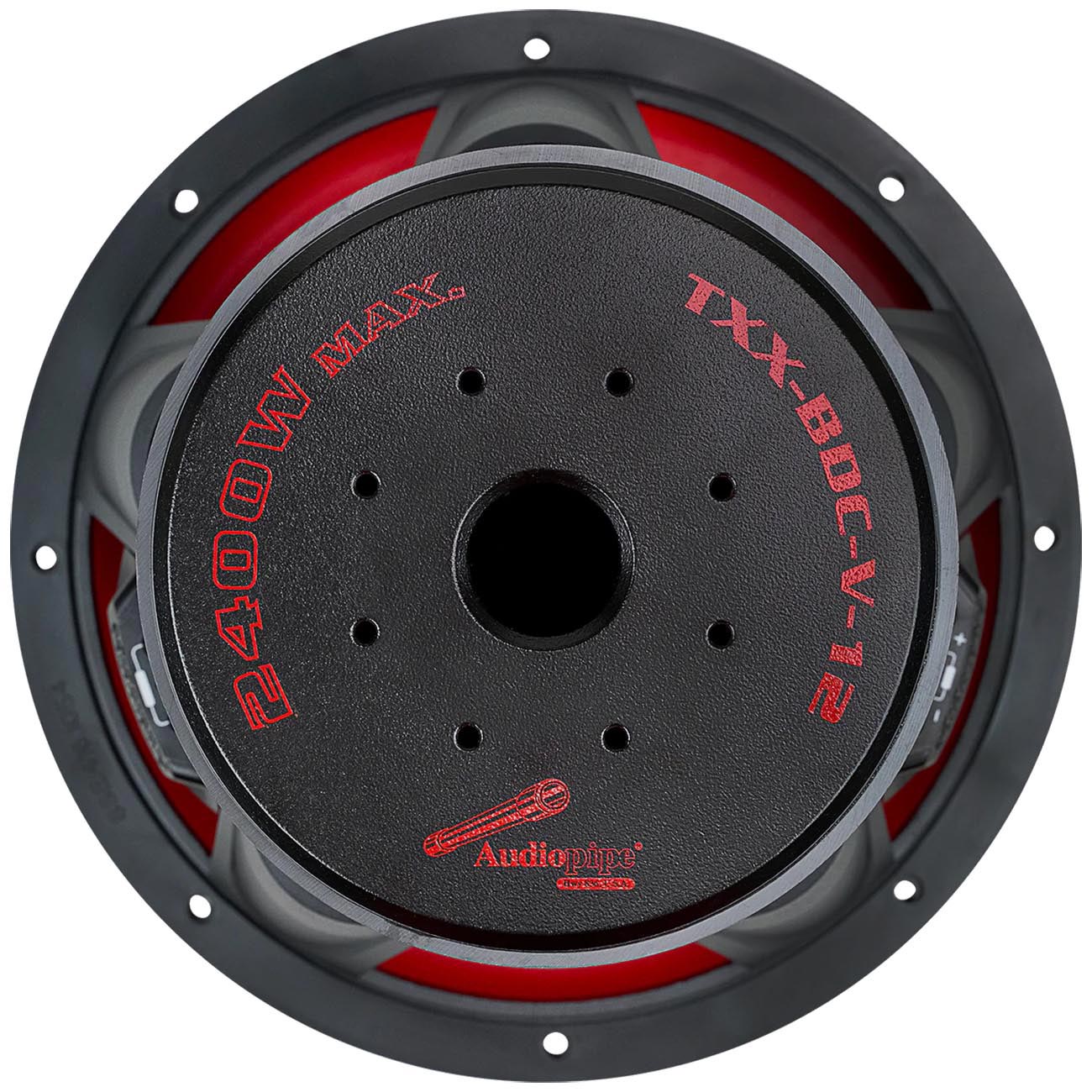

Audiopipe 12″ Woofer, 1200W RMS/2400W Max, Dual 4 Ohm Voice Coils
QUINTA (5) Stacked Magnets: 320 Oz.
2400 Watts MAX Power
1200 Watts RMS Power
Impedance: 2 x 4 Ohms
3″ 4-Layer Dual Voice Coil BASV
Frequency Response: 18 – 1500Hz
Sensitivity: 88dB
Powdered Black Paint Aluminum Basket
“EASY CONNECT” terminal allows for convenient parallel or series wiring
Mounting Depth: 8-9/16″ (217mm)
KEVLAR FIBER COMPOSITE NON-PRESS PAPER CONE: The Kevlar Fiber Composite Non-press Paper Cone with Texture finish is newly designed to improve cone rigidity for better performance.
ALUMINUM BASKET: The TXX-BDC-V-12’s newly designed powdered black paint aluminum basket with a composite glass fiber dust cap, and a newly refreshed and strongly constructed dust-proof heat sink was engineered to deliver optimal sound quality.
QUAD WEAVED COPPER TINSEL: The TXX-BDC-V-12 is crafted with weaved copper tinsel on each side of the subwoofer.

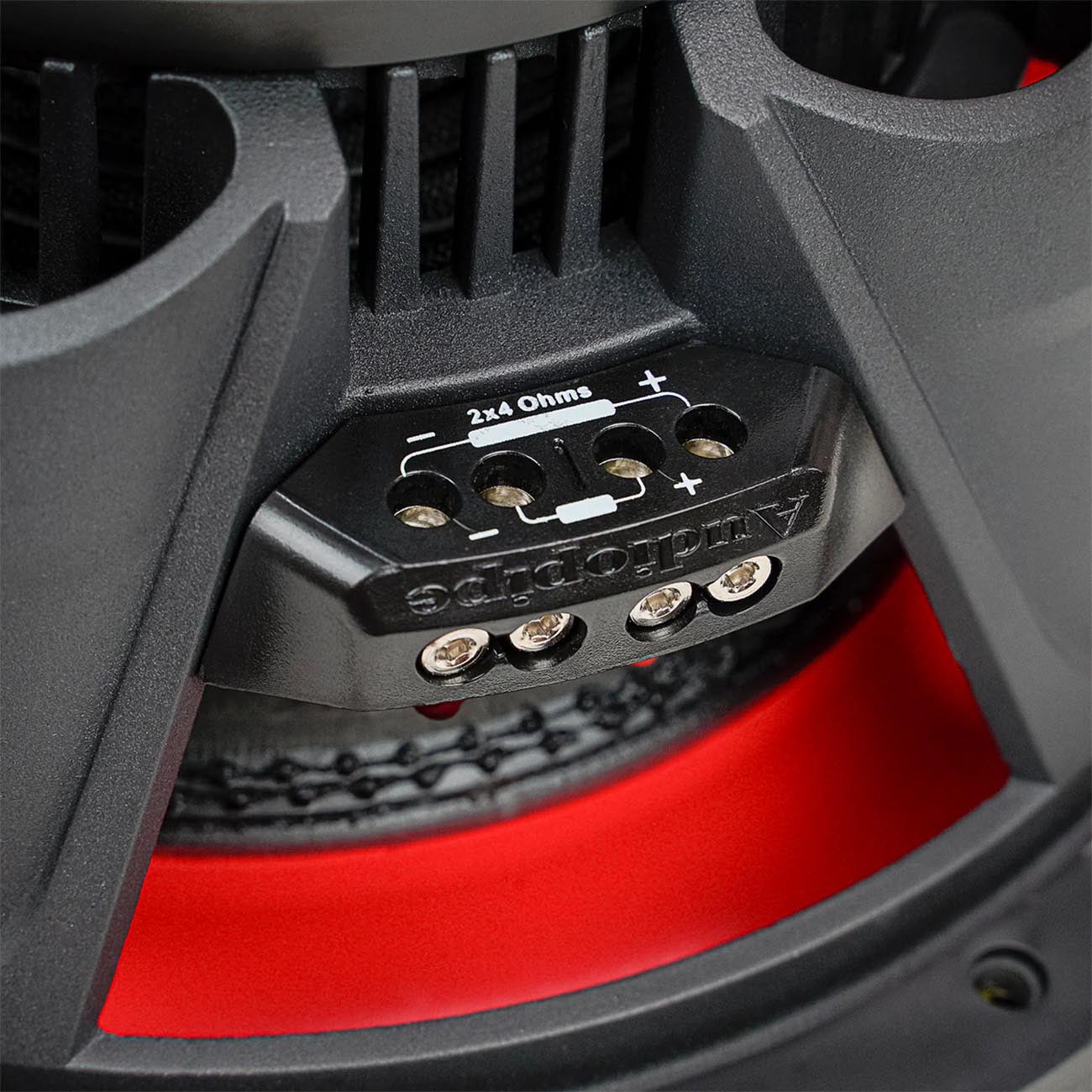

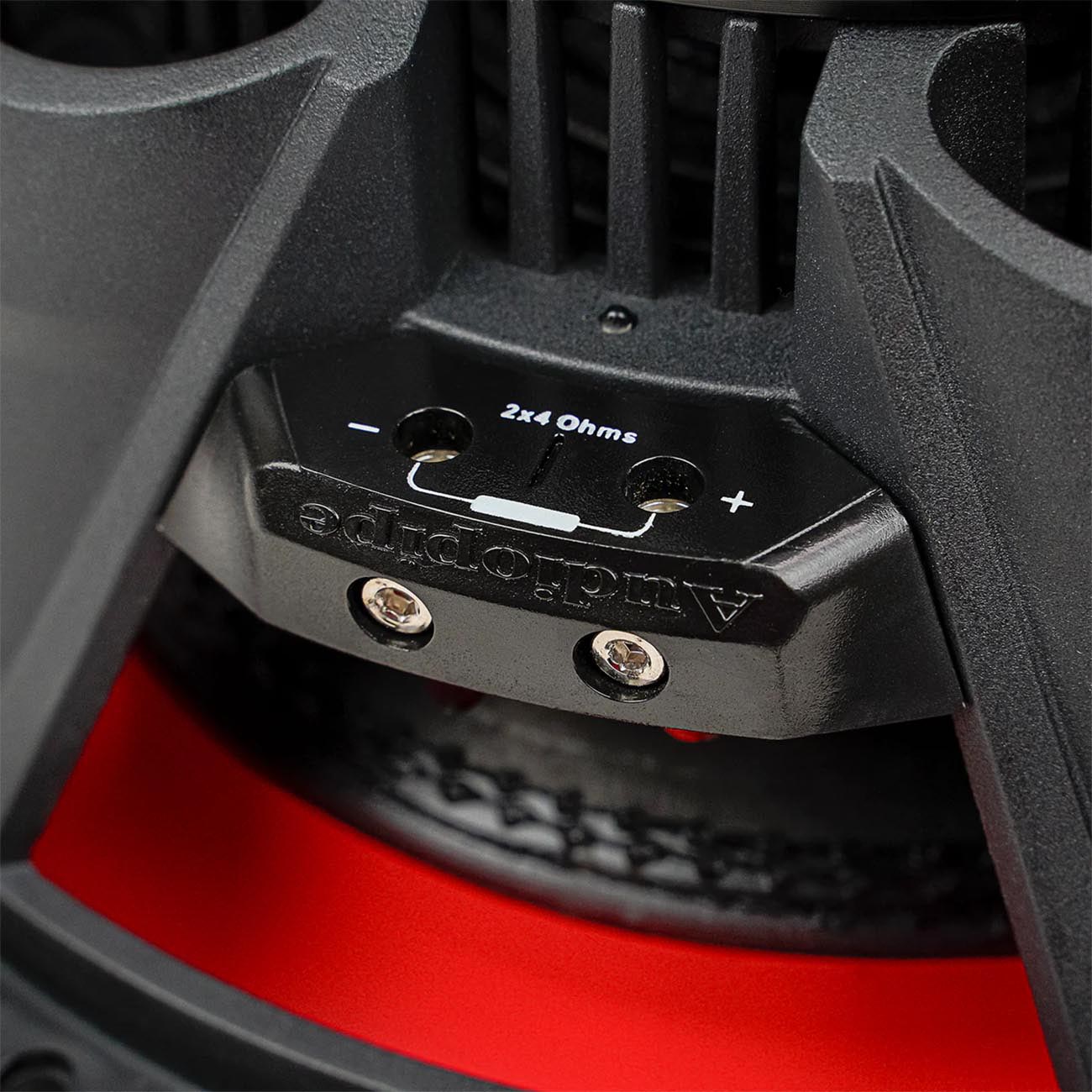

PATENT PIPE MULTICONNECT TERMINALS: The TXX-BDC-V-12’s carefully designed and tooled reliable and convenient patent pipe multi-connect terminals allow for optimal connection and better reliability. They accept up to 8 gauge speaker wire for easy series and parallel wiring of the dual coils.
The 12″ Quinta Stack Composite Cone Subwoofer (TXX-BDC-V-12) was designed to add BIG power to your car audio system! We listened to our fans, and created this series to feature 2400 watts peak power, increased voice coil ventilation, and a Kevlar Fiber Composite Non-press Paper Cone with Texture finish for improved rigidity and performance. The newly designed powdered black paint aluminum basket with a composite glass fiber dust cap, and a newly refreshed and strongly constructed dust-proof heat sink were engineered to provide optimal sound quality and endurance. Additionally, the TXX-BDC-V-12’s carefully designed and tooled reliable and convenient multi-connect terminals allow for maximum connection and reliability. Get ready for #LOUDANDCLEAR sound!
