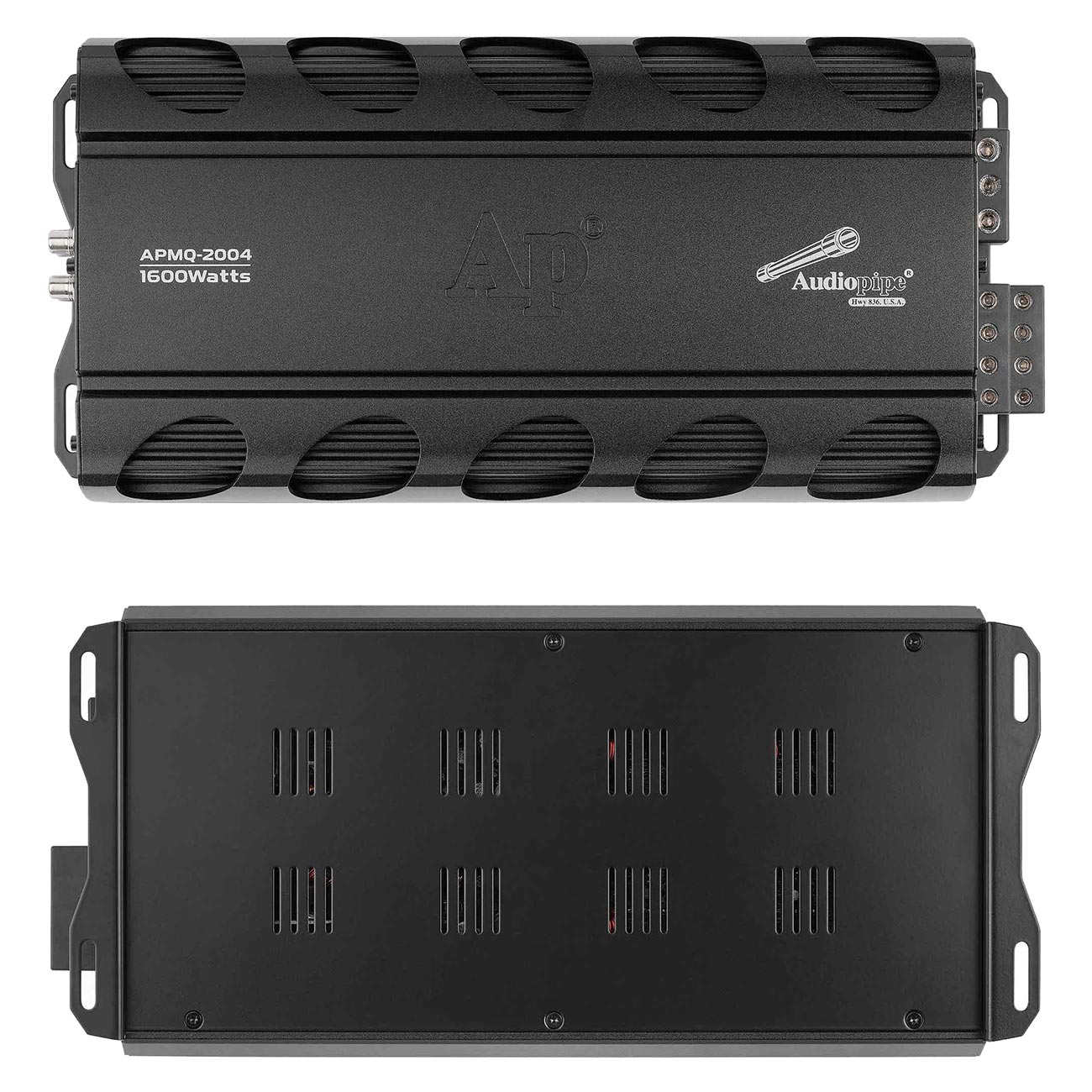

Audiopipe Mini 4 Channel Amplifier, 1600W MAX
4 x 330 RMS @ 2 Ohm
4 x 220 RMS @ 4 Ohm
2 x 680 RMS @ 4 Ohm (Bridged)
Working Voltage: 9 – 16V
(W x H x L) 6.3″ x 2.3″ x 16.4″

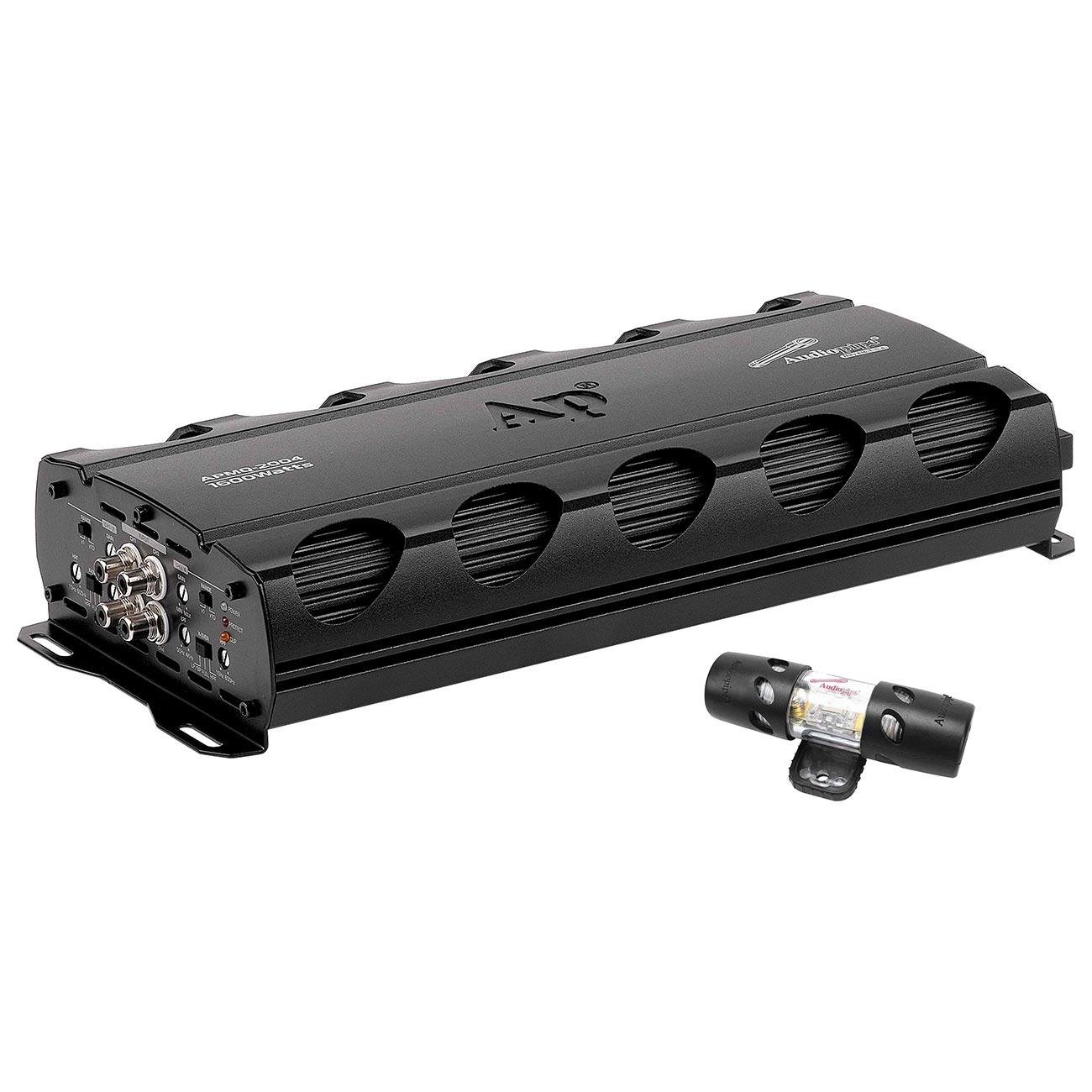

Included: 80A Fuse & Fuse Holder
Class D
2 Ohm Stable
MOSFET Power Supply
Frequency Response: 20 Hz – 20 KHz
High Pass Filter: 15 – 600 Hz
High Pass Multiplier: x1 (15 Hz – 600 Hz) – x10 (150 Hz – 6 kHz)
Low Pass Filter: 50 Hz – 4 KHz
Input Sensitivity: 0.2 – 5V
THD: ≤0.1%
S/N Ratio: >90 dB

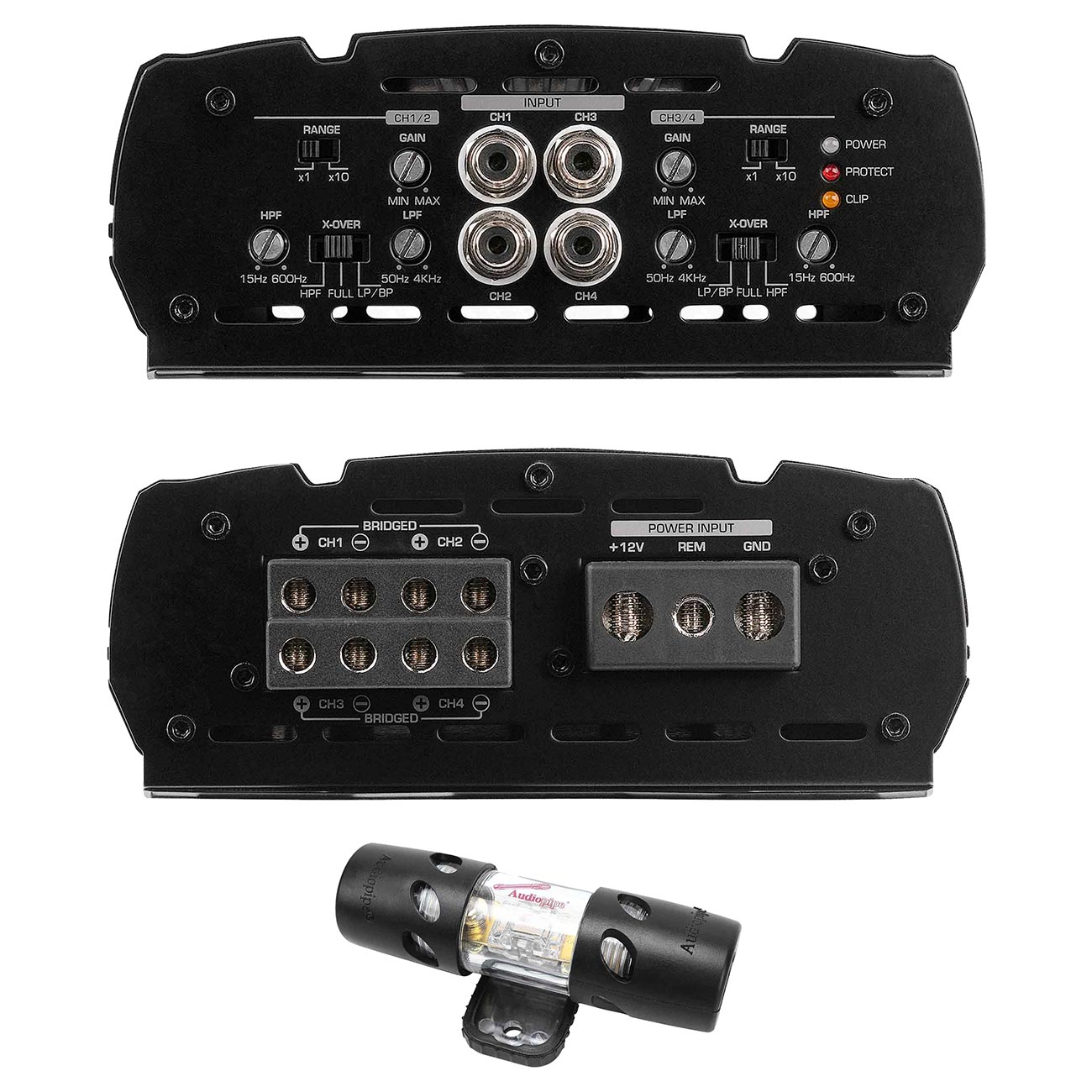

RCA Inputs
Clipping, Power & Protect LEDs
3-Way Protection
