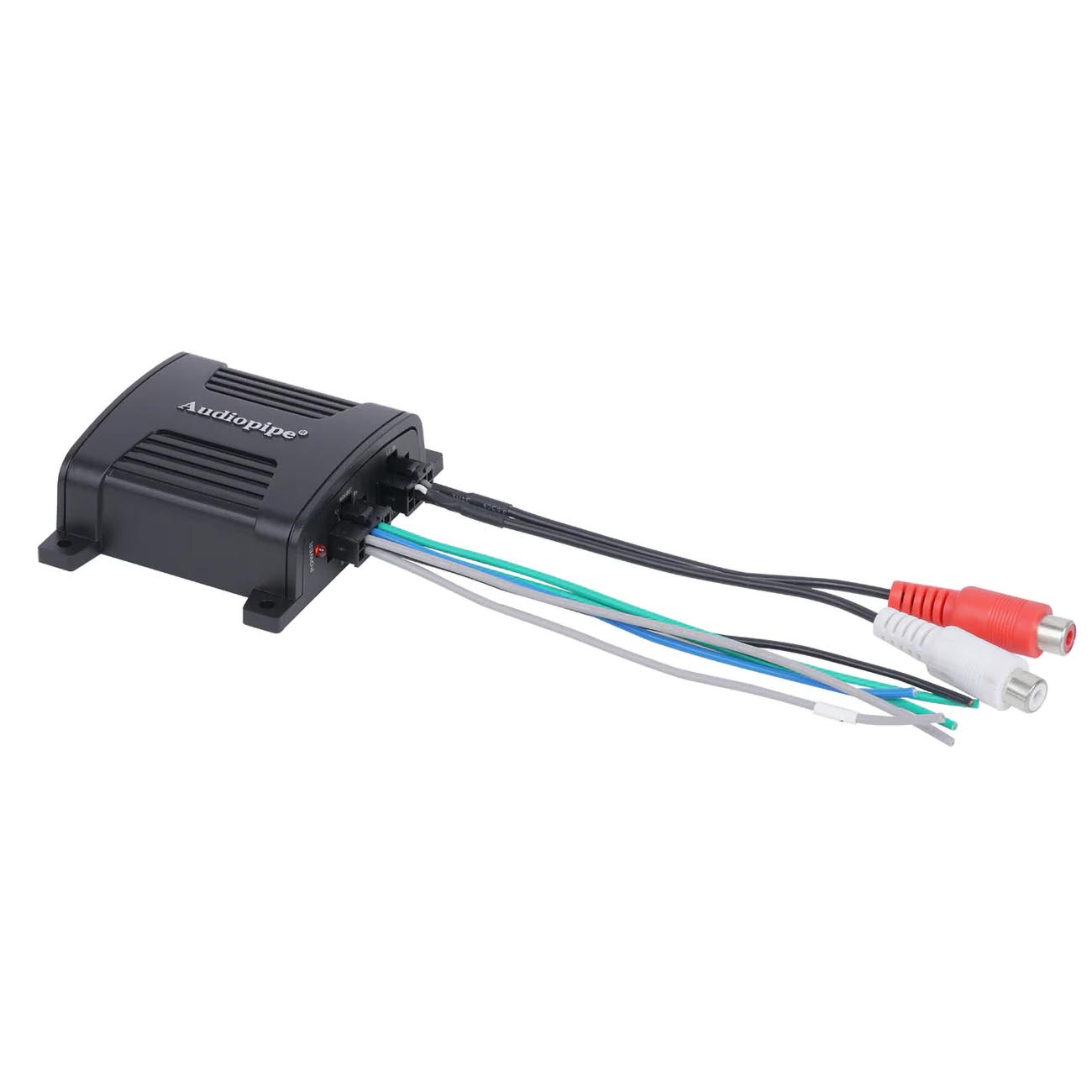

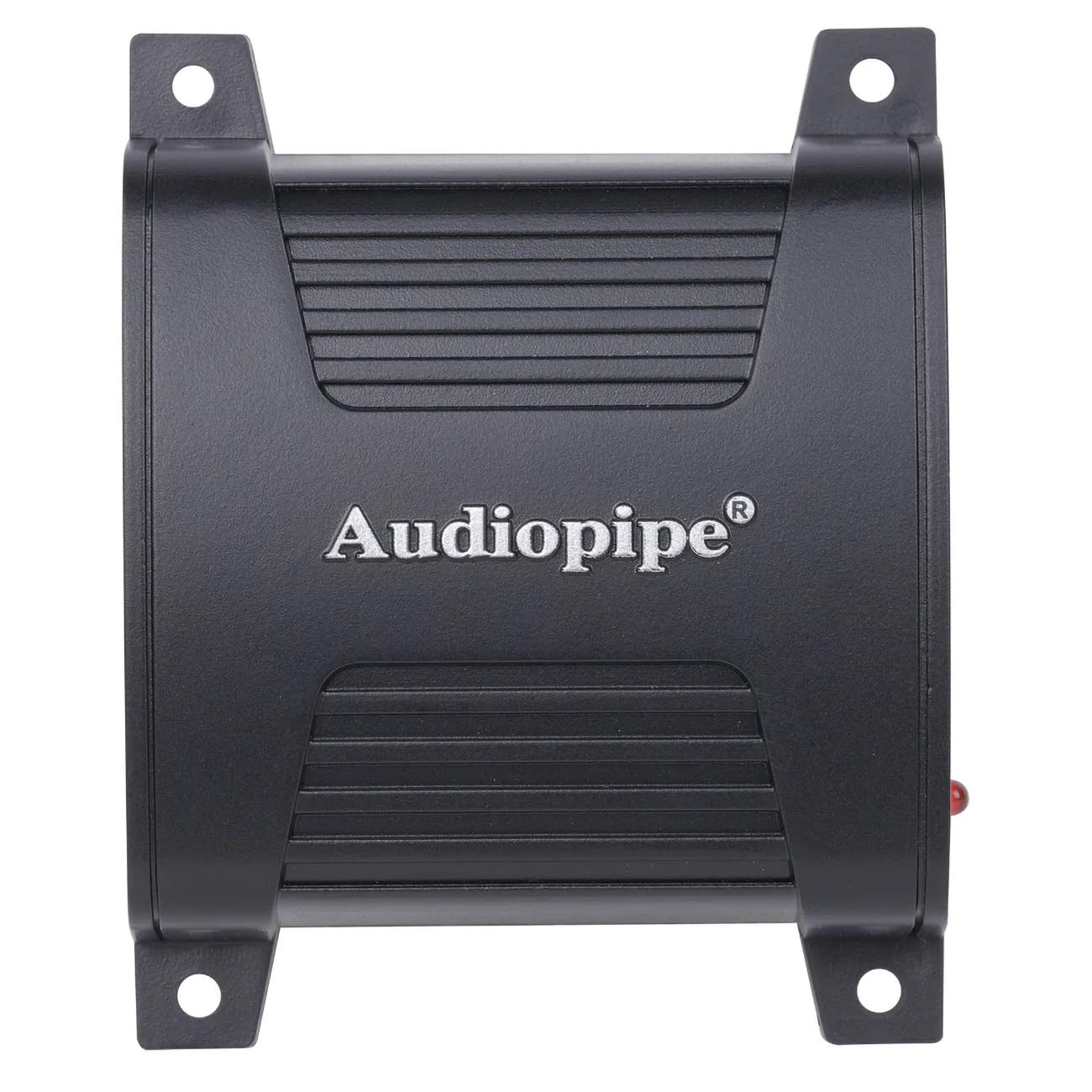

Audiopipe 2-Channel Smart Line Output Converter with Speaker Emulator – 55 Watts
2-Channel High-Level Inputs to 2-Low Level RCA Outputs

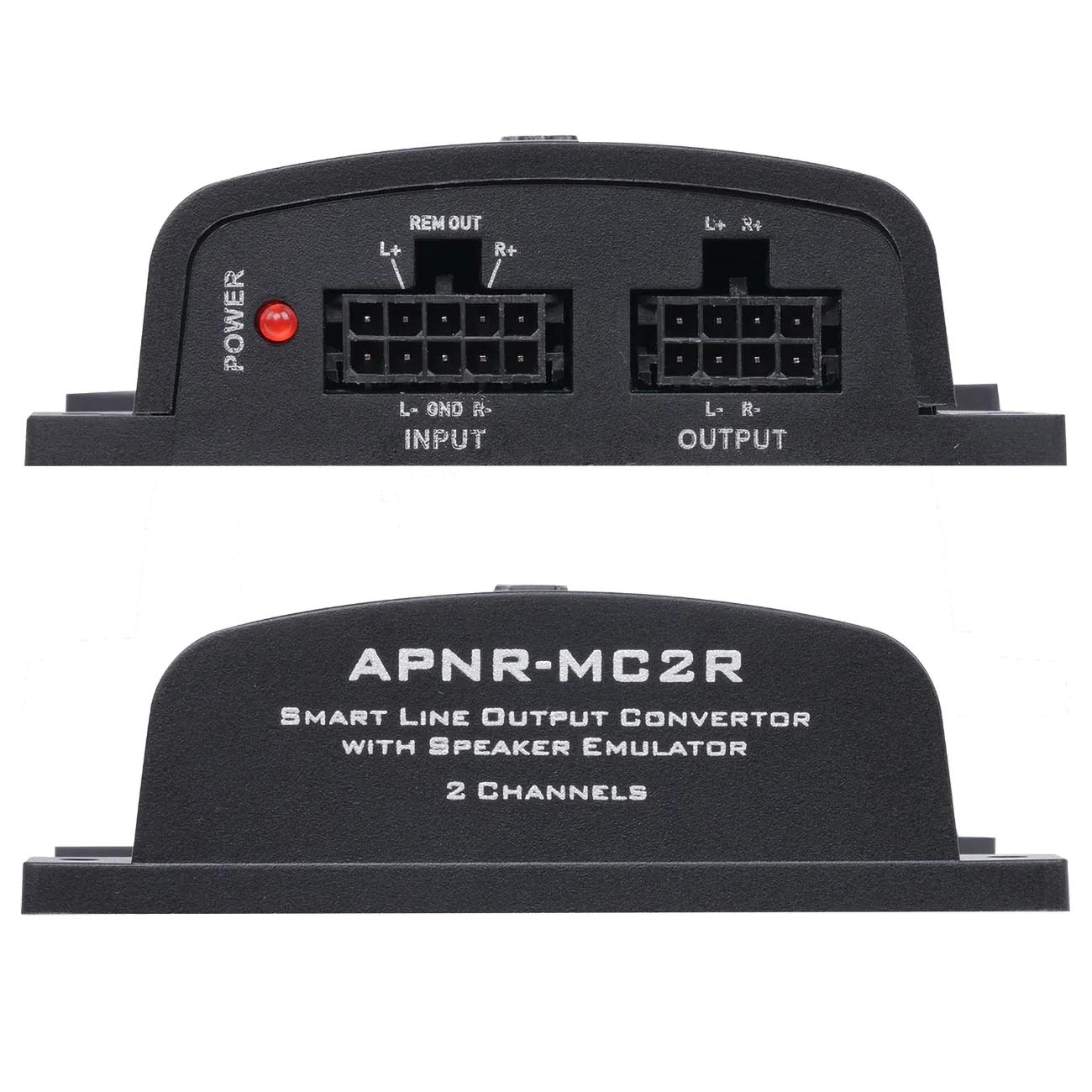

Cable Harness Connector for Easy Installation
Lowest Impedance and Best Power Filter
Double sided PC board
Remote trigger output with Signal Sensing
Power LED Indicator to Show Working Status
Speaker Emulator to Enable Signal Output from Some OEM Amplifiers with Speaker Sense
Surface Mounting Component Technology
Input: Up to 55 Watts
Output: Up to 8 Volts
Remote Output Voltage: 12V
Frequency Response: 10Hz-30kHZ
Input Impedance: 20k Ohms
Standby Current: 200mA
(W x H x D) 3.2″ x 1″ x 2.5″
