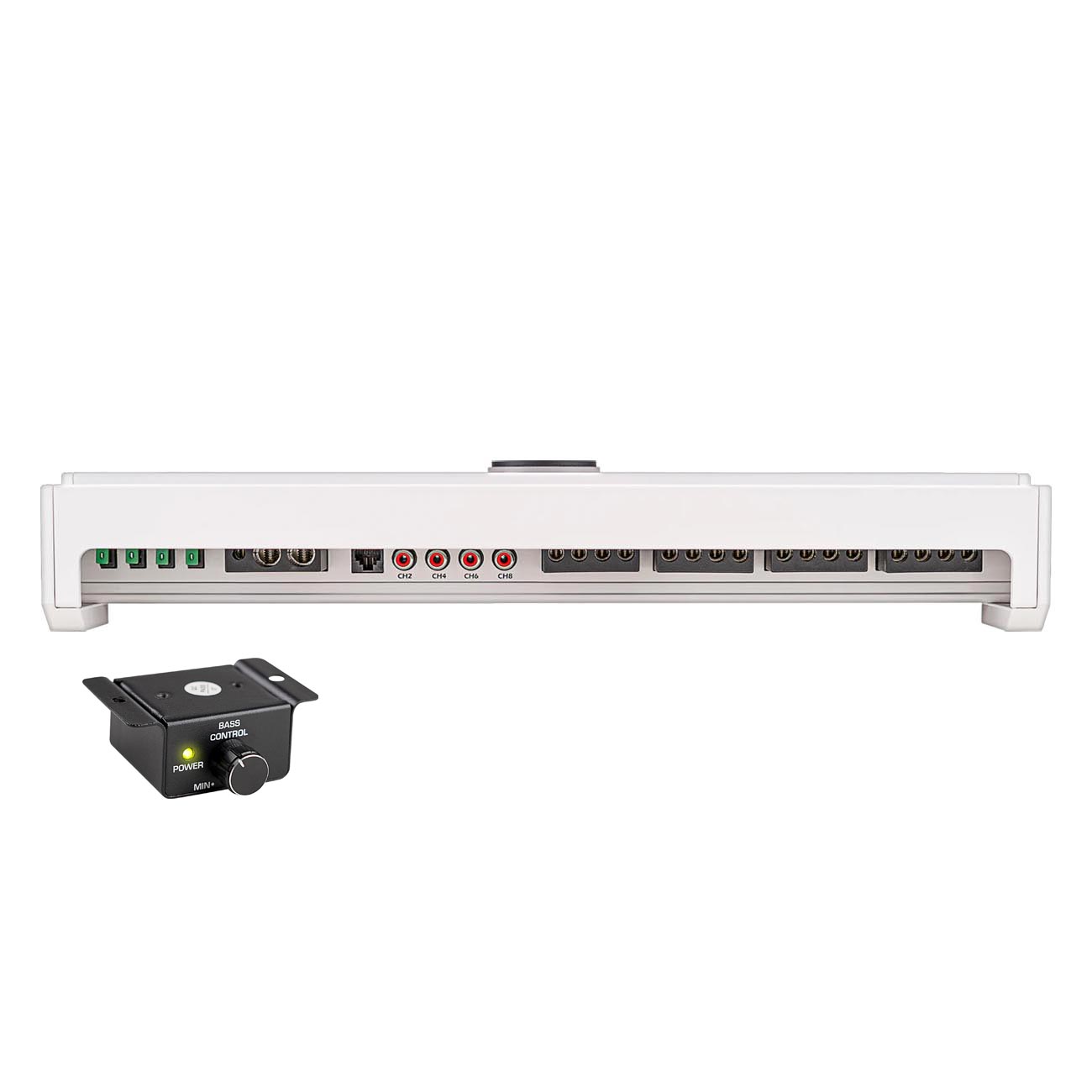

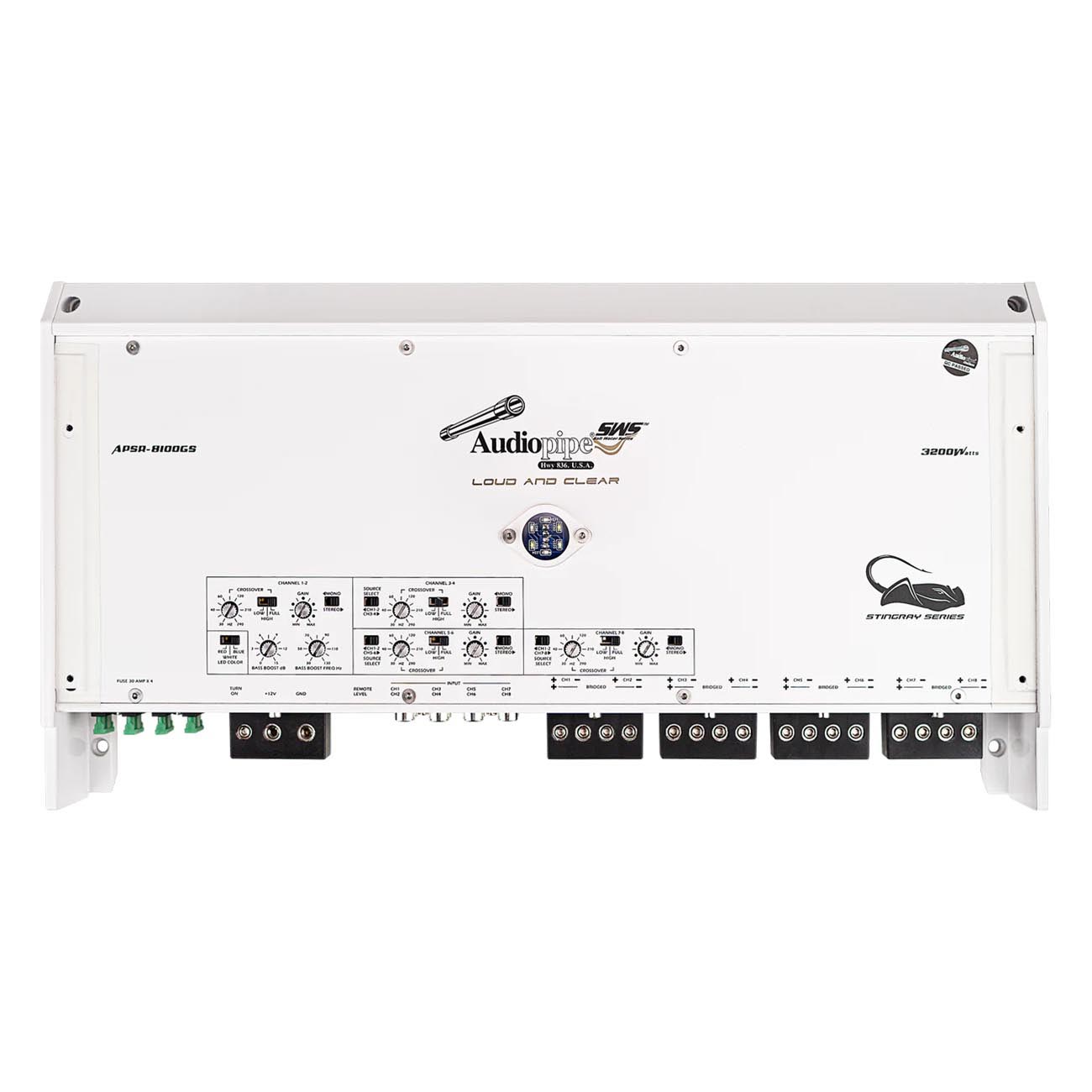

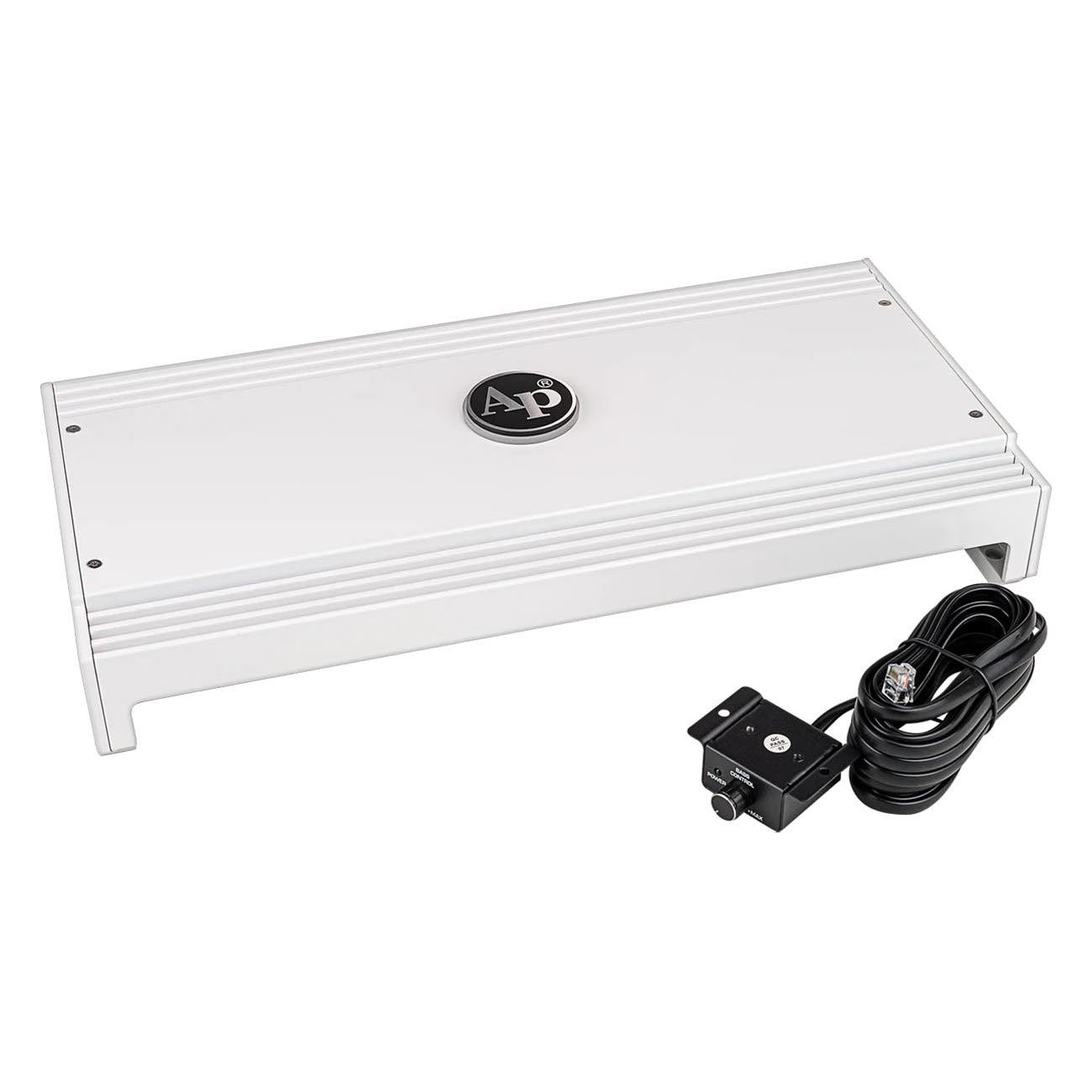

Audiopipe Marine 8 Channel Amplifier, 3200 Watts
150 x 8 @ 2 Ohms @ 139A
100 x 8 @ 4 Ohms @ 80A
300 x 4 @ 4 Ohms @ 139A Mono
Dim: 15.9” x 8.4” x 2.5”
Fuses: 4 x 30Amp
Class D
2 Ohm Stable
Output power (RMS) @1% 1Khz 14.4V
Frequency response: -3db – 10Hz~20KHz
HighPass: 30Hz – 300Hz 12dB / Octave
Low Pass: 30Hz – 300Hz 12dB / Octave
Bass boost: 0 – 12dB @ 27Hz – 110Hz
S/N Ratio (A wtg): >85dB
Input Sensitivity: 0.2V – 6V
Overvolt Protection: 16.5V
Under-voltage protection: 9V
RGB Logo Ring Illumination
Remote Bass Knob
