Audiopipe 5 Band Graphic Equalizer with Subwoofer Control & 15V Line Driver
5 Band Graphic Equalizer With Subwoofer Control
15V Line Driver
1/2 DIN Size

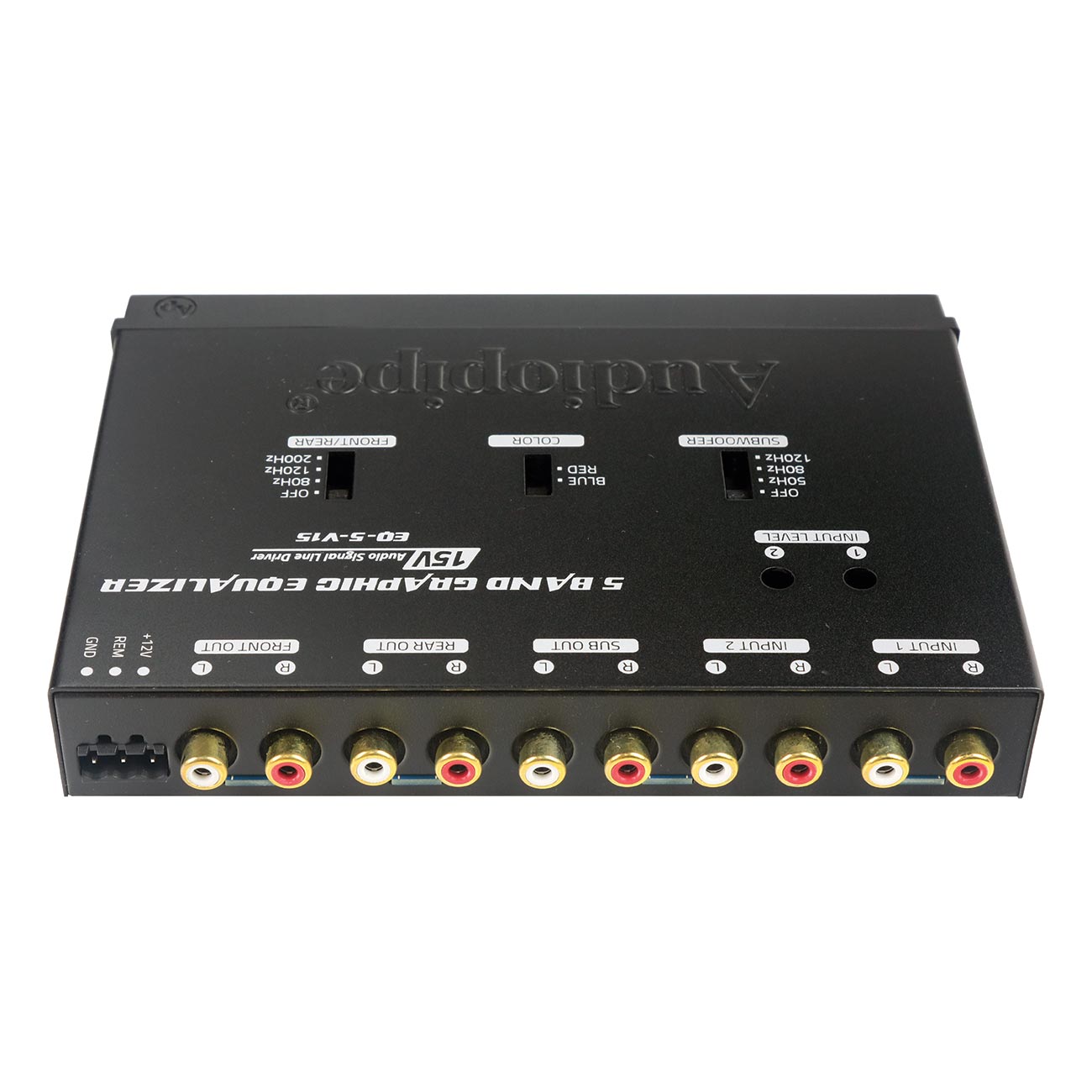

2 Channel RCA Inputs with Input Control
Preamp Outputs: Front/Rear/Sub
Boost/Cut: 12 dB
-3dB low pass frequency (Hz): 50/80/120
-3dB high pass frequency (Hz): 80/120/200
Low pass/High pass slope/oct (dB): 12
Equalization frequencies: 45/150/500/2.2k/12k
Frequency response (Hz) (-1dB): 10- 50k
Universal Half-din Chassis for Ease of Installation
Subwoofer Output And Level Controls
Gold-Plated RCA Input Connectors

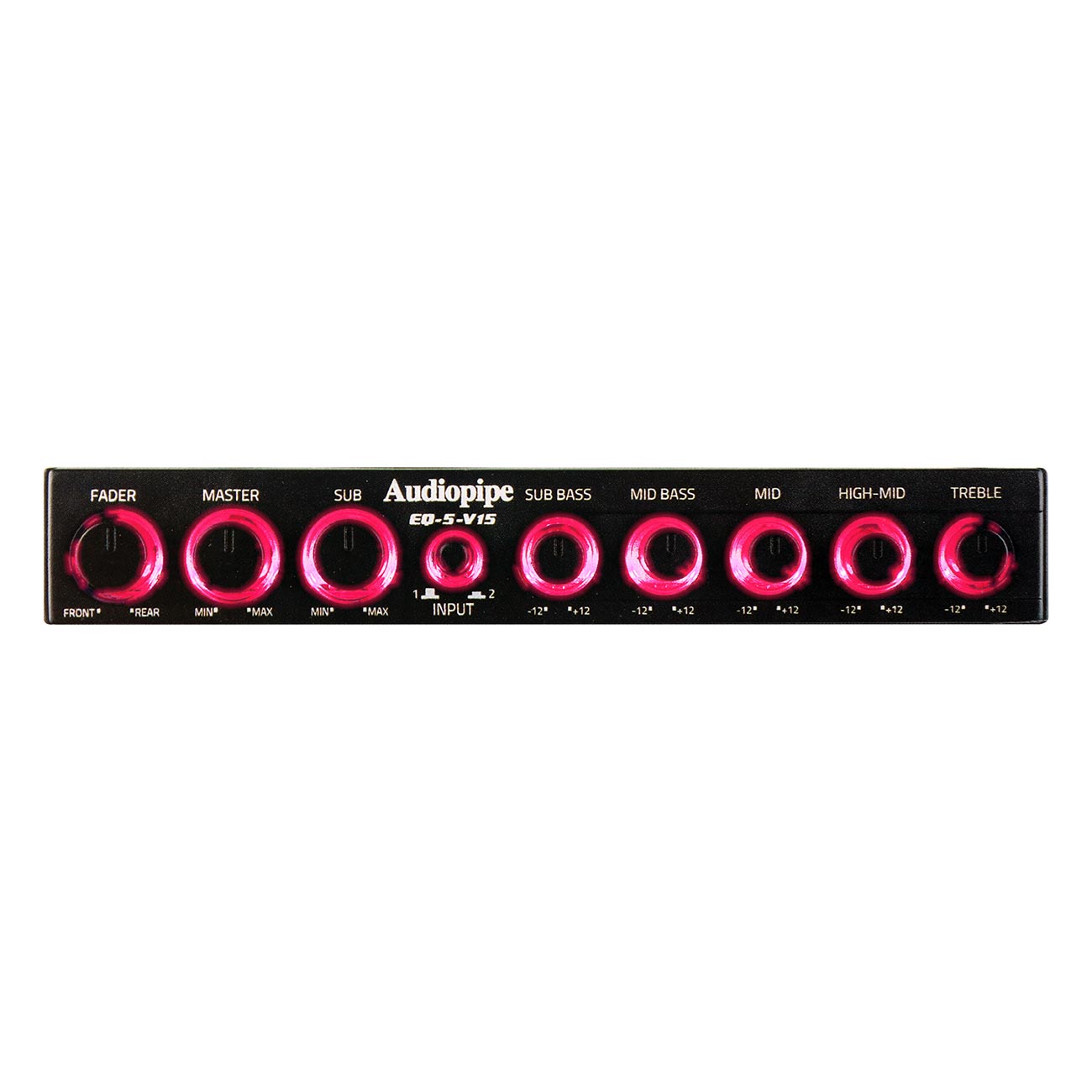

Fader, Volume & Sub Controls
Change the backlight illumination to Cool Blue or Hot Red
