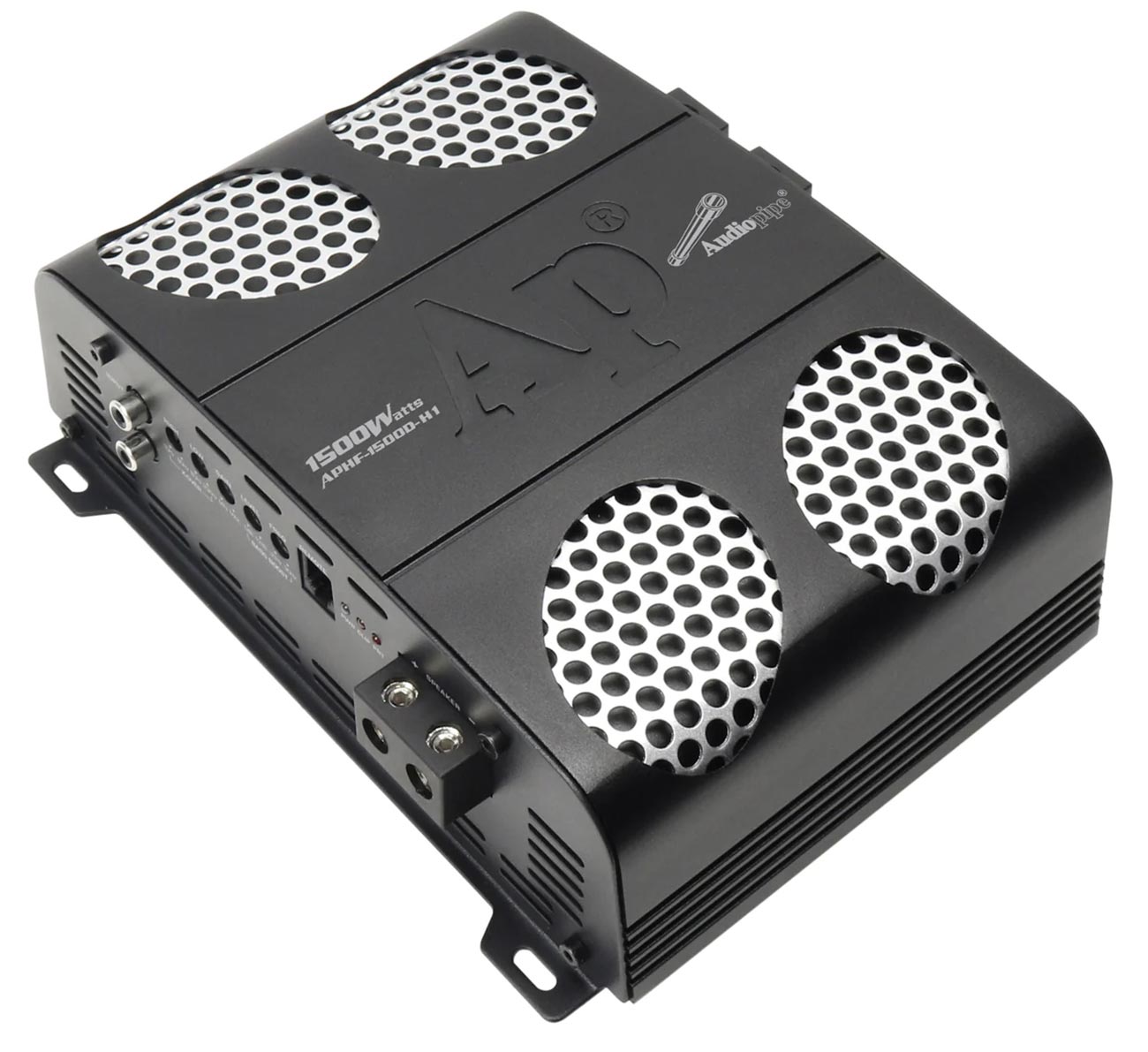

Audiopipe Full Range Class D Monoblock Amplifier, 1500 Watts
Output Power (RMS) @1% 1KHz: 14.4V
1600 x 1 @ 1 Ohm (160A)
1000 x 1 @ 2 Ohms (90A)
500 x 1 @ 4 Ohms (42A)
Dim (W x H x L) 9″ x 2.99″ x 5.9″
1 Ohm Stable
Class D
MOSFET Power Supply
Frequency Response: 10hz – 20 kHz
Input Sensitivity: 0.25v – 4.0v
Hi Pass Crossover: 10Hz – 80Hz (12dB/Oct)
Low Pass Crossover: 80Hz – 20kHz (12dB/Oct)
Bass Boost: 35Hz – 90Hz (0 – 12dB)

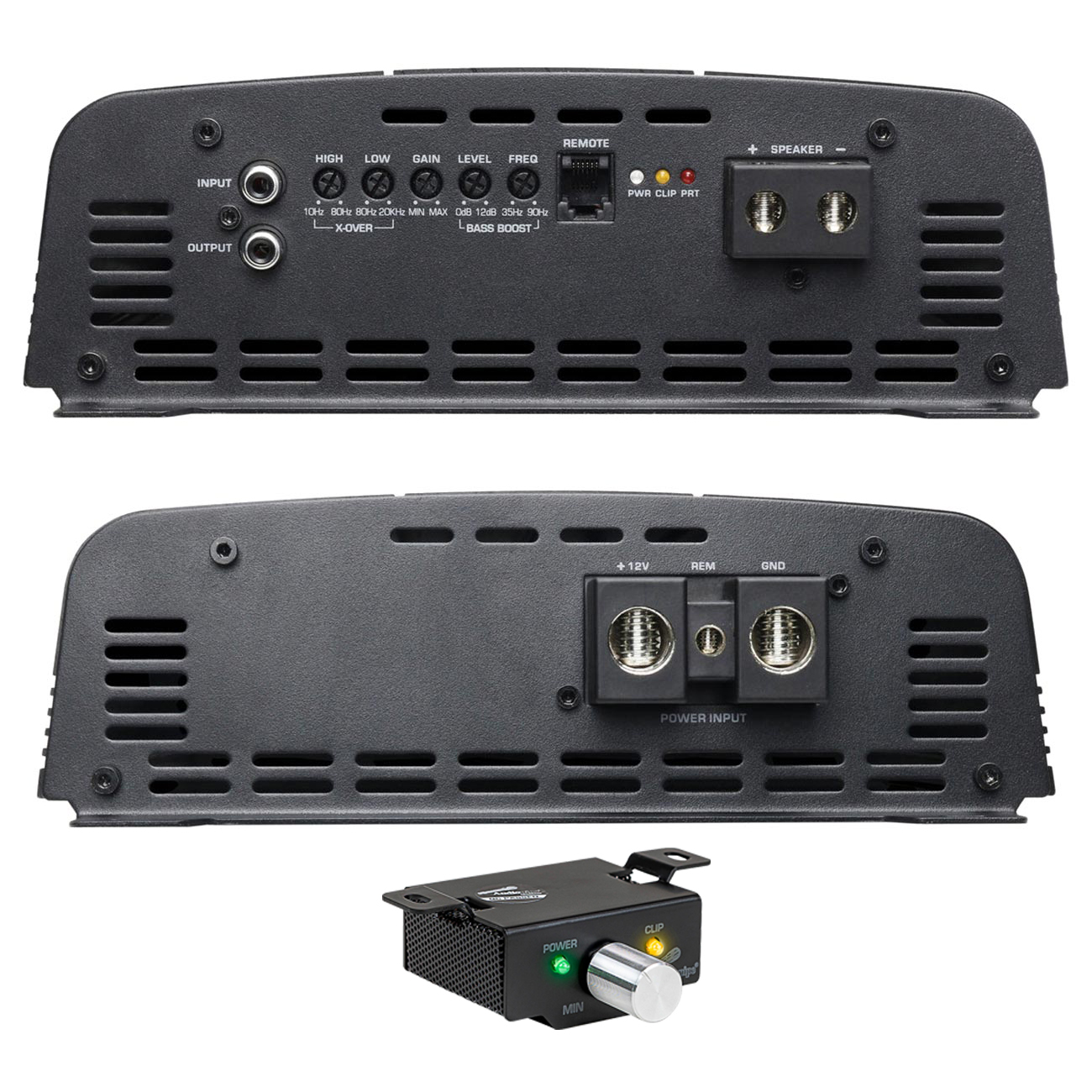

Low Level Input
Under/Over Voltage Protection
LED Clipping Indicator
LED Protection Indicator
RCA In/Output
Remote Bass Control
