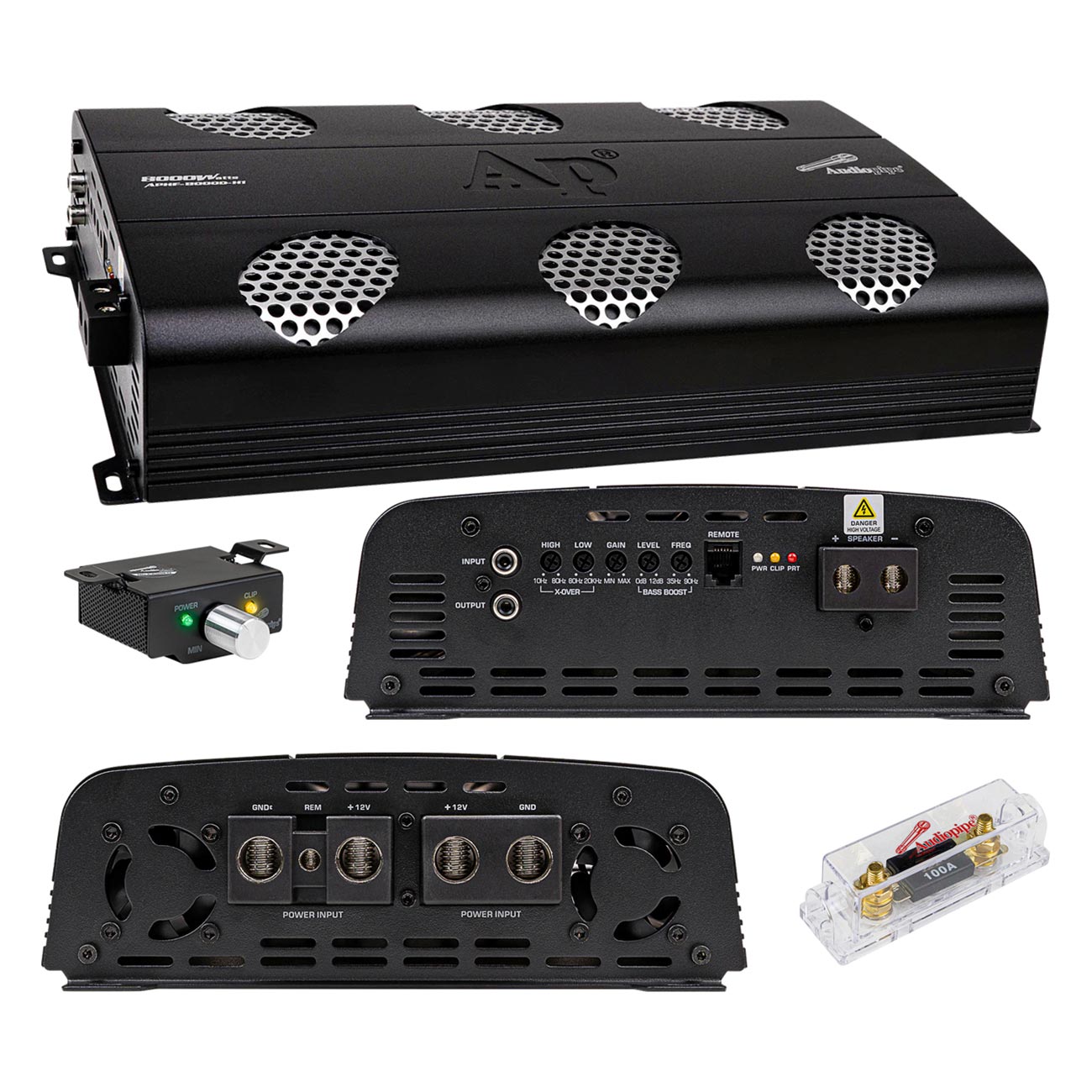

Audiopipe Full Range Class D Monoblock Amplifier, 8000 Watts
Output Power (RMS) @1% 1KHz: 14.4V
7600 x 1 @ 2 Ohms (760A)
4000 x 1 @ 4 Ohms (378A)
Dim (W x H x L) 9″ x 2.99″ x 13.7″
2 Ohm Stable
Class D
MOSFET Power Supply
Frequency Response: 10hz – 20 kHz
Input Sensitivity: 0.25v – 4.0v
Hi Pass Crossover: 10Hz – 80Hz (12dB/Oct)
Low Pass Crossover: 80Hz – 20kHz (12dB/Oct)
Bass Boost: 35Hz – 90Hz (0 – 12dB)
Low Level Input
Under/Over Voltage Protection
LED Clipping Indicator
LED Protection Indicator

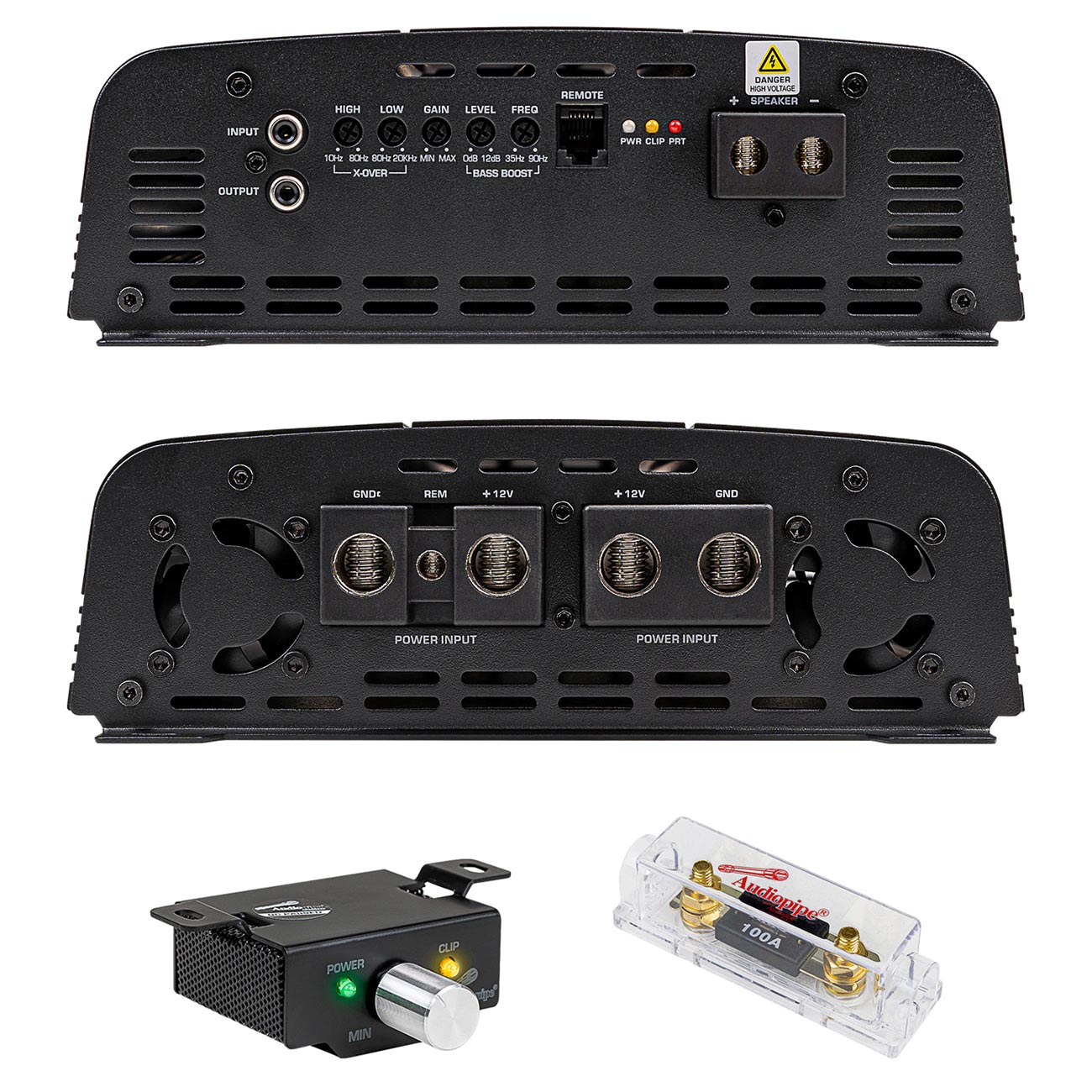

RCA In/Output
Fan Cooled
Remote Bass Control
