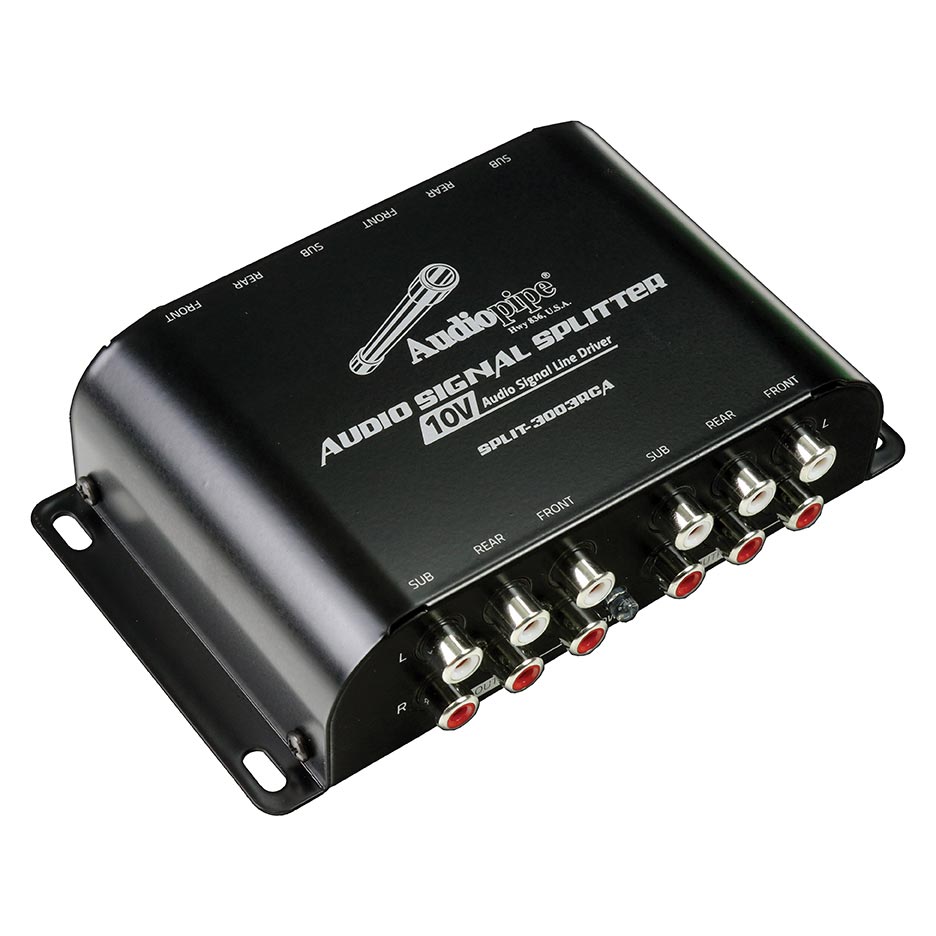

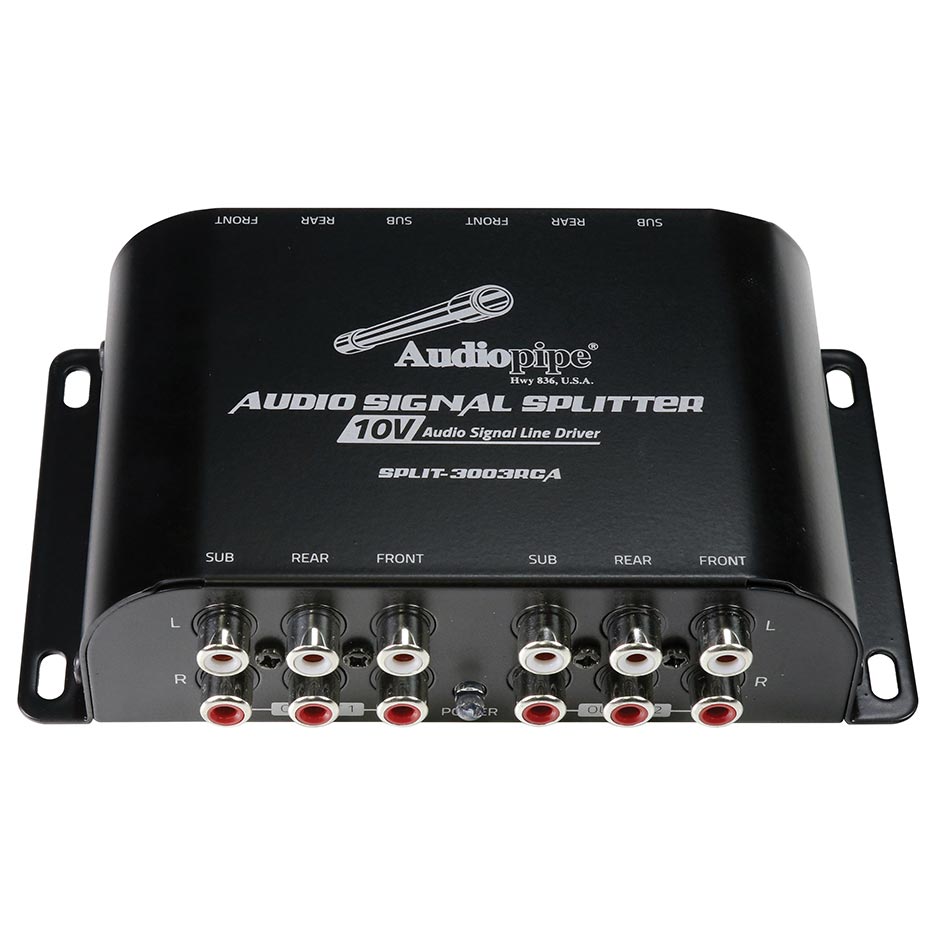

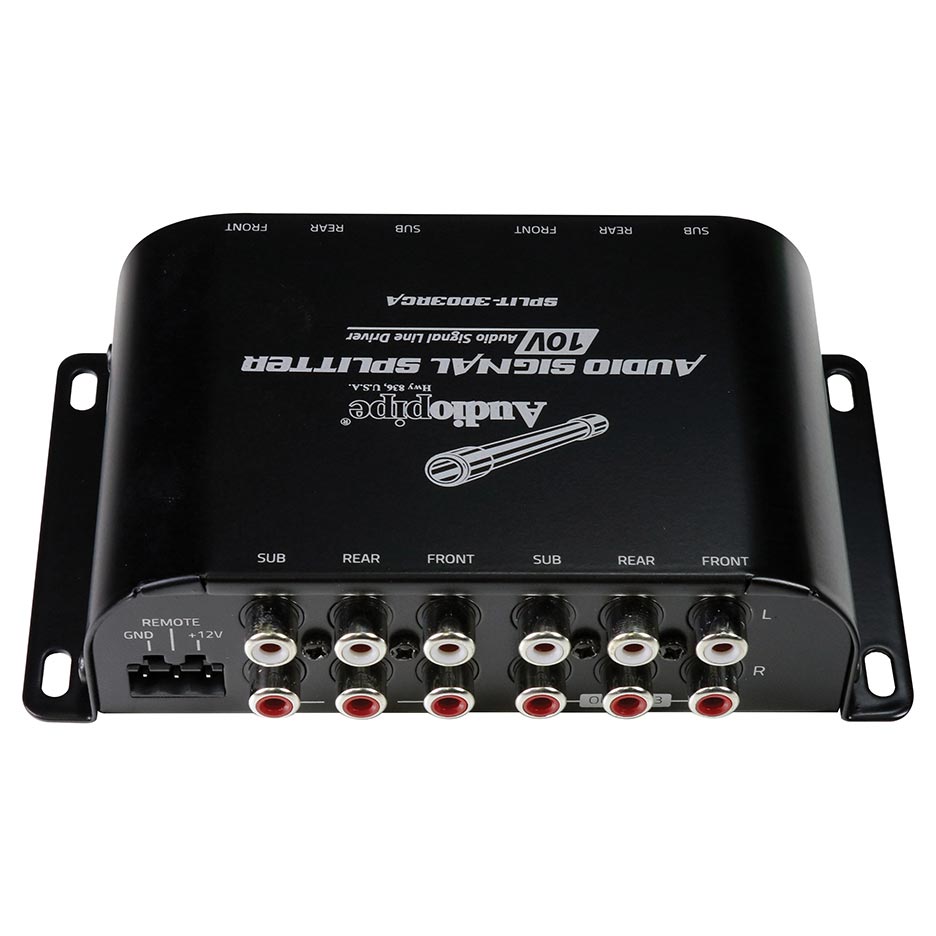

Audiopipe RCA 1 In /3 Out Splitter with 10V Audio Signal Line Driver
Split Audio without Losing Signal Quality

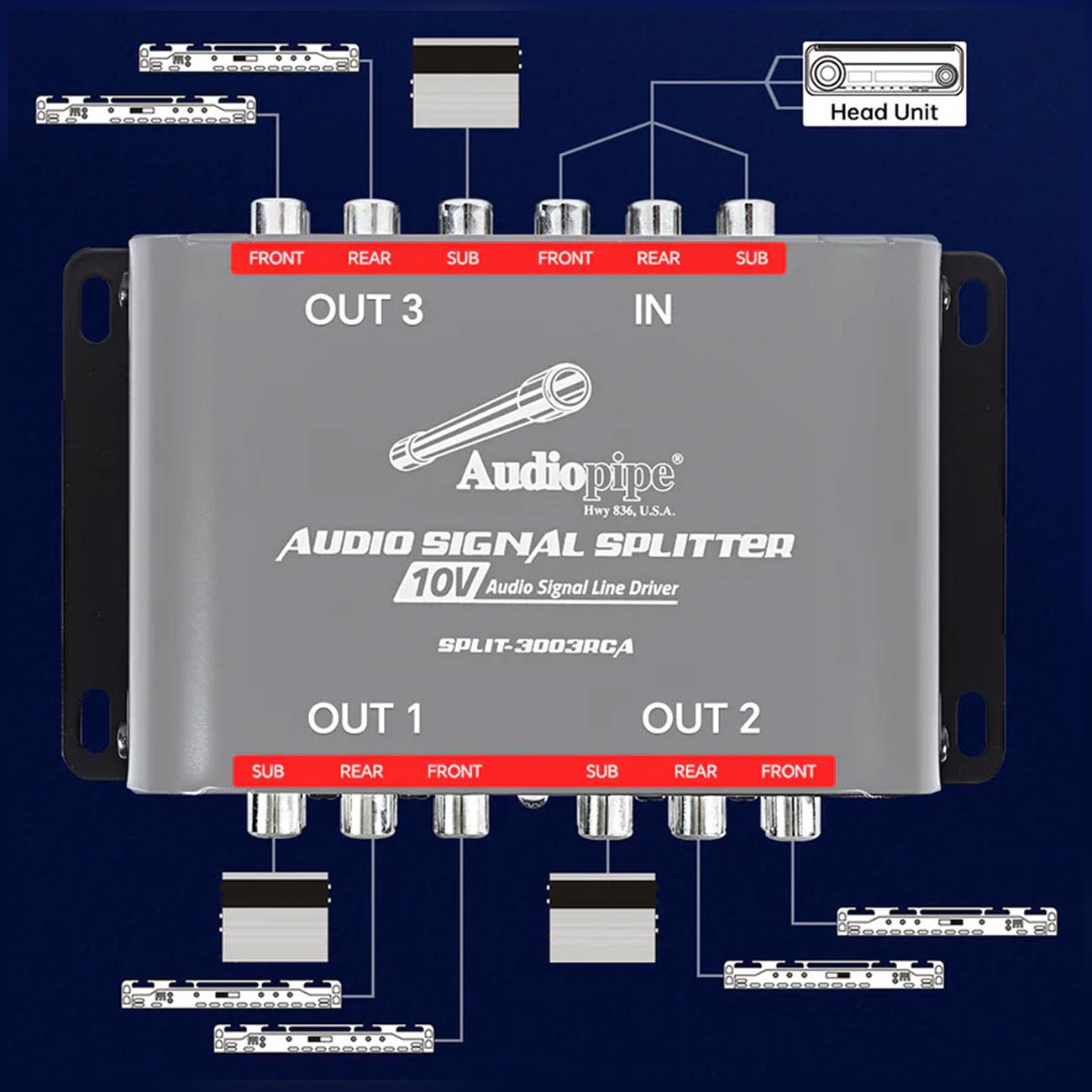

1 Preamp Input: Front/Rear/Sub
3 Preamp Outputs: Front/Rear/Sub
Built in 10V line driver

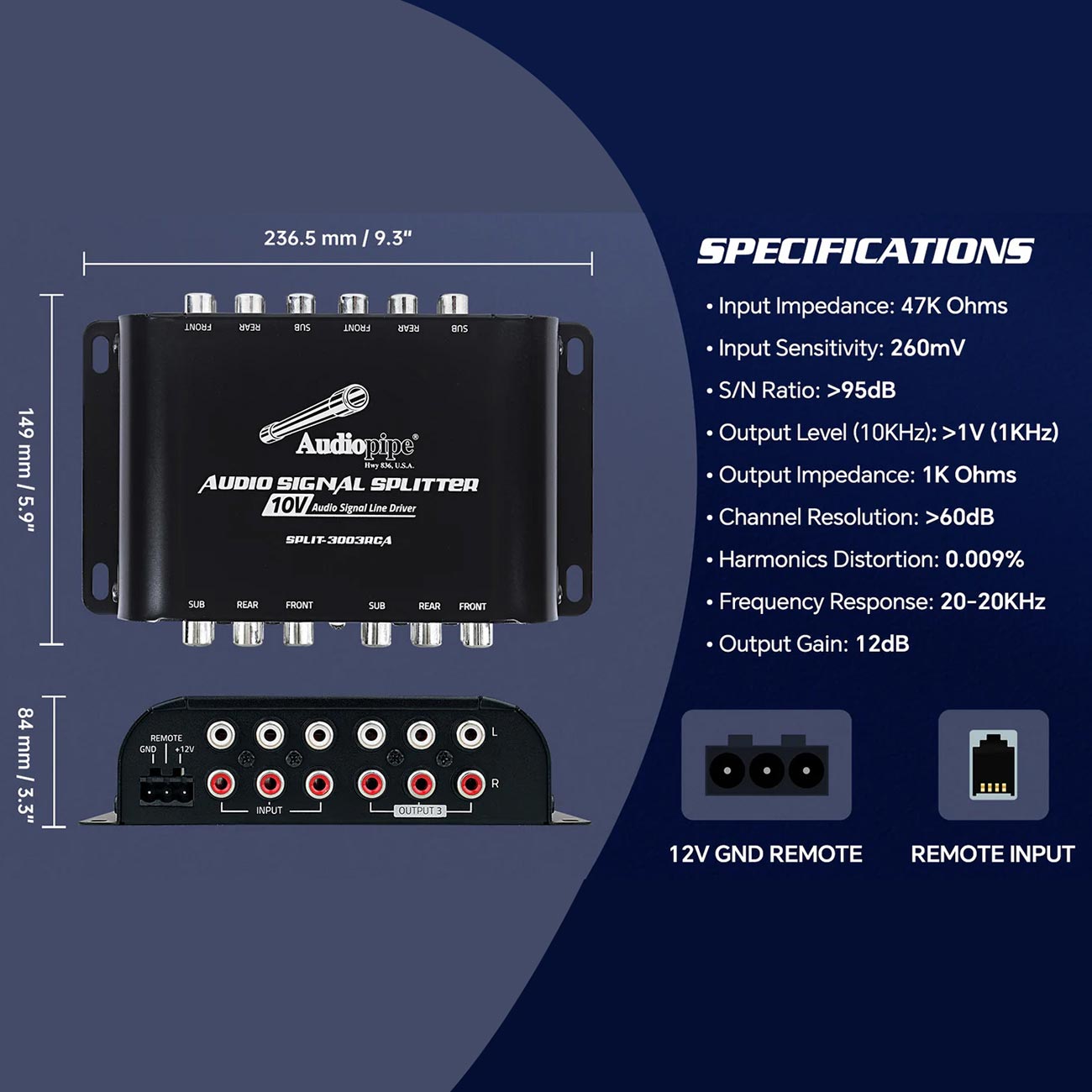

IMPEDANCE: 47K
Ohms INPUT SENSITIVITY: 260mV
S/N RATIO: >95dB
OUTPUT LEVEL (10KHz): >1V (1KHz)
OUTPUT IMPEDANCE: 1K
Ohms CHANNEL RESOLUTION: >60dB
HARMONICS DISTORTION: 0.009 %
FREQUENCY RESPONSE: 20Hz – 20KHz
OUTPUT GAIN: 12Db
6″L X 3 1/4″W X 1 3/4″H
