Banda Monoblock Amplifier, 3000W RMS
3900 x 1 Watts RMS @ 1 Ohm (14.4V)
2900 x 1 Watts RMS @ 2 Ohms (14.4V)
3000 x 1 Watts RMS @ 1 Ohm (12.6V)
2300 x 1 Watts RMS @ 2 Ohms (12.6V)
Recommended Fuse: 150A (Not Included)
(W x H x L) 8.3″ x 2.2″ x 9.6″
Full Range Class D
1 Ohm Stable
Frequency Response: 20Hz – 20Khz (-3dBs)

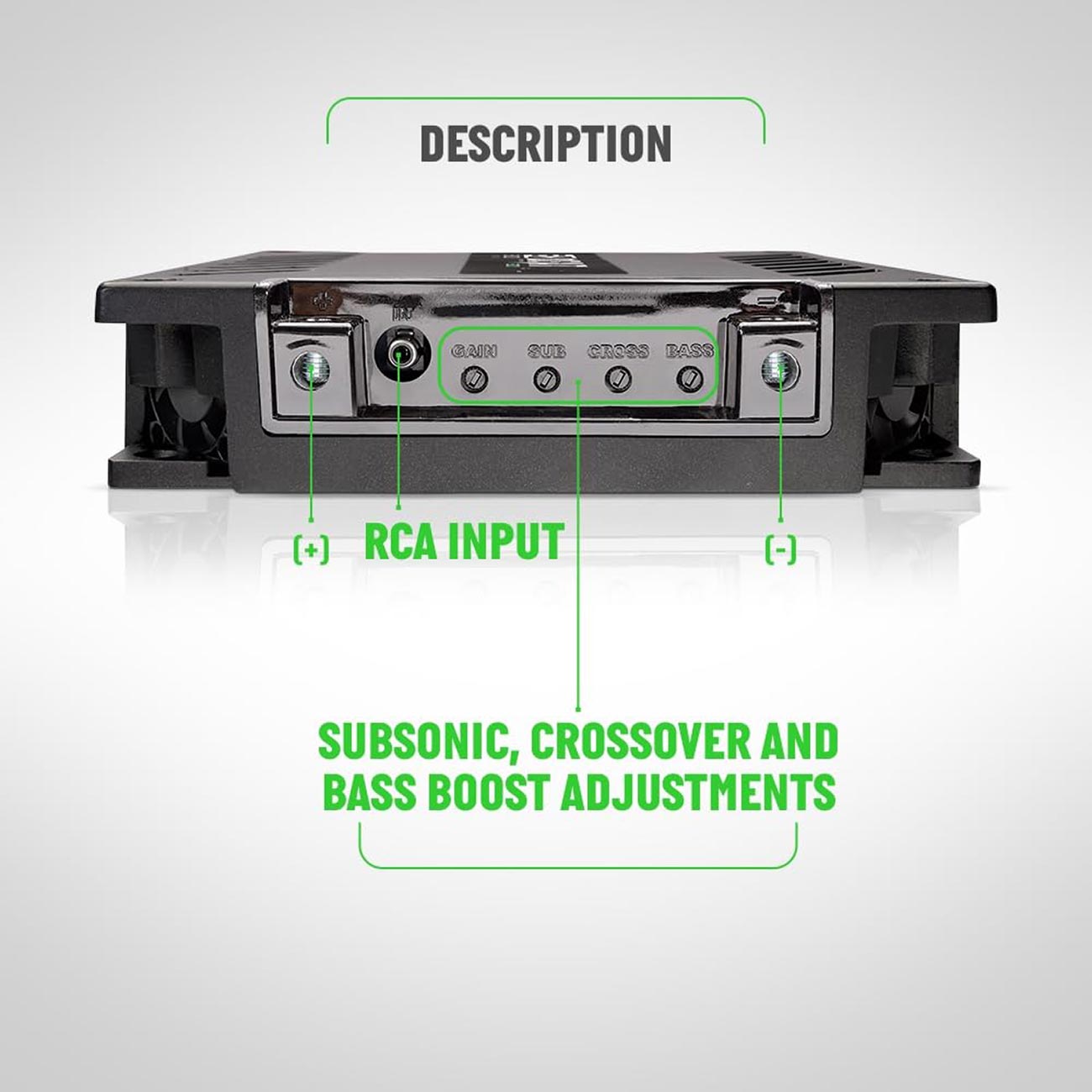

High Pass Crossover: 20Hz – 80Hz @ 12dB/Oct Linkwitz-Riley
Low Pass Crossover: 80Hz – 20kHz @ 12dB/Oct Linkwitz-Riley
Bass Boost: @45Hz
Efficiency @ 1 Ohm: 71%
Efficiency @ 2 Ohms: 78%
Input Voltage: 9 – 15V
Input Impedance: 100K Ohms
THD maximum power: < 0.10%
Input Sensitivity: 110mV – 4V
Signal to Noise Ratio: 80dB

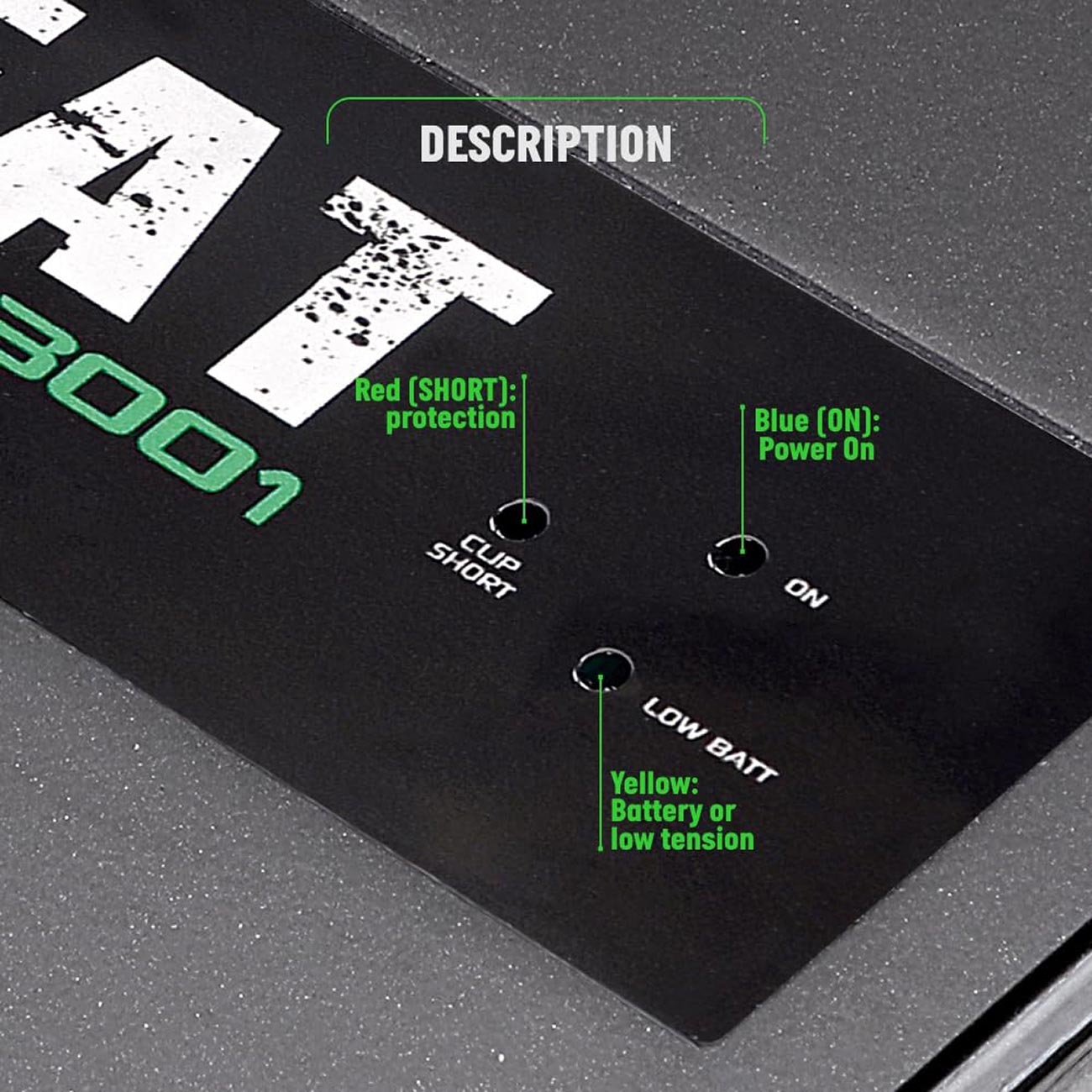

Power, Clipping, Protect & Low Battery LED Indicators
