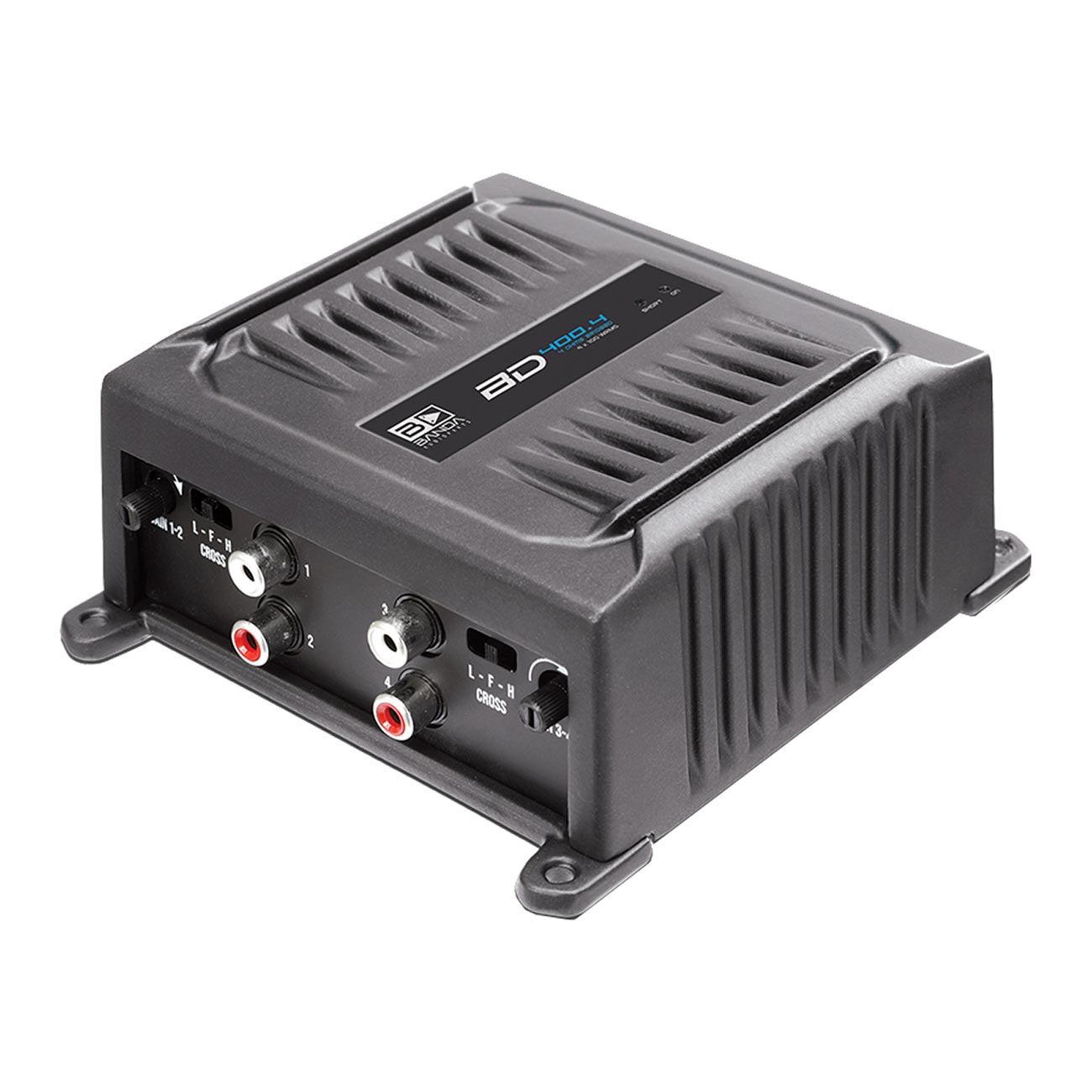

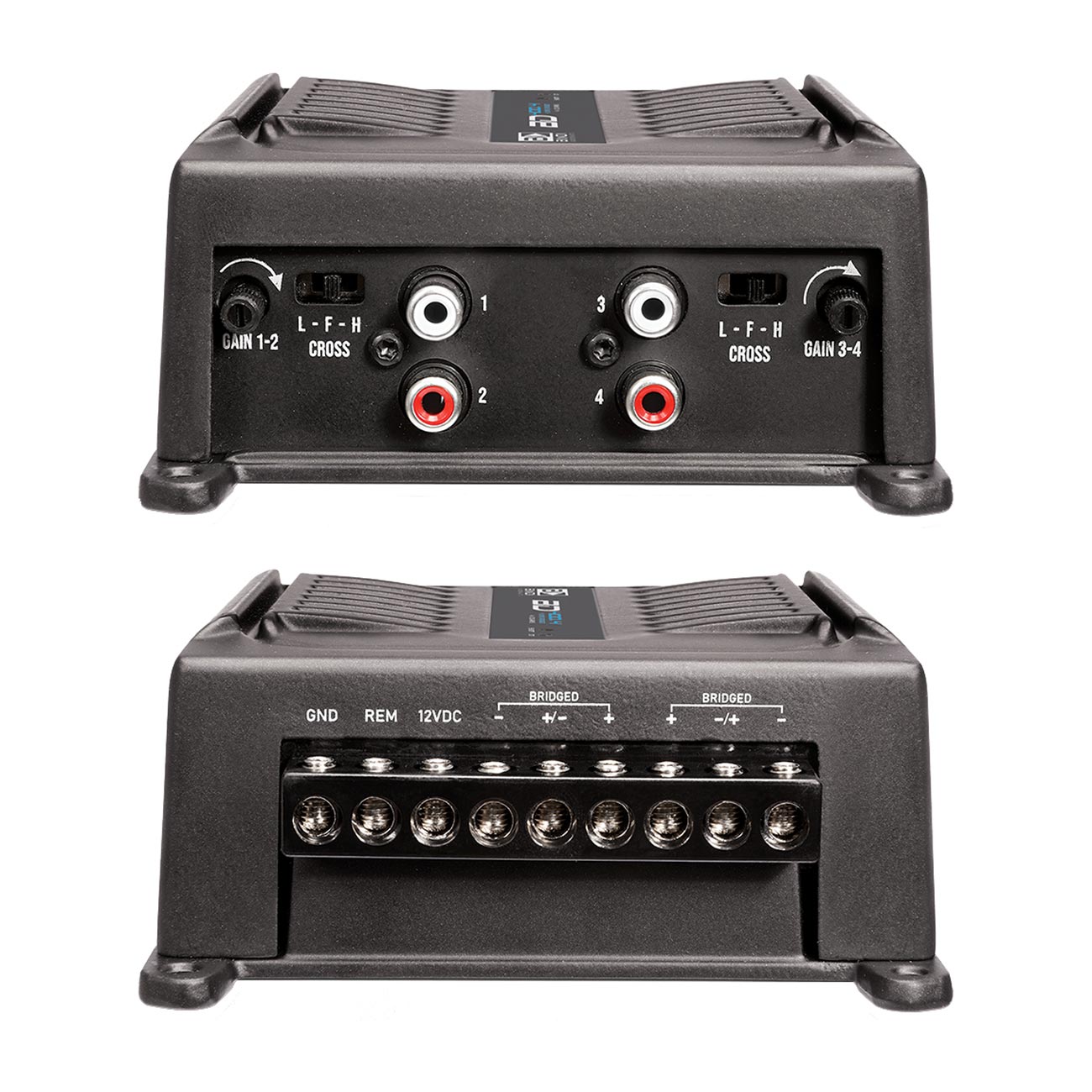

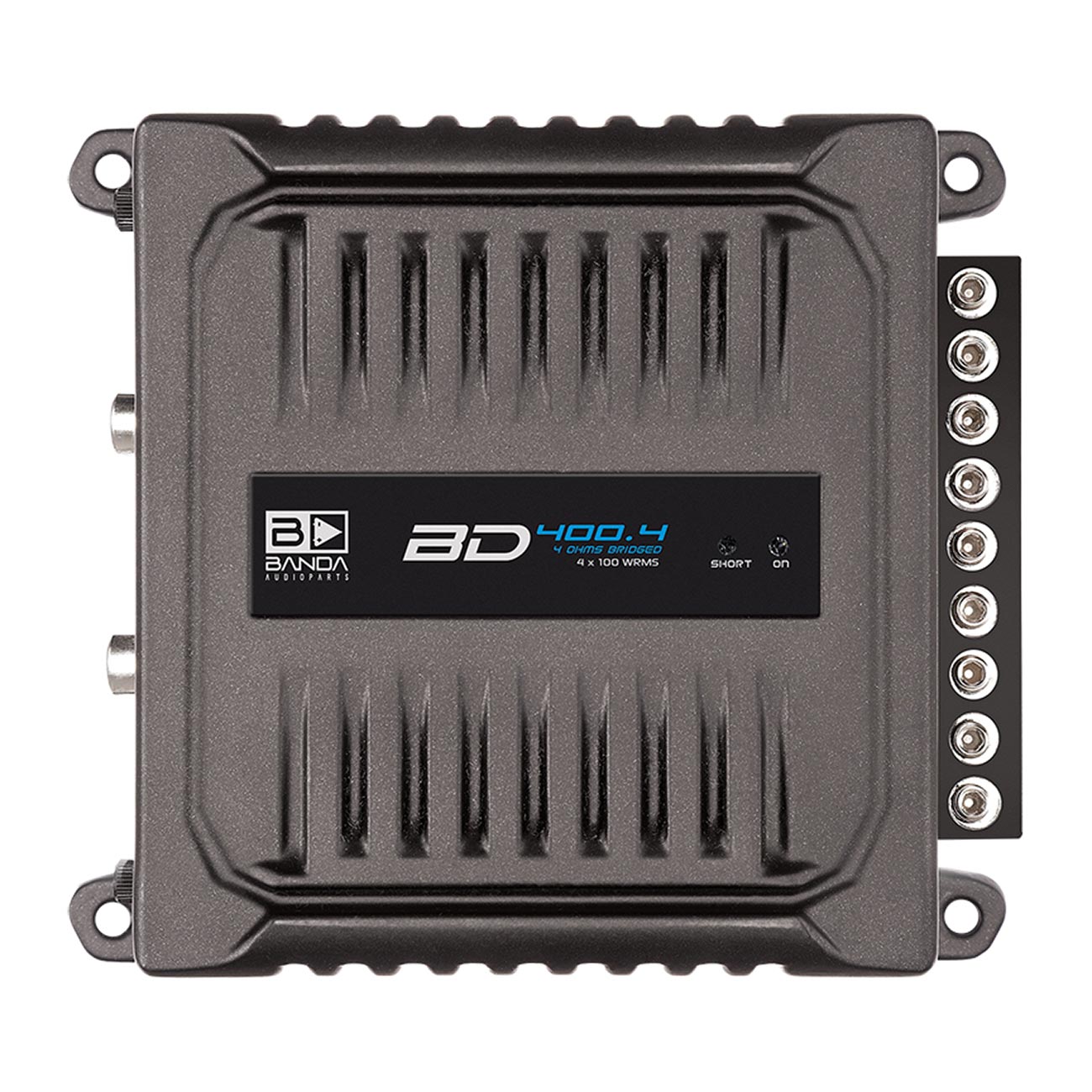

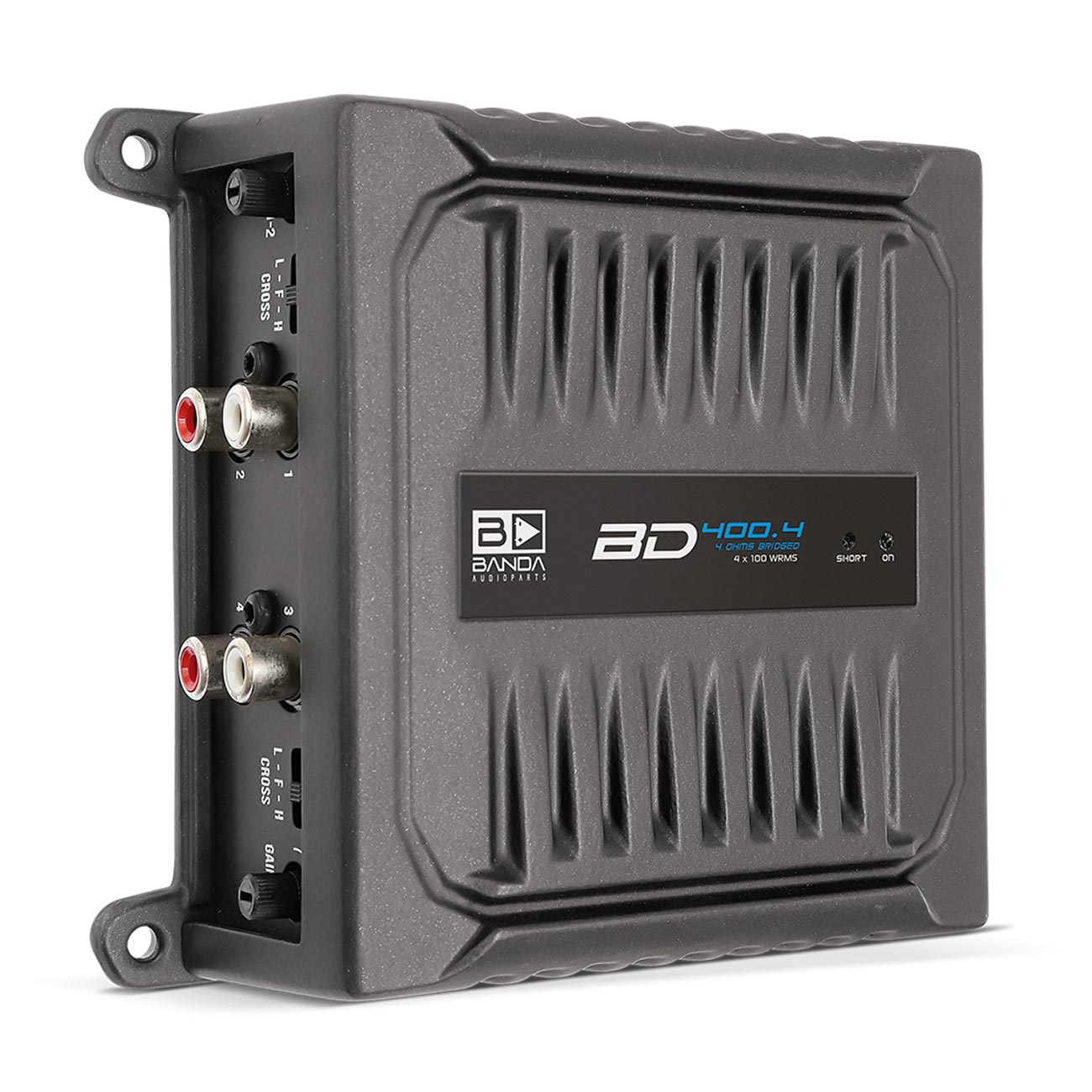

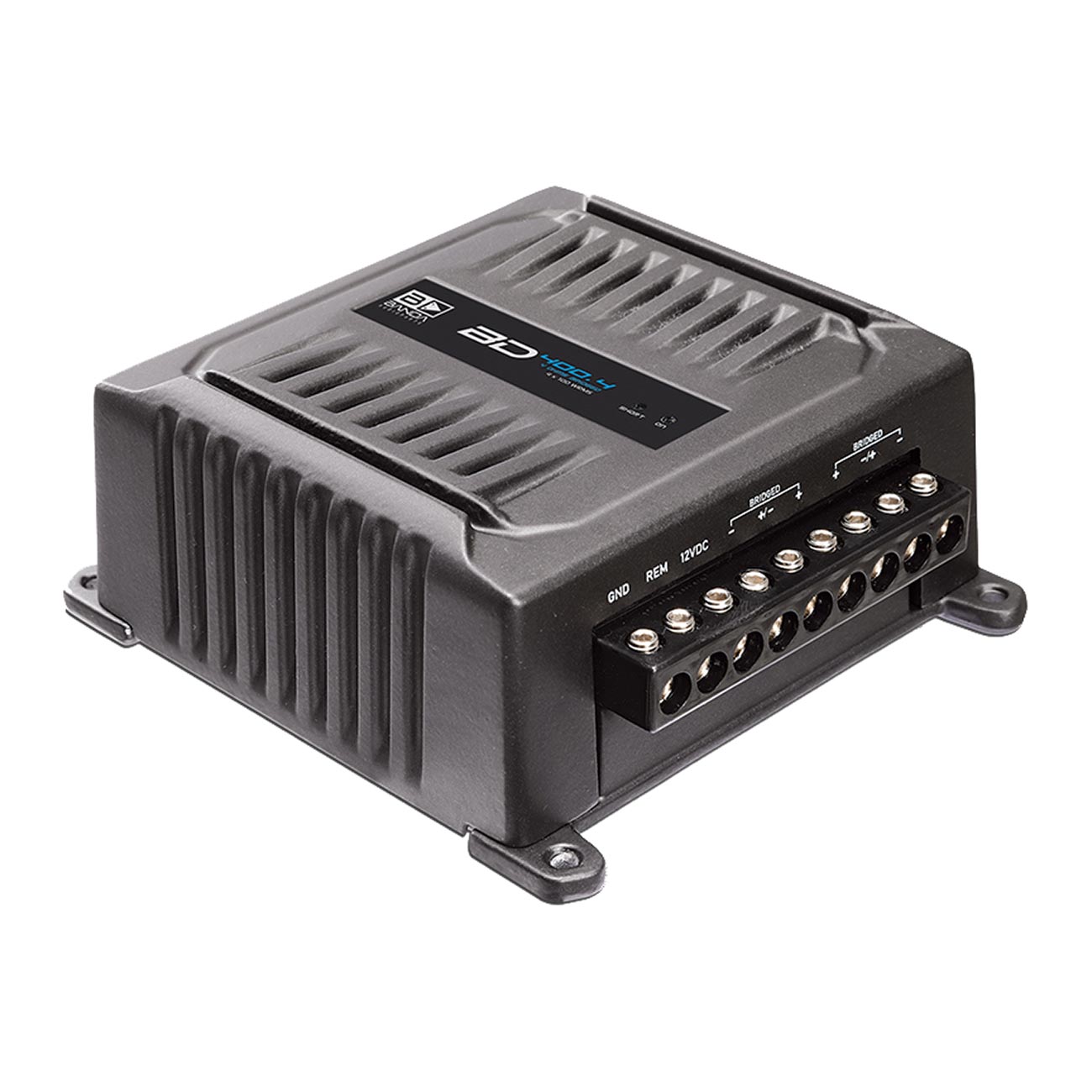

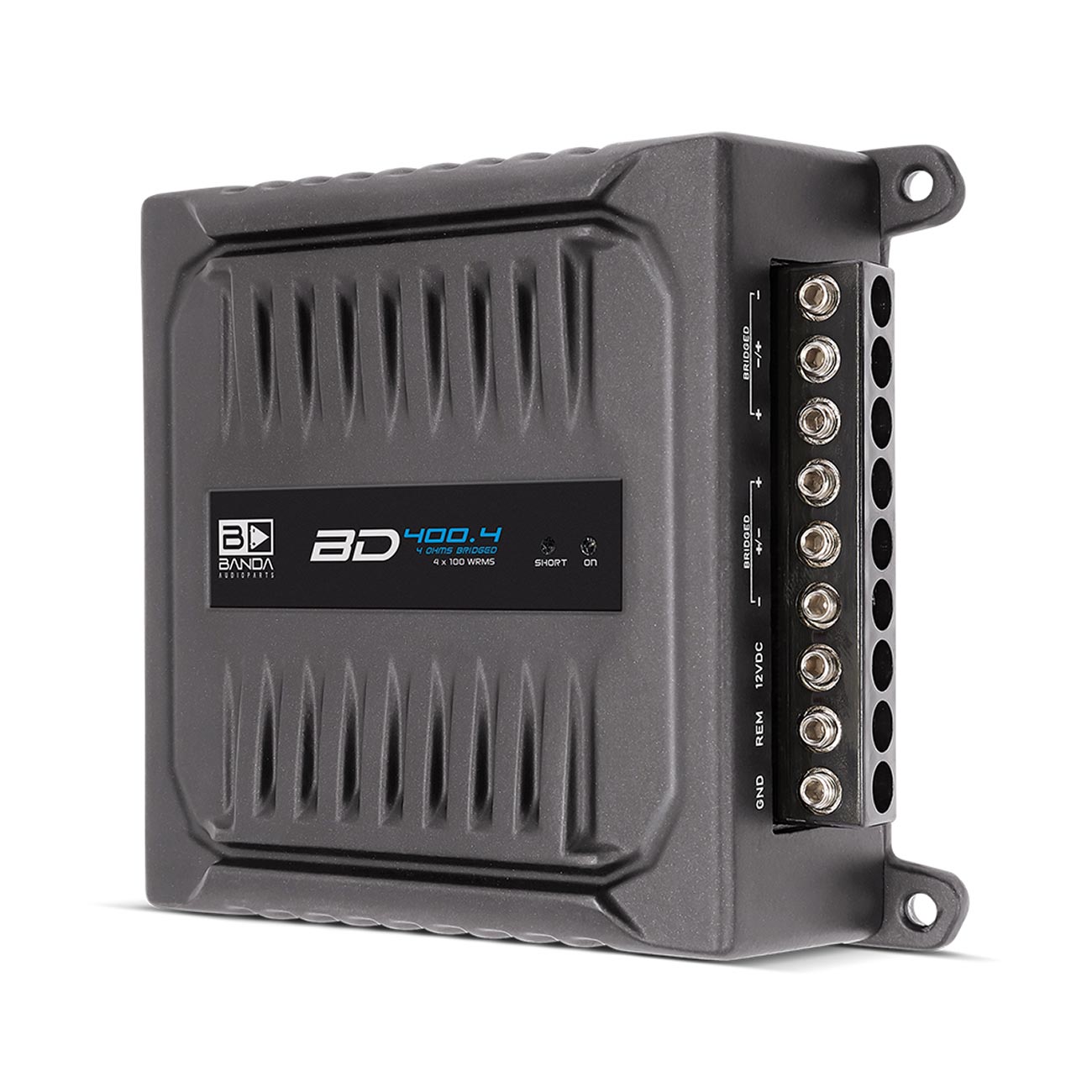

Banda Compact 4 Channel Amplifier, 400W RMS
140 x 4 Watts RMS @ 2 Ohms (14.4V)
85 x 4 Watts RMS @ 4 Ohms (14.4V)
280 x 2 Watts RMS @ 4 Ohms (14.4V) (Bridged)
100 x 4 Watts RMS @ 2 Ohms (12.6V)
65 x 4 Watts RMS @ 4 Ohms (12.6V)
200 x 2 Watts RMS @ 4 Ohms (12.6V) (Bridged)
Recommended Fuse: 30A (Not Included)
(W x H x L) 4.6″ x 2.1″ x 5″
Full Range Class D
2 Ohm Stable
Frequency Response: 20Hz – 20Khz (-3dBs)
Low Pass Crossover: 20Hz – 90Hz @ 12dB/Oct Linkwitz-Riley
High Pass Crossover: 90Hz – 20kHz @ 12dB/Oct Linkwitz-Riley
Efficiency @ 2 Ohms: 82%
Efficiency @ 4 Ohms: 87%
Input Voltage: 9 – 16V
Input Impedance: 47K Ohms
THD maximum power: < 1%
Input Sensitivity: 180mV – 3.4V
Signal to Noise Ratio: 85dB
Power & Protect LED Indicators
