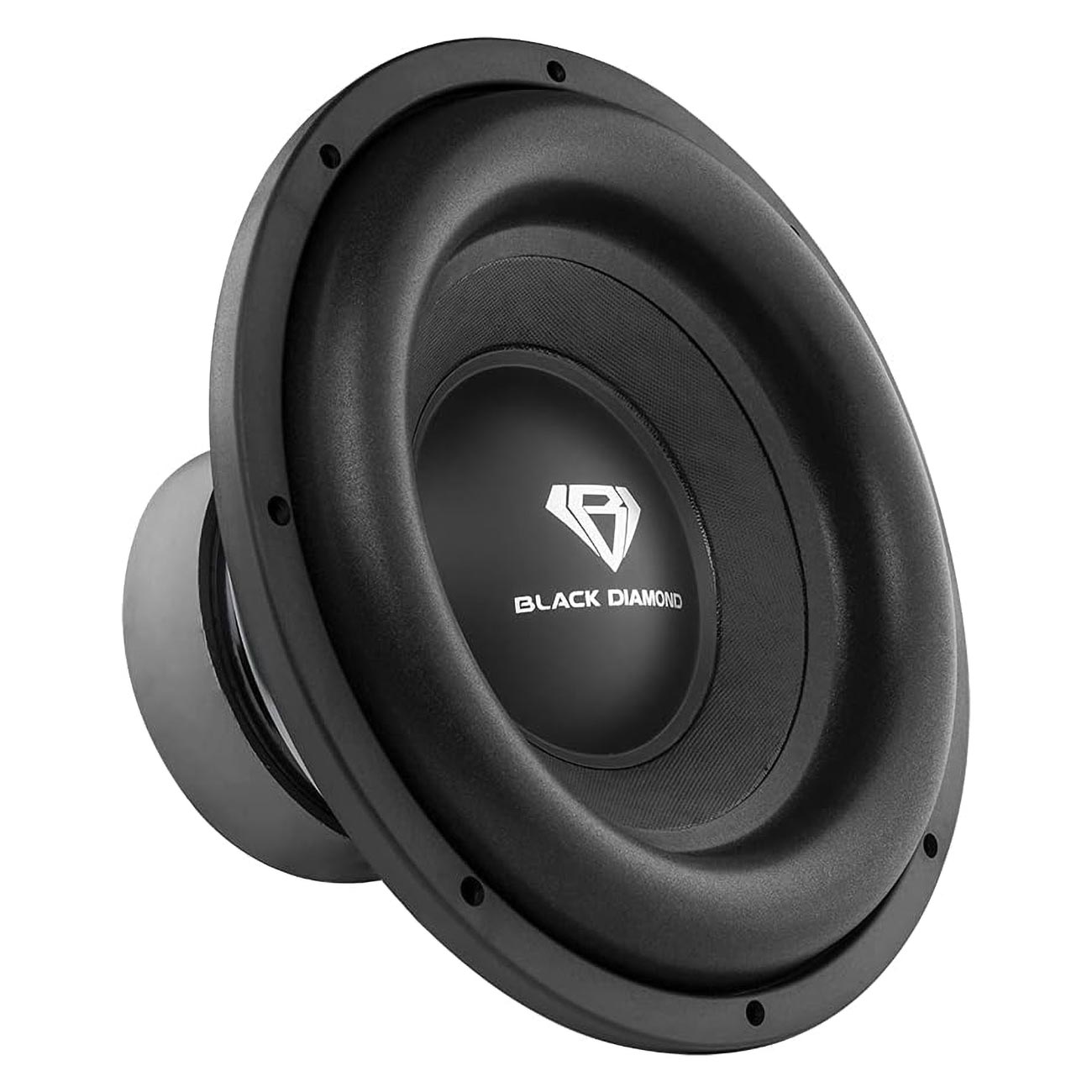

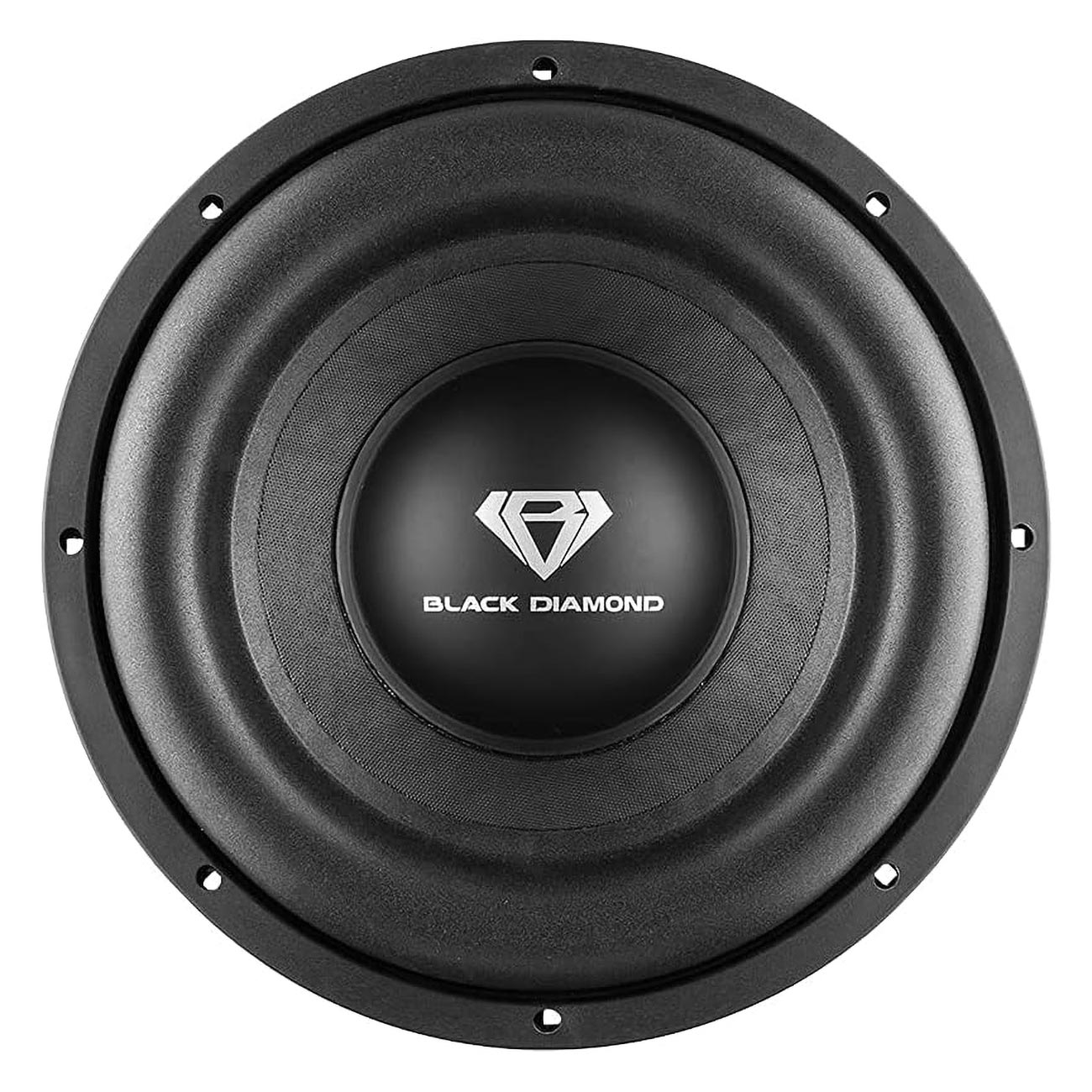

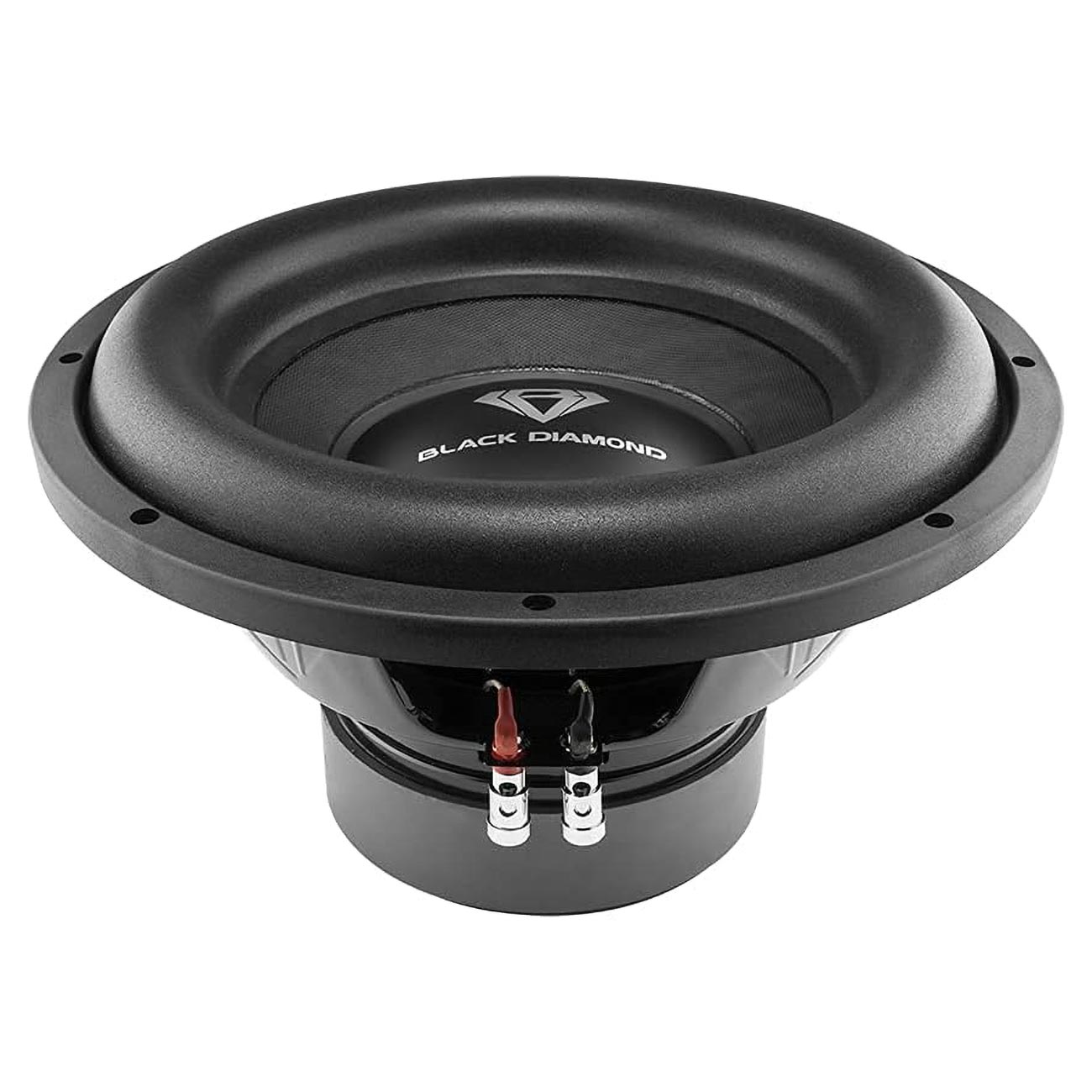

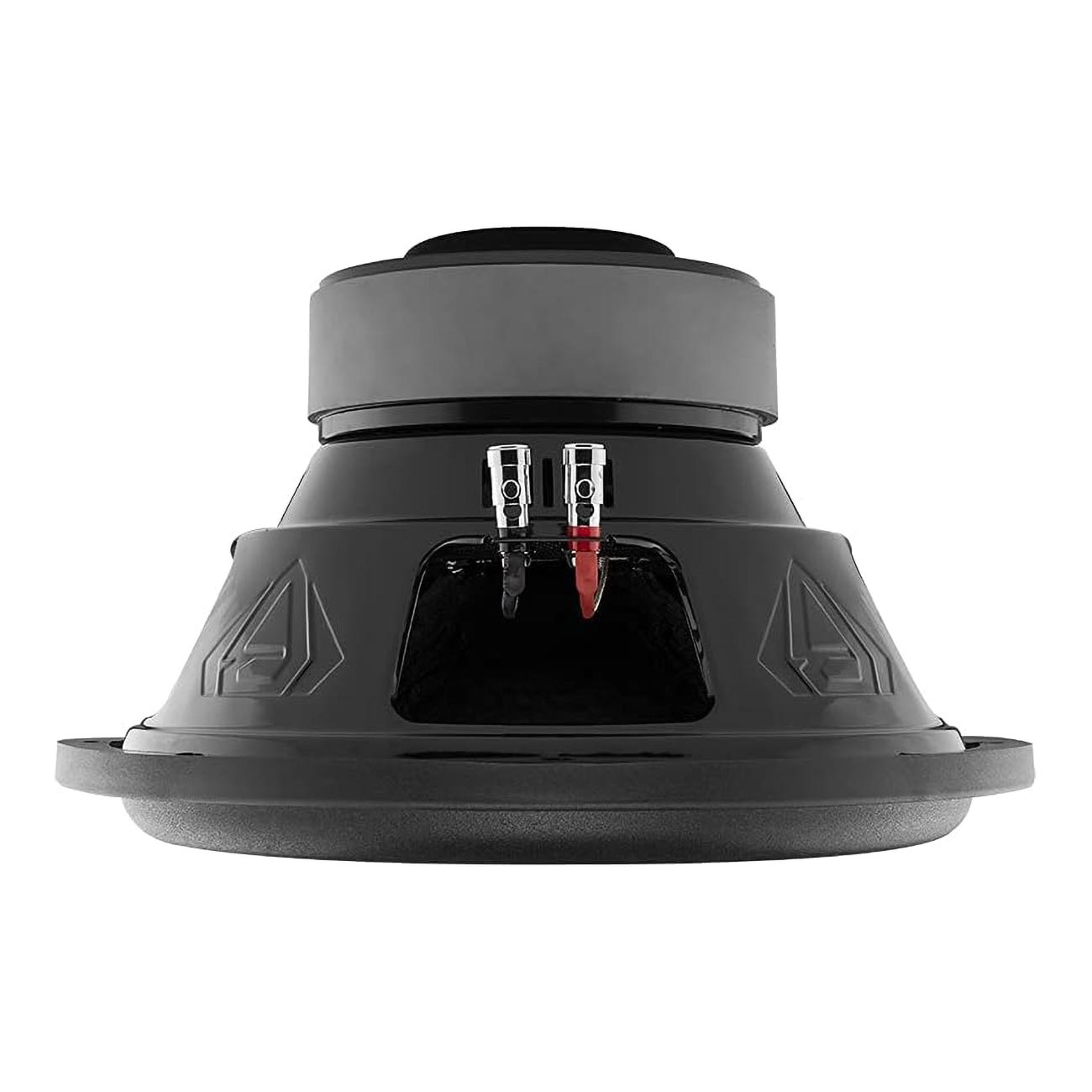

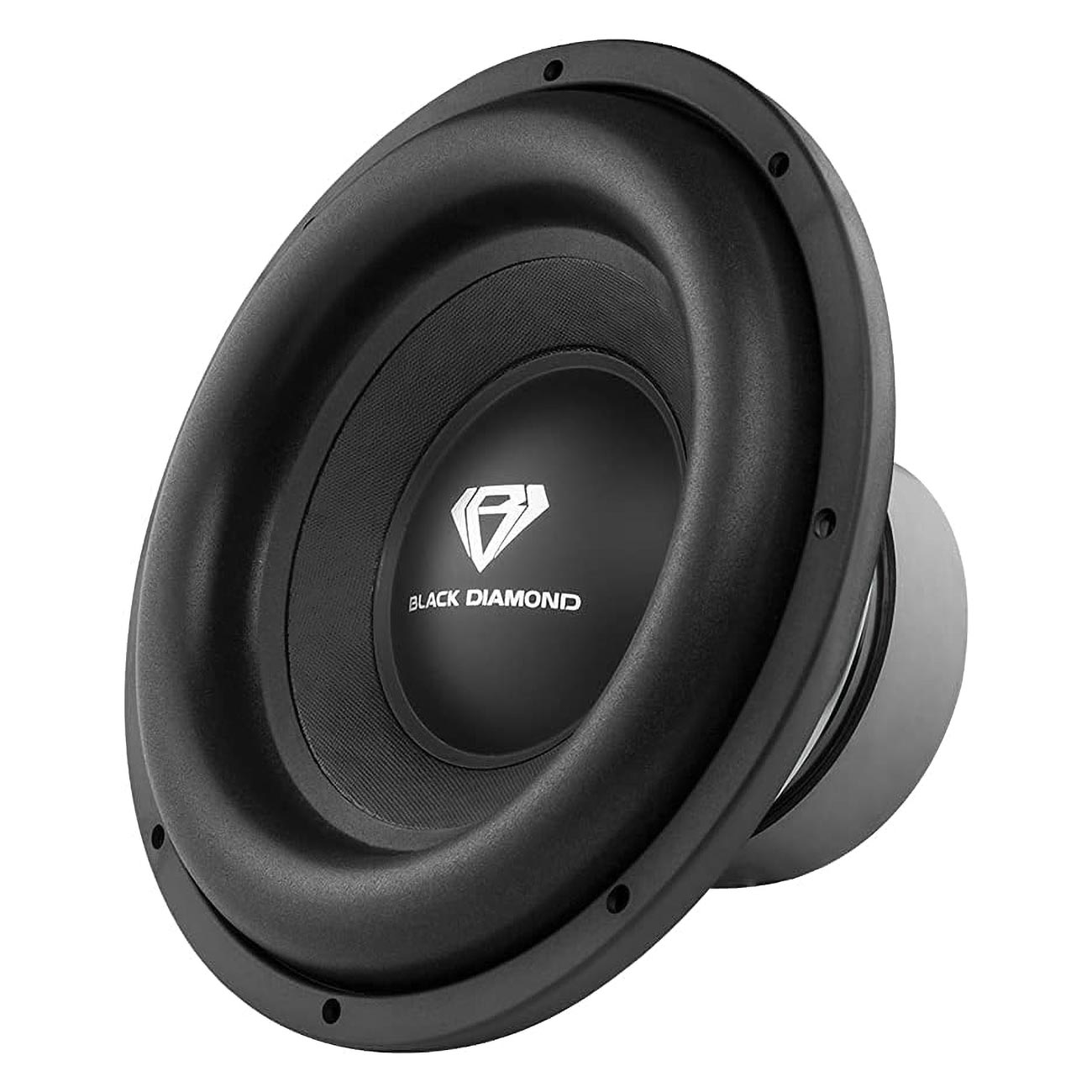

Black Diamond 12″ Woofer, 600W RMS/1200W Max, Dual 2 Ohm Voice Coil (Sold Individually)
600 Watts RMS/1200 Watts MAX
Dual 2 Ohm Voice Coil
Recommended Hi Pass Crossover: 1KHz
Mounting Depth: 6.6″
Sensitivity: (1w/1m): 85.5 dB
Frequency Response: 20 Hz – 300 Hz
Voice Coil Diameter: 2.5″ / 63.5mm
Voice Coil Former Material: Aluminum
Winding Material: CCAW
Cone Material: Paper
Dust Cap: Paper
Surround Material: Foam
Basket Material: Steel
Basket Color: Black
Magnet Material: Ferrite
Magnet Weight: 100 oz
Displacement Volume: 1.90 L
Recommended Enclosures:
Sealed Internal Volume: 28.3L / 1ft3
Sealed Box Output Response: F3 45Hz
Ported Internal Volume: 56.6L / 2ft3
Port Size – Square (W x H x L): 1.18″x12.6″x14.17″
Port Tunning Frequency: Fb 32Hz
Ported Box Output Response: F3 27Hz
