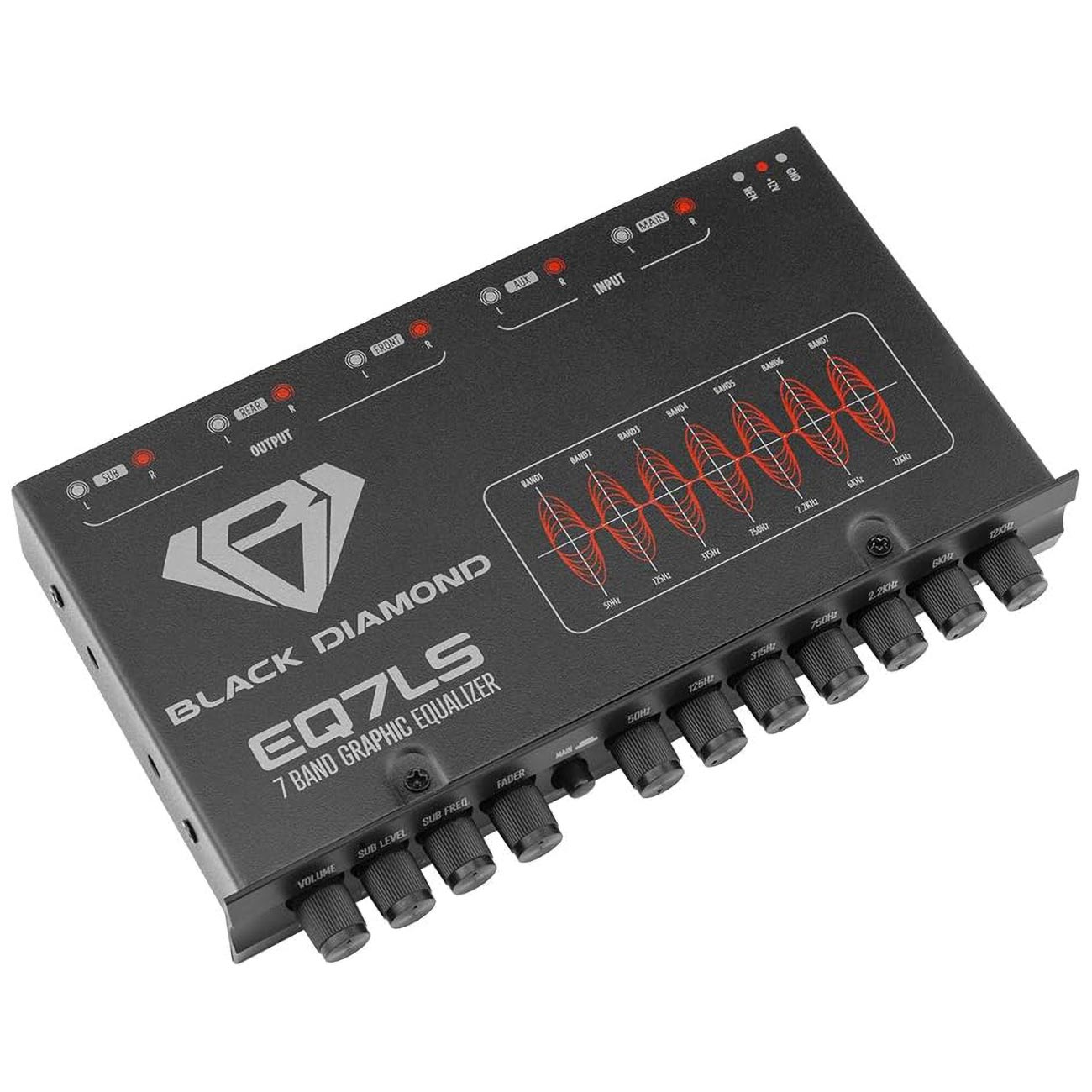

Black Diamond Half DIN 7 Band Equalizer

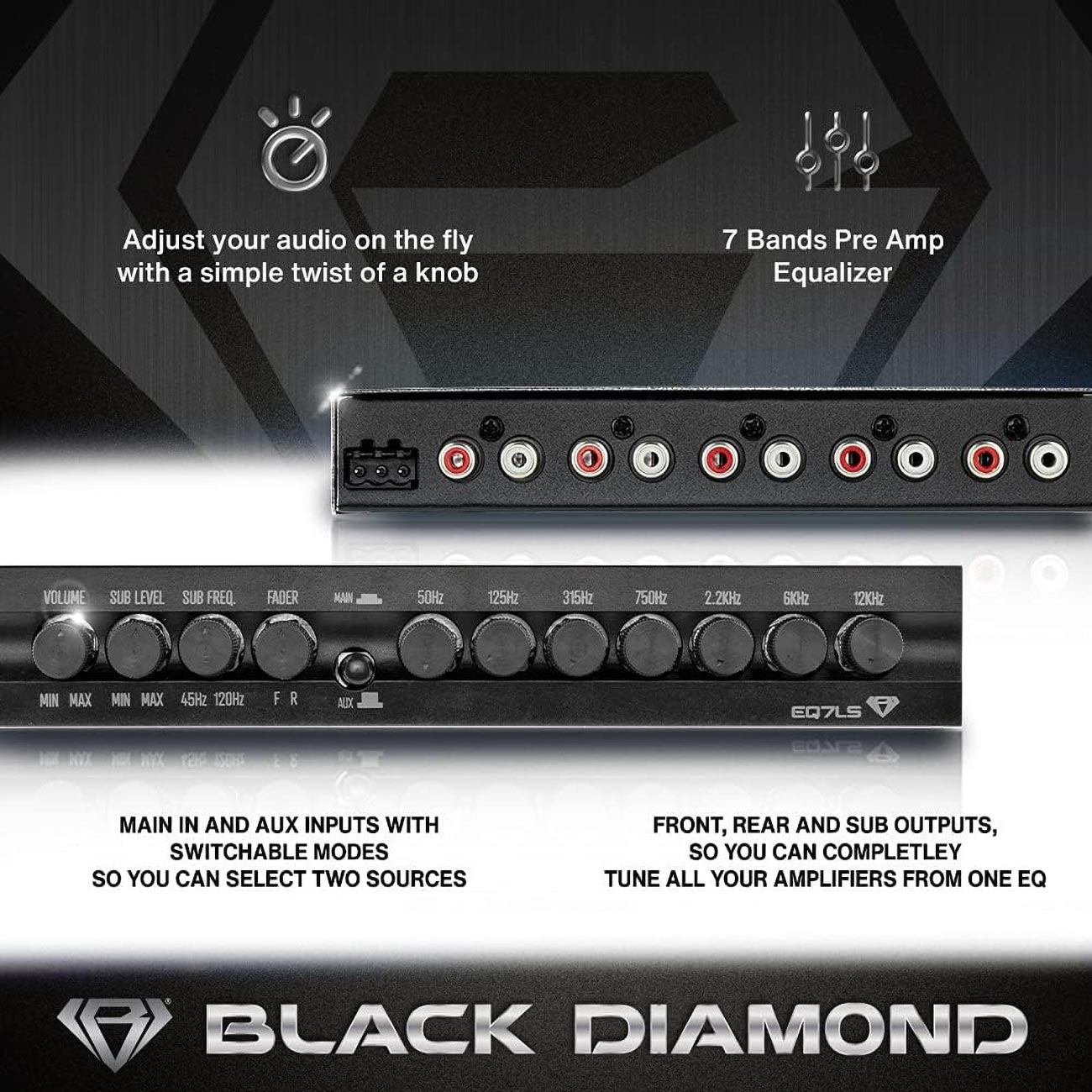

7 band Equalizer (50hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz and 12kHz) with a cut / boost of 12dB
Subwoofer section with adjustable LPF crossover from 45Hz to 120Hz at 12dB / oct.
Hi-Volt Output (Front & Rear: 5 Volt /Subwoofer: 8 Volts)
Separate volume controls for main and subwoofer
Fader knob to easy Front and Rear output selection

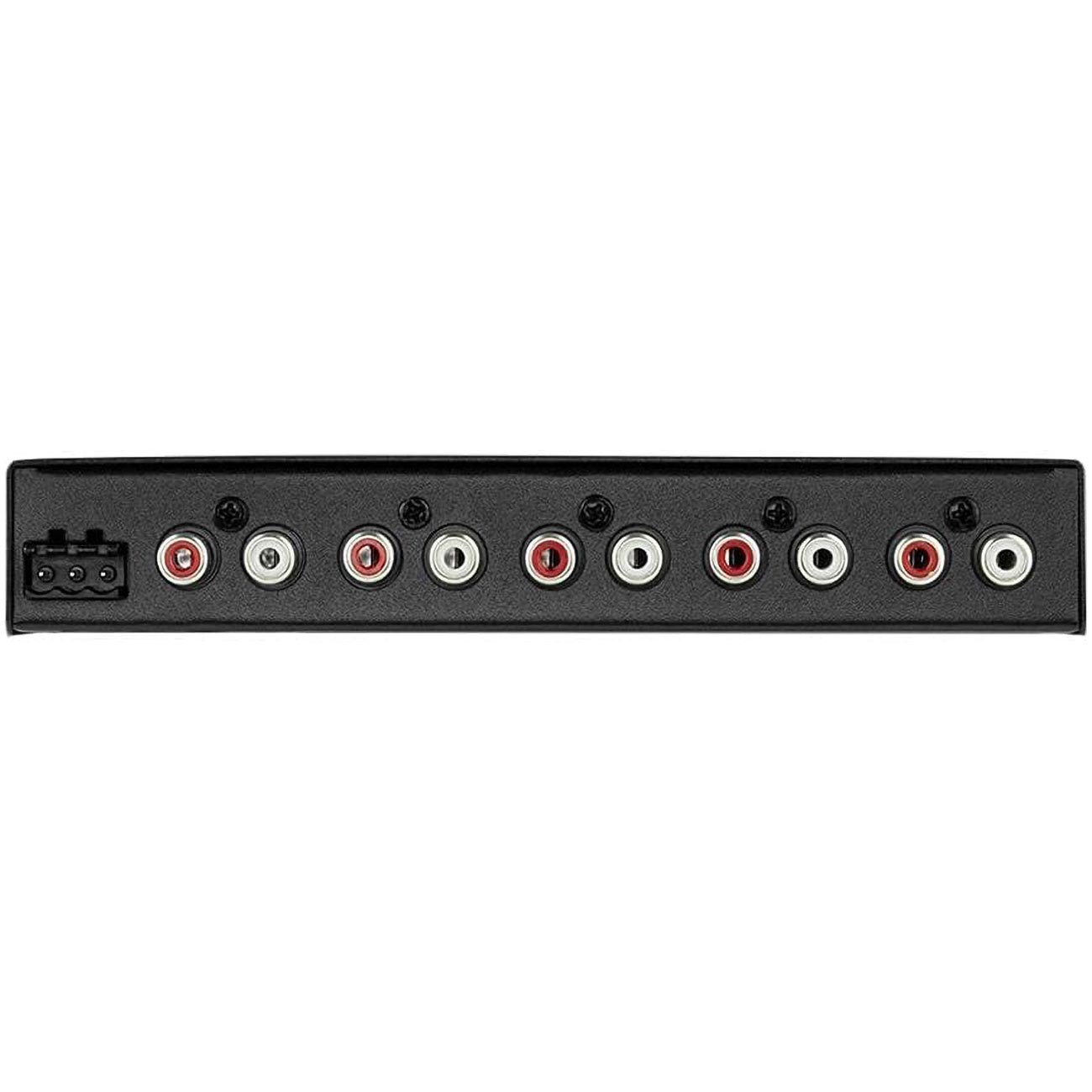

RCA auxiliary input with switch selector
Extended frequency response from 10Hz to 30kHz with exceptional sound quality
Graphic Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KHz, 12KHz
Boost / Cut: 12dB
S/N Ratio: 95dB
Frequency Response: 110hz-30khz +/- 1dB
Maximum Output Voltage: 8V
T.H.D: 0.05%
Input Sensitivity: 50mV – 3V
Head Room: 20dB
Input Impedance: 20K OHMS
Output Impedance: 2K OHMS
Stereo Separation: 82dB/1KHz
Operating Voltage: 11V-15V Negative Ground
(L x W x H): 7.24” x 3.83” x 1.18″
