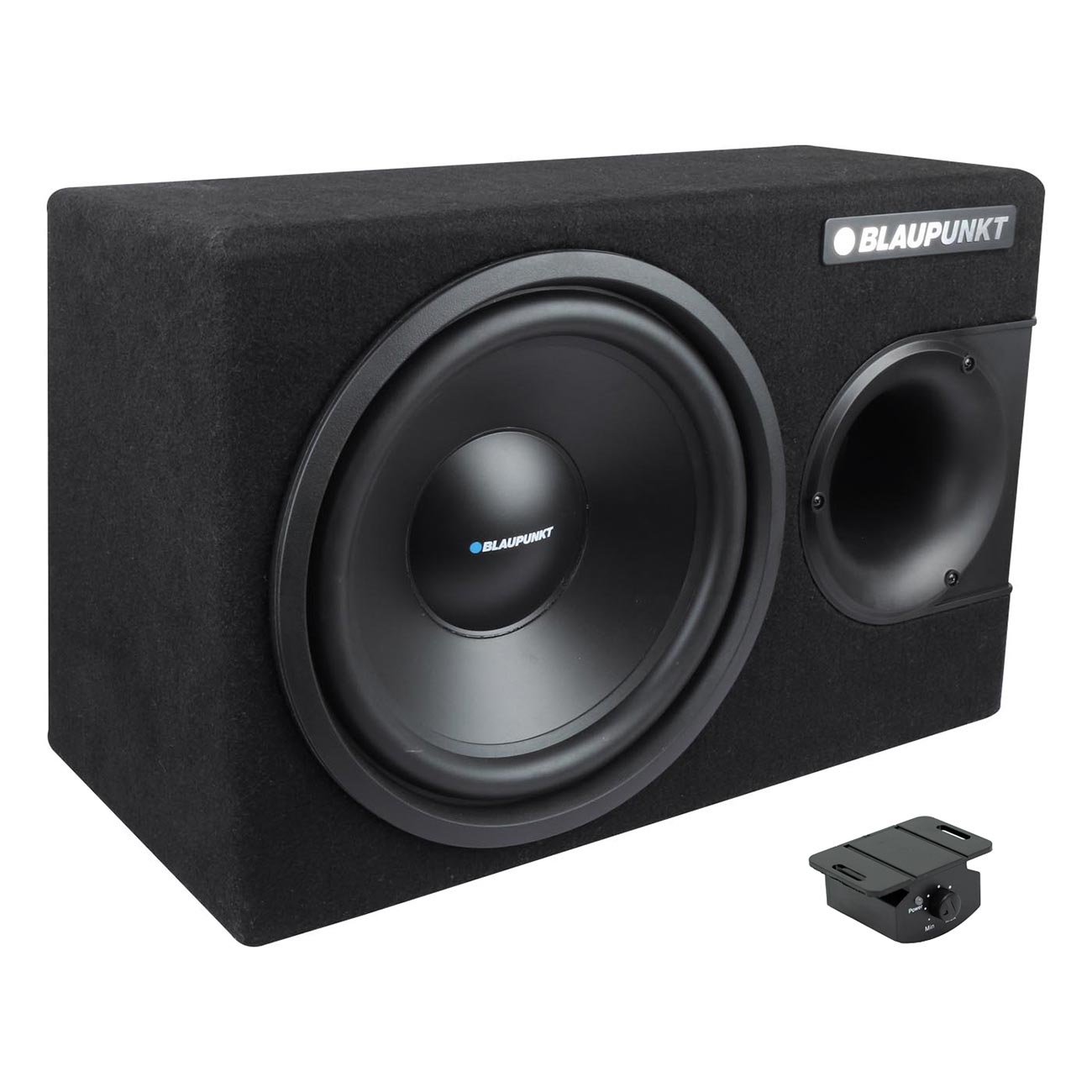

Blaupunkt Single 12″ Amplified Subwoofer Ported Enclosure
1500 Watts Max
350 watts RMS
(W x H x BD/TD) 22-3/4″ x 14-3/4″ x 14-3/4″/ 9-3/4″
12” Woofer
Single 4 Ohm Voice Coil
Injection Molded PP Cone
Hi-Roll Rubber Surround
Frequency Response: 25Hz – 500Hz
Driver fs (Resonant Frequency): 29Hz
Driver Qts: 0.49
Driver Vas (Liters): 83.8L
Driver Xmax (Linear Excursion): 10mm
Sensitivity SPL: 86.4dB @ 1W/1M

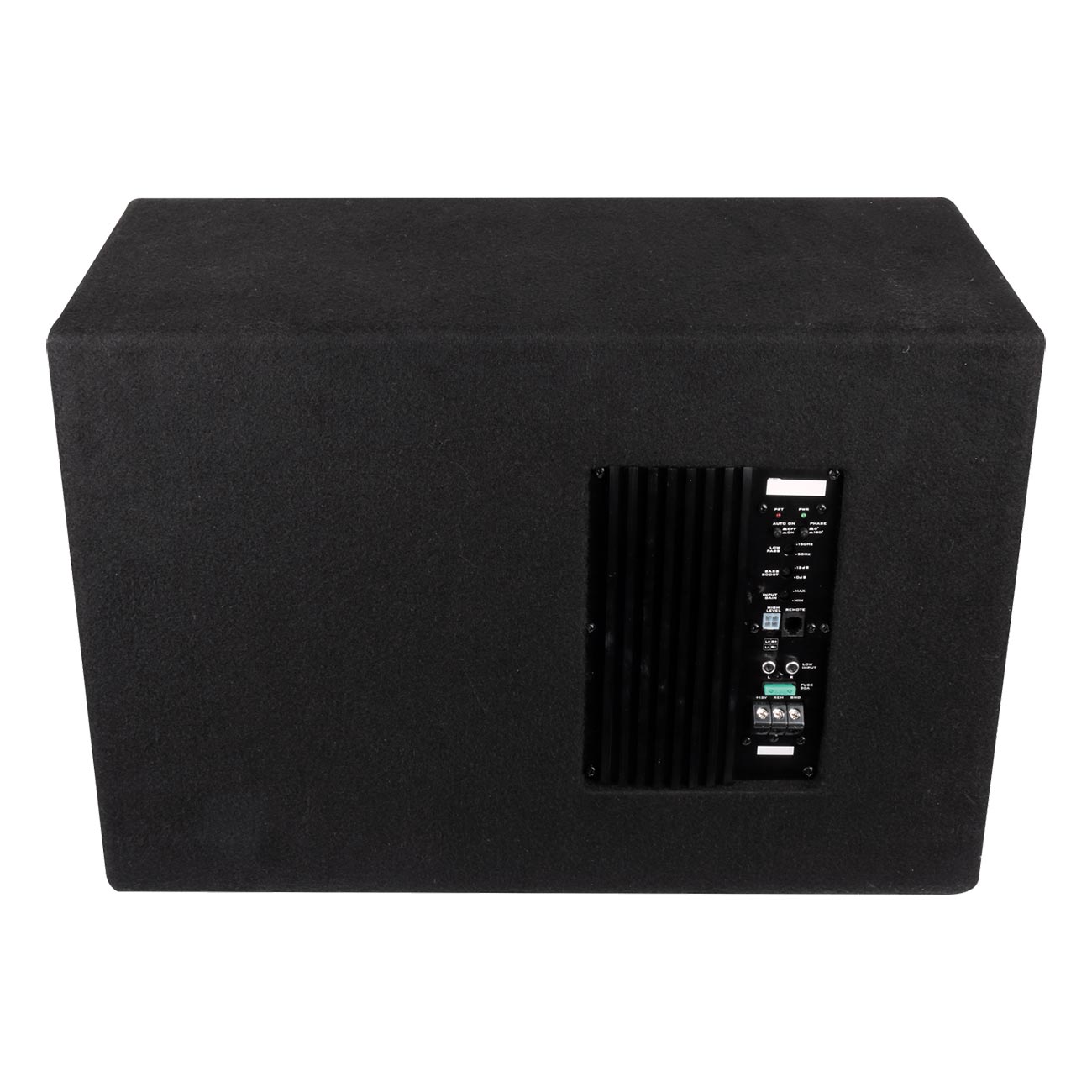

Built in Mono Block Class D Amplifier
Plug-n-play wiring including power connections
Hi/Low Level Inputs
Selectable Auto Turn-on
Variable Low Pass Filter: 50-150hz / 12dB oct
Bass Boost: 12dB
Phase selector: 0 – 180°
Gain Control
Power/Protect LED Indicators
MDF Construction
Charcoal Gray Carpet Covering
Ported for greater Bass Response
Remote Control Included
