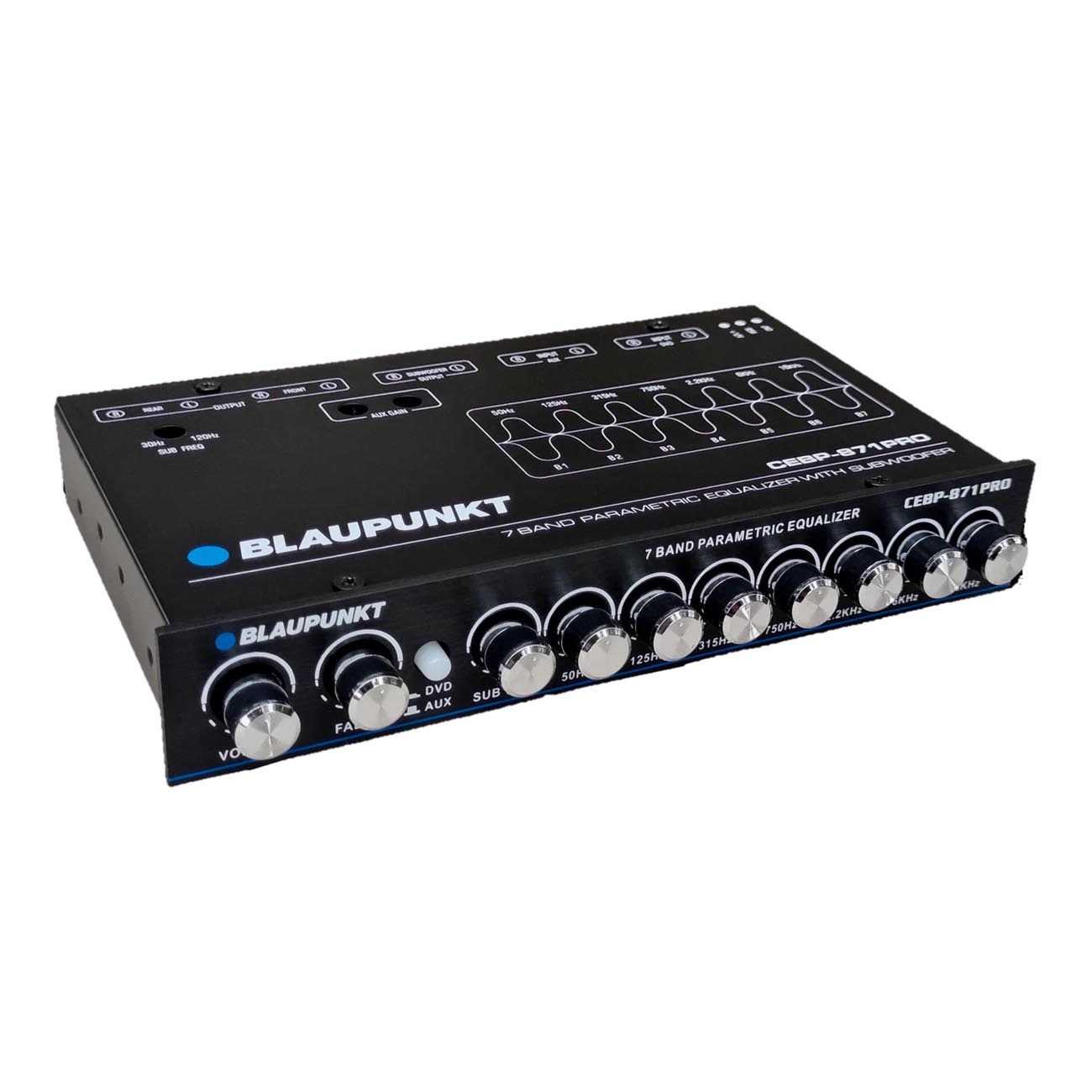

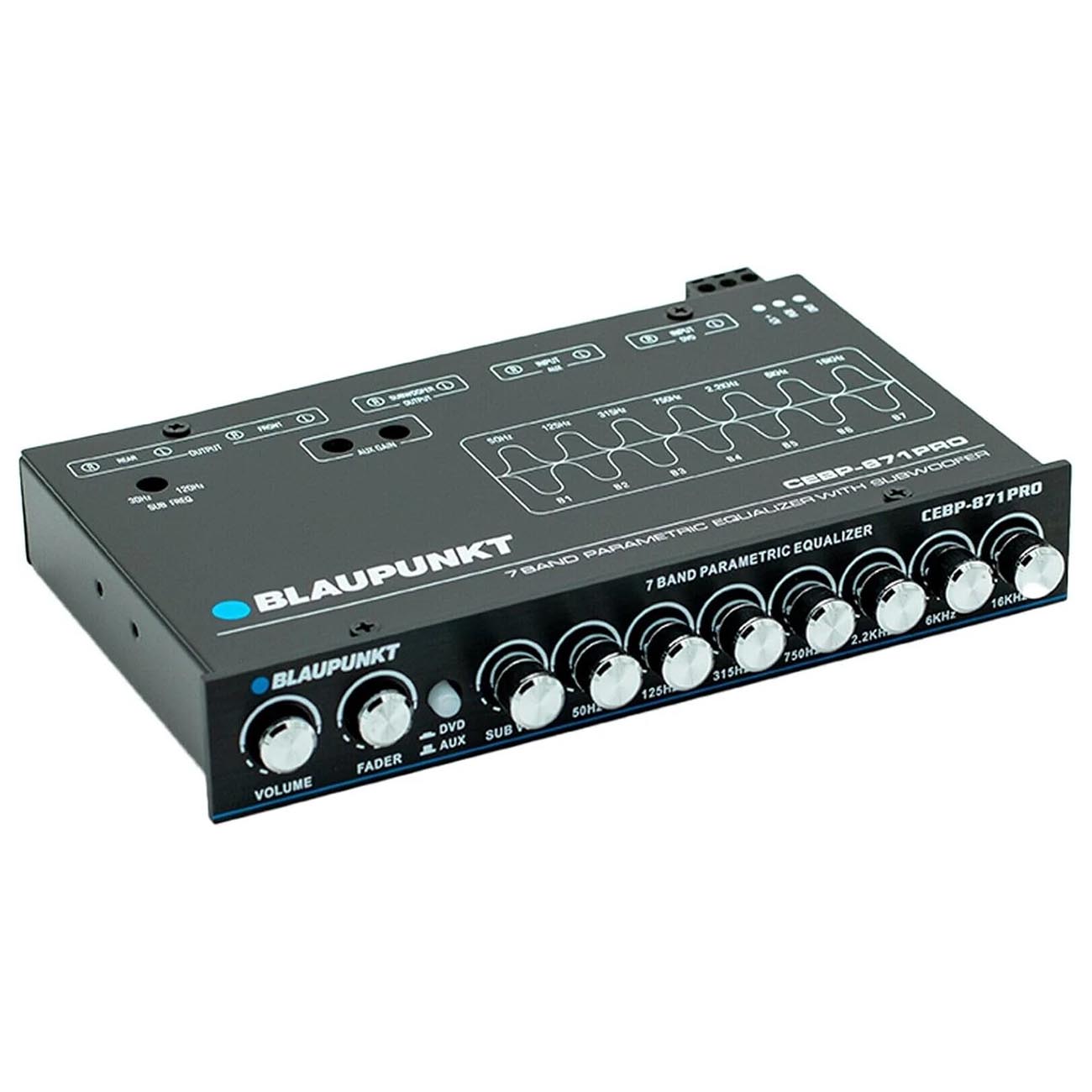

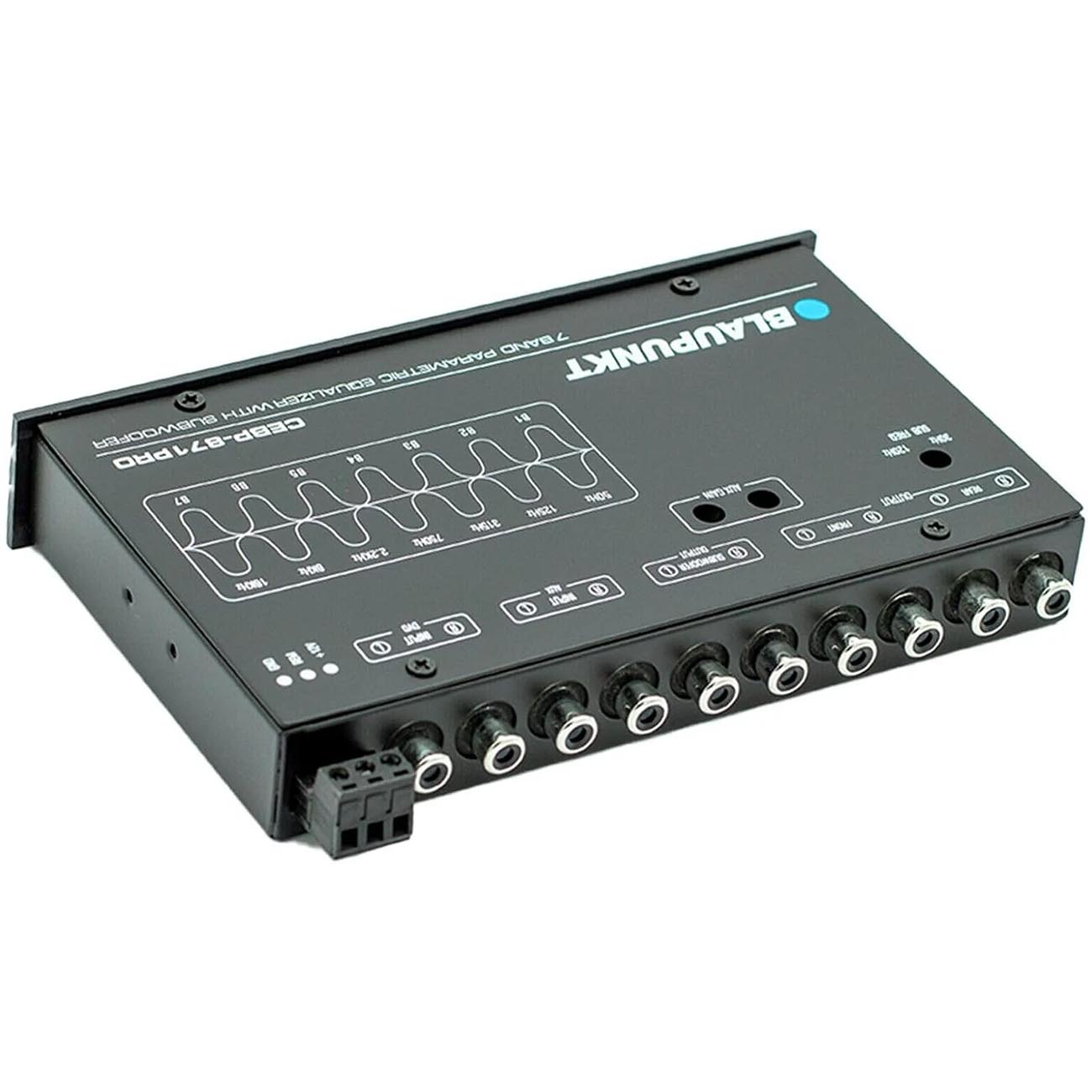

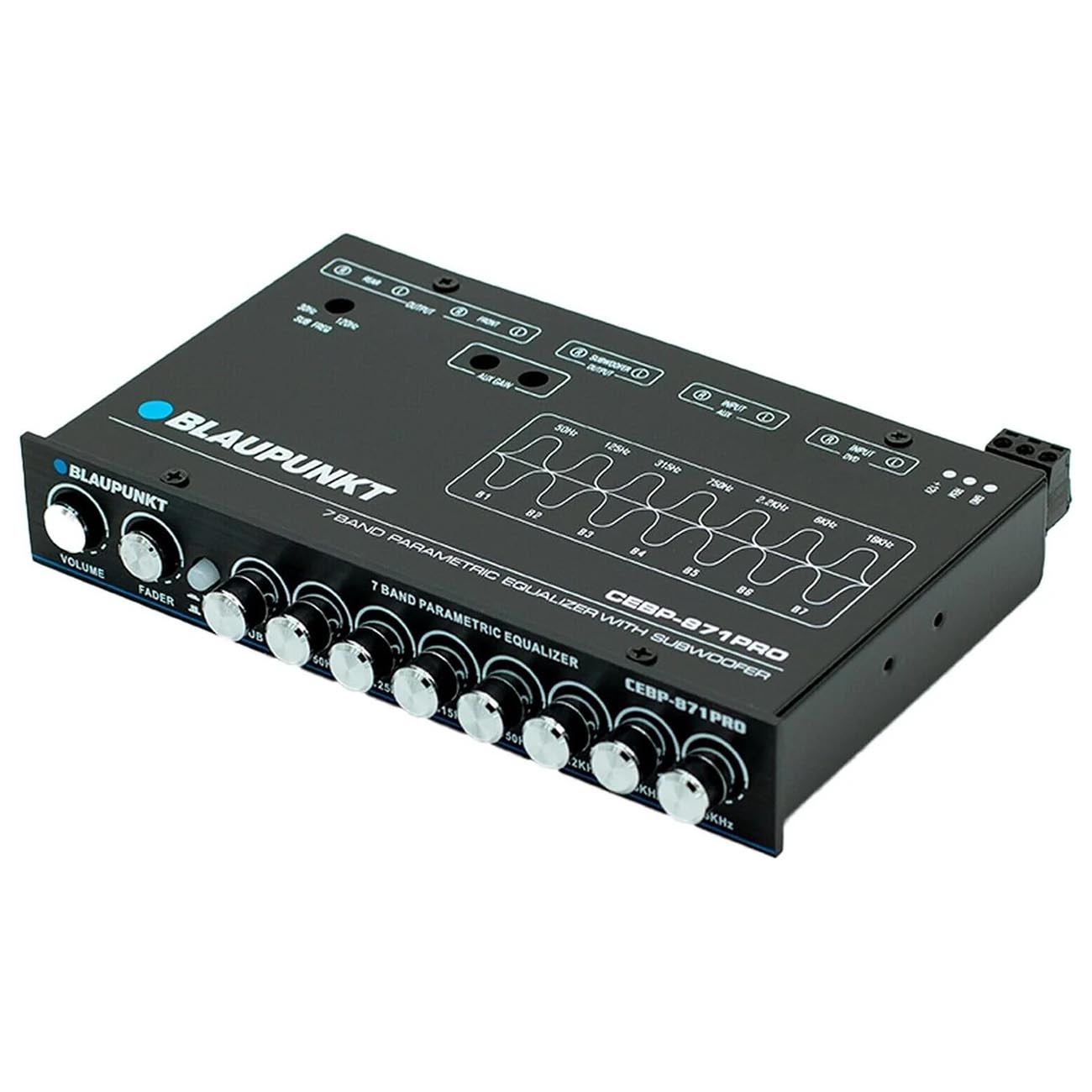

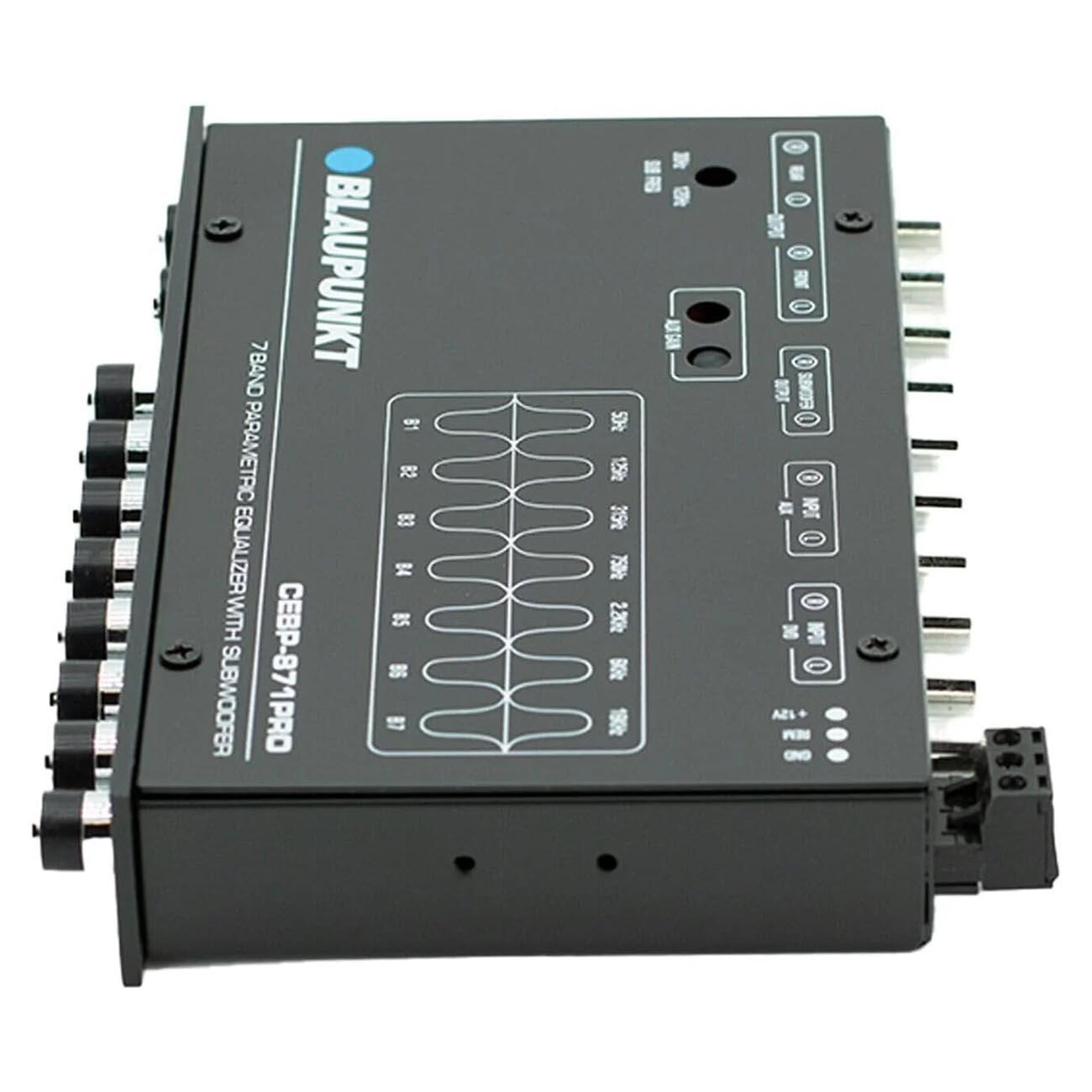

Blaupunkt 7-Band 1/2 DIN Parametric Pre-Amp EQ with Sub Output
Blaupunkt Digital Signal Processors bring a combination of precision tuning, flexibility, and advanced features to car audio systems, delivering an enhanced and personalized auditory experience for enthusiasts.
7-Band Parametric Pre-Amp EQ
1/2 DIN Size
RCA Front, Rear and SW Outputs
RCA Inputs
RCA Aux Input
2 Input Selector
SW Volume Control
Fader Control
Variable Gain Control
Power Supply: 11-15V DC Neg. Ground
Output Voltage: 7V RMS
Graphic Frequency: 50H, 125Hz, 315Hz,750Hz,2.2KHz, 6KHz,16KHz
Equalization Range: +12dB
Subwoofer Frequency: 30-120Hz
Input Impedance: 15K Ohms
S/N Ratio: 90dB
T.H.D.: 0.05%
Channel Separation: 70dB
Frequency Response: 10Hz-50KHz(-3dB)
Sold Individually
