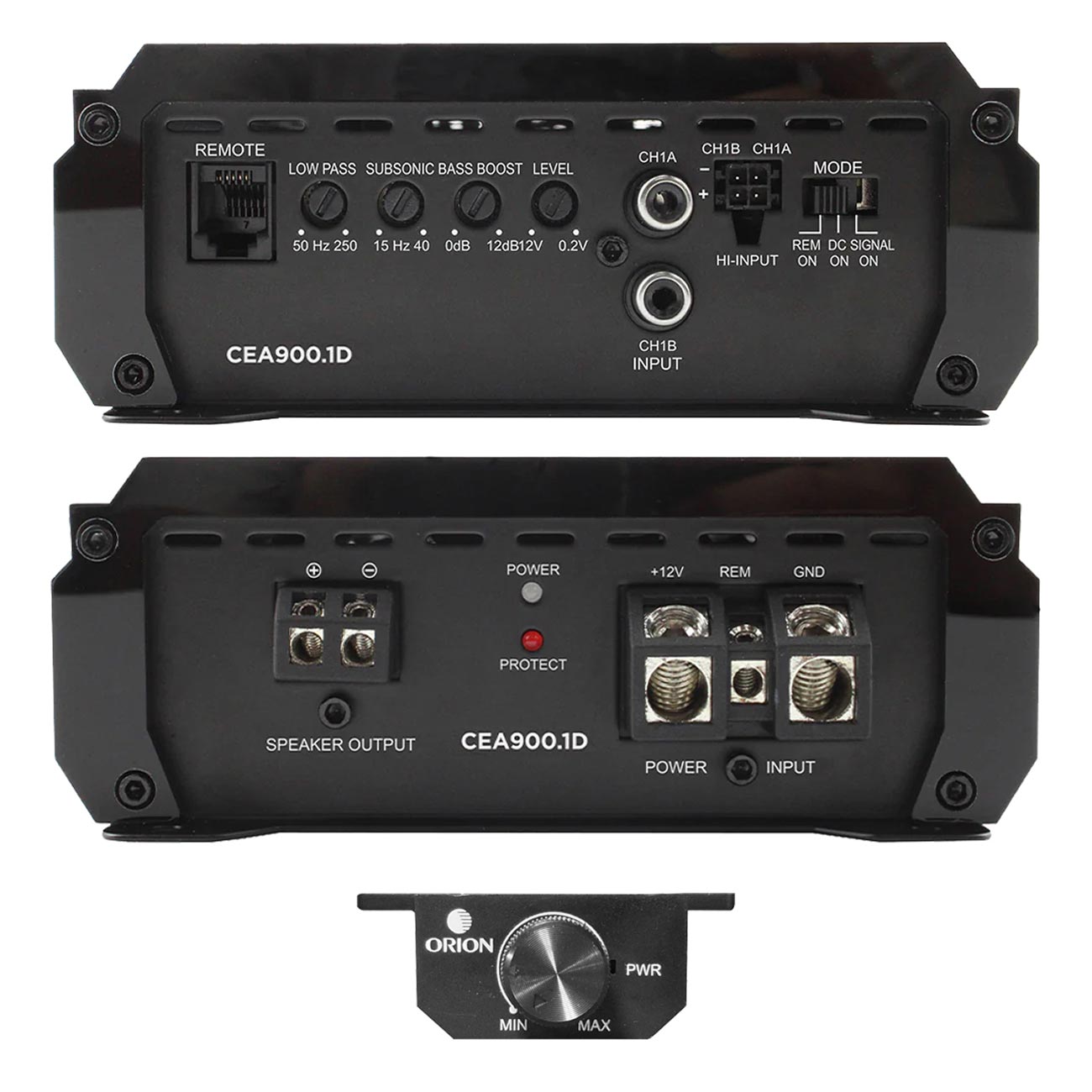

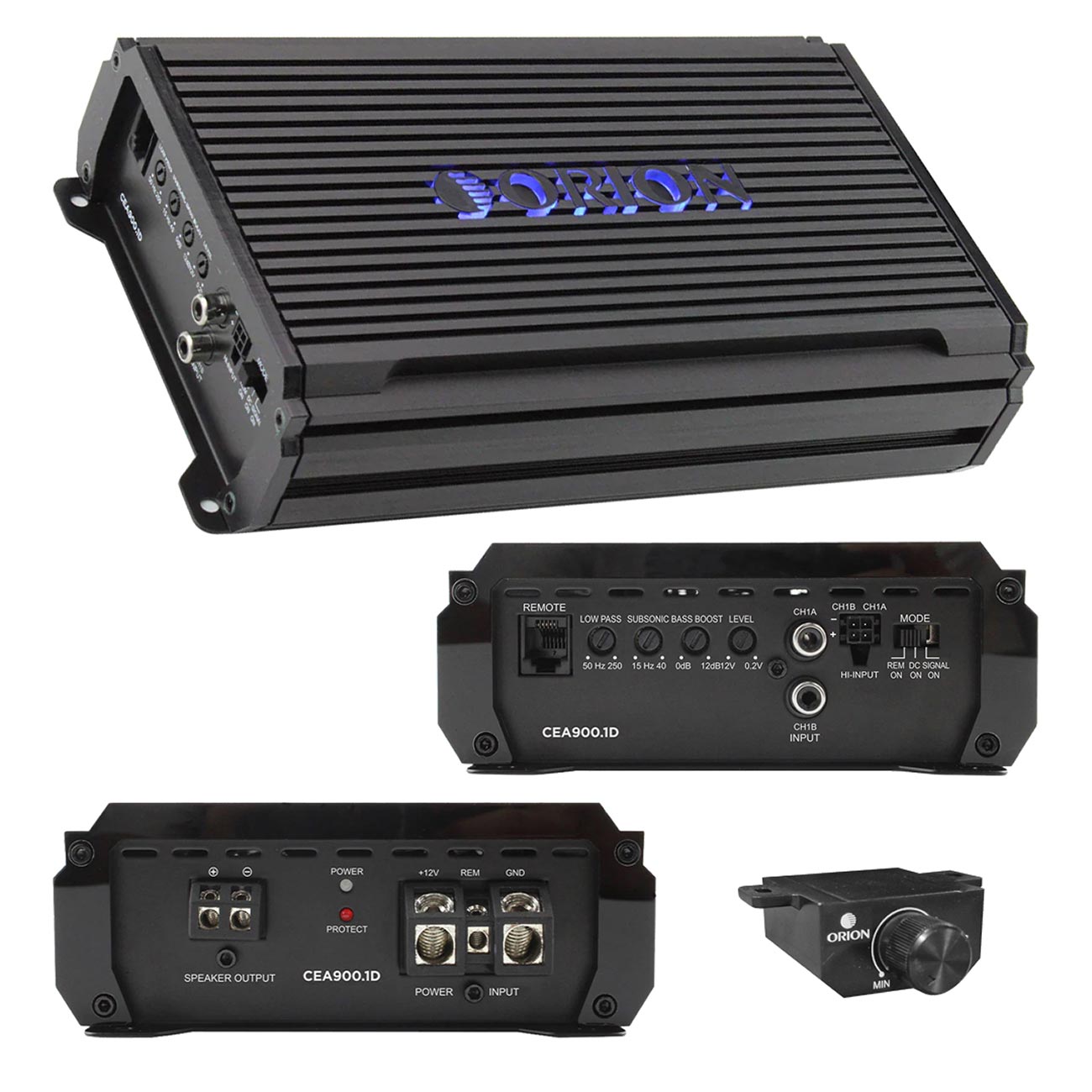

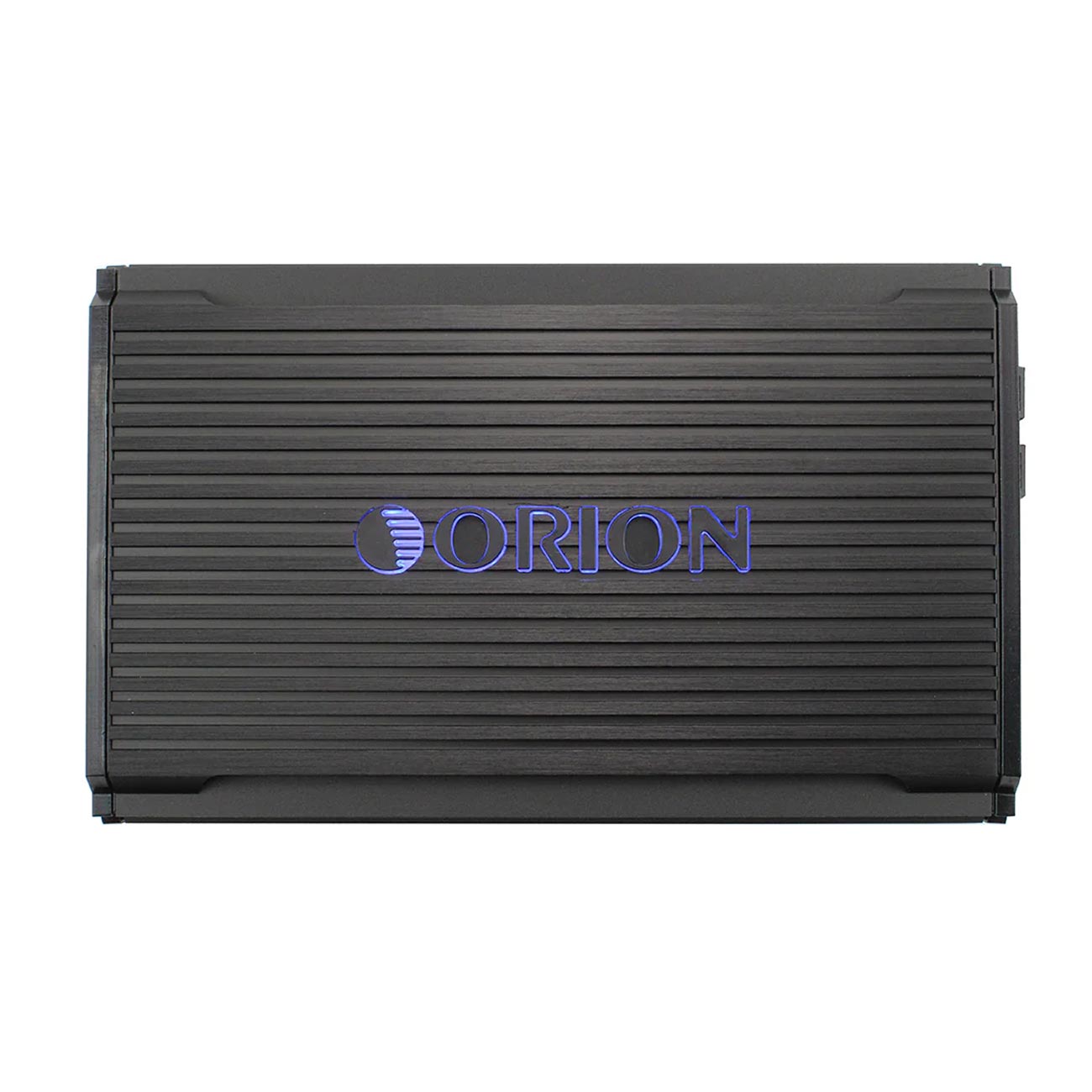

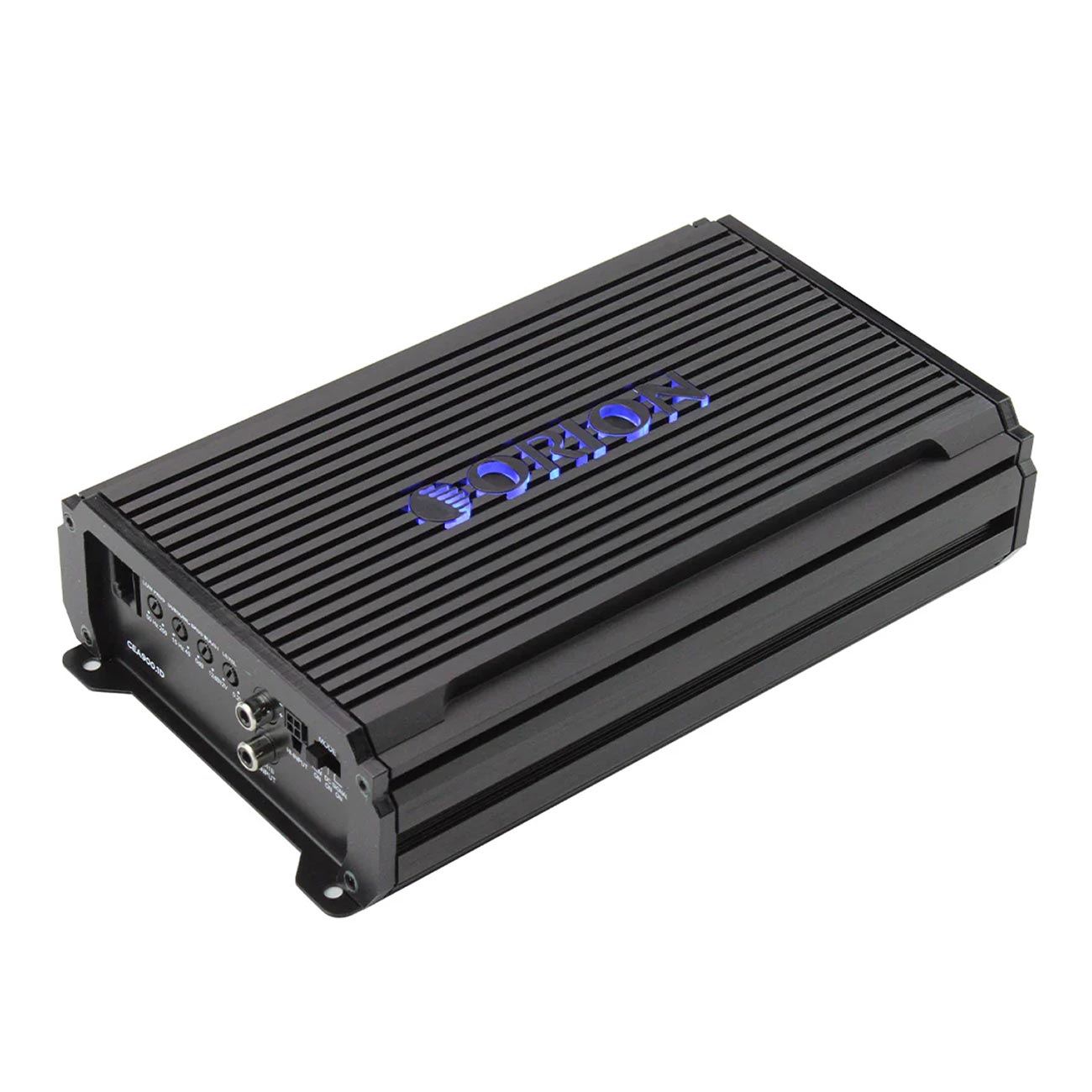

Orion Cobalt Elite Compact Class-D Monoblock Amplifier, 900 Watt RMS
1 x 900 Watts RMS @ 1 Ohm
1 x 650 Watts RMS @ 2 Ohms
1 x 400 Watts RMS @ 4 Ohms
(W x H x L): 5.71″ x 2.13″ x 8.66″
Fuse Recommendation: 100 Amp
Efficient Class-D
1 Ohm Stable
Frequency Response: 15Hz – 250Hz
Subsonic: 15 – 40Hz
Low Pass Crossover: 50 – 250Hz
Bass Boost: 0 – 12dB Variable
Phase Shift: 0/180 Degrees
Supply Voltage: 10 – 16V
Input Impedance: 22kOhm
Signal to Noise Ratio: 92dB
Level Control: 0.2V – 6.0V
Hi/Low Level Inputs
Daisy-chaining Capable
All-MOSFET Power Supply & Output Stage
Intelligent Power and Protection LED Indicator
Soft Turn-on/Turn-off
Turn-On Delay
Fault and Protection Monitoring
4-Way Protection
Remote Gain Control
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-On Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.
