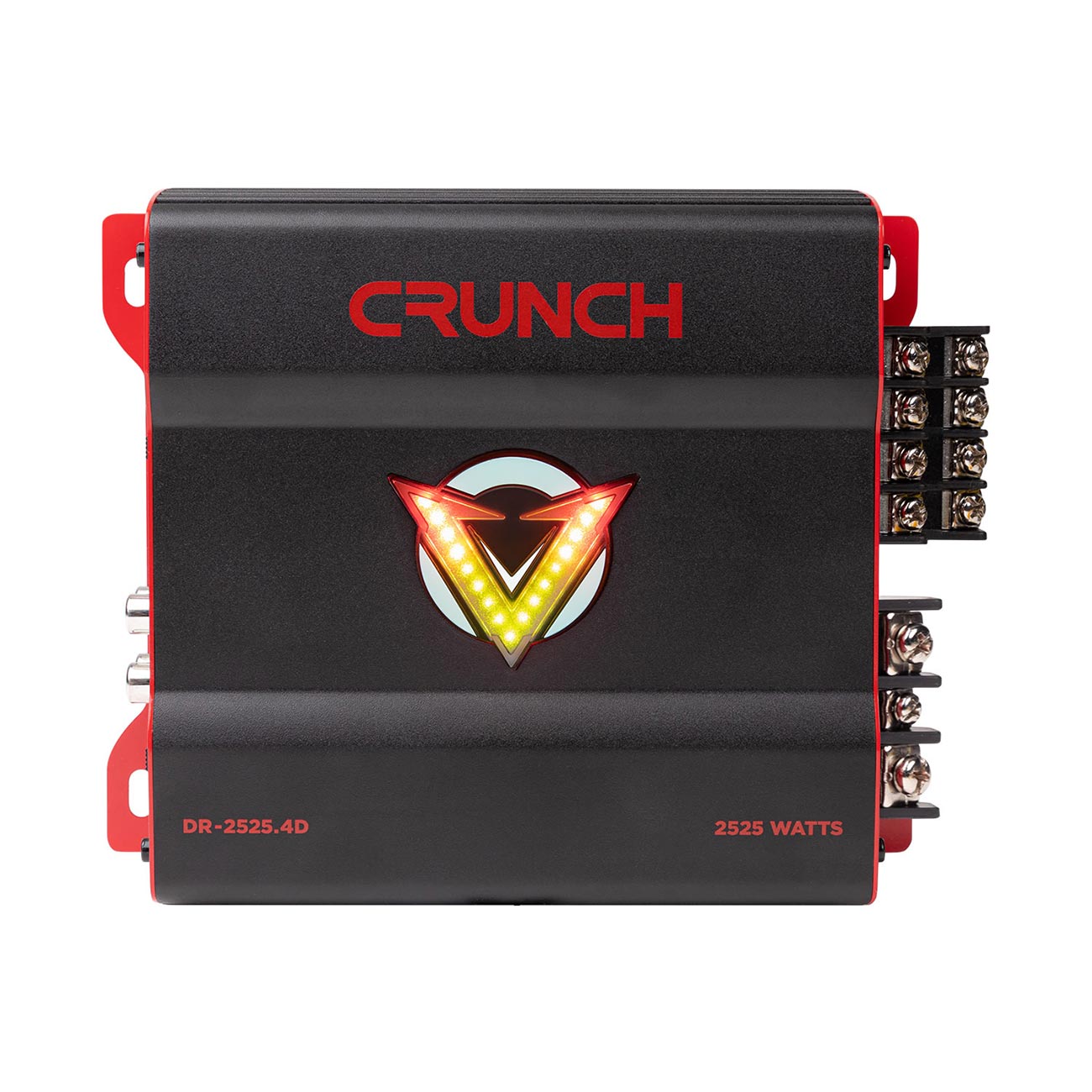

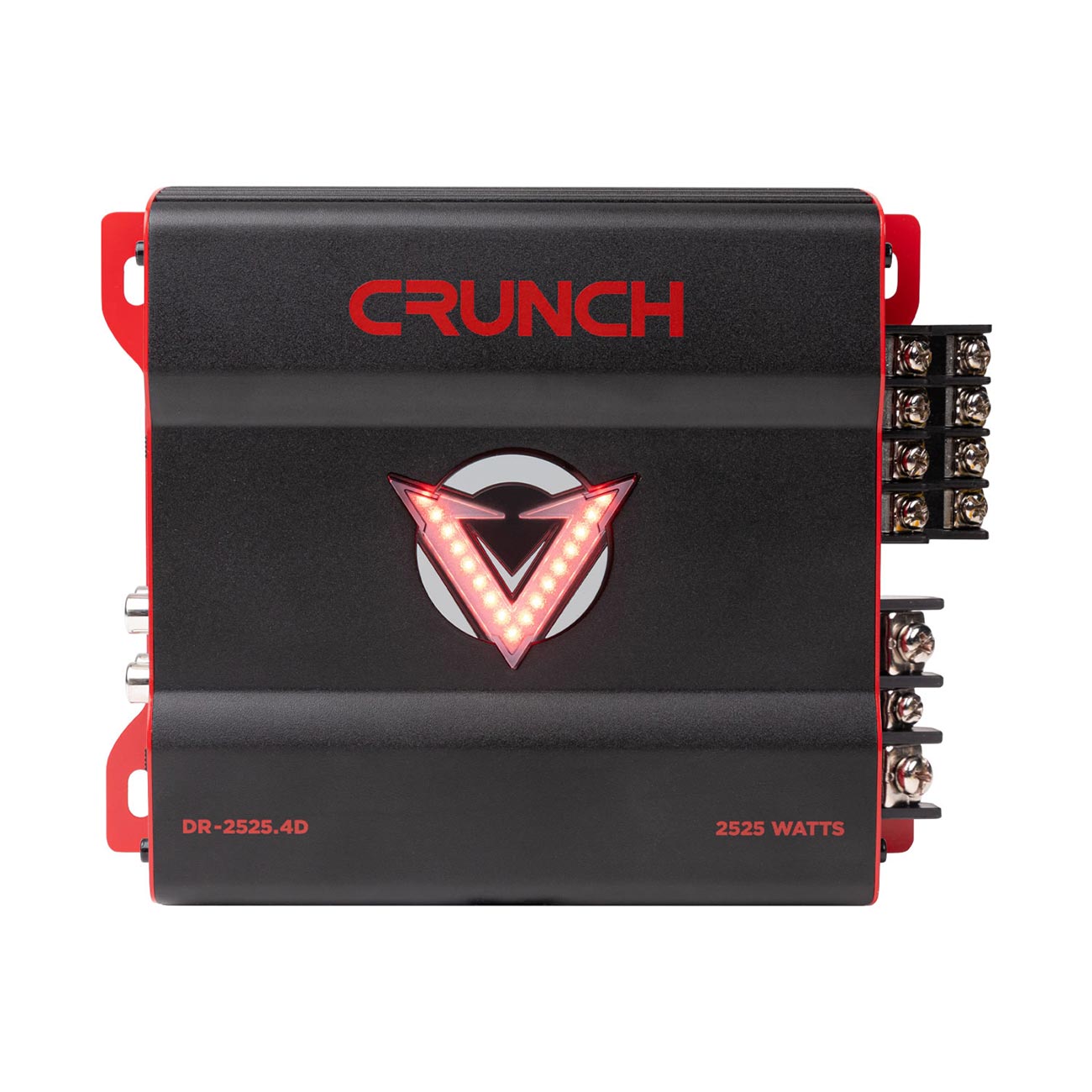

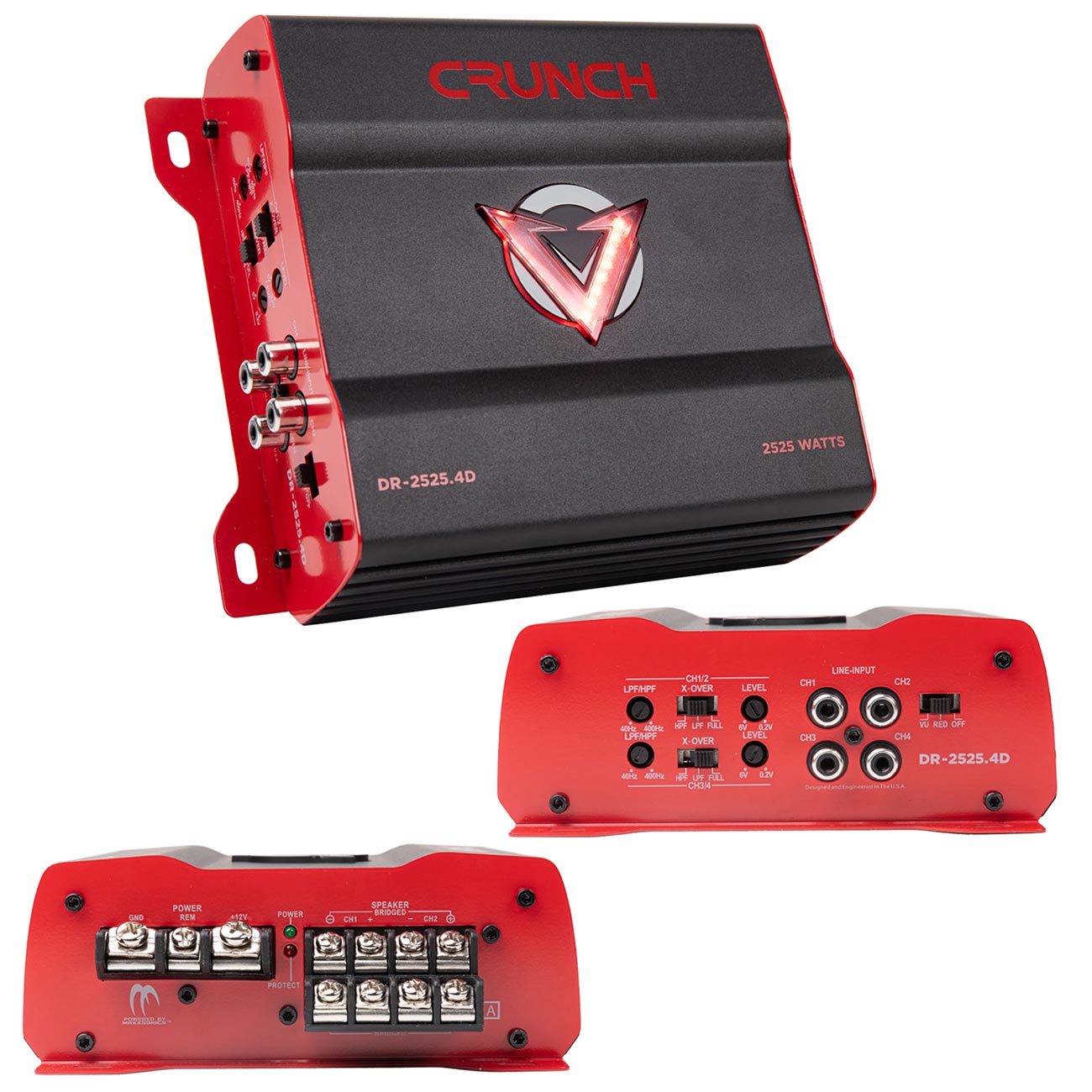

Crunch V-Drive 4 Channel Amplifier, 2525 Watt
Max Power 2525 (watts)
4 x 630W @ 2 Ohms
4 x 320W @ 4 Ohms
2 x 1260W @ 4 Ohms (Bridged)
(W x H x L) 5.8″ x 2.2″ x 6.9″
Class D
2 Ohm Stable
Low Pass Crossover: 40Hz – 400Hz
High Pass Crossover: 40Hz – 400Hz
Variable Voltage: 0.2-6V
Signal to Noise: >100dB
Frequency Response: 20 Hz – 20 kHz
Total Harmonic Distortion (THD): < 0.5%

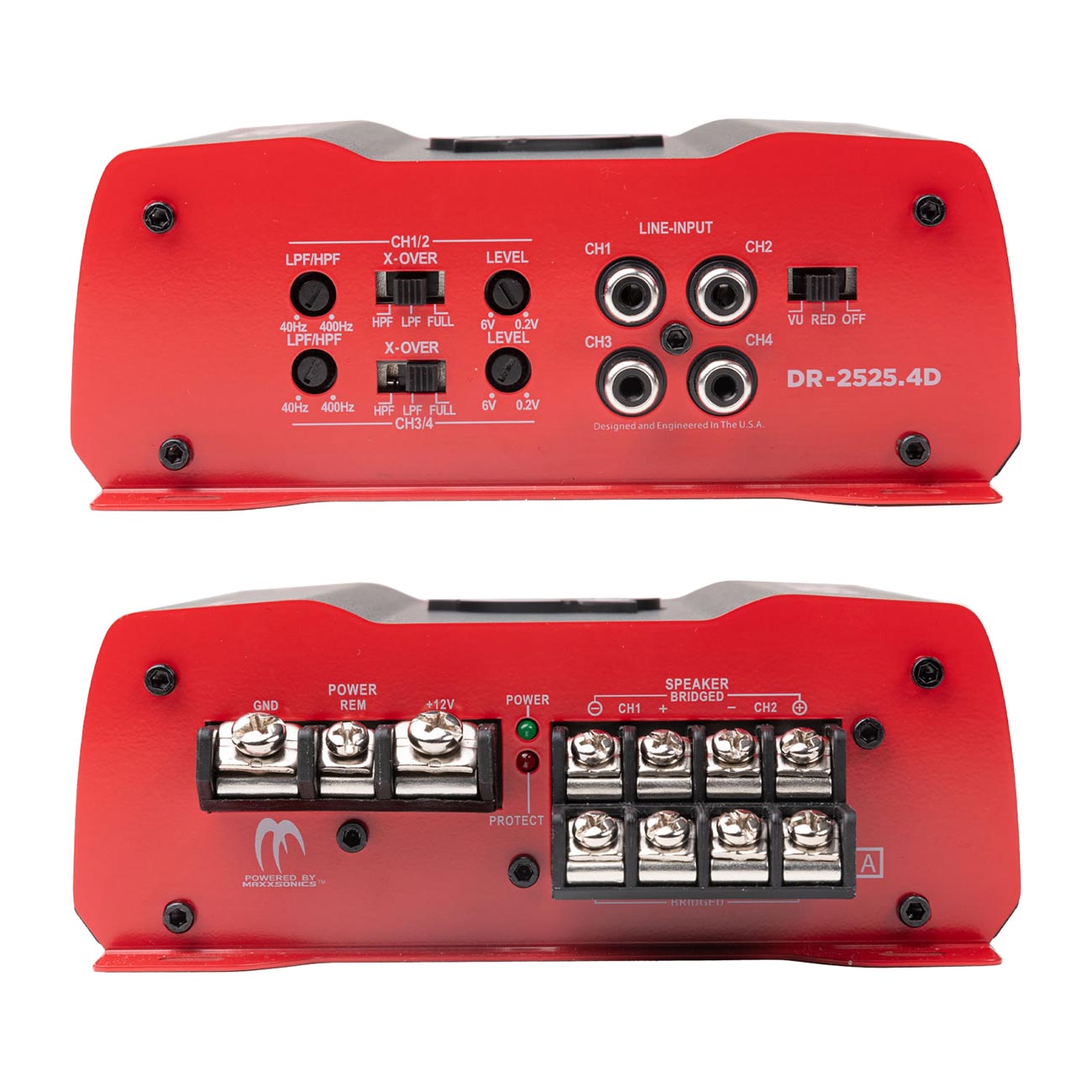

Speaker Level Audio Inputs: RCA
Power Terminal 12v/GND: 4 AWG
Speaker Terminal Wire Gauge: 8 GA
Fusing: External 80A

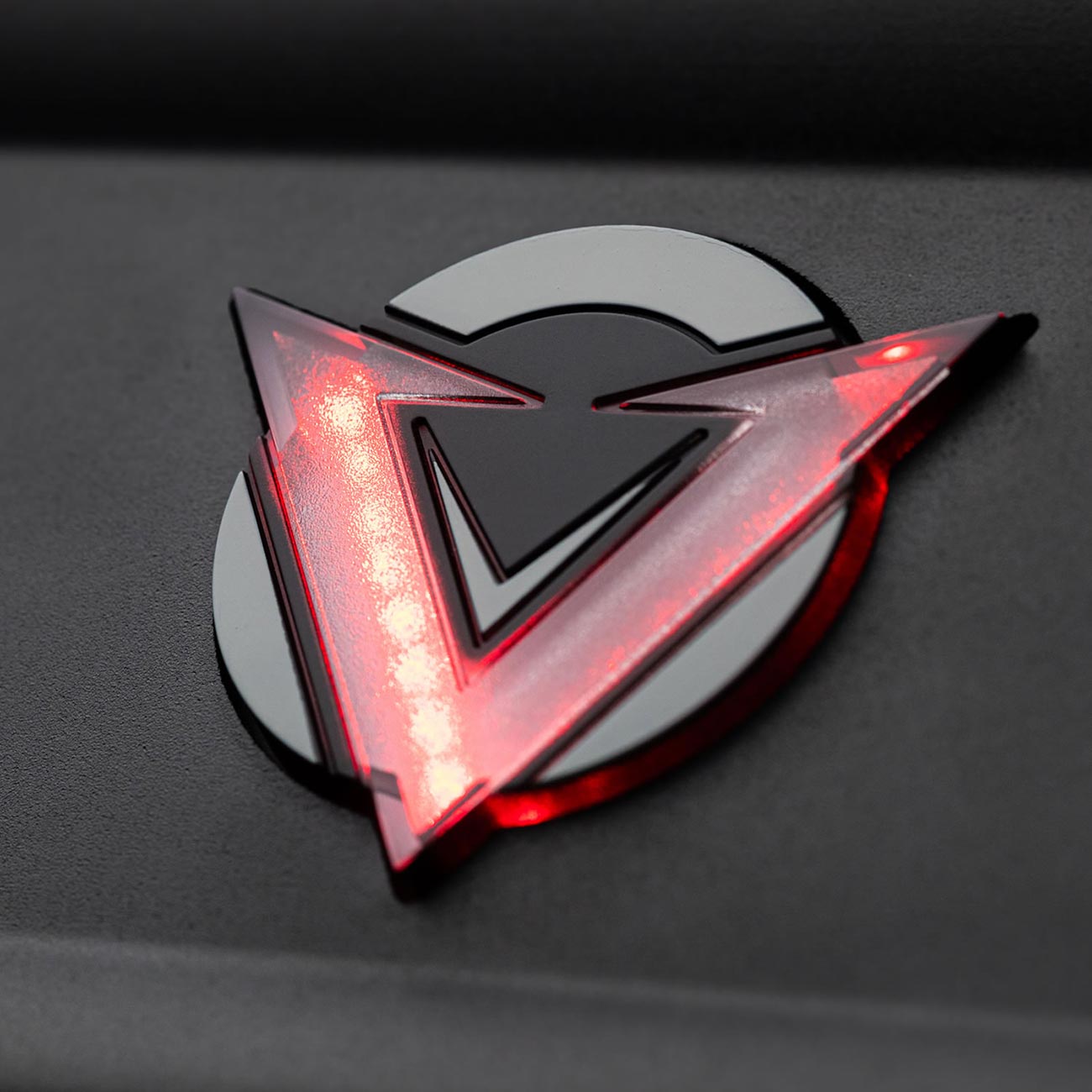

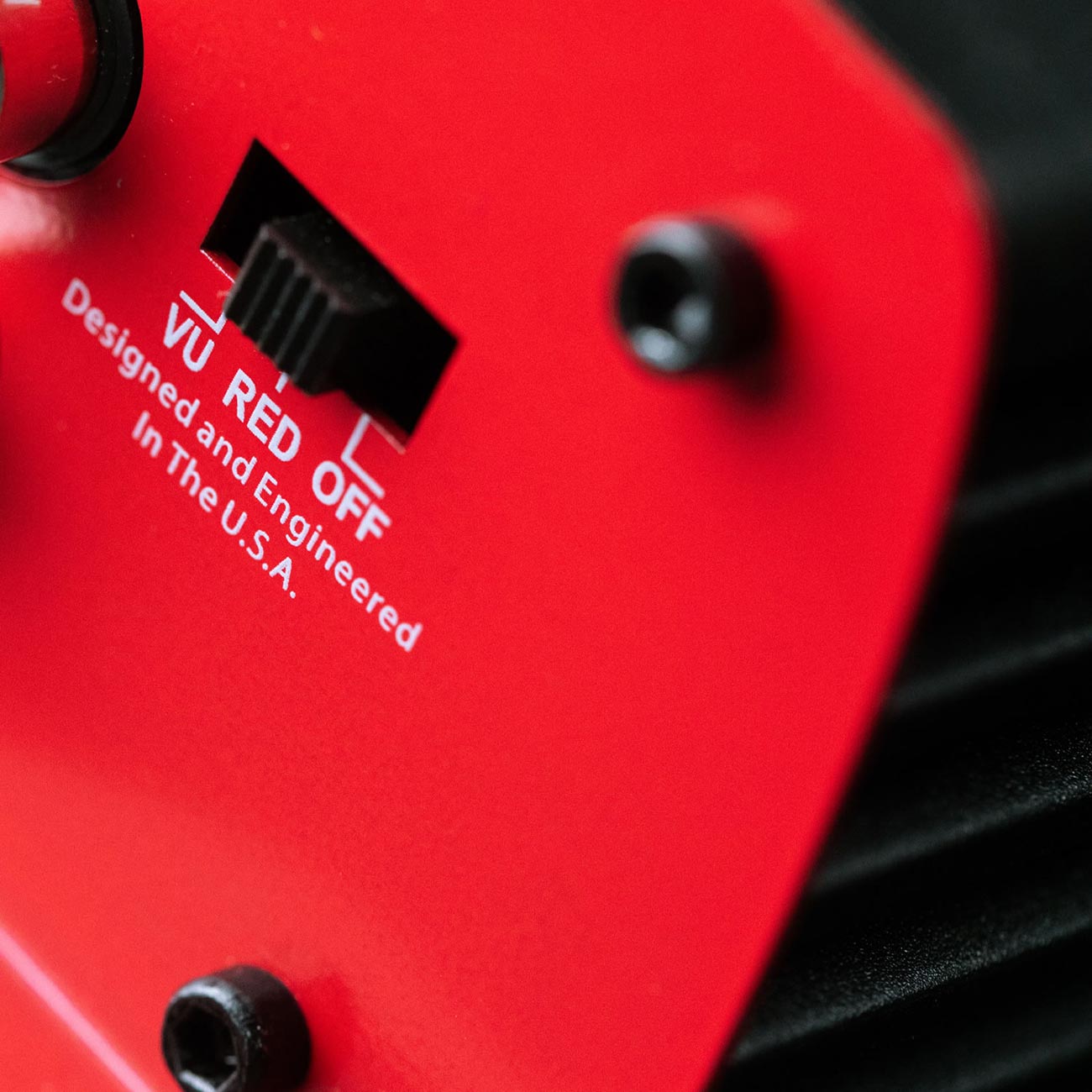

Logo 3-MODES LED: VU Meter mode, All red LED mode, and logo illumination off
