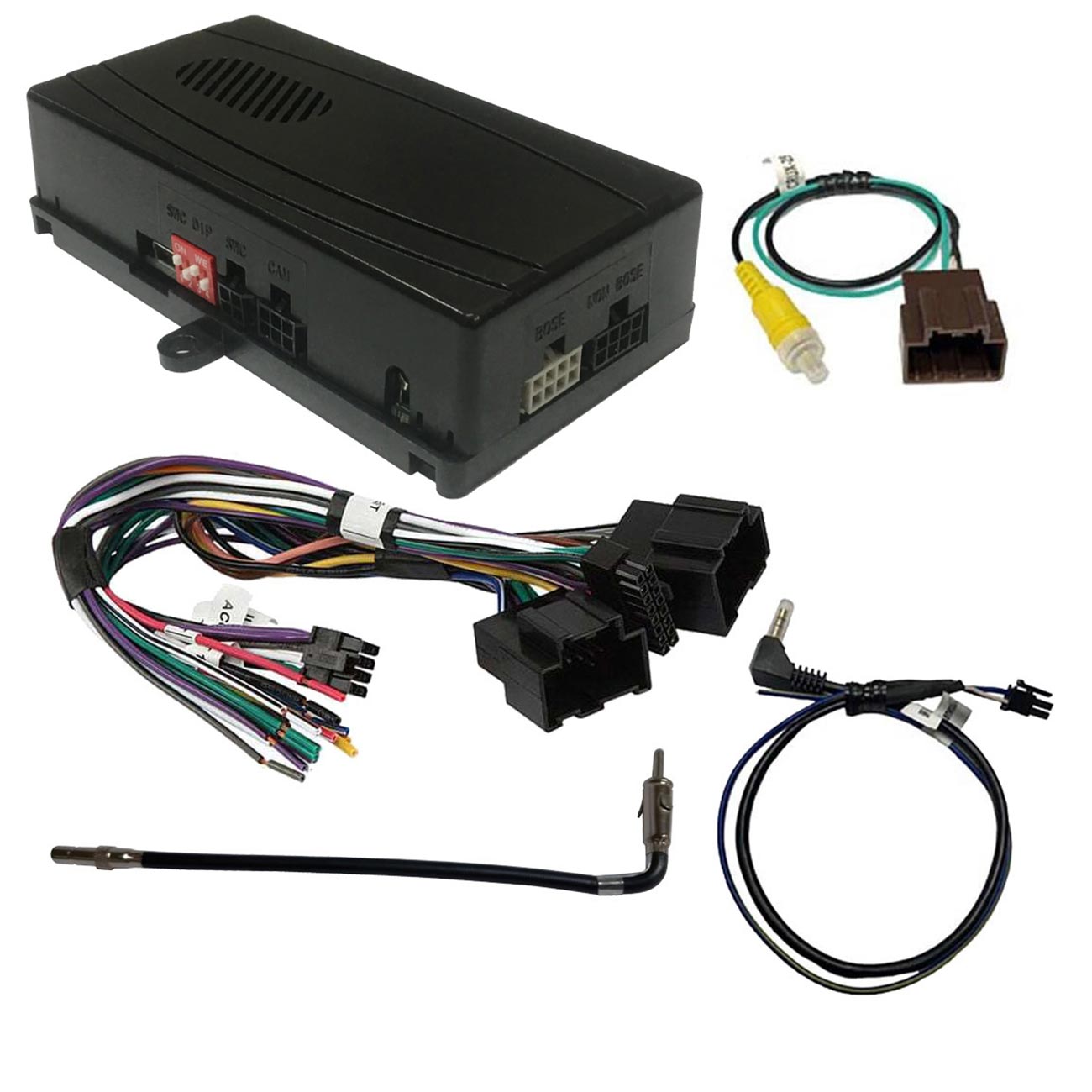

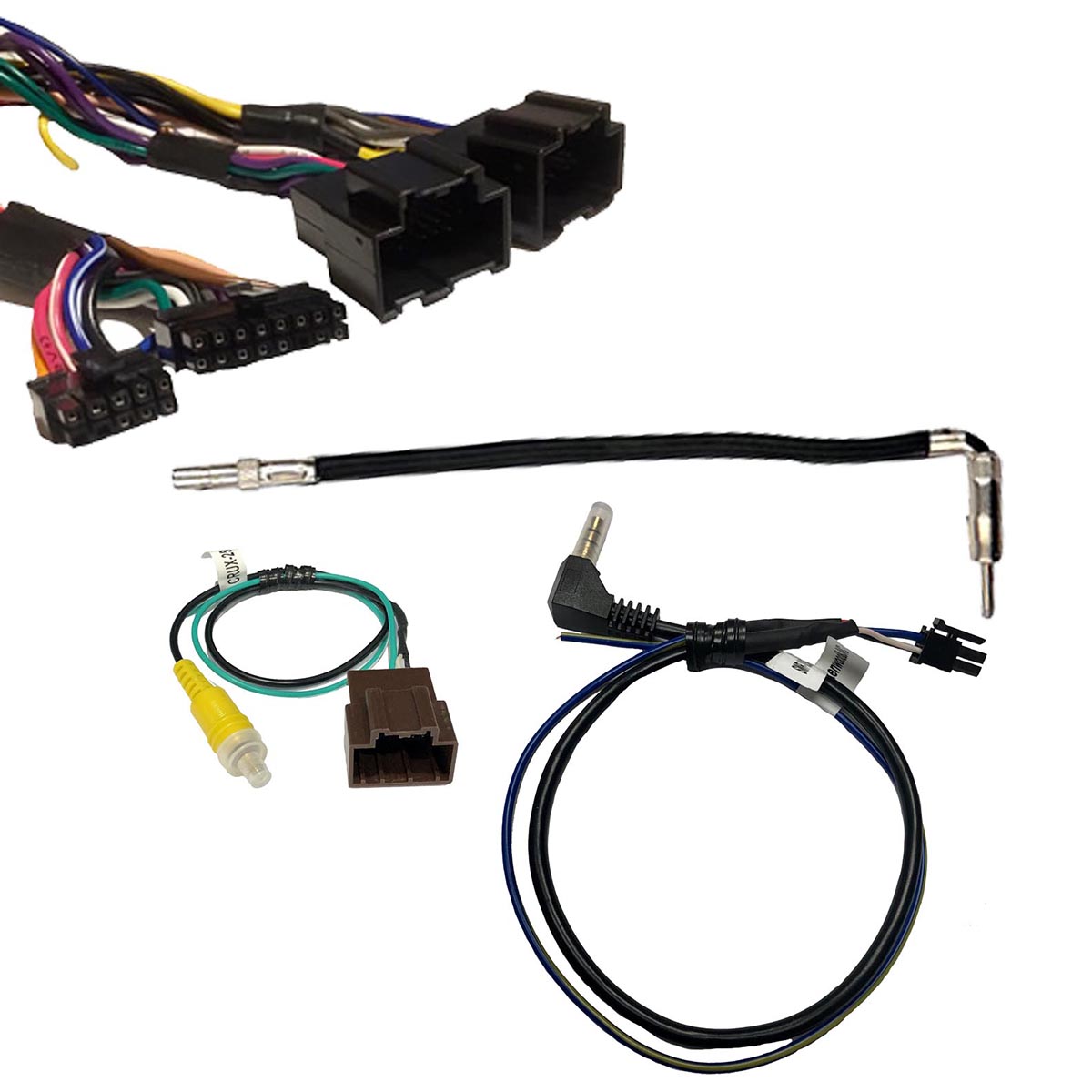

CRUX OnStar Radio Replacement Interface for Select ’06-’17 GM LAN 29-Bit Vehicles
The CRUX SOOGM-16 is designed to allow for the installation of after-market radios while retaining functionality of OnStar, Bose® Amplified and Non-Amplified Systems, Chime and Accessory features in General Motors LAN 29-Bit vehicles. Also retains steering wheel controls.
• Easy Plug-and-Ready Connections.
• Retains Steering Wheel Controls via built-in, pre-programmed interface.
• Retains Factory Bluetooth in Vehicles 2008-2017 if equipped with new OnStar Device.
• Retains Factory OnStar.
• Retains Factory Warning Chimes.
• Works with Non-Bose and BOSE amplified systems.
• Retains Rear Seat Entertainment, Audio/Video. Requires Cable #CJA2333A (sold separately).
• Retains Back-up Camera.
Notes:
Does not retain the factory XM
2012-2014 vehicles w/ Navigation Units not supported. Use SOOGM16W instead
