CRUS OnStar Radio Replacement Interface for Select 2006 – 2017 GM LAN 29-Bit Vehicles with SWC

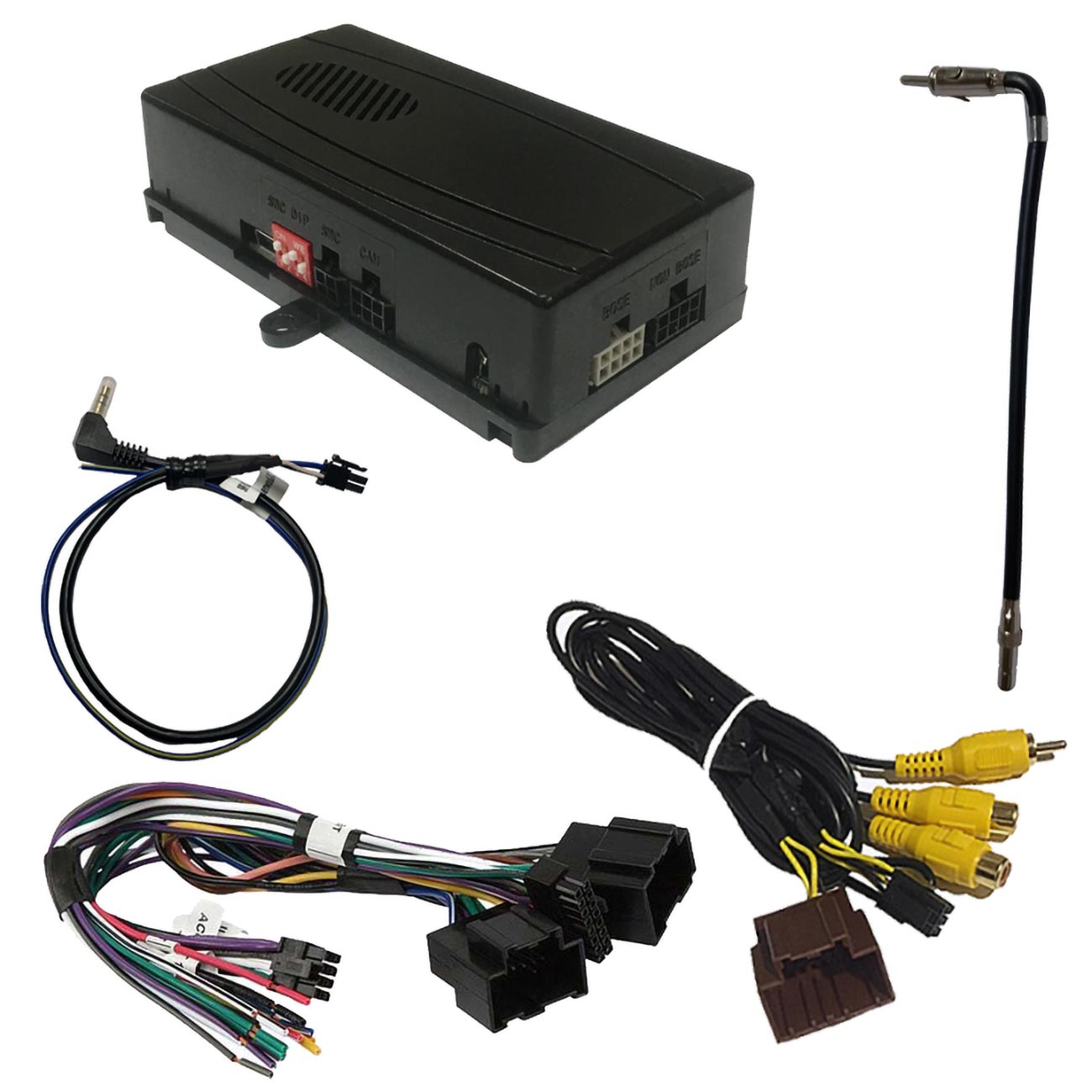

The CRUX SOOGM-16V is designed to allow for the installation of after-market radios while retaining functionality of OnStar in Bose® Amplified and Non-Amplified Systems, Chime and Accessory features in General Motors LAN 29-Bit vehicles. Also retains steering wheel controls and adds camera switching capability for forced front-view & rear-view cameras.
• Retains factory features in select GM LAN 29 Bit vehicles while functioning with an aftermarket radio.
• Pre-programmed to retain factory Steering Wheel Controls.
• Retains OnStar, factory Rear view camera and warning chime functions.
• Adds Forced Rear view and Front view camera while in motion using the factory side mirror controls.
• Supports Bose, non-Bose and Y-91 audio systems.
• EIA color coded wiring for easy installation
Notes:
The Front and Rear fading are not retained on Y-91 Bose System.
Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.
