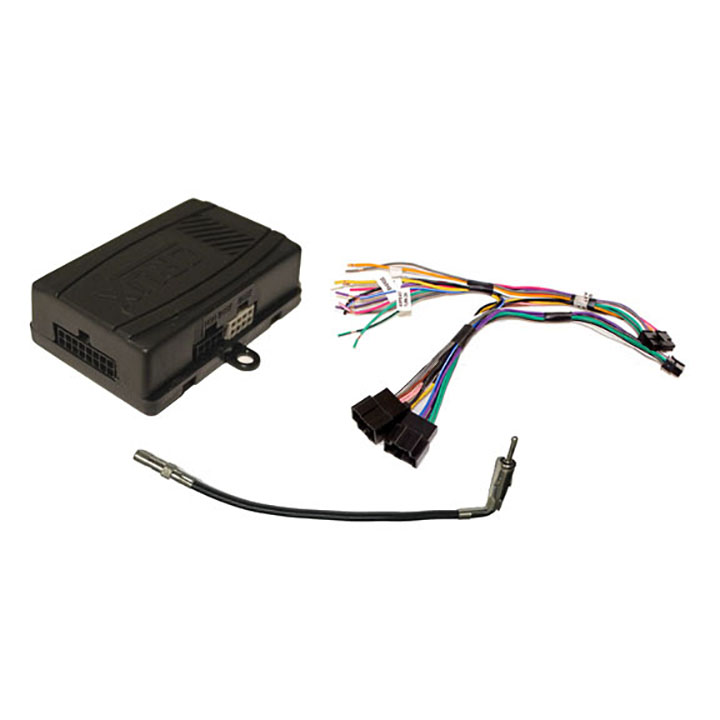

CRUX Radio Replacement Interface for Select ’06-16 GM 29-Bit Vehicles
The CRUX SOCGM-18 retains General Motors factory-featured safety and warning chimes — for installation of after-market radios. It provides 12 Volt Accessory output (4 Amp), including RAP (Retained Accessory Power), Illumination Output (2A. max), telephone negative mute trigger (output to new stereo), low voltage (battery run-down protection), and adjustable chime volume.
• Retains factory features in select GM LAN 29 Bit vehicles with aftermarket radios
• Supports Bose, non-Bose and Y-91 audio systems.
• Retains factory front and rear parking sensors.
• Retains safety and warning chime functions.
• Adjustable Chime Volume
• EIA color coded wiring for easy installation.
Notes:
Not compatible with 2012-up SUVs/trucks that are equipped with factory-installed Navigation radios
Not compatble with diesel-powered Express and Savana vans
Does not support OnStar
Does not support steering wheel control retention
Supports Rear Entertainment System with special order harness #CJA2333A, sold separately
