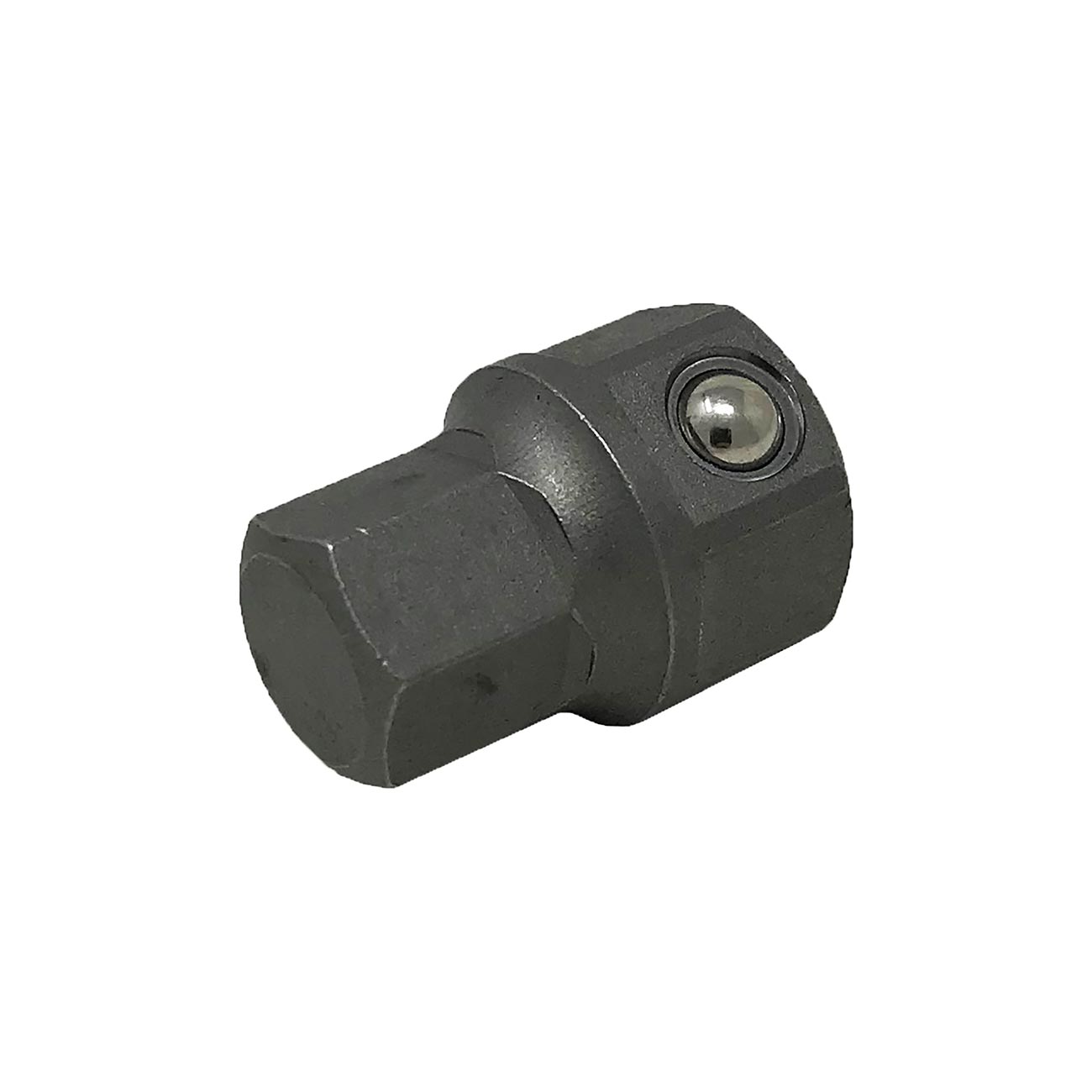

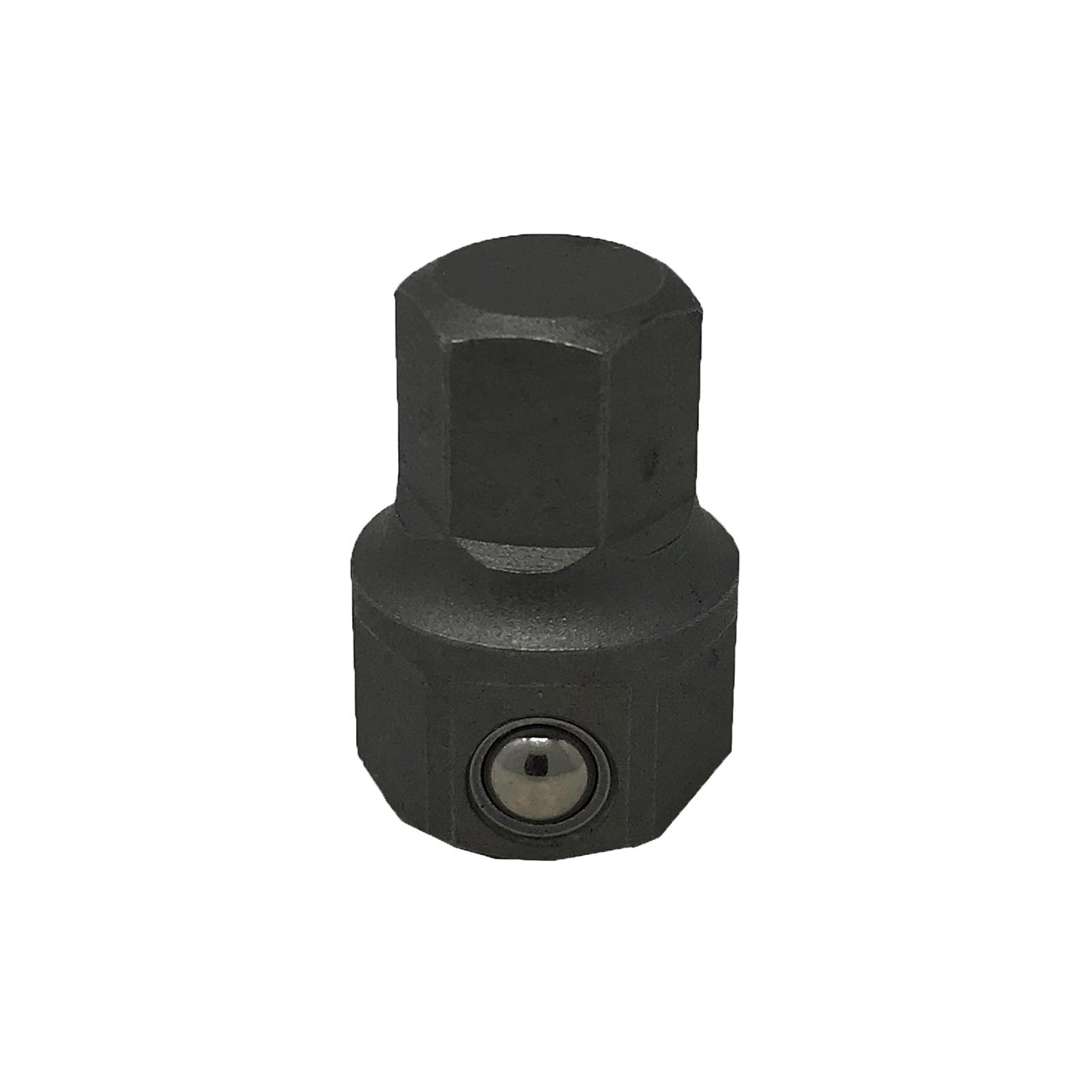

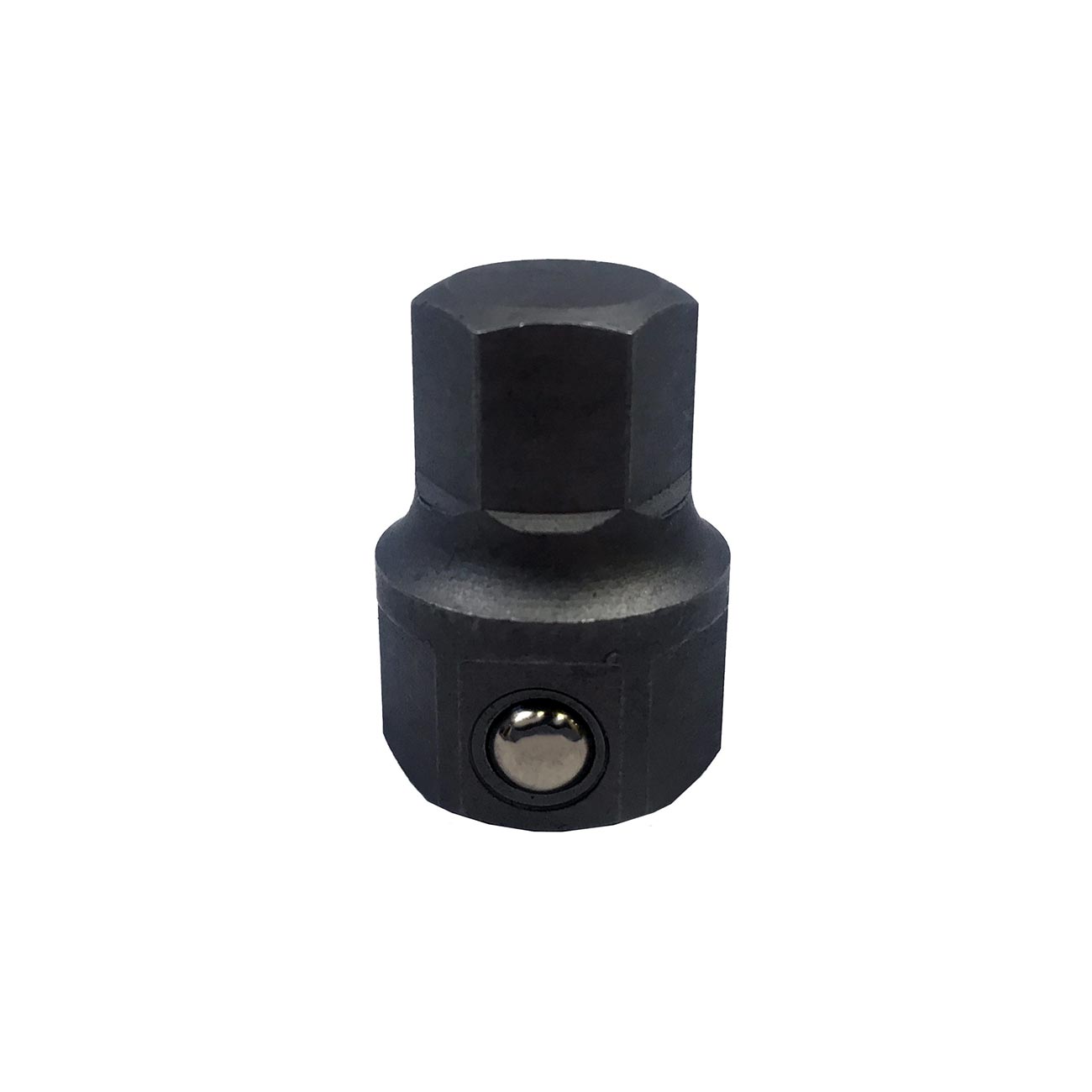

CTA Jeep/BMW Stubby 14mm Transmission Fill Plug Socket

Stubby design for clearance when servicing Transfer Case/Transmission fill plugs on 2012 & 2018 Jeep Wrangler with 6 speed manual transmission (NSG370)
Also used on BMW X5 & X6 transfer case & rear differential plug

Stubby 14mm hex
3/4″ hex drive or 19mm wrench
OAL: 30mm (1.2”)

SKU	1136CTA
Manufacturer Model #	1136
UPC	053001011360
Case Quantity	1
Brand:	CTA Tools
Weight	0.10 lbs
Carton Dimensions	4 × 3.25 × 1 in
Driver / Collet Size	3/4"
Driver Tip Type	Hex
Unit of Measure	Metric
Packaged As:	Single

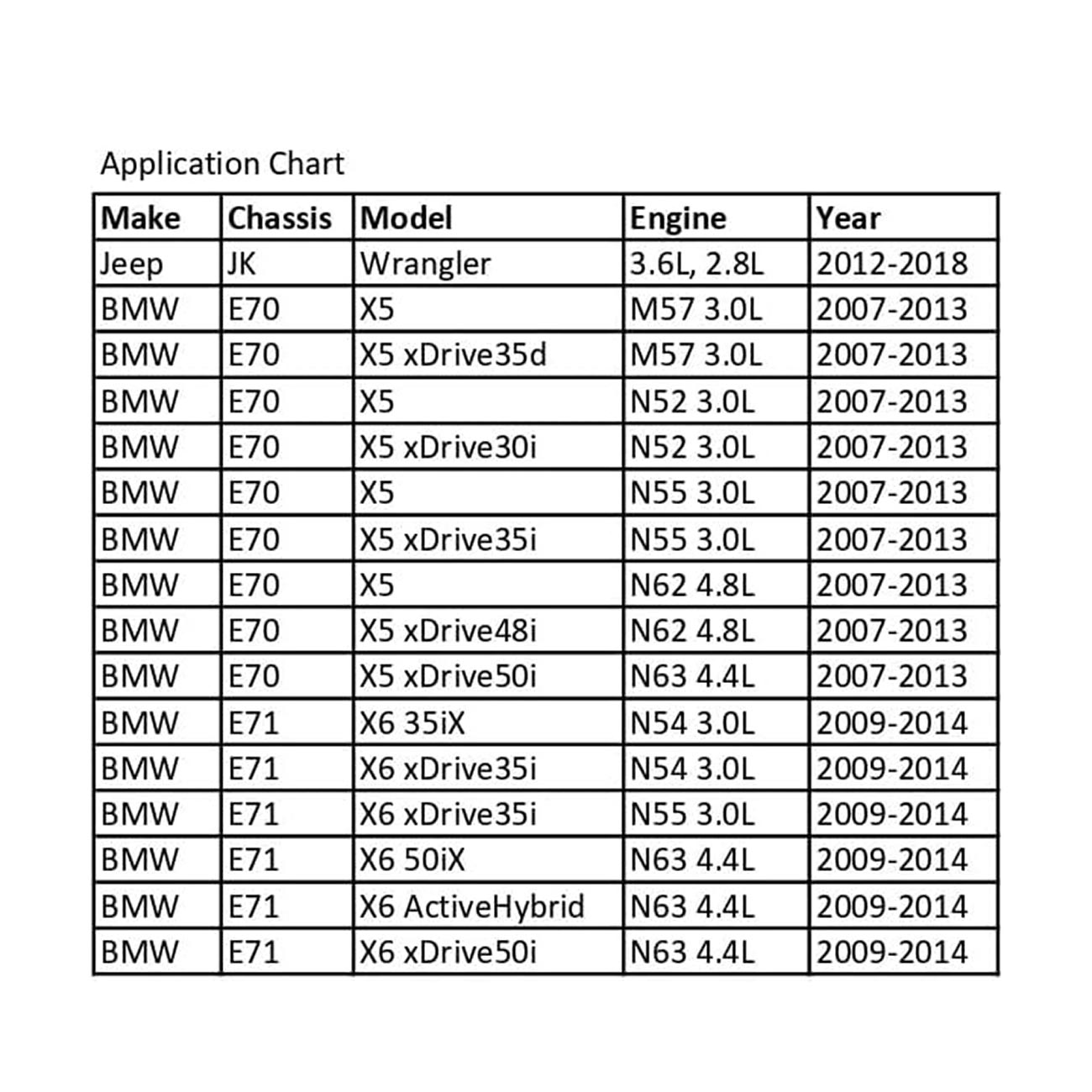

Make	Model	Trim	Engine	Year
BMW	E70	X5	M57 3.0L	2007 - 2013
BMW	E70	X5	N52 3.0L	2007 - 2013
BMW	E70	X5	N55 3.0L	2007 - 2013
BMW	E70	X5	N62 4.8L	2007 - 2013
BMW	E70	X5 xDrive30i	N52 3.0L	2007 - 2013
BMW	E70	X5 xDrive35d	M57 3.0L	2007 - 2013
BMW	E70	X5 xDrive48i	N62 4.8L	2007 - 2013
BMW	E70	X5 xDrive50i	N63 4.4L	2007 - 2013
BMW	E70	X5 xDrive5i	N55 3.0L	2007 - 2013
BMW	E71	X6 35iX	N54 3.0L	2009 - 2014
BMW	E71	X6 50iX	N63 4.4L	2009 - 2014
BMW	E71	X6 ActiveHybrid	N63 4.4L	2009 - 2014
BMW	E71	X6 xDrive35i	N54 3.0L	2009 - 2014
BMW	E71	X6 xDrive35i	N55 3.0L	2009 - 2014
BMW	E71	X6 xDrive50i	N63 4.4L	2009 - 2014
Jeep	Wrangler	JK	2.8L I4	2012 - 2018
Jeep	Wrangler	JK	3.6L V6	2012 - 2018
