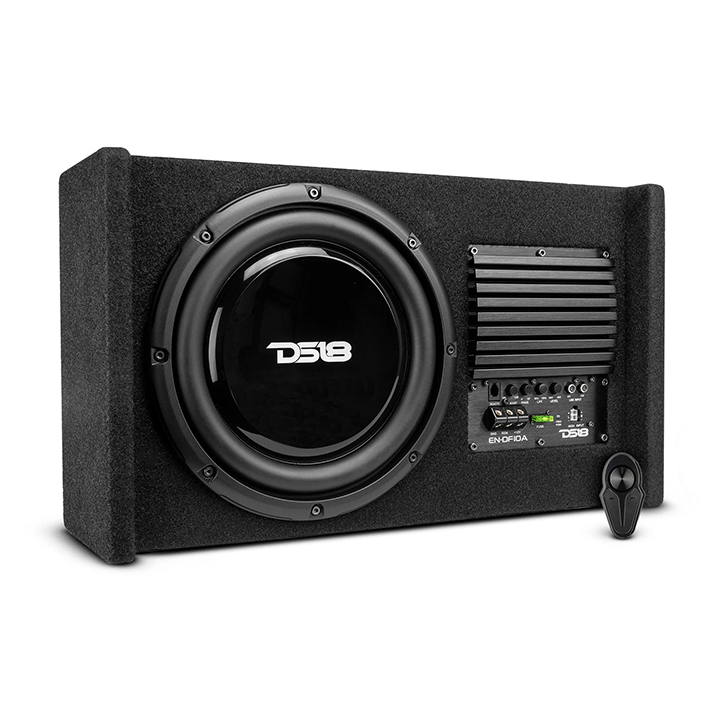

DS18 Single 10″ Shallow Down-Firing Subwoofer Amplified Enclosure
Compact design allowing endless options for placement in areas with minimal space
Built in high power amplifier with remote control functionality.
250W RMS 500W MAX output engineered to power this compact subwoofer and enclosure to optimal production.
Specially designed 10 inch subwoofer that maximizes bass response in spaces that are not typically designed for subwoofers.
Small sealed box made of 5/9 MDF and covered in stylish black carpet
.42 CF net internal volume
General Specs:
Speaker Type / Size: 10″ Active Subwoofer
Total Impedance: 2 ohms
Total RMS Power Handling: 250W (14.4V)
Total MAX Power Handling: 500W
Sensitivity (1w/1m): 86dB
Frequency Response: 25-250Hz
Recommended Lo Pass Crossover: 80Hz
(WxHxD) 20.2″ x 11.6″ x 6.3″
Speaker Specs:
Voice Coil Diameter: 1.5″
Voice Coil Former Material: Aluminum
Winding Material: Cooper
Cone Material: Injection PP Cone
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 40 Oz
Amp Specs:
Number of Channels: 1
Minimum Impedance: 2 ohms
Signal to Noise Ratio: 80dB
Efficiency @ 4ohm: 0.75
Selectable X-Over: LPF Fixed
High Level Input
Bass Boost
Led Indicator: Power / Protection
Thermal, Over-Load, DC Output, Short Circuit Output & Voltage Input Protection
Dash Remote Control
