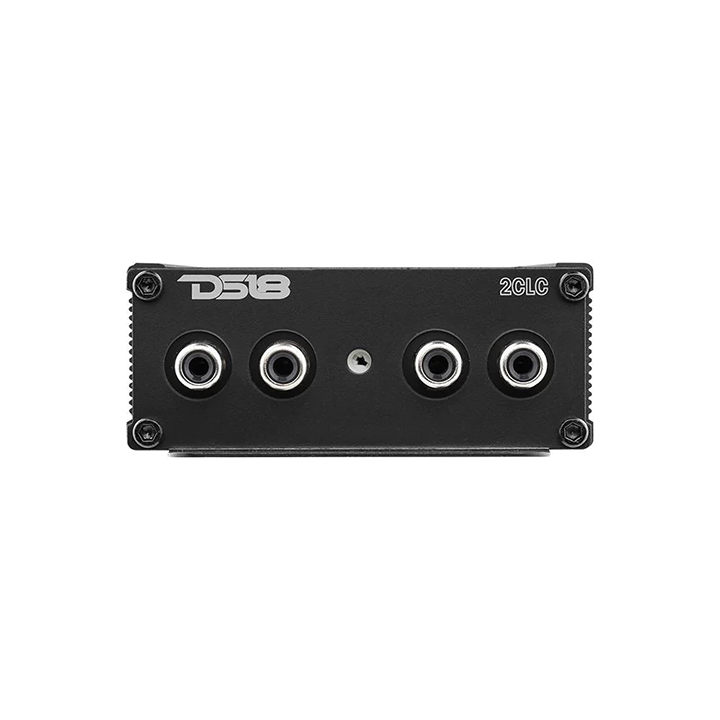

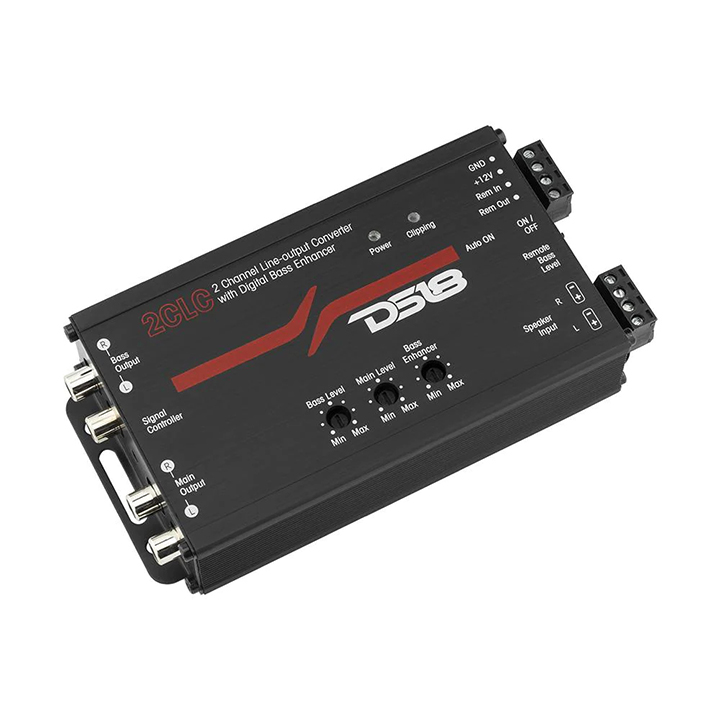

DS18 2 Channel Line Output Converter with Digital Bass Enhancer
Maximum Speaker Level Input: 400 watts per channel
Maximum Preamp Output: 9V rms
Dash Level Remote Control: +0db / – 19 dB
Frequency response: 10Hz-100kHz; + 1dB
Total Harmonic Distortion: 0.01%
Signal To Noise Ratio: >110dB
Input Impedance: 20K Ohms
Output Impedance: 150 Ohms
Power Draw: 150mA
Speaker Level Input 2 channels
Bass Enhancer: With adjustable control of bass roll-off
Selectable Auto ON: Signal Sensing or remote in
Remote Output: Up to 150mA
Dual Amplifier Outputs: Main/ Bass output
Level Matching Controls: Main/ Bass output Level knob

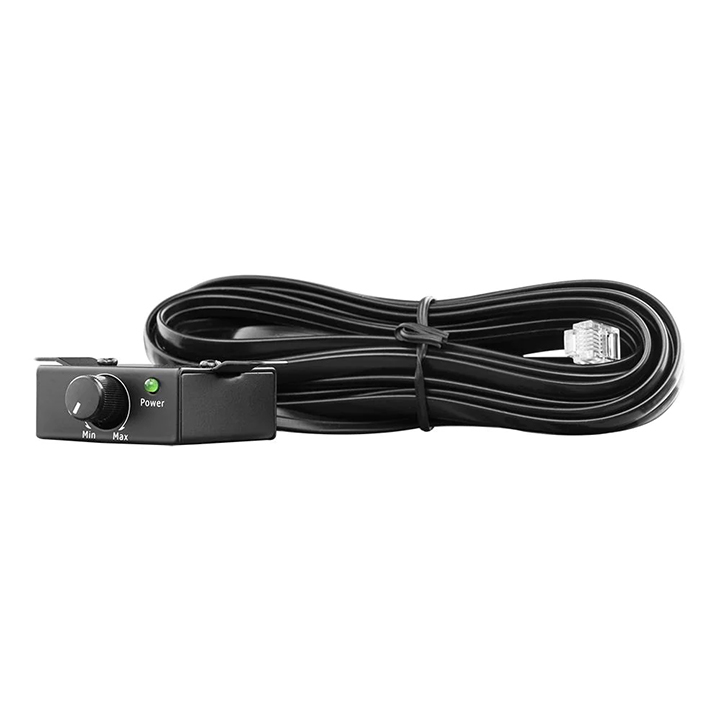

Dash Remote Level Control
LED Indicators: Power Clipping
