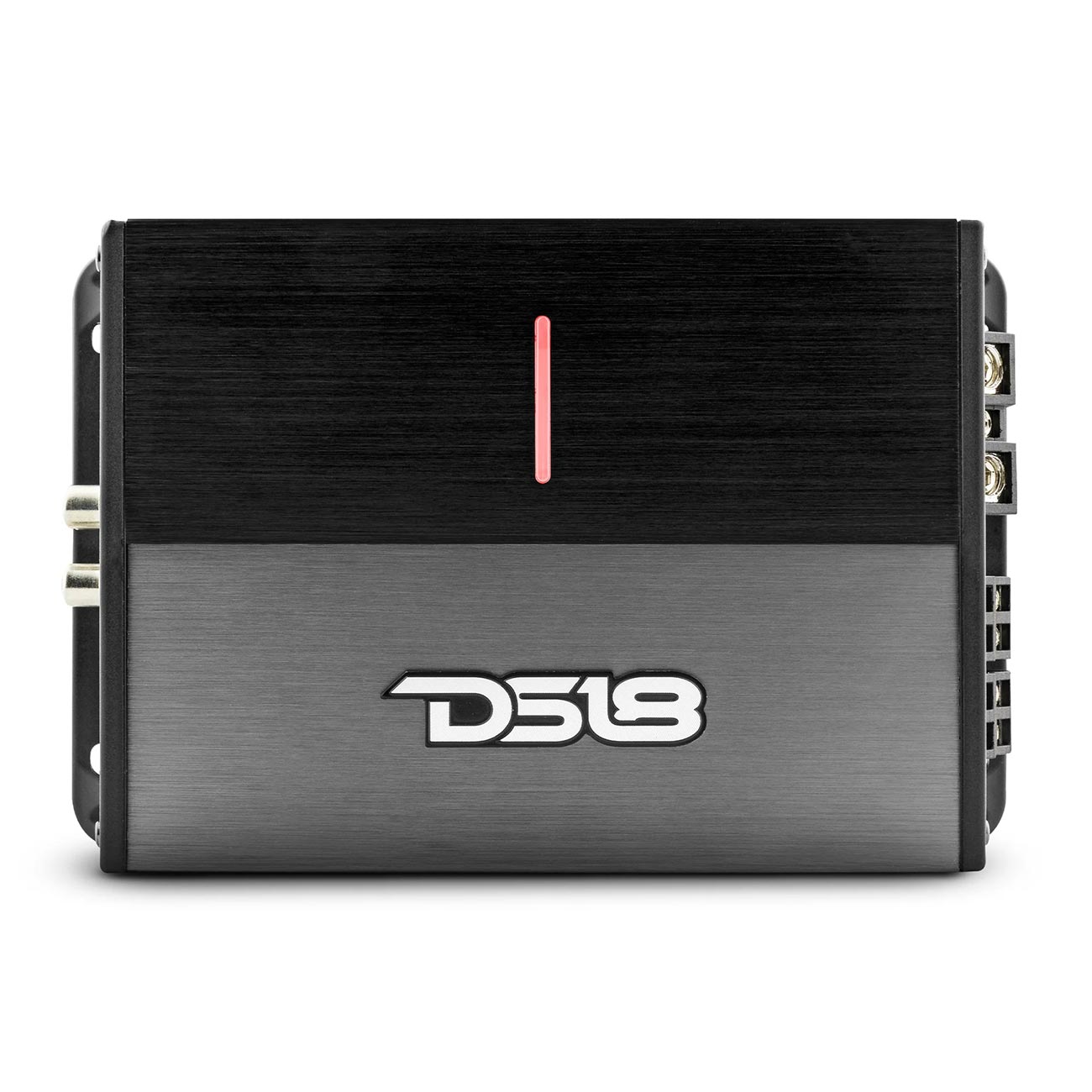

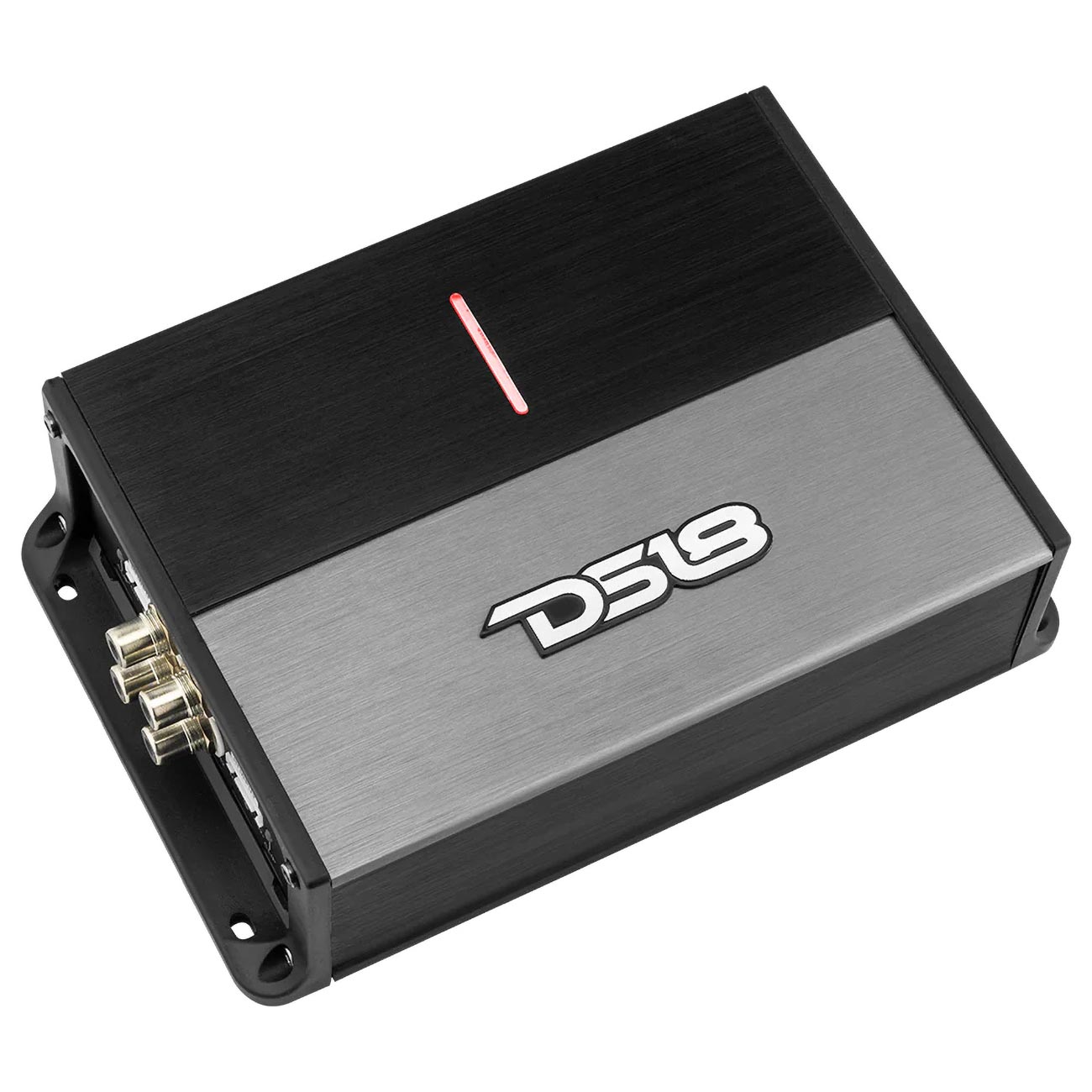

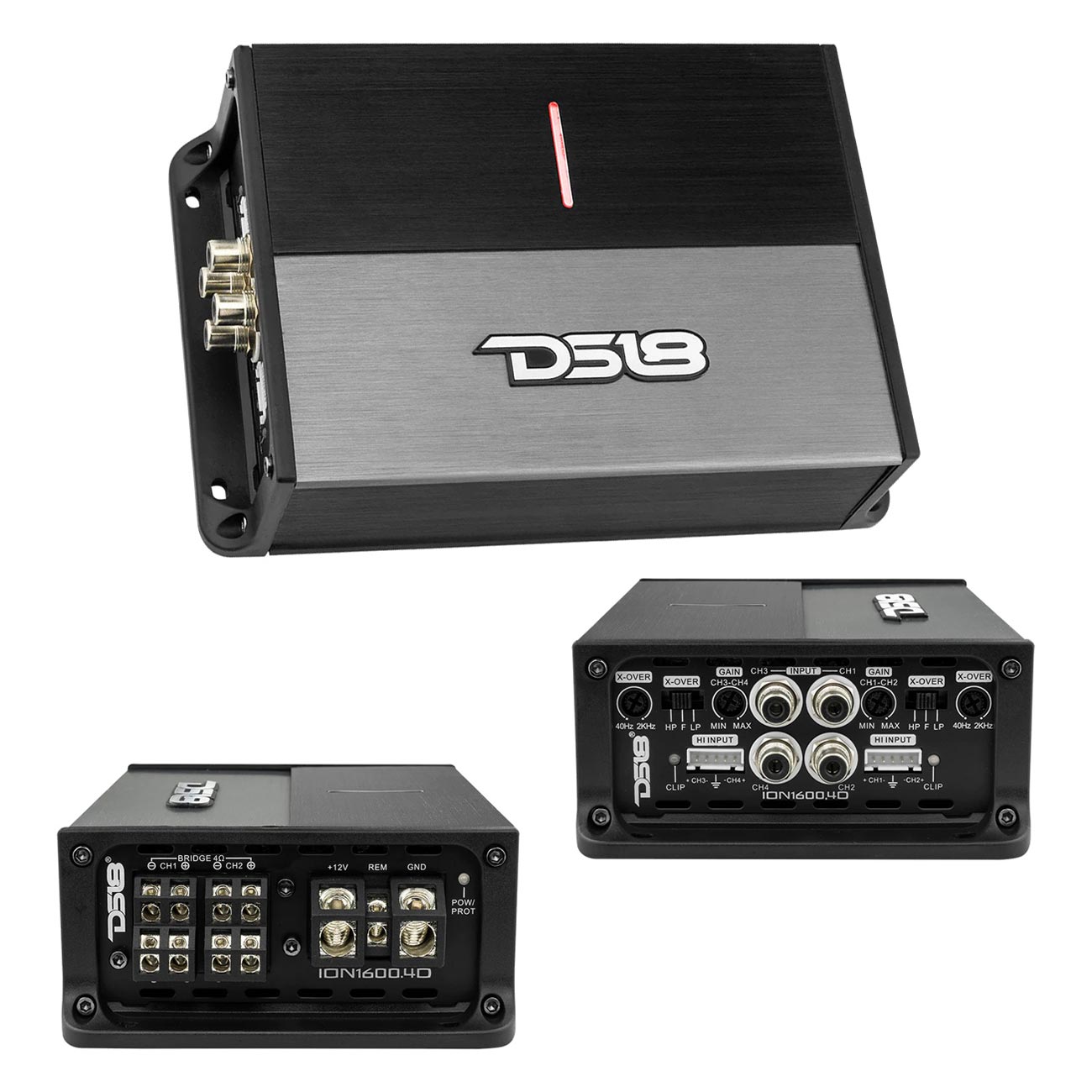

DS18 ION Compact 4 Channel Amplifier 800W RMS/4800W Max

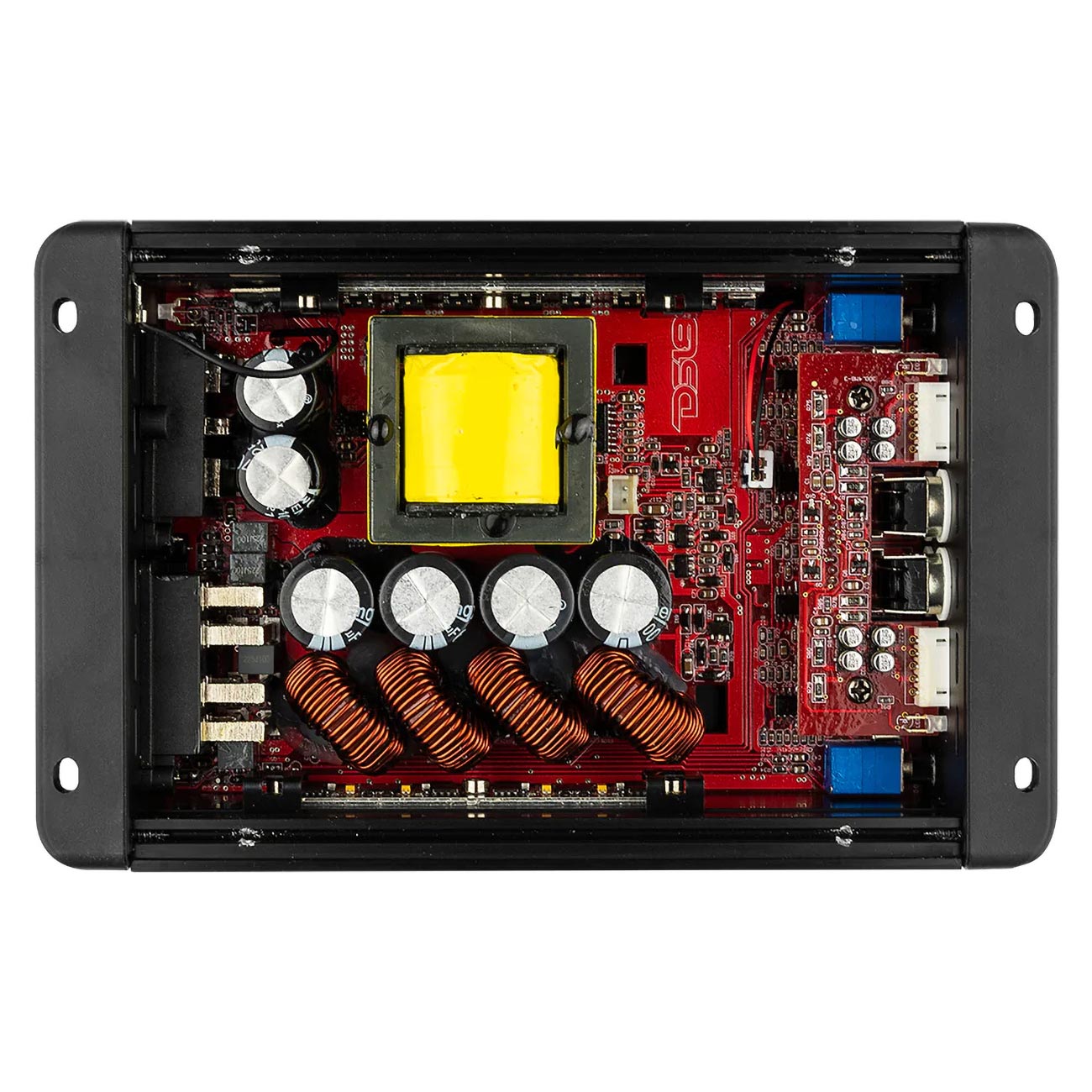

High Efficiency Micro Digital Design
4 X 400 Watts RMS @ 2 Ohms
4 x 240 Watts RMS @ 4 Ohms
2 x 800 Watts RMS @ 4 Ohms (bridged)
(W x H x L) 4.72″ x 2″ x 7.32″ – Compact
Recommended Fuse: 140A
Class D
2 Ohm Stable
Frequency Response: 10Hz – 20KHz
Signal to Noise Ratio: >95dB
Efficiency @ 4 ohm: 88%
Damping Factor: 210

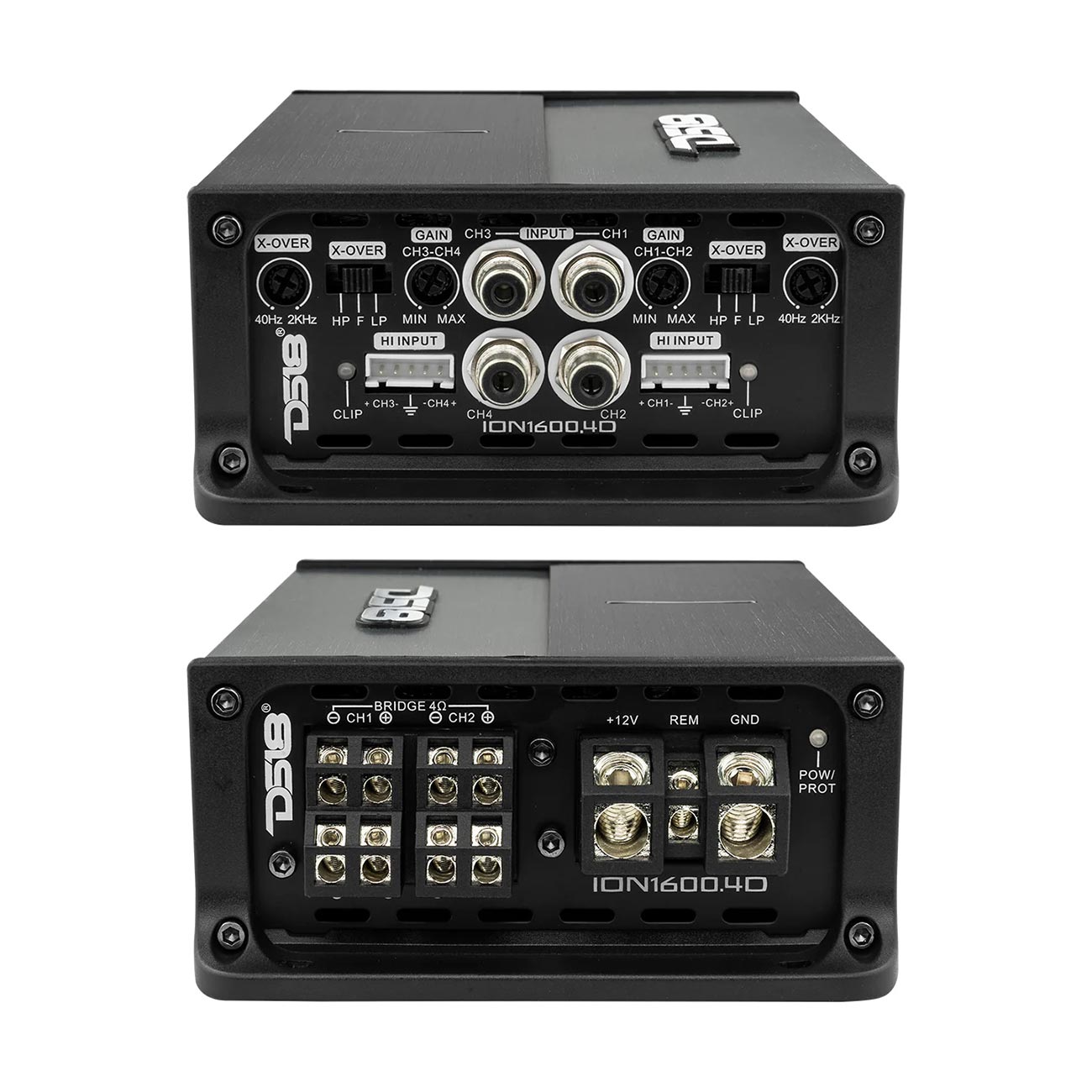

Hi-Level Speaker connector
Tiffany RCA Terminal
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.2-6V
Selectable Crossover
High Pass Filter: 40Hz-2KHz
Low Pass Filter: 40Hz-2KHz
Bass Boost: 45Hz (0-12 dB)
5-Way Protection
LED Power / Clip / Protection Indicators
