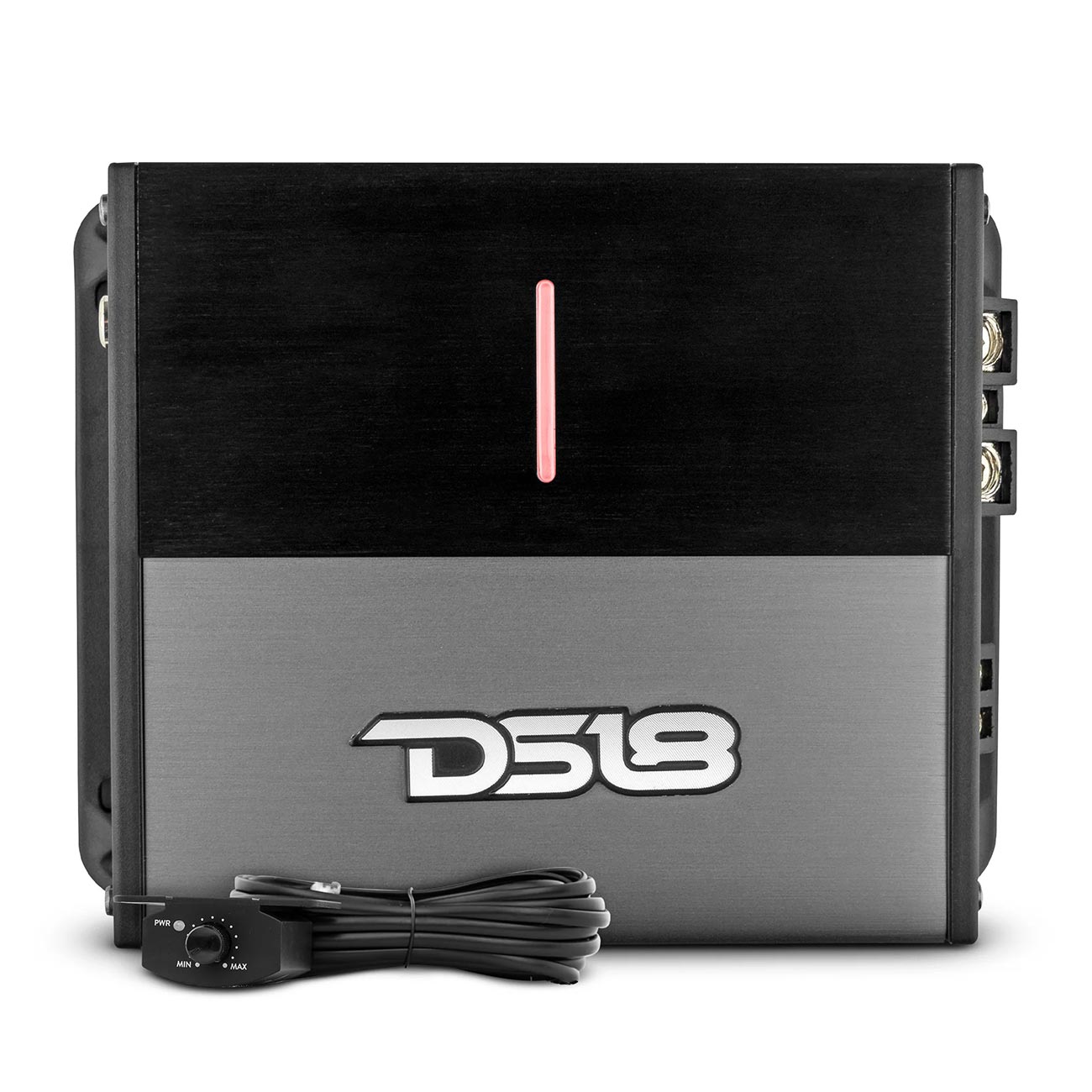

DS18 ION Compact Full range Monoblock Amplifier 600W RMS/1800W Max
Monoblock Full Range
High Efficiency Micro Digital Design
1 X 600 Watts RMS @ 1 Ohm
1 x 400 Watts RMS @ 2 Ohms
1 x 200 Watts RMS @ 4 Ohms
(W x H x L) 4.72″ x 2″ x 6.14″ – Compact
Recommended Fuse: 80A
Class D
1 Ohm Stable
Frequency Response: 10Hz – 20KHz
Signal to Noise Ratio: >95dB
Efficiency @ 4 ohm: 88%
Damping Factor: 210
Hi-Level Speaker connector
Tiffany RCA Terminal
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.2-6V
Selectable X-Over
High Pass Filter: 15Hz-1KHz
Low Pass Filter: 40Hz-20KHz
Bass Boost: 45Hz (0-12 dB)
5-Way Protection
LED Power / Clip / Protection Indicators
Remote Level Control
