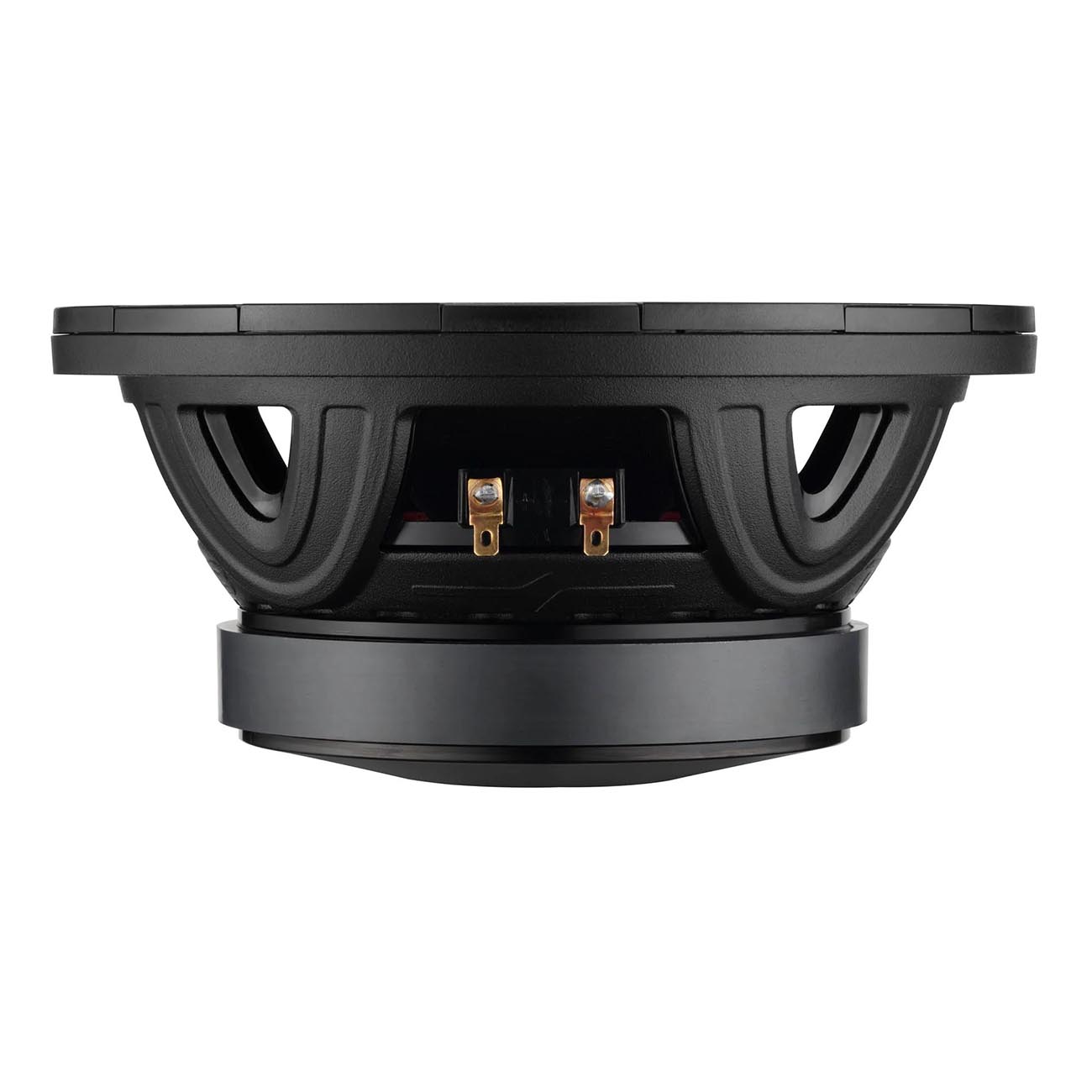

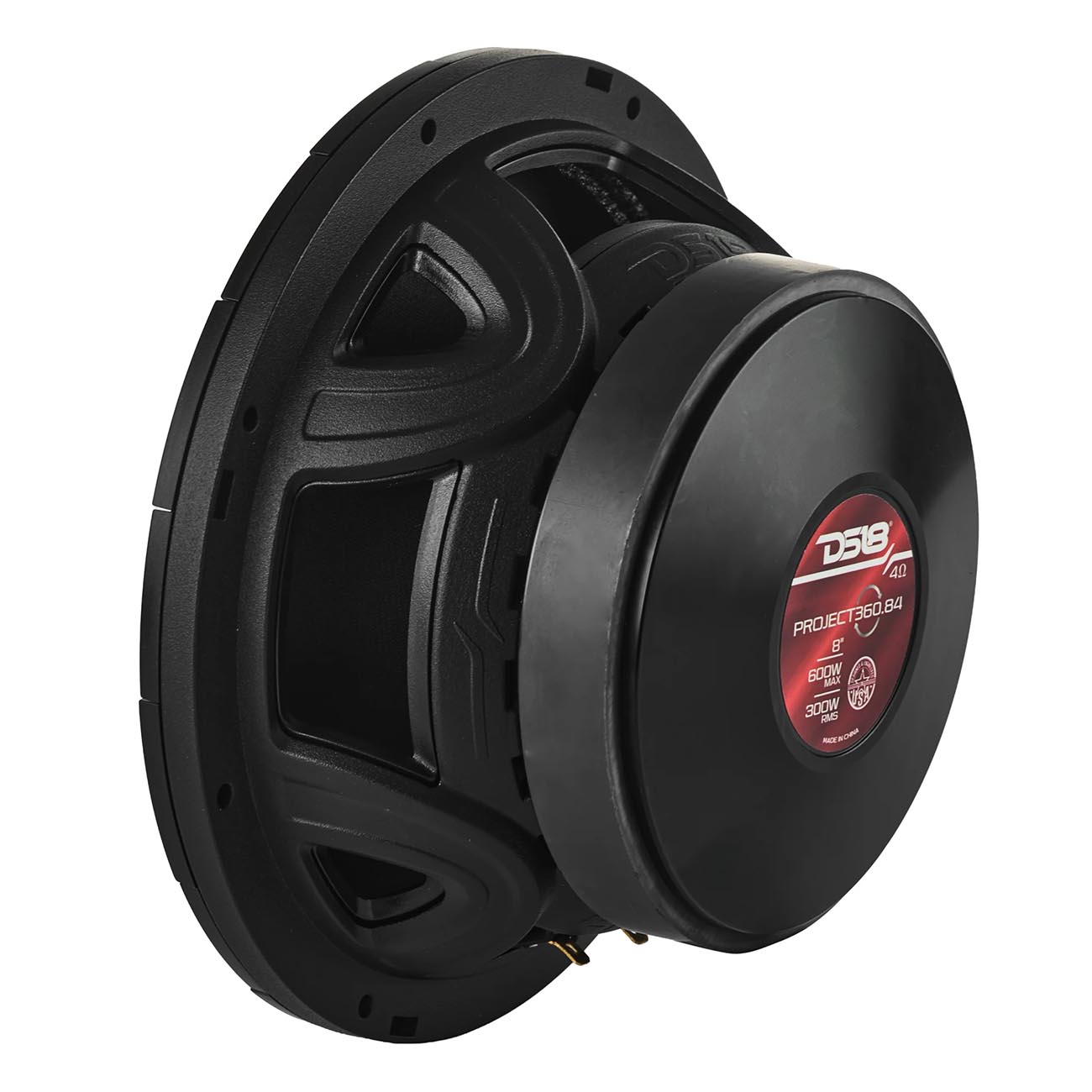

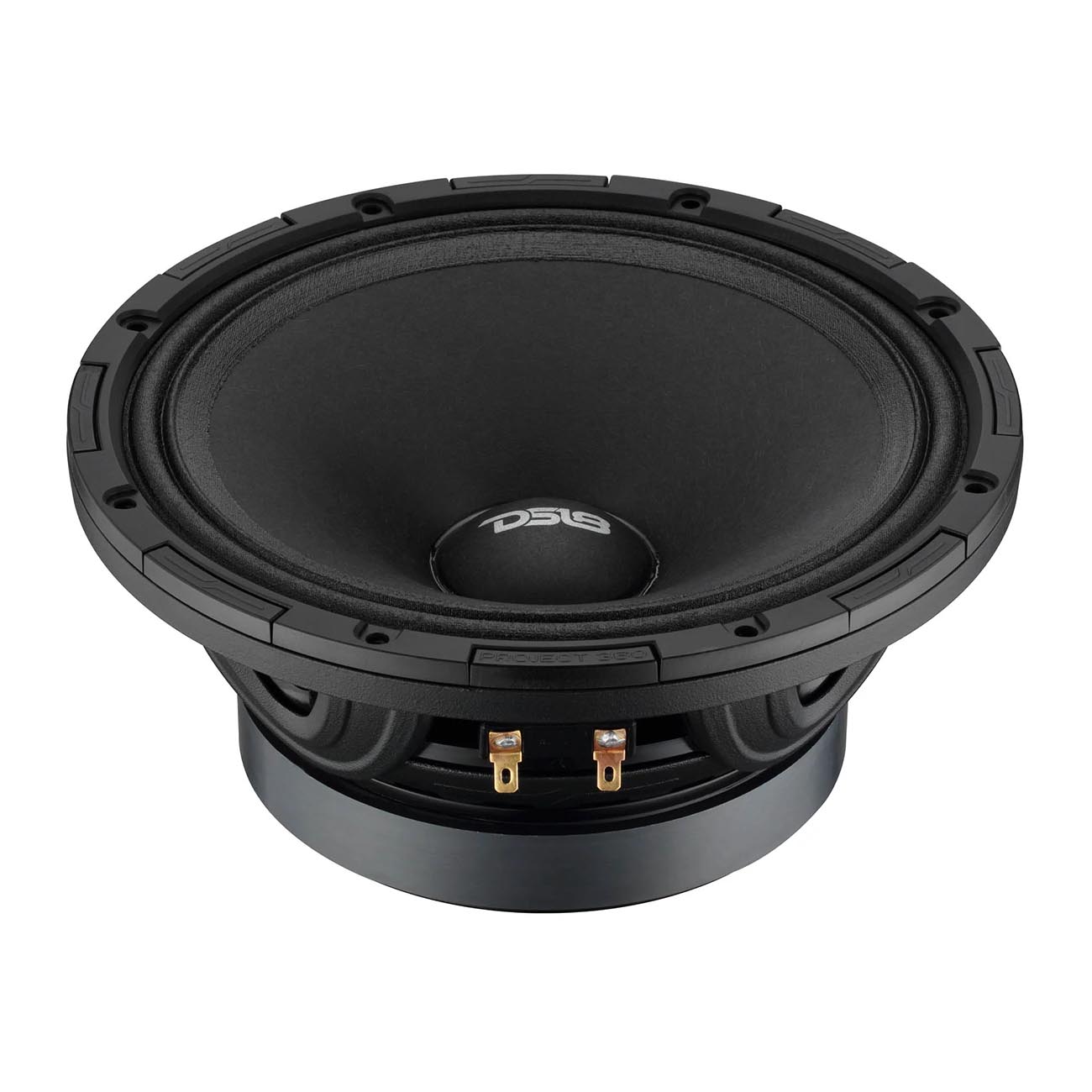

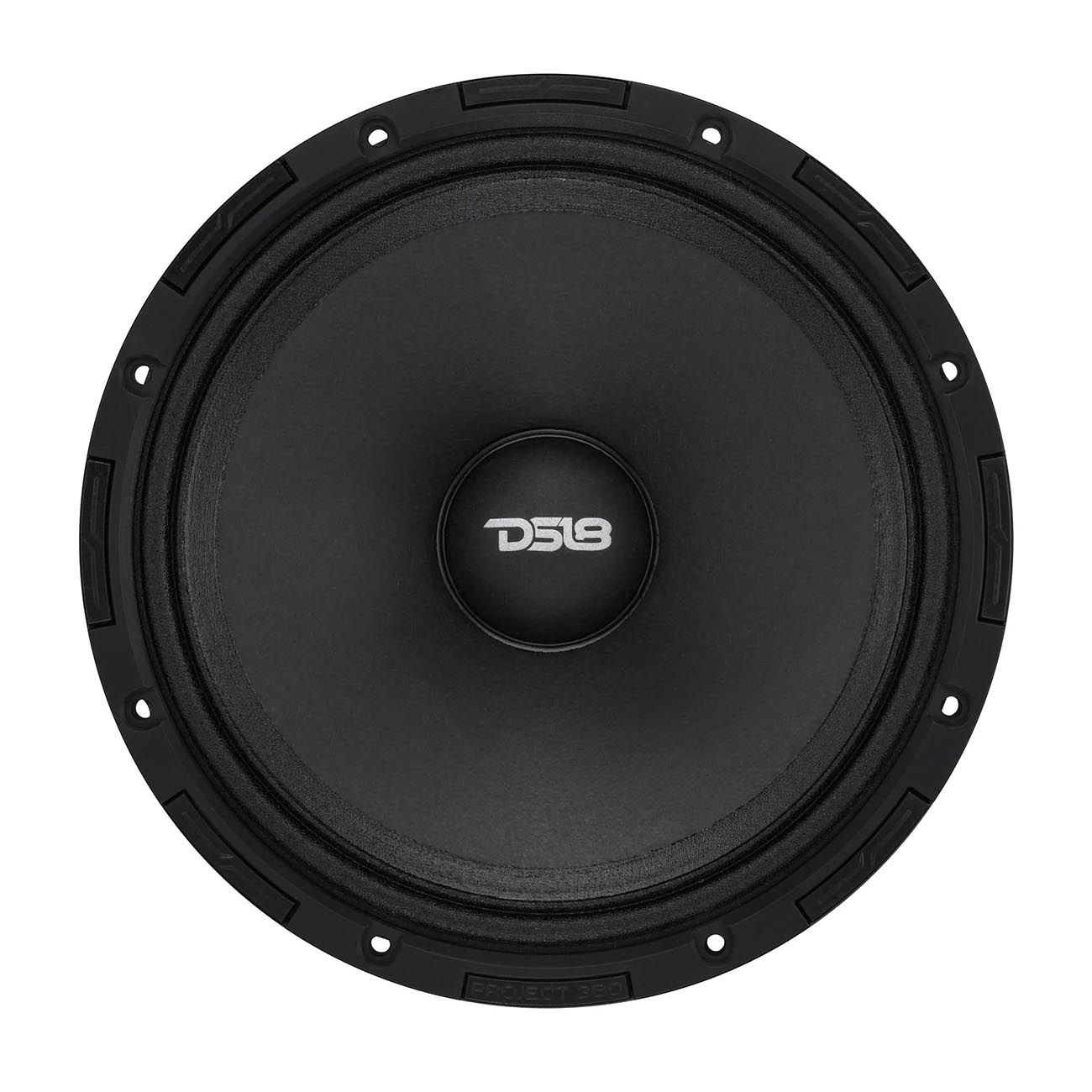

DS18 8” Mid-High Loudspeaker, 300W RMS/600W MAX, 4-Ohm, Rotating Recone Design For Quick Repair (Sold Each)
Curvilinear cone for improved response
Aluminum basket construction
Plug-and-play recone system – no glue required

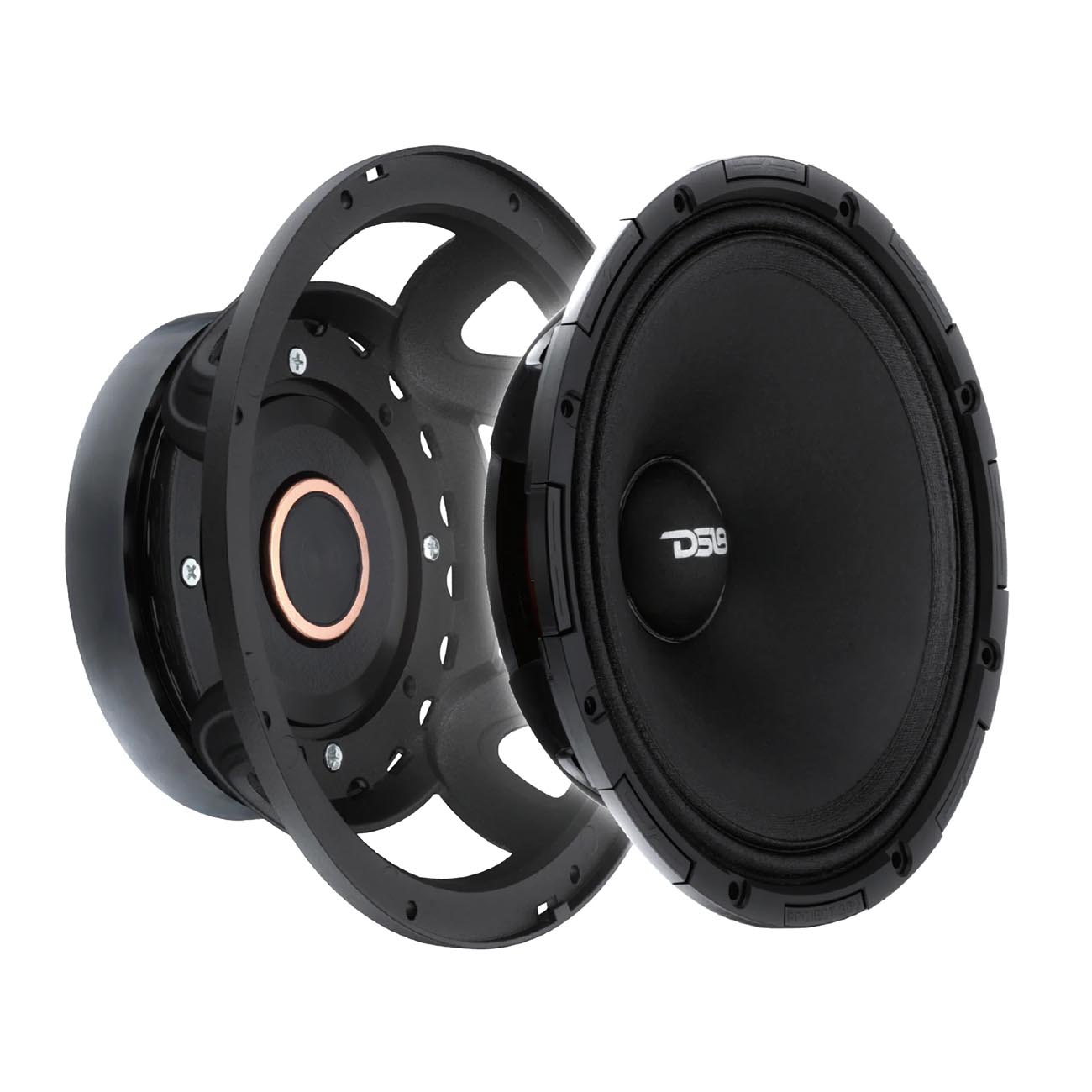

Patent-Pending rotating recone design for instant repairs
Compatible recone model PROJECT360.84RCK
Nominal Impedance: 4 Ohms
RMS Power Handling: 300 W
MAX Power Handling: 600 W
Sensitivity (1w/1m): 100.2 dB
Frequency Response: 90Hz – 17kHz
Recommended High-Pass Crossover: 120 Hz
Grill Included: No
Demodulating Rings: Yes
Improved Heat Dissipation: No
Cone Shape: Curvilinear
Speaker Terminals: Spade
Easy Recone Design: Yes
Voice Coil Diameter: 1.75″ / 44.5mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Spider Diameter: 4.5″ / 114mm
Leads Connection Type: Round Crossed
Basket Material: Aluminum
Basket Color / Finish: Black
Magnet Material: Ferrite
Magnet Weight: 48 oz
Equivalent Volume: 6.92L / 0.244ft3
Excursion (one way): 0.3 mm
Free Air Resonance: 120 Hz
Mechanical Factor: 3.453
Electrical Factor: 0.525
Total Factor: 0.456
Moving Mass: 20.995 g
Mechanical Compliance: 0.085 mm/N
BL Factor: 9.584
Voice Coil Inductance: 0.046 mH
Cone Area: 240.53 cm2
DC Resistance: 3.4 Ohms
Mounting Depth: 3.35″ / 85mm
Motor Diameter: 5.5″ / 140mm
Sold Individually
