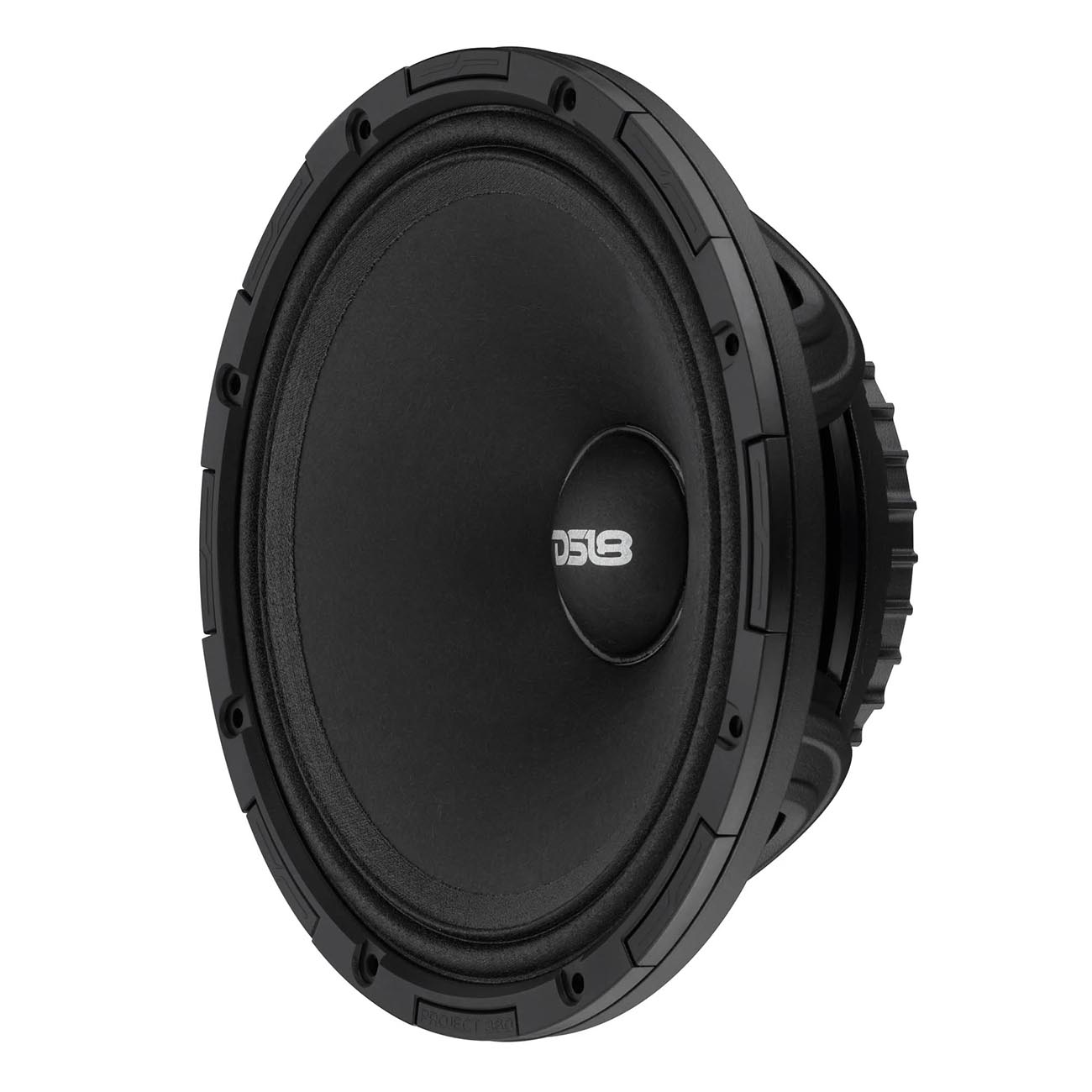

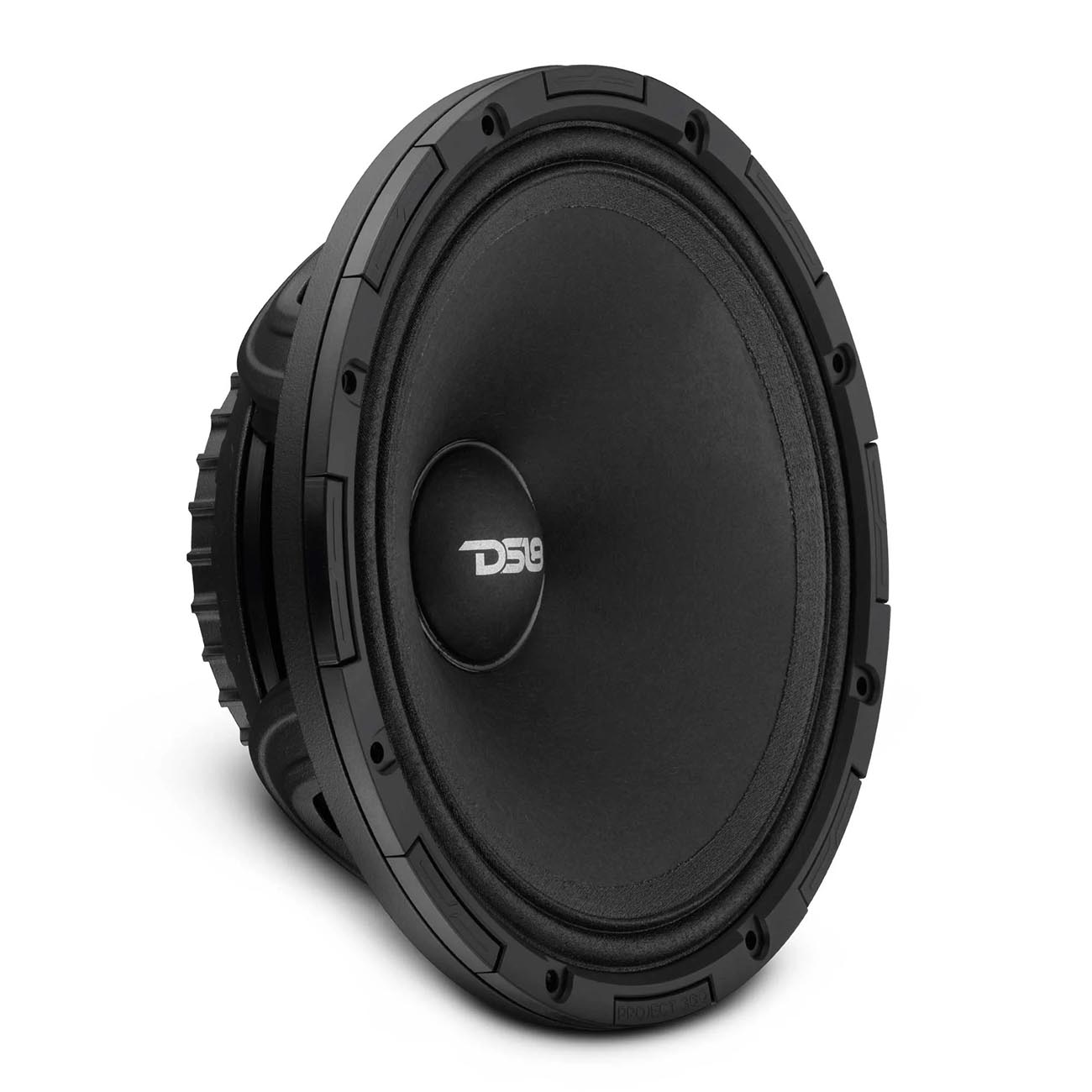

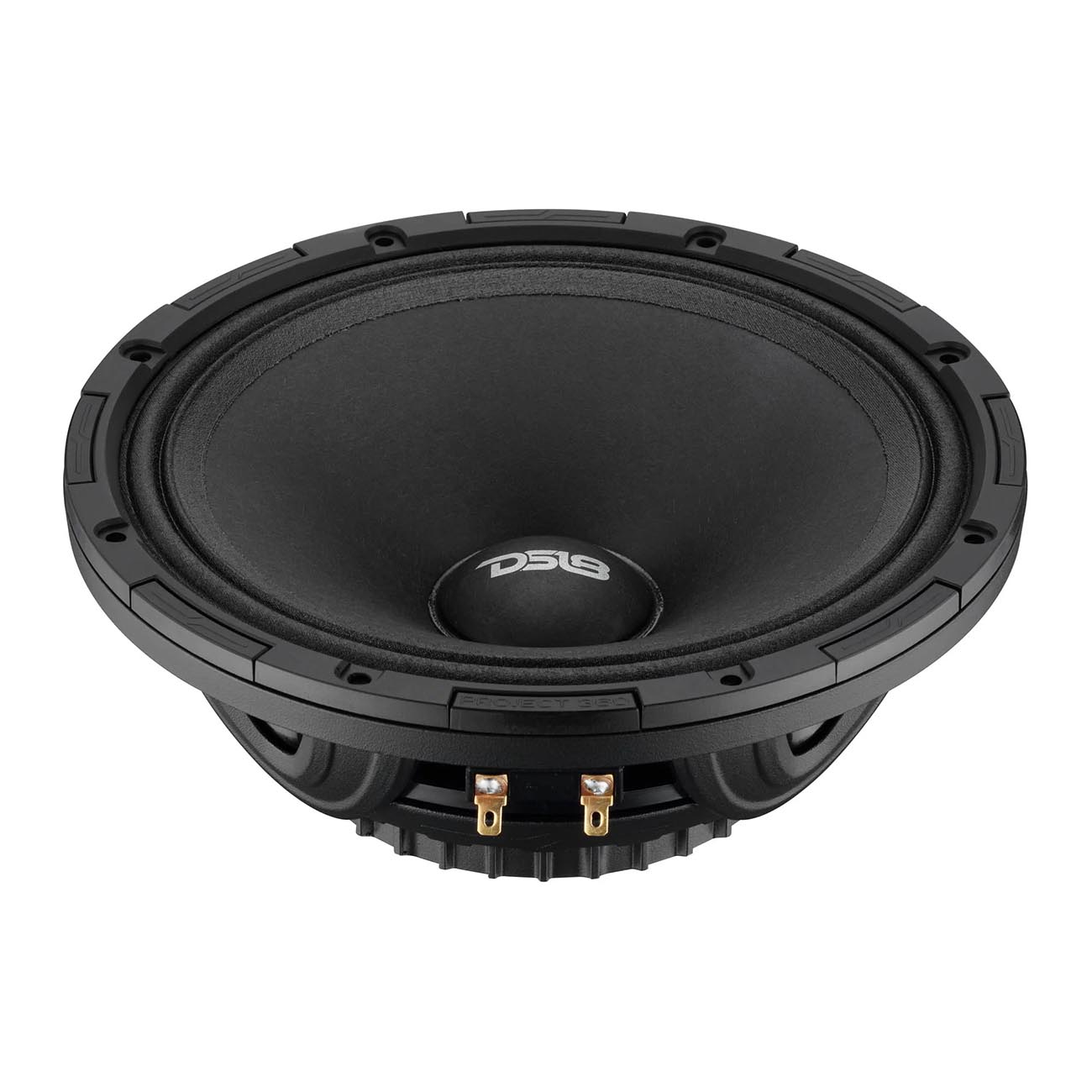

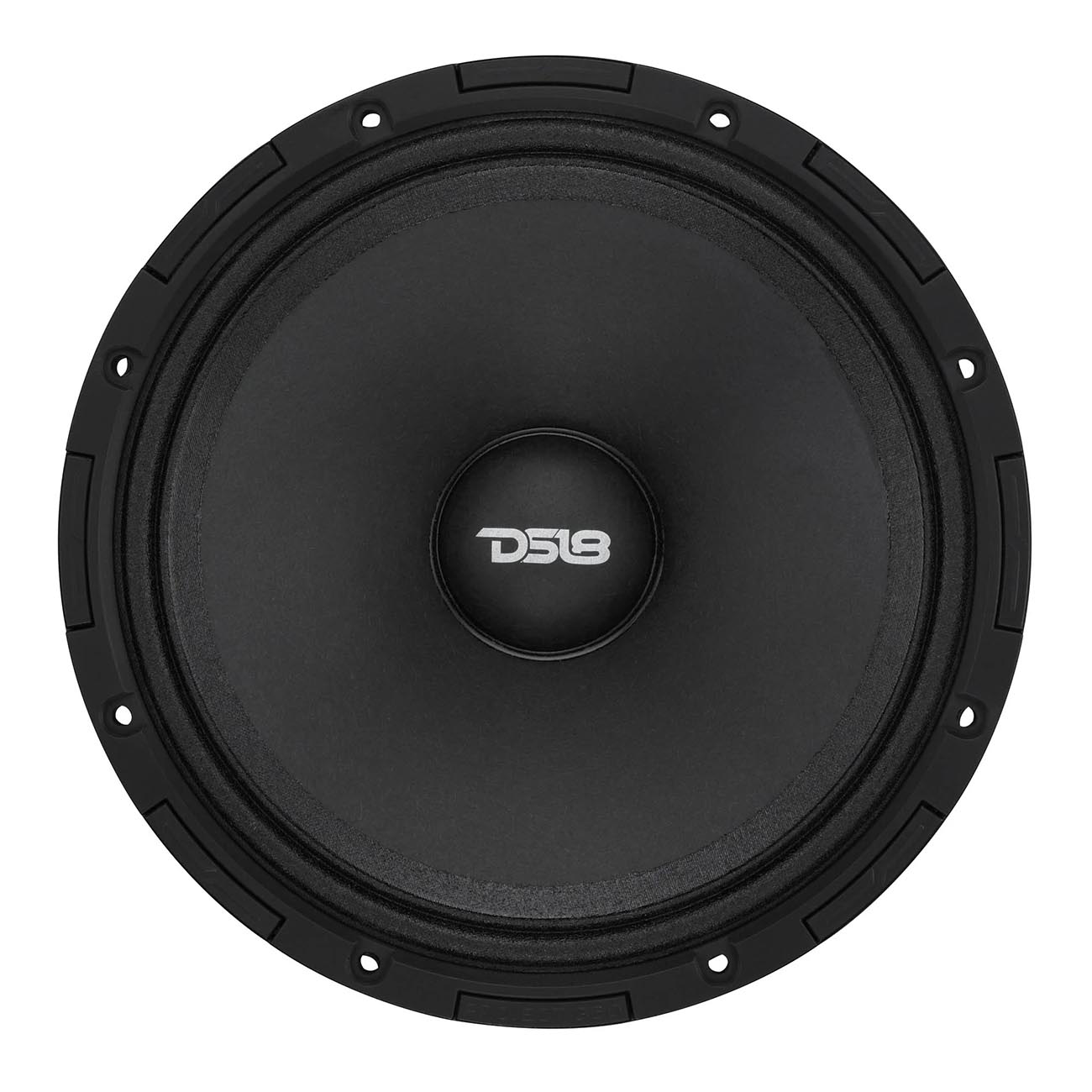

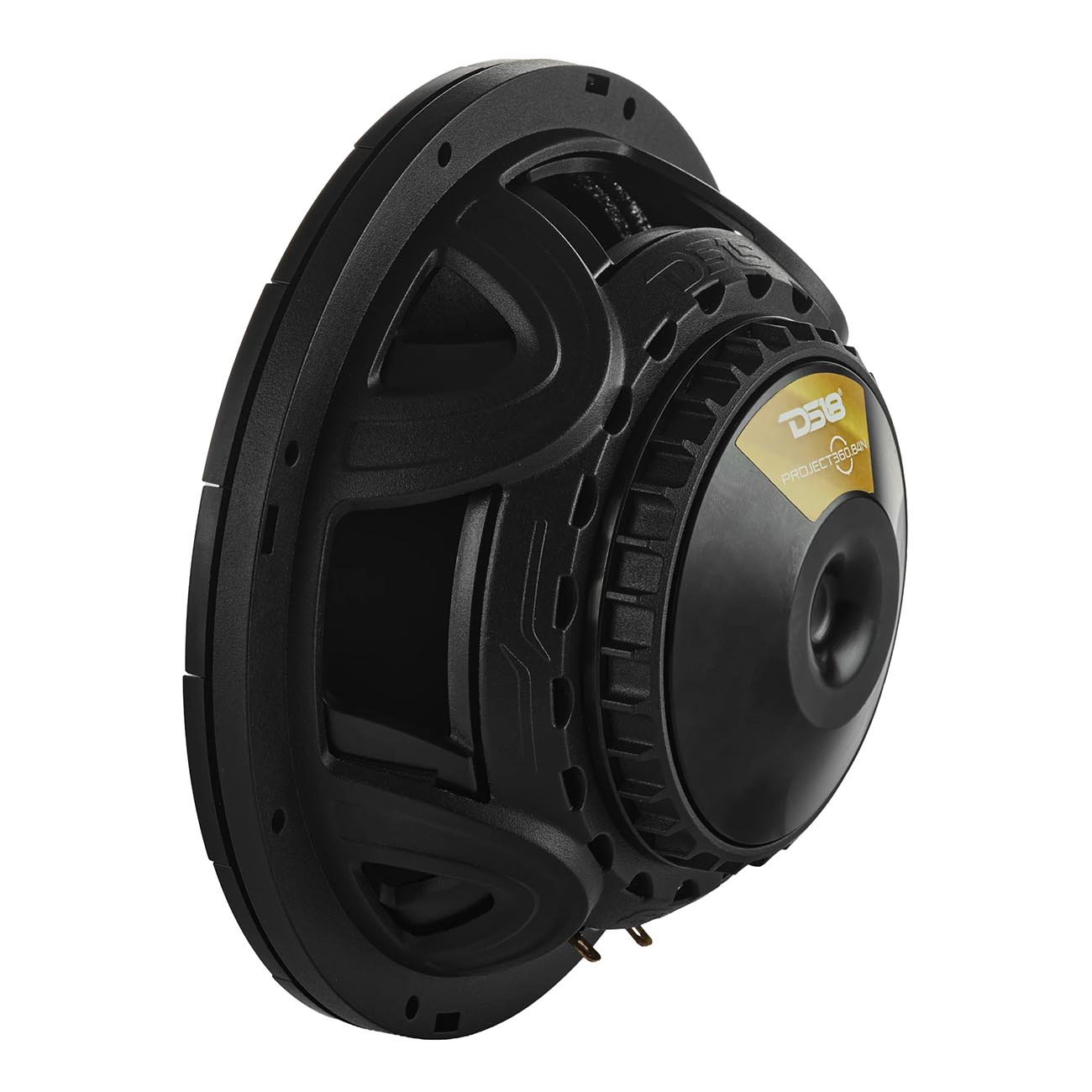

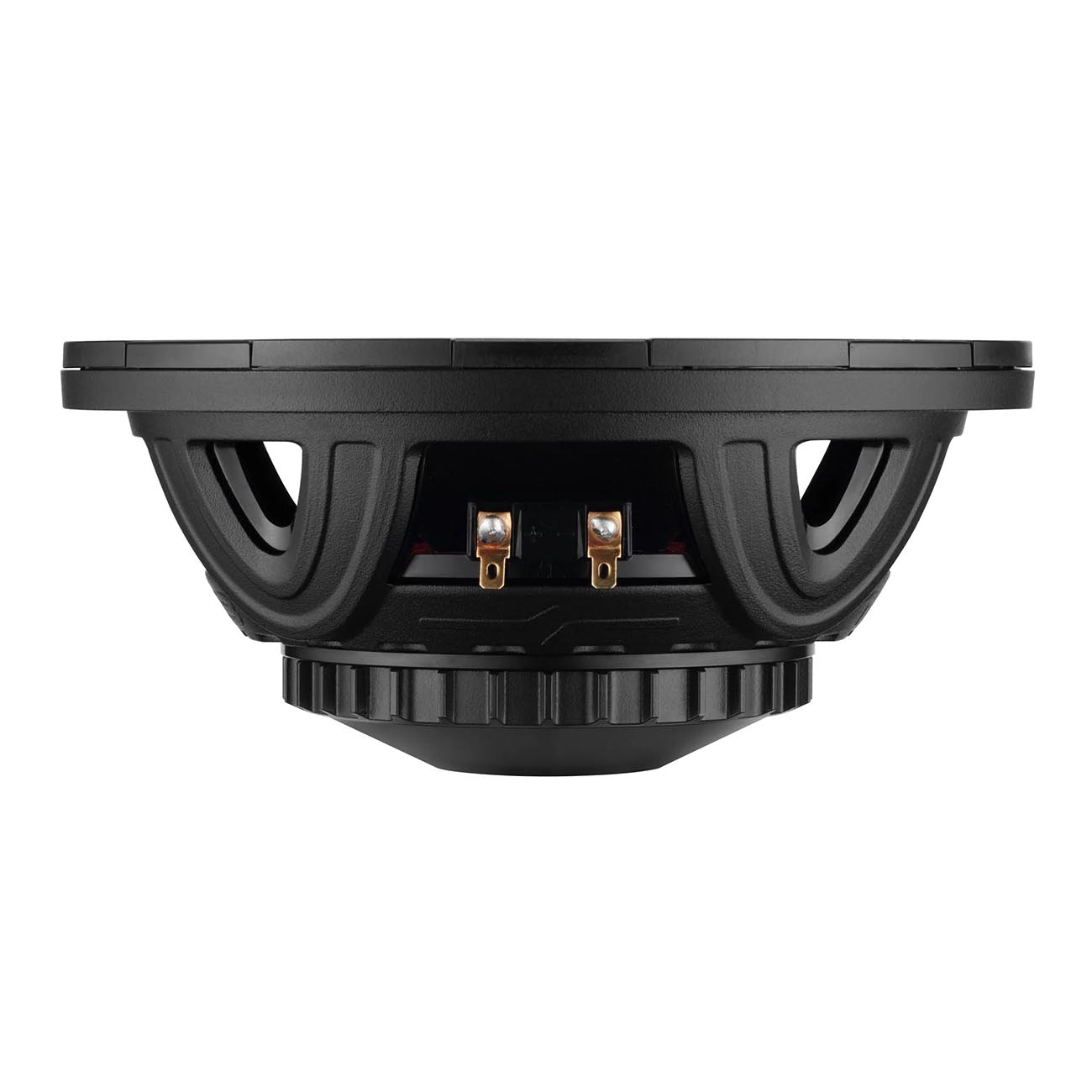

DS18 8” Neodymium Magnet Mid-High Loudspeaker, 350W RMS/700W MAX, 4-Ohm, Rotating Recone Design For Quick Repair (Sold Each)
Curvilinear cone for improved response
Aluminum basket construction

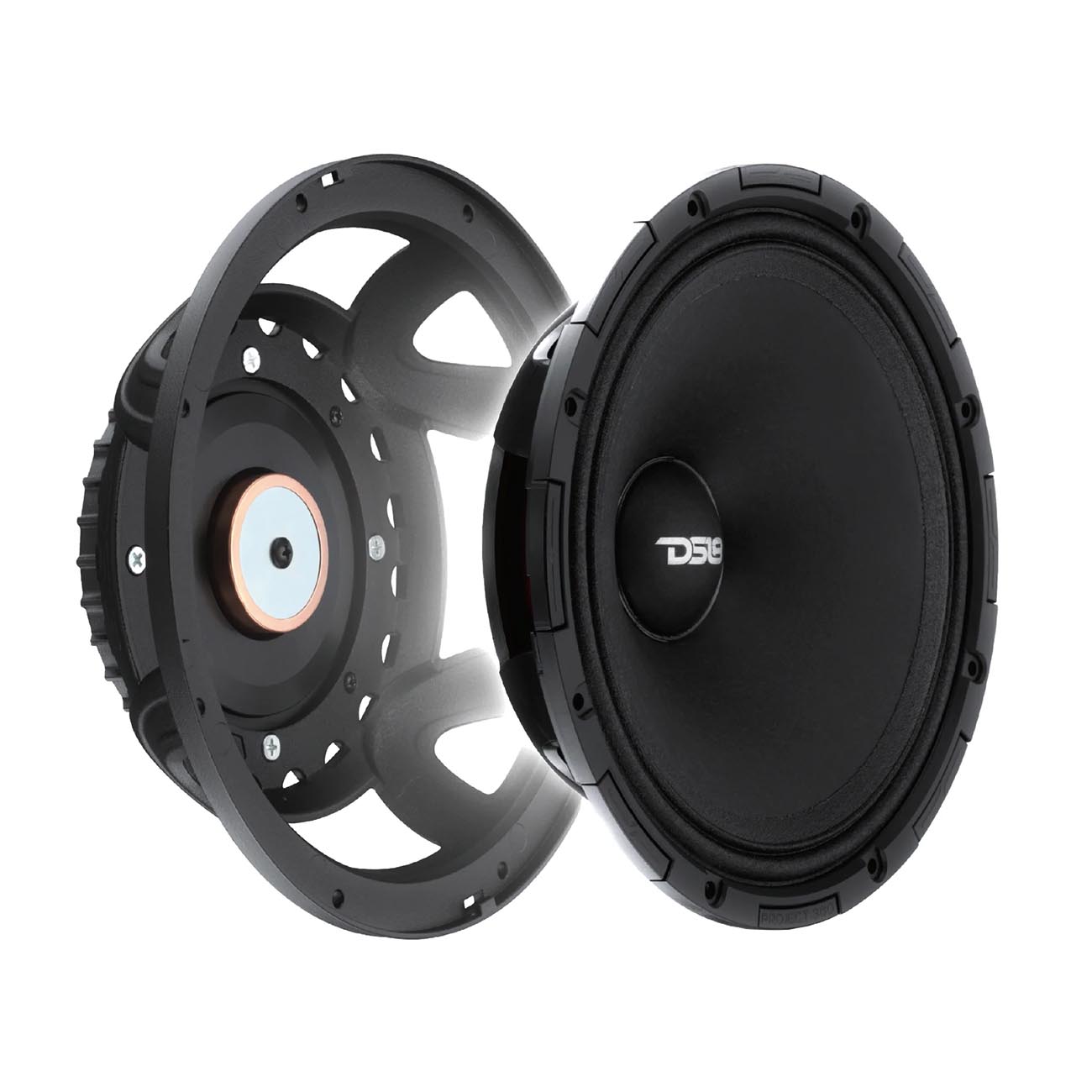

Plug-and-play recone system – no glue required

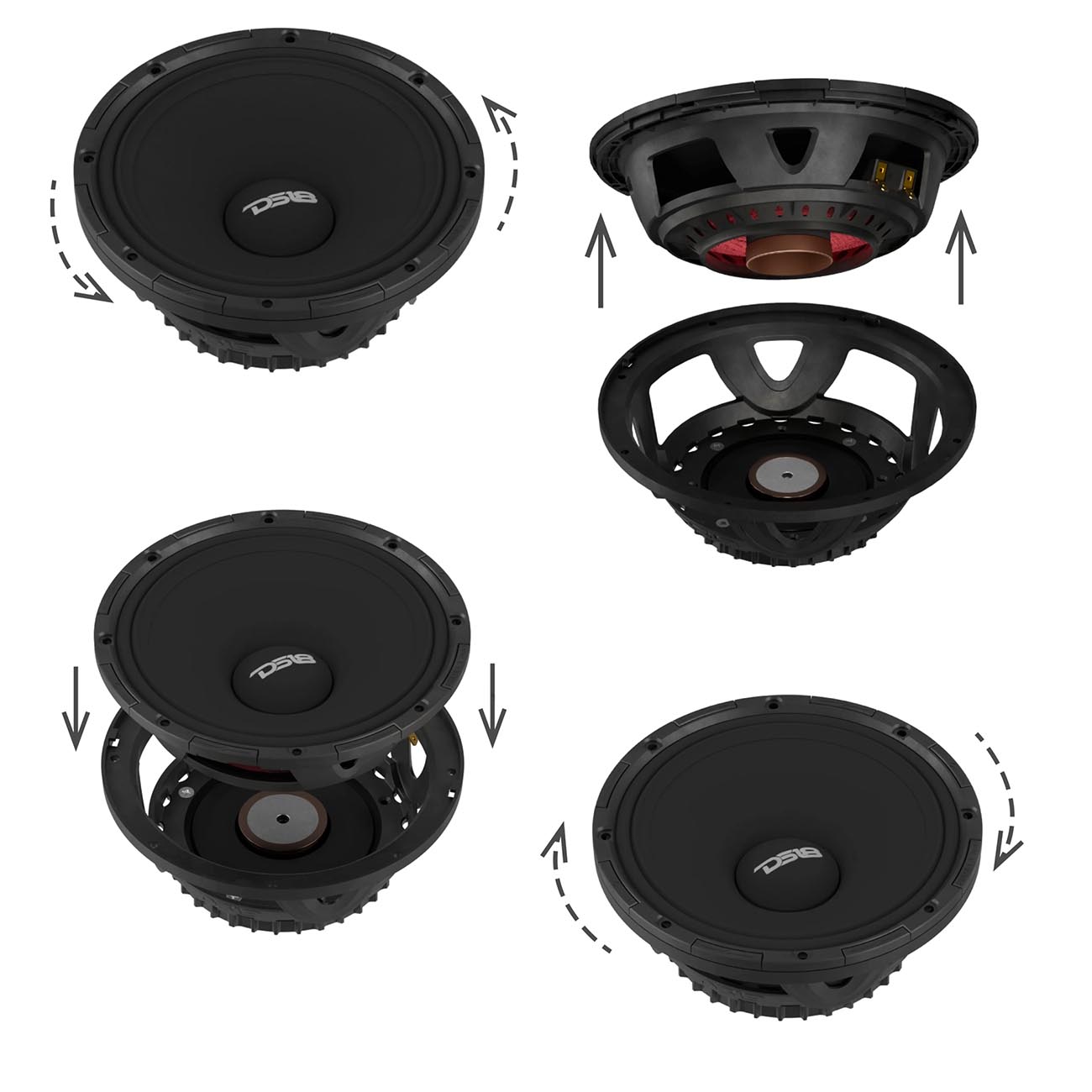

Patent-Pending rotating recone design for instant repairs
Compatible recone model PROJECT36084RCK
Nominal Impedance: 4 Ohms
RMS Power Handling: 350 W
MAX Power Handling: 700 W
Sensitivity (1w/1m): 102 dB
Frequency Response: 95Hz – 17kHz
Recommended High-Pass Crossover: 90 Hz
Grill Included: No
Demodulating Rings: Yes
Improved Heat Dissipation: No
Cone Shape: Curvilinear
Speaker Terminals: Spade
Easy Recone Design: Yes
Voice Coil Diameter: 1.75″ / 44.5mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Paper
Surround Material: Cloth
Spider Diameter: 4″ / 102mm
Leads Connection Type: Round Crossed
Basket Material: Aluminum
Basket Color / Finish: Black
Magnet Material: Neodymium
Magnet Weight: 12.8 oz
Equivalent Volume: 7.09L / 0.25ft3
Excursion (one way): 0.3 mm
Free Air Resonance: 125 Hz
Mechanical Factor: 2.828
Electrical Factor: 0.255
Total Factor: 0.234
Moving Mass: 19.548 g
Mechanical Compliance: 0.087 mm/N
BL Factor: 13.275
Voice Coil Inductance: 0.039 mH
Cone Area: 240.53 cm2
DC Resistance: 2.9 Ohm
Mounting Depth: 3″ / 77.3mm
Motor Diameter: 3.94″ / 100mm
Sold Individually
