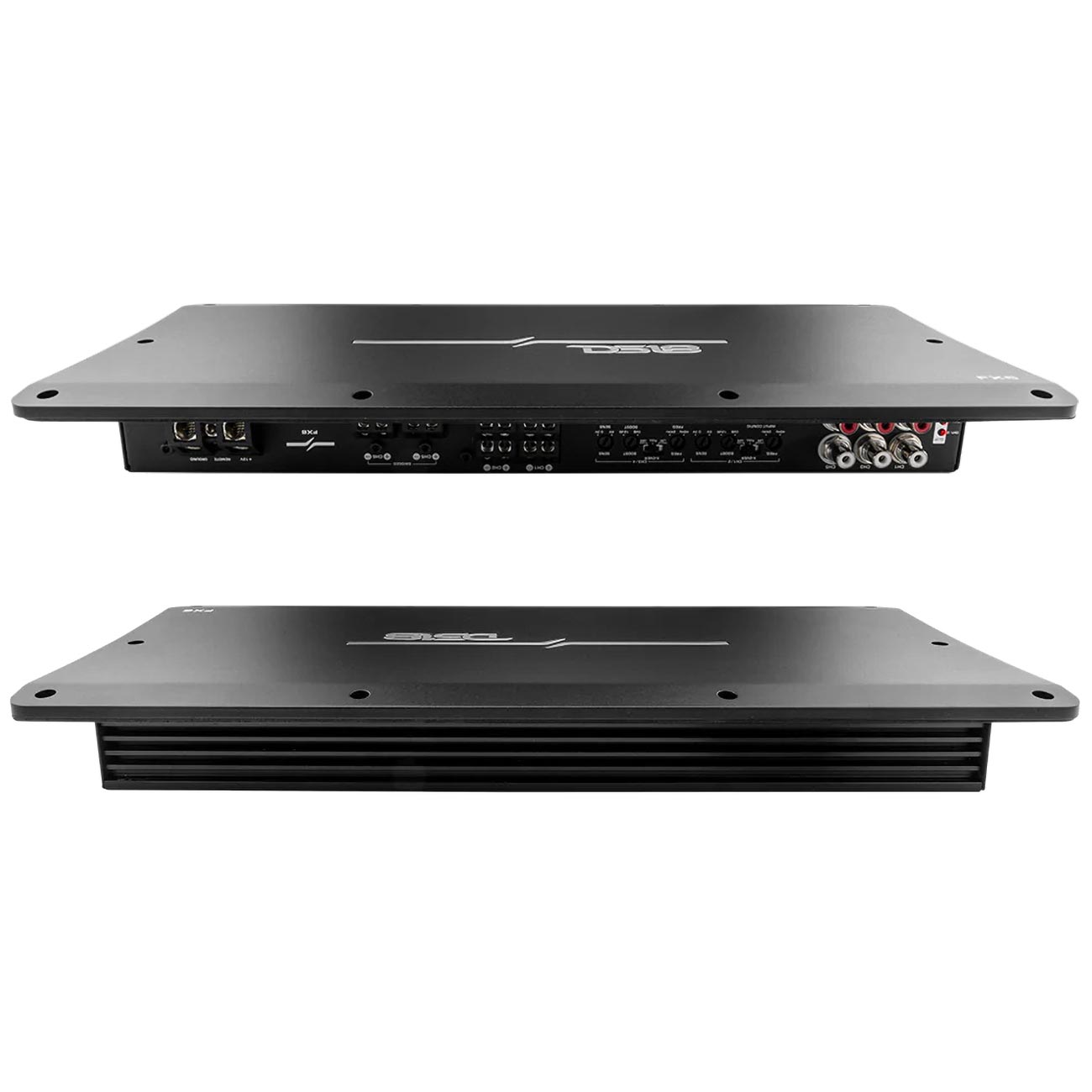

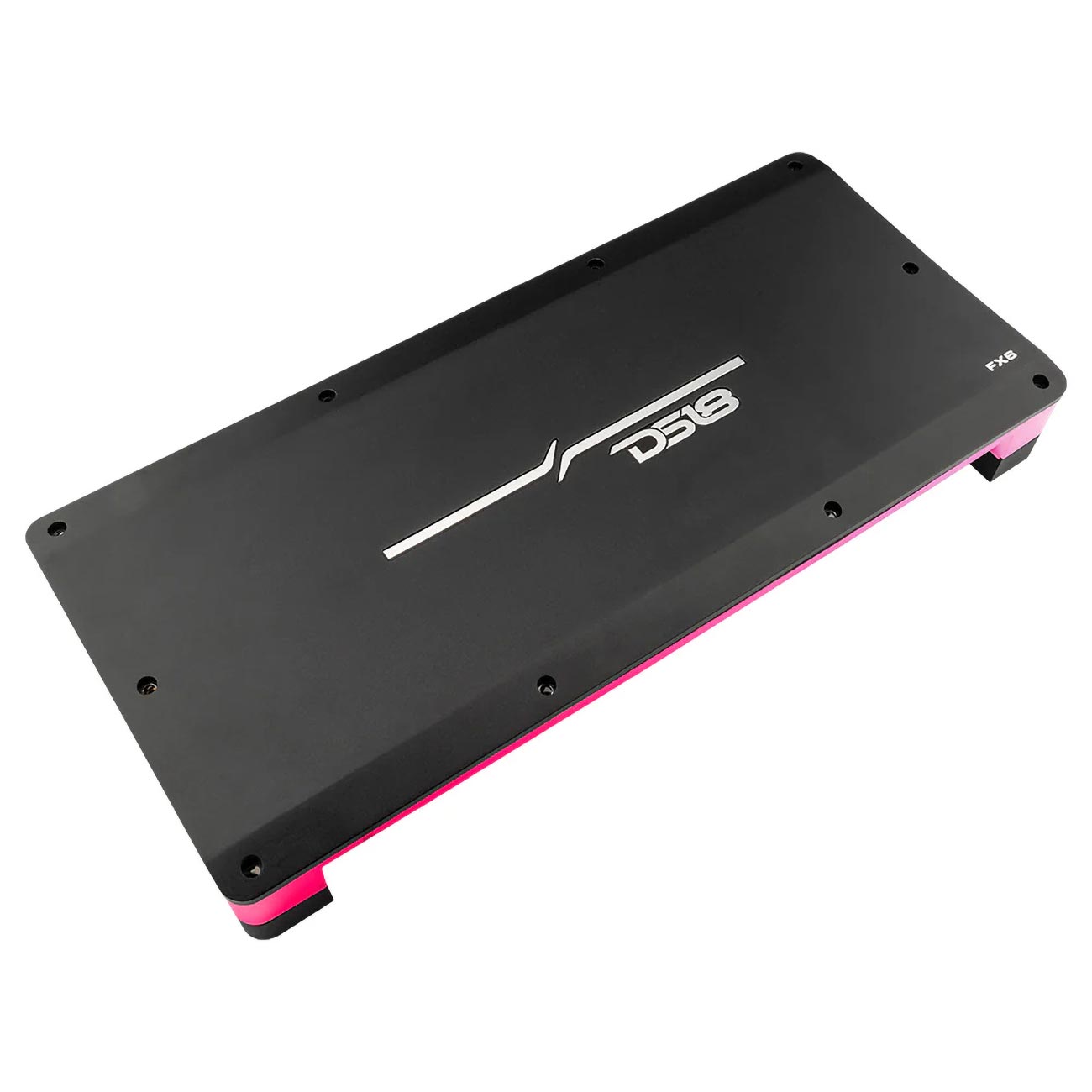

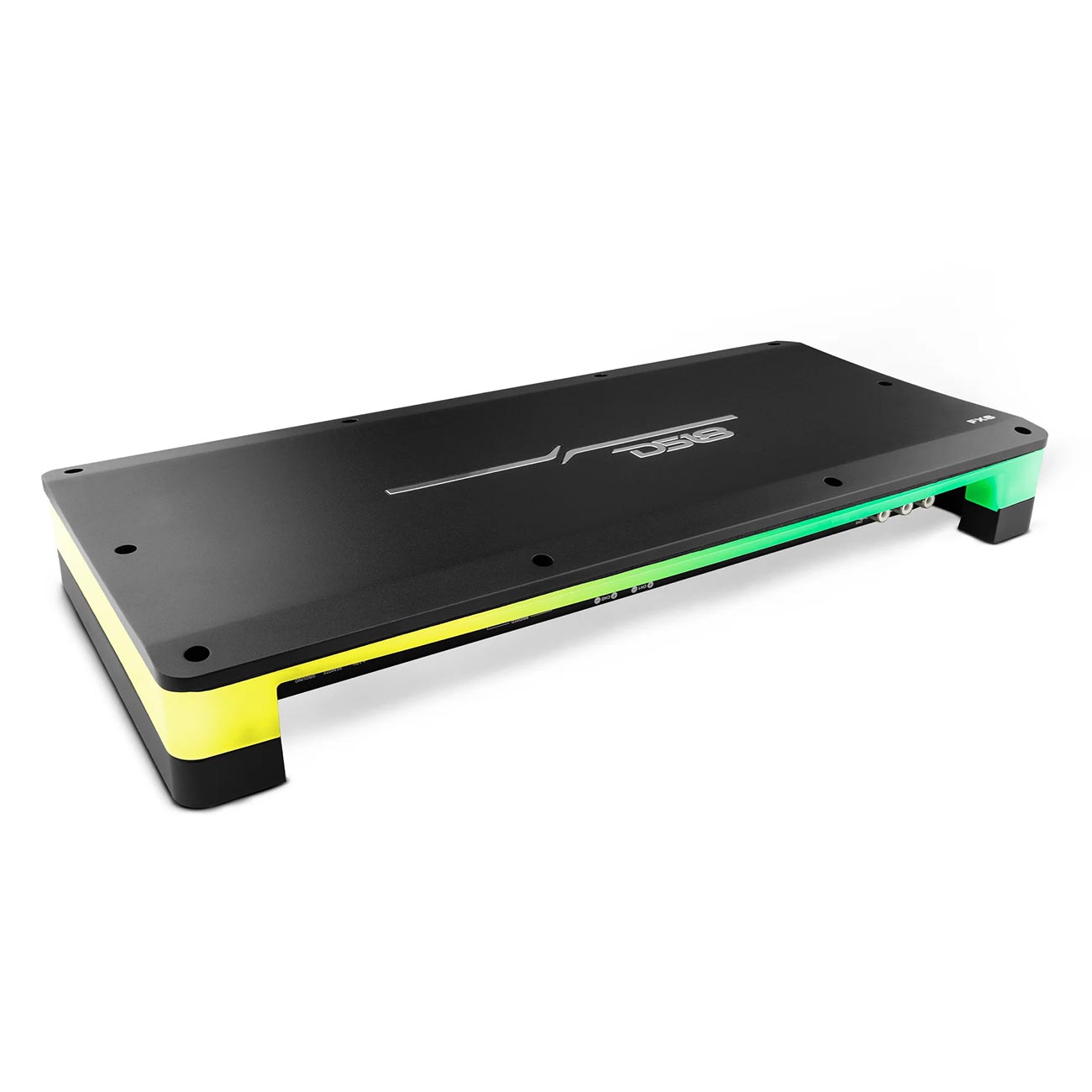

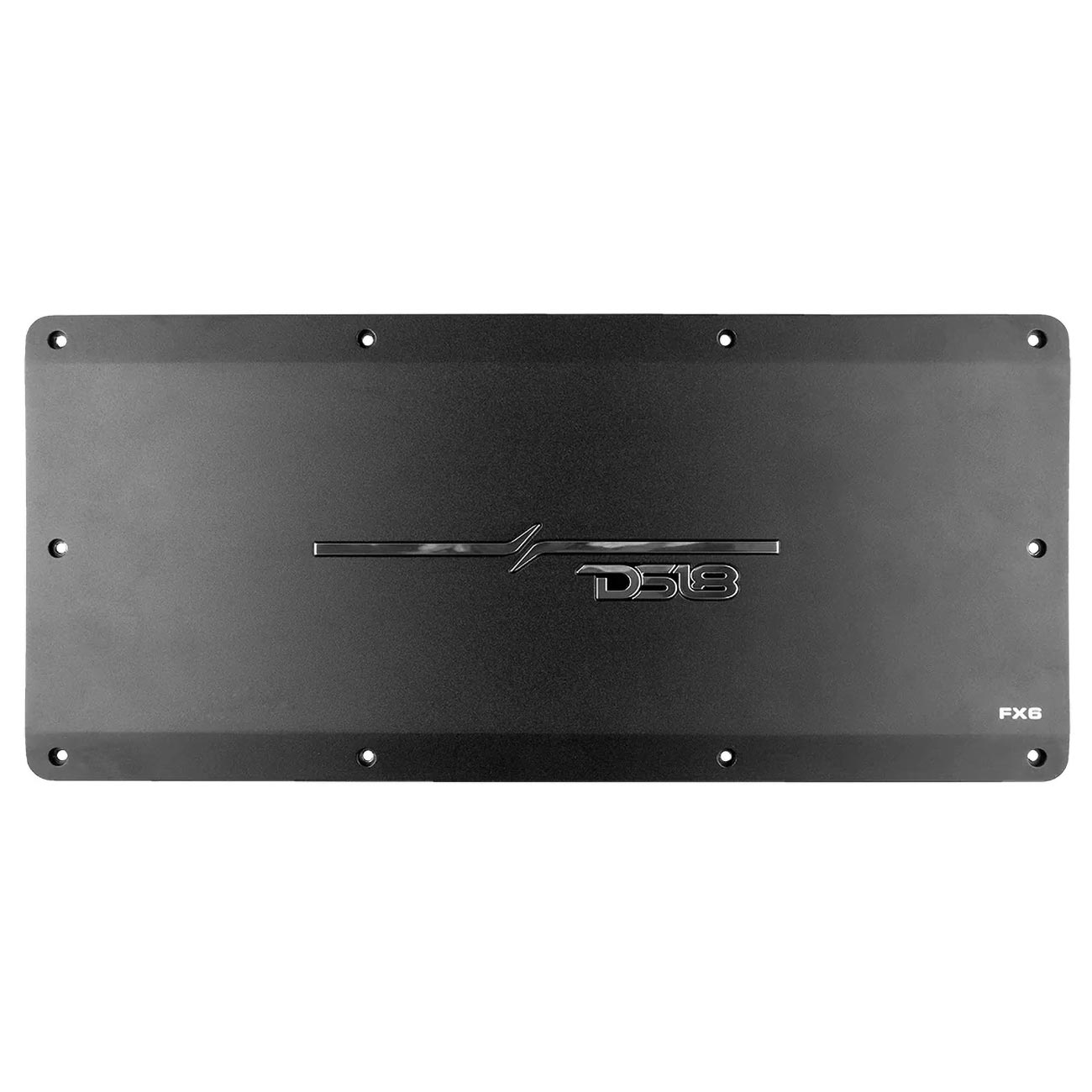

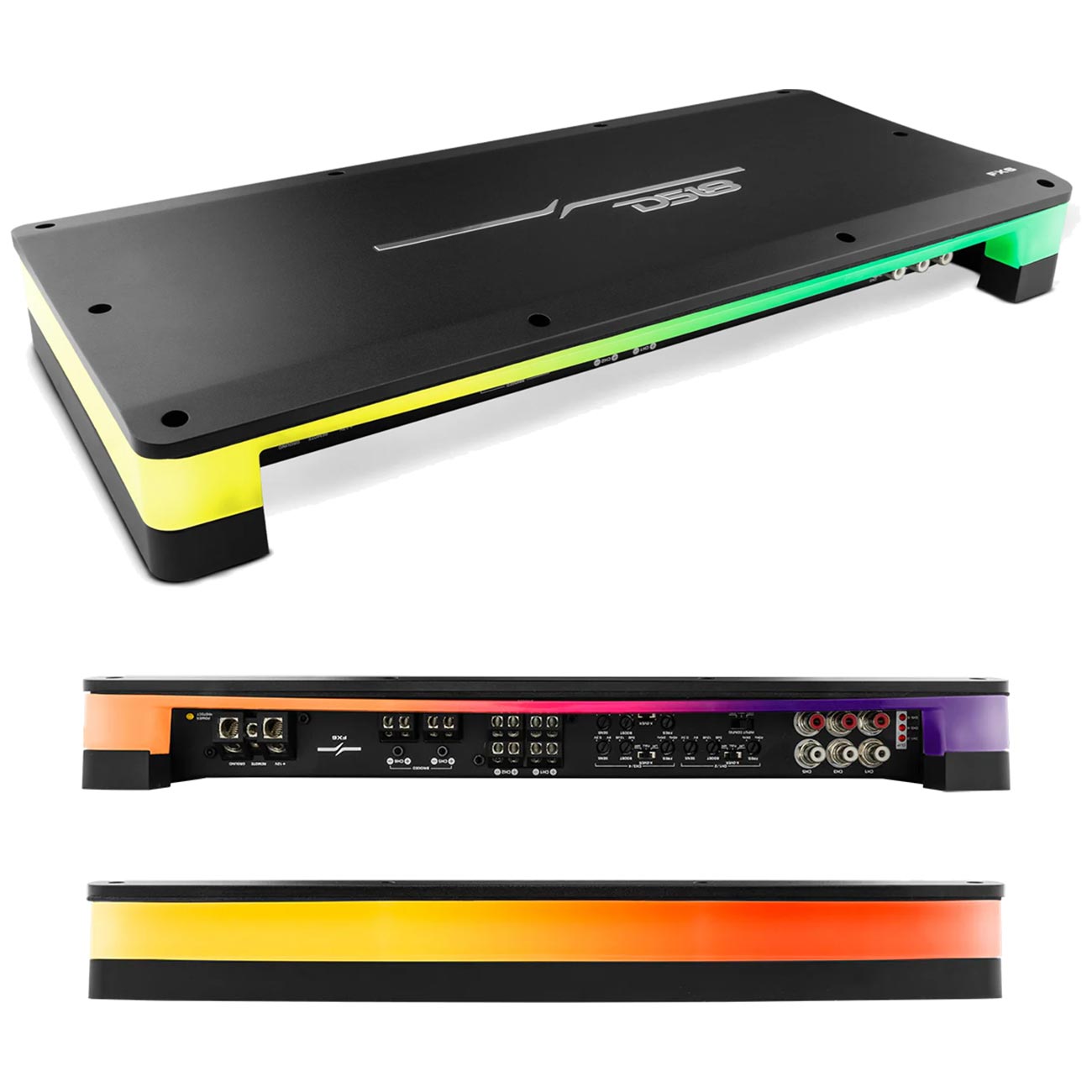

DS8 6 Channel Amplifier, 4500W Max/ 1080W RMS – Flush Mount/Surface Mount with Acrylic Cover for Custom Installation & LED Illumination
6 x 250 Watts RMS @ 2 Ohms
6 x 180 Watts RMS @ 4 Ohms
3 x 500 Watts RMS @ 4 Ohms (Bridged)

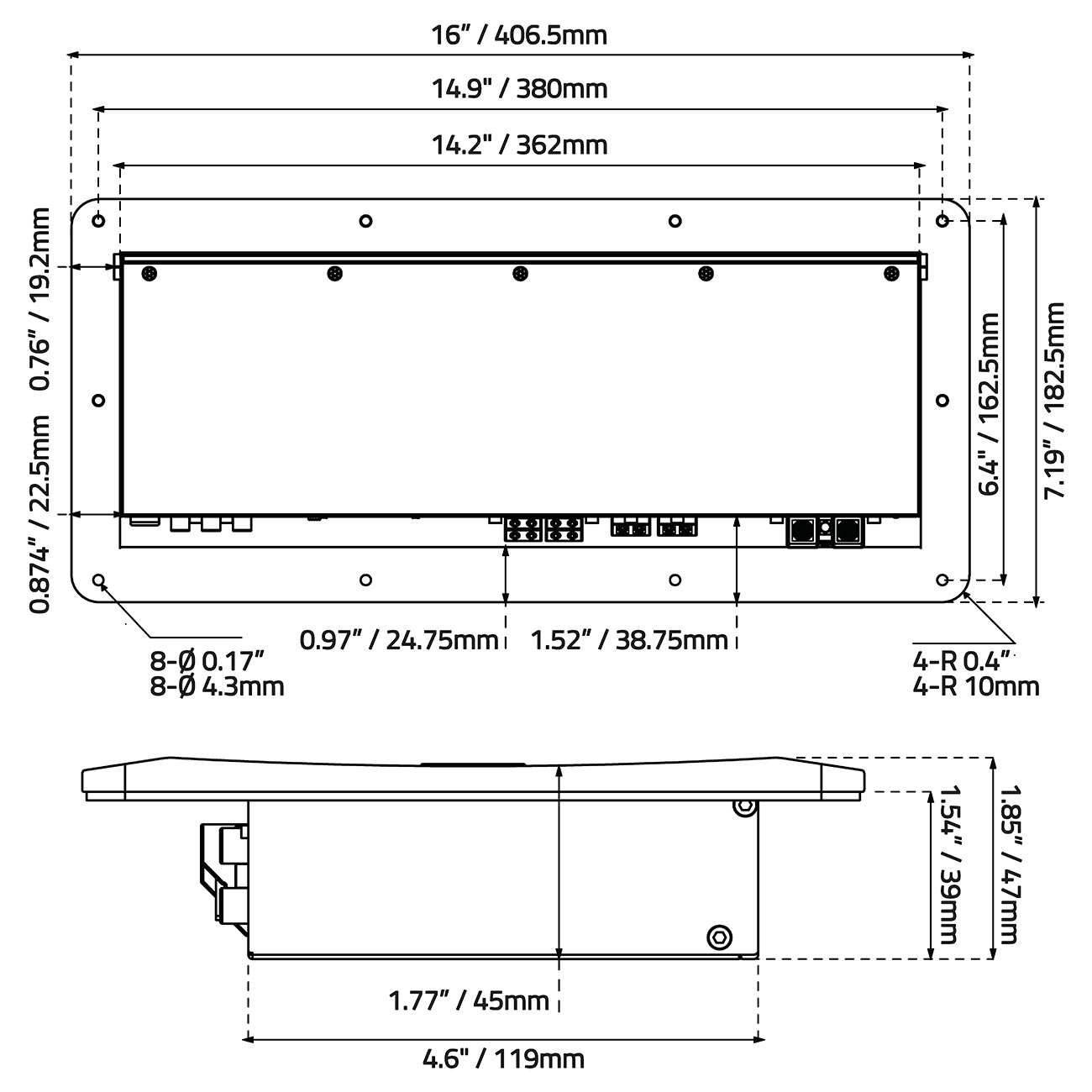

Body (L x H x W): 14.25″ x 1.85″ x 4.7″
Heatsink (L x H x W): 16″ x 1.85″ x 7.2″
Mounting Hole (W x L): 14.5″ x 5.8″
Mounting Depth: 1.5″
What sets the FX Series apart is its versatile installation options. Unlike ordinary amplifiers, these amplifiers come equipped with a surface mount adapter, allowing for both flush and surface installation. This feature provides flexibility in positioning the amplifier, making it perfect for custom car audio builds. Not only does it guarantee optimal performance without compromising on space or aesthetics, but it also incorporates mesmerizing Digital LED lights that add a touch of style and flair to your car audio setup.
Class D
2 Ohm Stable
6 Channel Full Range
Flush Mount / Surface Mount

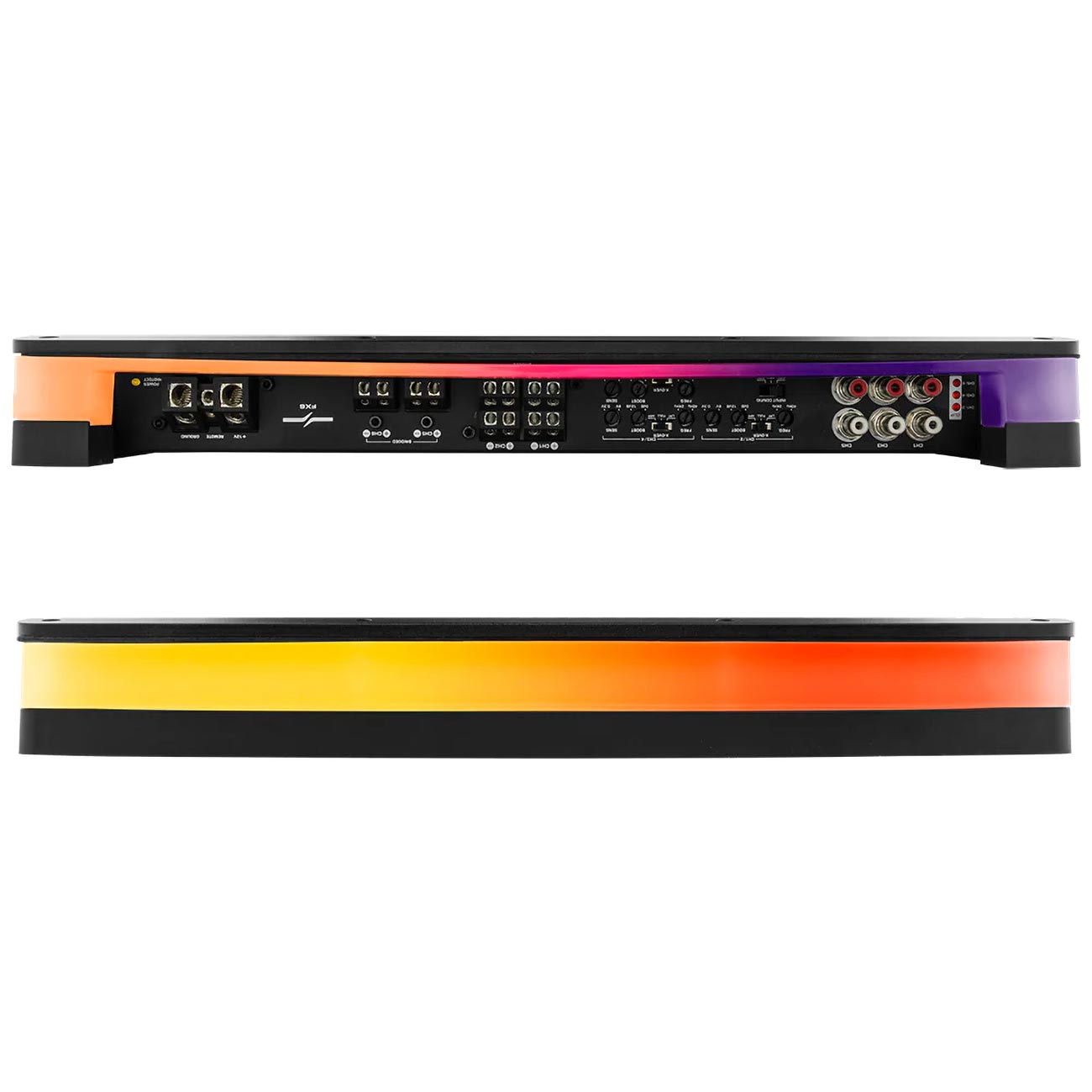

RGB Dream LED Lights
Built in Crossover / Water Resistant*
Frequency Response: 20Hz – 20KHZ
Signal to Noise Ratio: 80dB
Efficiency @ 4ohm: 79%
Damping Factor: 80
Input Impedance: 28 Kohms
Channel Separation: 60dB
Total Harmonic Distortion (THD): 0.19%
Low Level Input Range: 0.3-6V
Low Level Inputs
Selectable X-Over: LPF/HPF/FULL
X-Over Filter Range: 40Hz – 2KHz
Bass Boost Range: 0 – 12dB
Bass Boost Frequency: 50Hz
LED Indicator: Power / Protect / Clip
Tiffany RCA Connectors
PCB with Anti-Corrosion Protection Coating
Surface Mount Component Technology
Surface Mounting with Digital Chasing LED Adapter
Waterproof Rating: IPX5*
*The FX Series adapters are not designed to be water-resistant. Please exercise caution to prevent water contact with the RGB LEDs, as exposure may result in a short circuit*
