DS8 Monoblock Amplifier, 2700W Max/ 900W RMS – Flush Mount/Surface Mount with Acrylic Cover for Custom Installation
1 x 900 Watts RMS @ 1 Ohm
1 x 650 Watts RMS @ 2 Ohms
1 x 400 Watts RMS @ 4 Ohms

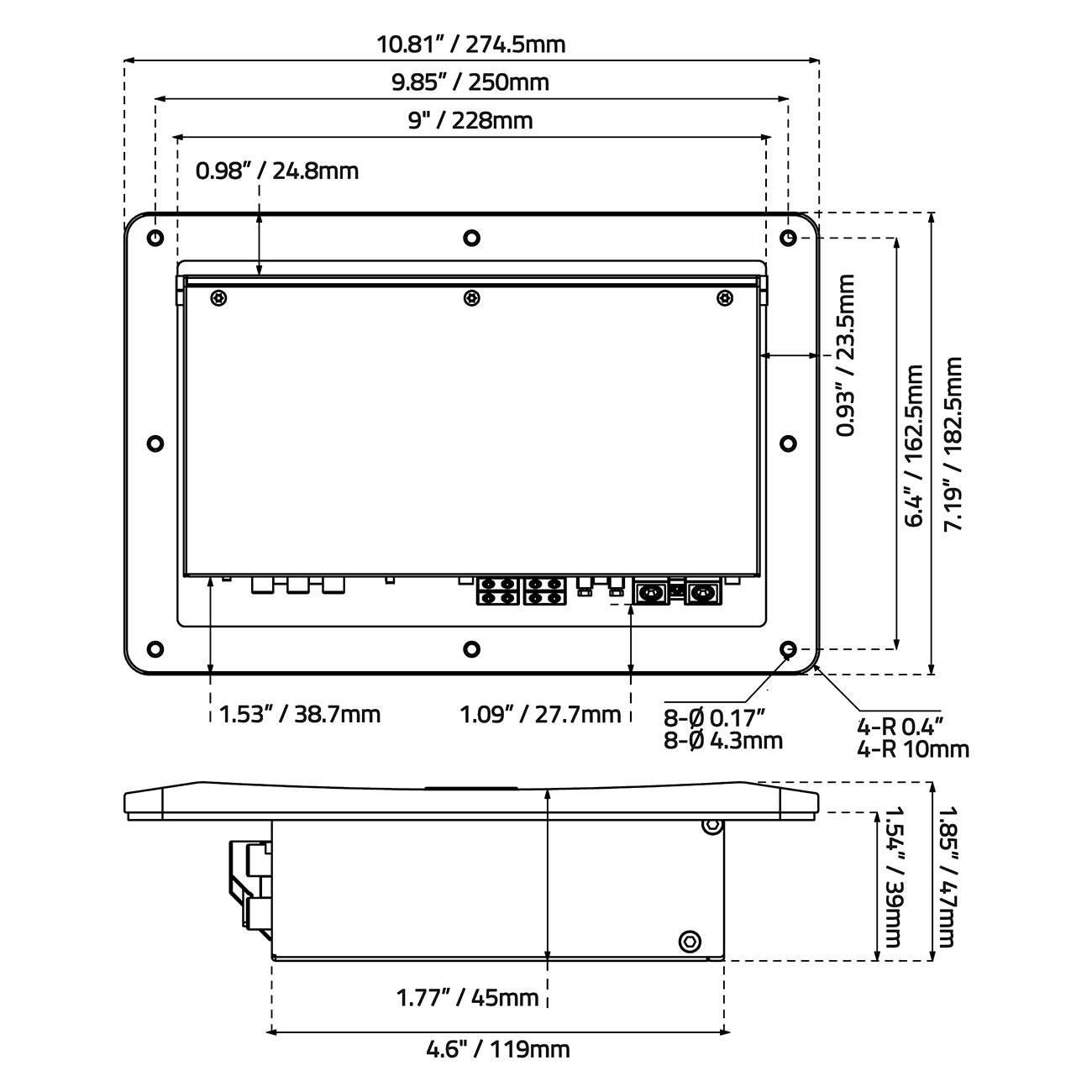

Body (L x H x W): 9″ x 1.85″ x 4.7″
Heatsink (L x H x W): 10.8″ x 1.85″ x 7.2″
Mounting Hole (W x L): 9.2″ x 5.8″
Mounting Depth: 1.5″
What sets the FX Series apart is its versatile installation options. Unlike ordinary amplifiers, these amplifiers come equipped with a surface mount adapter, allowing for both flush and surface installation. This feature provides flexibility in positioning the amplifier, making it perfect for custom car audio builds. Not only does it guarantee optimal performance without compromising on space or aesthetics, but it also incorporates mesmerizing Digital LED lights that add a touch of style and flair to your car audio setup.
Class D
1 Ohm Stable
Flush Mount / Surface Mount
RGB Dream LED Lights
Built in Crossover / Water Resistant
Frequency Response: 12 Hz – 250 HZ
Signal to Noise Ratio: 92dB
Efficiency @ 4ohm: 82%
Damping Factor: 75
Input Impedance: 30 Kohms
Total Harmonic Distortion (THD): 0.08%
Low Level Input Range: 0.2-10V
Low Level Inputs
Selectable X-Over: LPF
X-Over Filter Range: 50 Hz – 250 Hz
Bass Boost Range: 0 – 12dB
Bass Boost Frequency: 50Hz
Infrasonic Filter: 10 – 50Hz
Phase Selector: 0 / 180
Led Indicator: Power / Protect / Clip
Tiffany RCA Connectors
PCB with Anti-Corrosion Protection Coating
Surface Mount Component Technology
Surface Mounting with Digital Chasing LED Adapter
Waterproof Rating: IPX5*
Remote Level Control
*The FX Series adapters are not designed to be water-resistant. Please exercise caution to prevent water contact with the RGB LEDs, as exposure may result in a short circuit*
