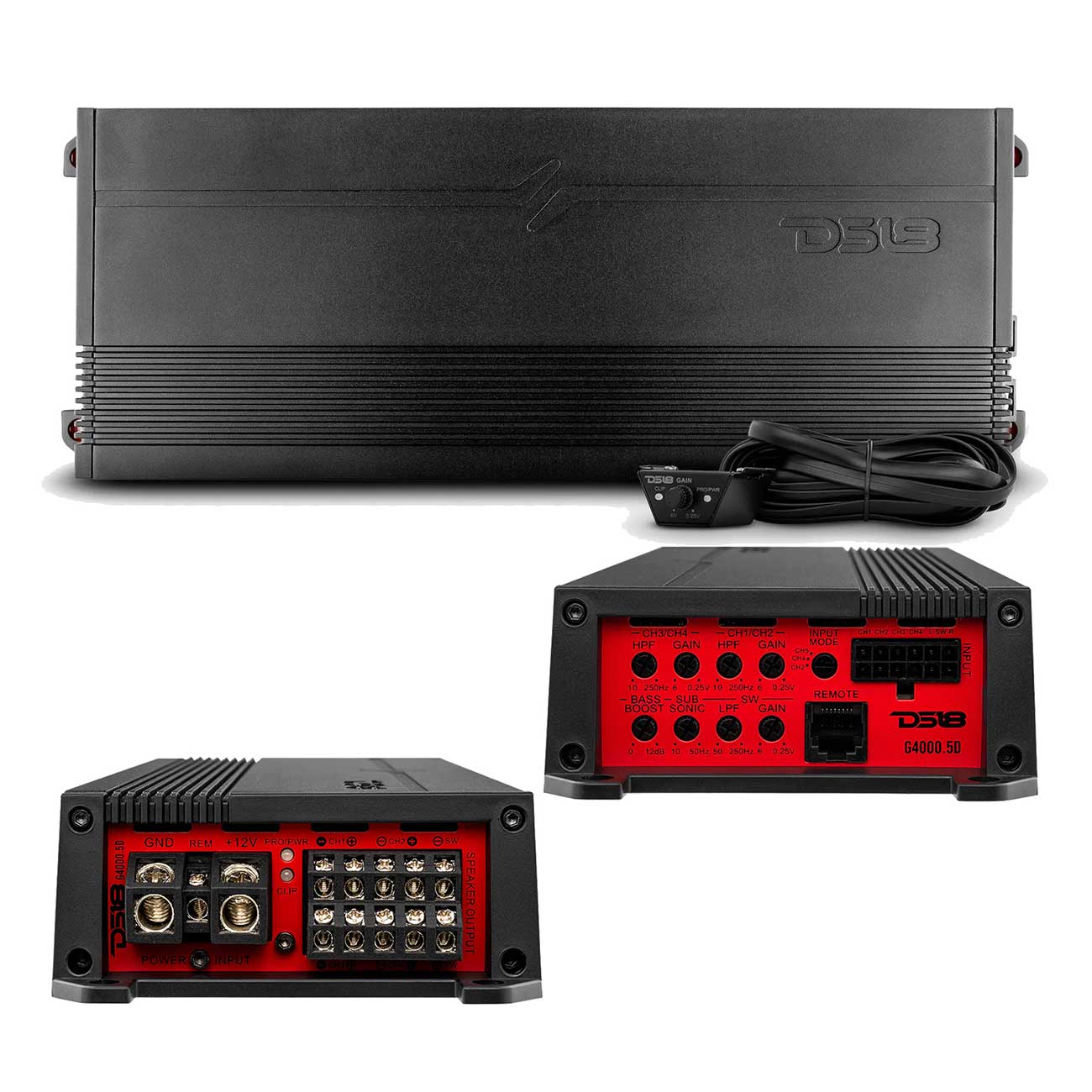

DS18 5 Channel Amplifier, 4000W MAX
Total Watts (Peak) : 4000W
220 x 4 + 600 RMS @ 2 ohms
130 x 4 + 300 RMS @ 4 ohms
300 x 2 RMS @ 4 ohms (Bridged)
(WxHxL) 4.7″ x 1.9″ x 12.8″
Class D
2 Ohm Stable
Selectable X-Over: LPF/HPF
Bass Boost: Fixed @ 45Hz (0-12dB)
Subsonic Filter: 10-50Hz
Matte Black Finish
Led Indicators: Power / Protection / Clip
Frequency Response: 20Hz-20KHz
Signal to Noise Ratio 1W@4Ω: > 90dB
Efficiency @ 4ohm: 80%
Input Impedance: 20KΩ
Thermal, Over-Load, DC Output, Voltage Input, Clipping Protection

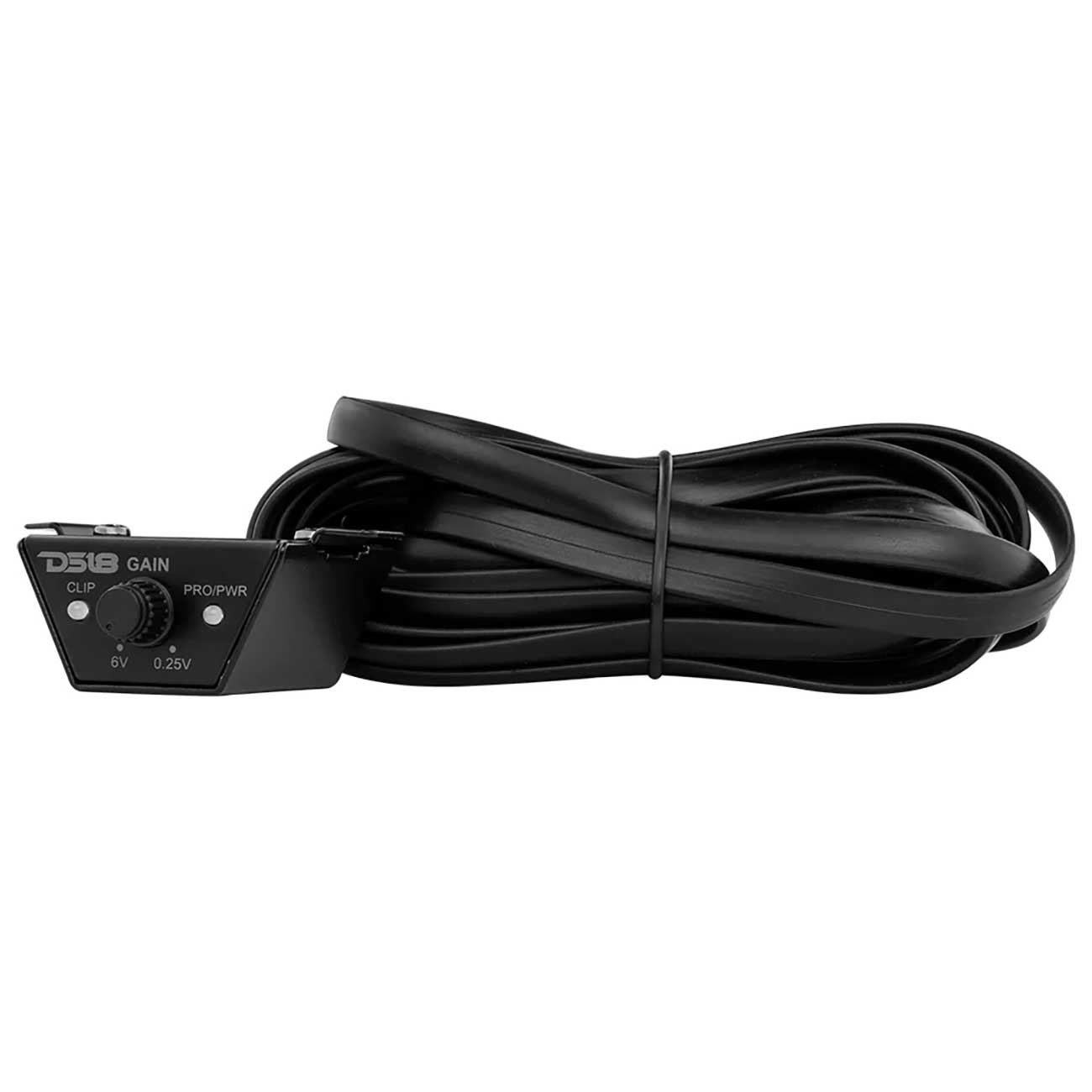

Remote Bass Control with Clipping Indicator
Recommended Fuse: 160 Amp
(Fuse and Fuse Holder NOT Included)
