DS18 Steve Meade Design Amplifier 4 Channel, 2000 Watts
Steve Meade Designs 4-Channel Class AB Amplifier with VM-1 Voltmeter and Digital LED Lights 4 x 500W at 2 ohm
| Exclusive SMD Design – Class AB 4 Channel Stereo Full Range VM-1 Voltmeter Cooling Fans Input Selector |
Acrylic Window Digital LED Lighting with Remote Remote Bass Knob LED Indicators Made in Korea |
300W x 4 RMS @ 4 ohm
500W x 4 RMS @ 2 ohm
1000W x 2 RMS @ 4 ohm (Bridge)
(W x H x L) 9.2″ x 3″ x 16.6″
Recommended Fuse Size: 200A (Not Included)

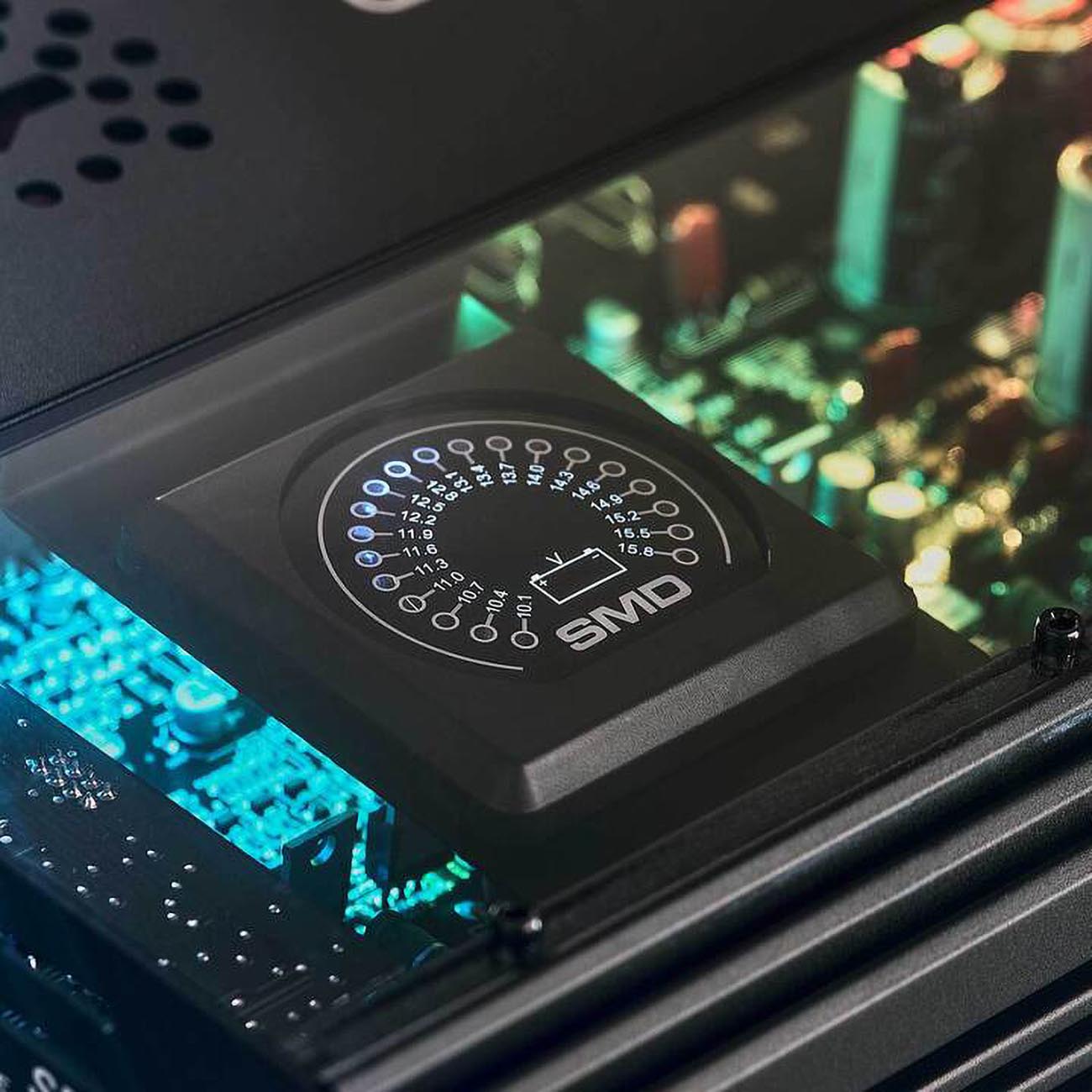

Exclusive SMD design with VM-1 Voltmeter
Front Acrylic Window and Digital RGB Lighting

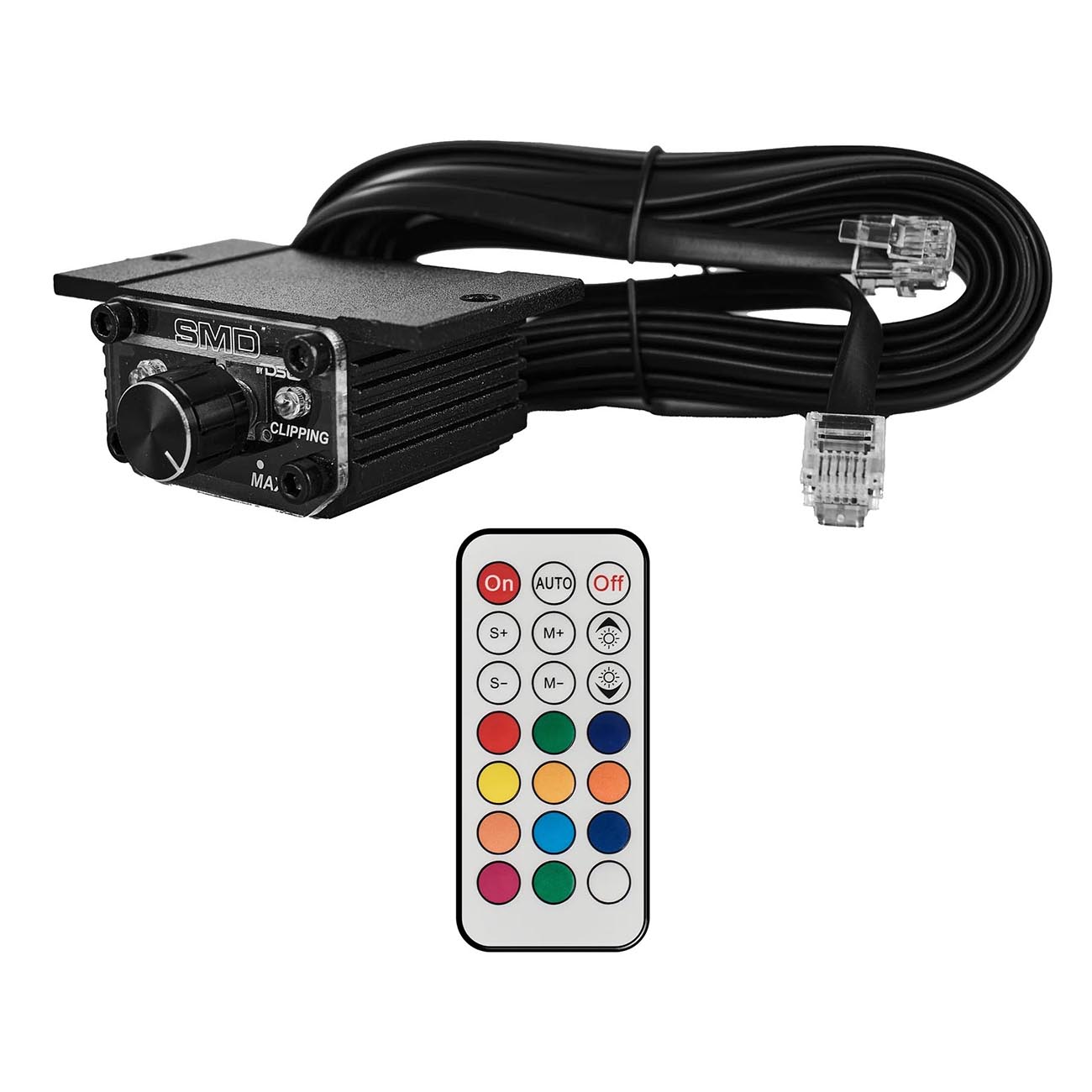

IR Remote Control for LED patterns and colors
Frequency Response: 10Hz-24KHz
Signal to Noise Ratio: >98dB
Efficiency @ 4ohm: >70%
Damping Factor: 160
Input Impedance: 22K ohm
Channel Separation: >50dB
Total Harmonic Distortion (THD): 0.10%
Low Level Input Range: 200mV-6V
Selectable X-Over: HPF/FULL/LPF
X-Over Filter Range: 50Hz – 2KHz
Bass Boost Range: 0 – 9dB
Bass Boost Frequency: 30Hz – 60Hz
Phase Selector: 0 – 180
Remote Level Knob with Clip indicator
Amplifier Class: Analog A/B
Led Indicator: Power / Protection / Clip
Cooling Fan
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Power Input Terminal Size: 0 AWG
Professional Tiffany RCA Connectors
