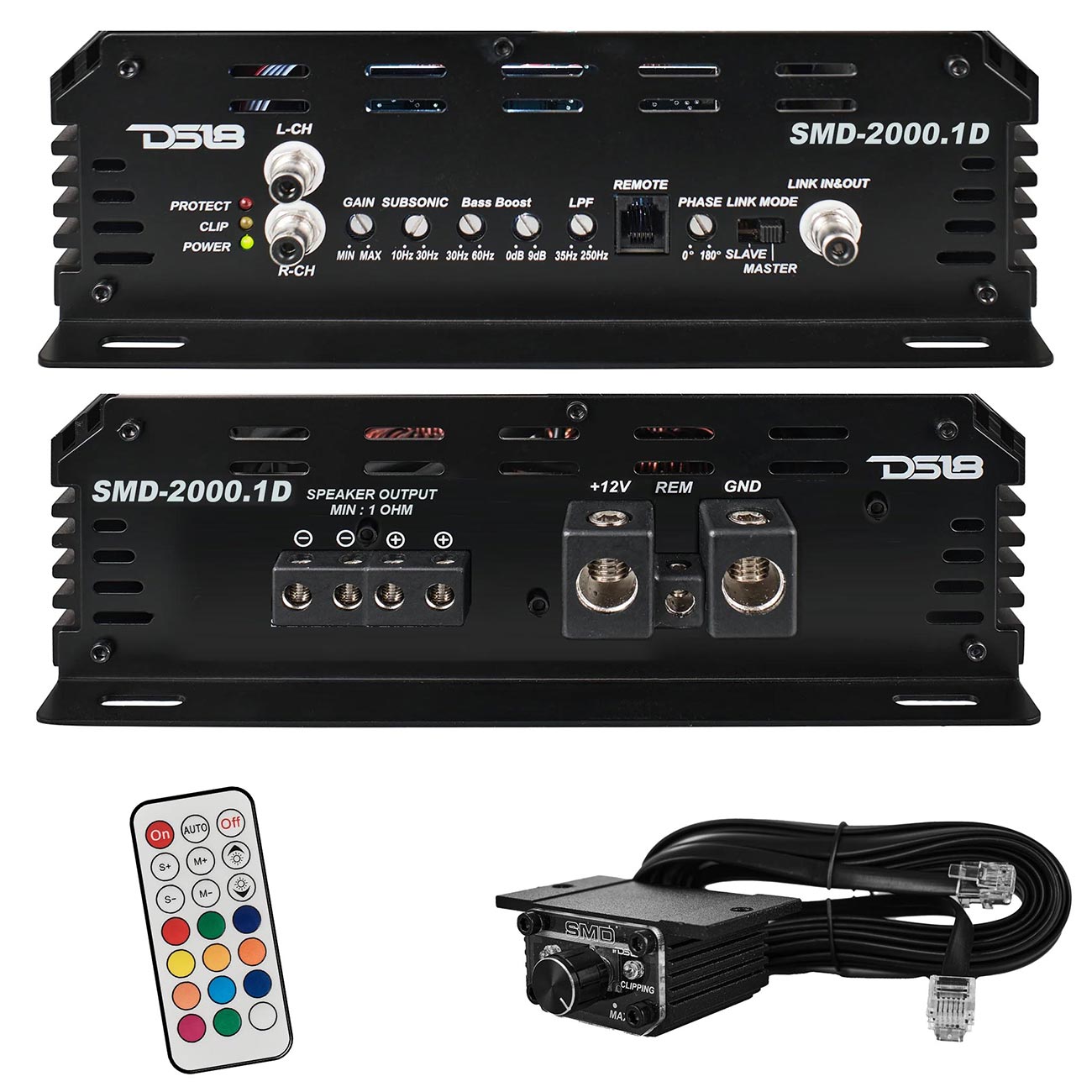

DS18 Steve Meade Design Amplifier Monoblock, 2000 Watts
Steve Meade Designs Monoblock Class D Amplifier with VM-1 Voltmeter and Digital LED Lights 1 x 2000W at 1 ohm
800W x 1 RMS @ 4 ohms (14.4V)
1400W x 1 RMS @ 2 ohms (14.4V)
2000W x 1 RMS @ 1 ohm (14.4V)
(W x H x L) 9.2″ x 3″ x 11.1″
Recommended Fuse Size: 200A (Not Included)

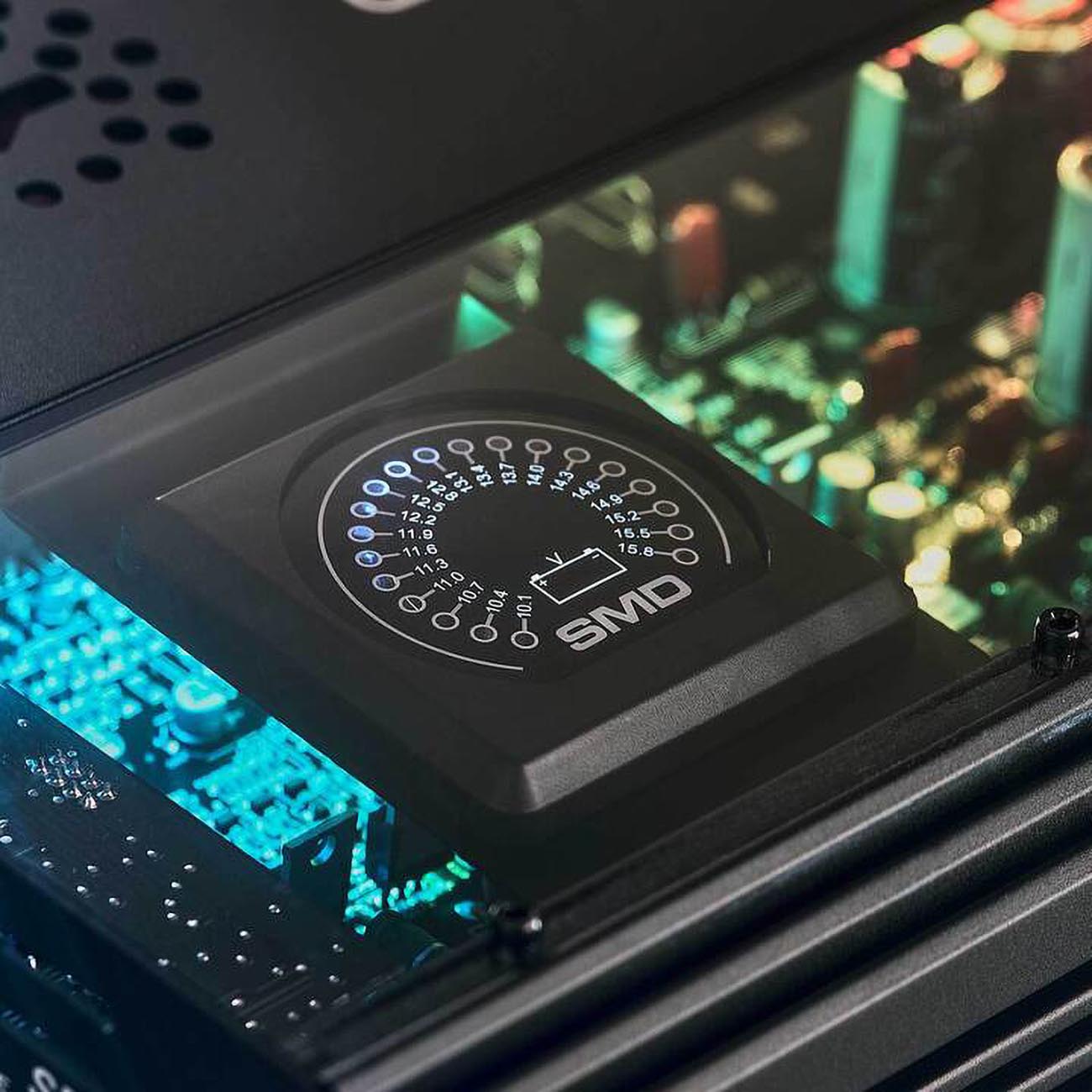

Exclusive SMD design with VM-1 Voltmeter

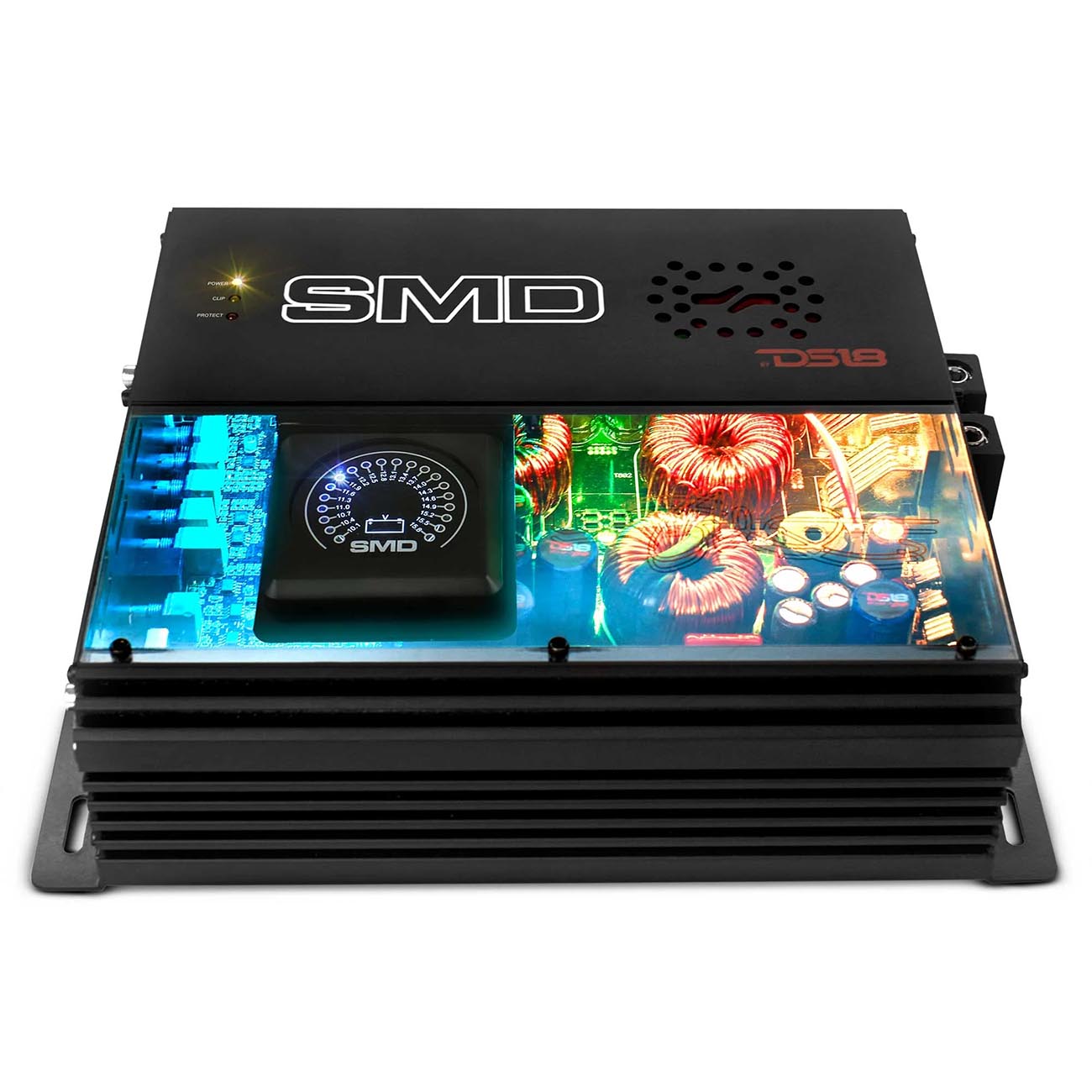

Front Acrylic Window and Digital RGB Lighting
IR Remote Control for LED patterns and colors
Frequency Response: 15Hz – 250Hz
Signal to Noise Ratio: >98dB
Efficiency @ 4ohm: >86%
Damping Factor: 300
Input Impedance: 22K ohm
Total Harmonic Distortion (THD): <0.02%
Low Level Input Range: 200mV-6V
Low Pass X-Over Filter Range: 35Hz – 250Hz
Bass Boost Range: 0 – 9dB
Bass Boost Frequency: 30Hz – 60Hz
Infrasonic Filter: 10Hz – 30Hz
Phase Selector: 0 – 180
Amplifier Class: Digital
Amplifier Type: Subwoofer
Minimum Impedance: 1 ohm
Led Indicator: Power / Protection / Clip
Power Input Terminal Size: 0 AWG
Cooling Fan
Thermal Protection
Over-Load Protection
DC Output Protection
Short Circuit Output Protection
Voltage Input Protection
Clipping Protection
Metal Adjustment Knobs with Click Position
Professional Tiffany RCA Connectors
Remote Level Knob with Clip indicator
Linkable (Strap mode) Amplifier
Reliable Heavy Duty Korean Board Design
