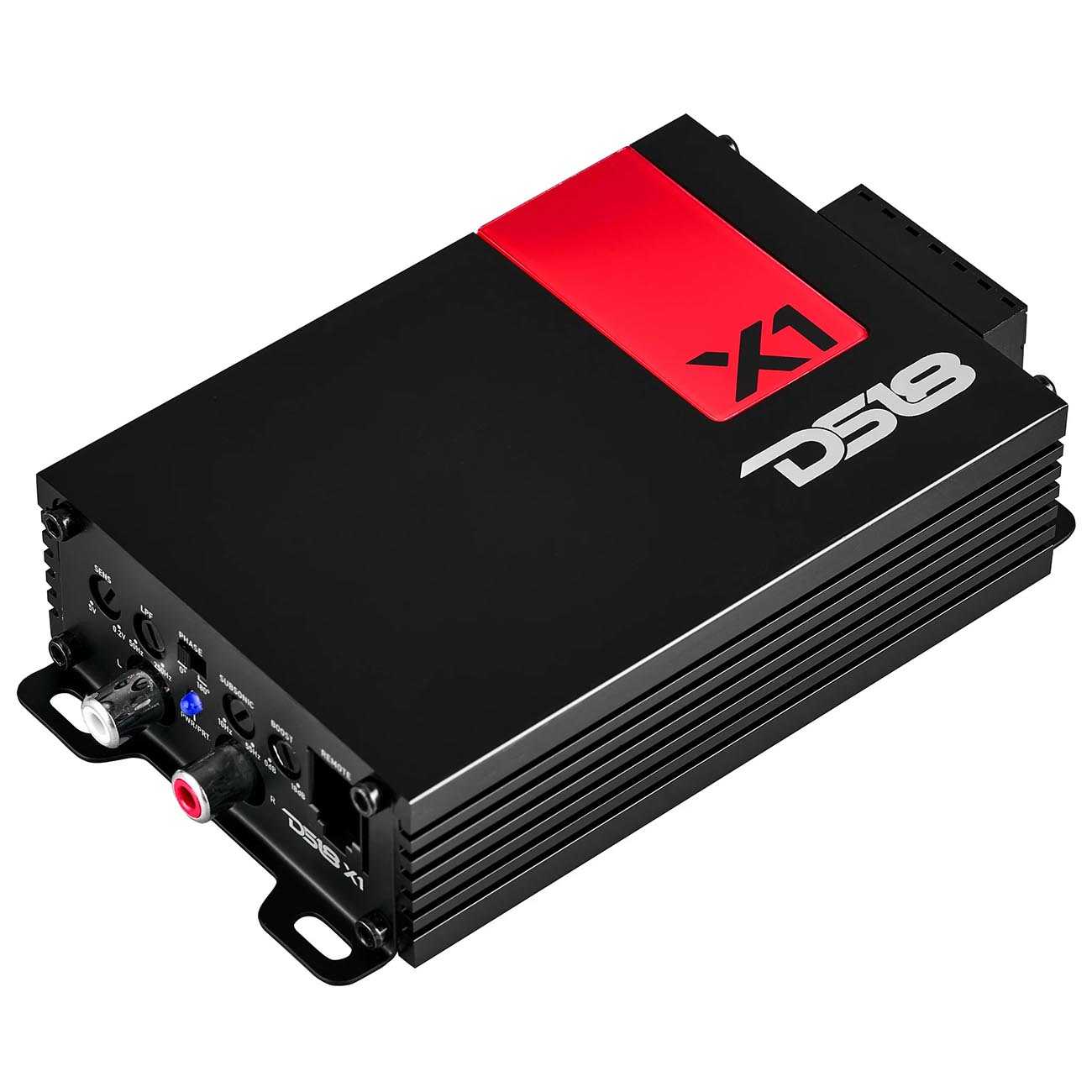

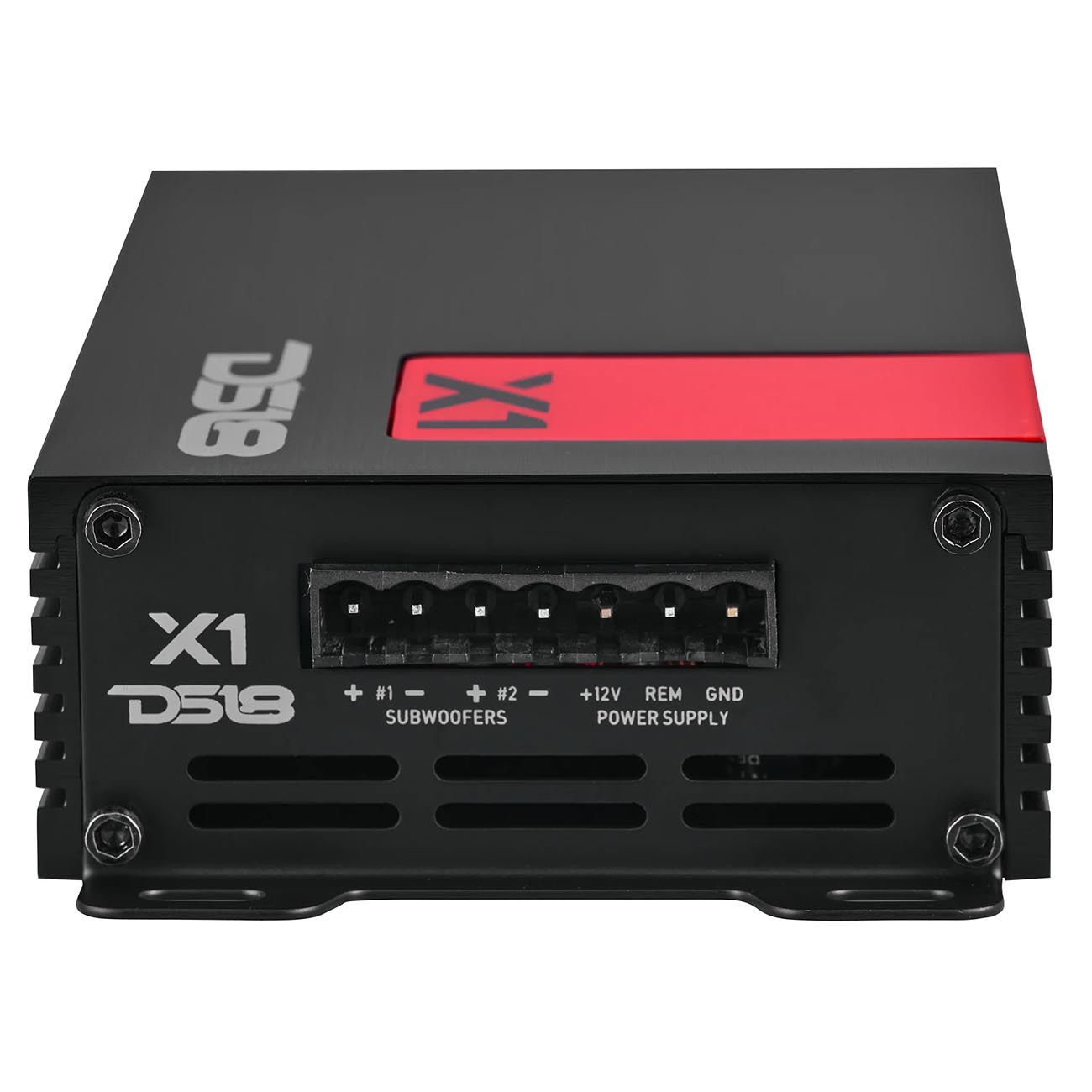

DS18 Ultra Compact Class-D Monoblock Amplifier
300W RMS/900W MAX
300 Watts x 1 RMS @ 1 Ohm
220 Watts x 1 RMS @ 2 Ohms
140 Watts x 1 RMS @ 4 Ohms
DIM (W x H x L) 3.24″ x 1.37″ x 5.54″
Recommended Fuse Size: 30A (Not Included)
Class-D
1 Ohm Stable
RCA Inputs
THD: 0.2%
Low Pass Crossover: 50Hz – 240Hz
Frequency Response: 20 Hz – 500 Hz
Signal to Noise Ratio: 90dB
Bass Boost: 0 – 18dB @ 40 Hz
Subsonic Filter: 10 Hz – 55 Hz
Phase Control
Protection: Thermal, Over-Load, DC Output, Short & Voltage
Remote Level Control
