FORTIN EVO‐ALL & T‐Harness for select Nissan Push‐To‐Start 2017-2023
The ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface with T-Harness combo module for select Nissan & Infiniti Push-To-Start vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.
THIS PRODUCT MUST BE SOLD, INSTALLED AND SUPPORTED BY A PROFESSIONAL

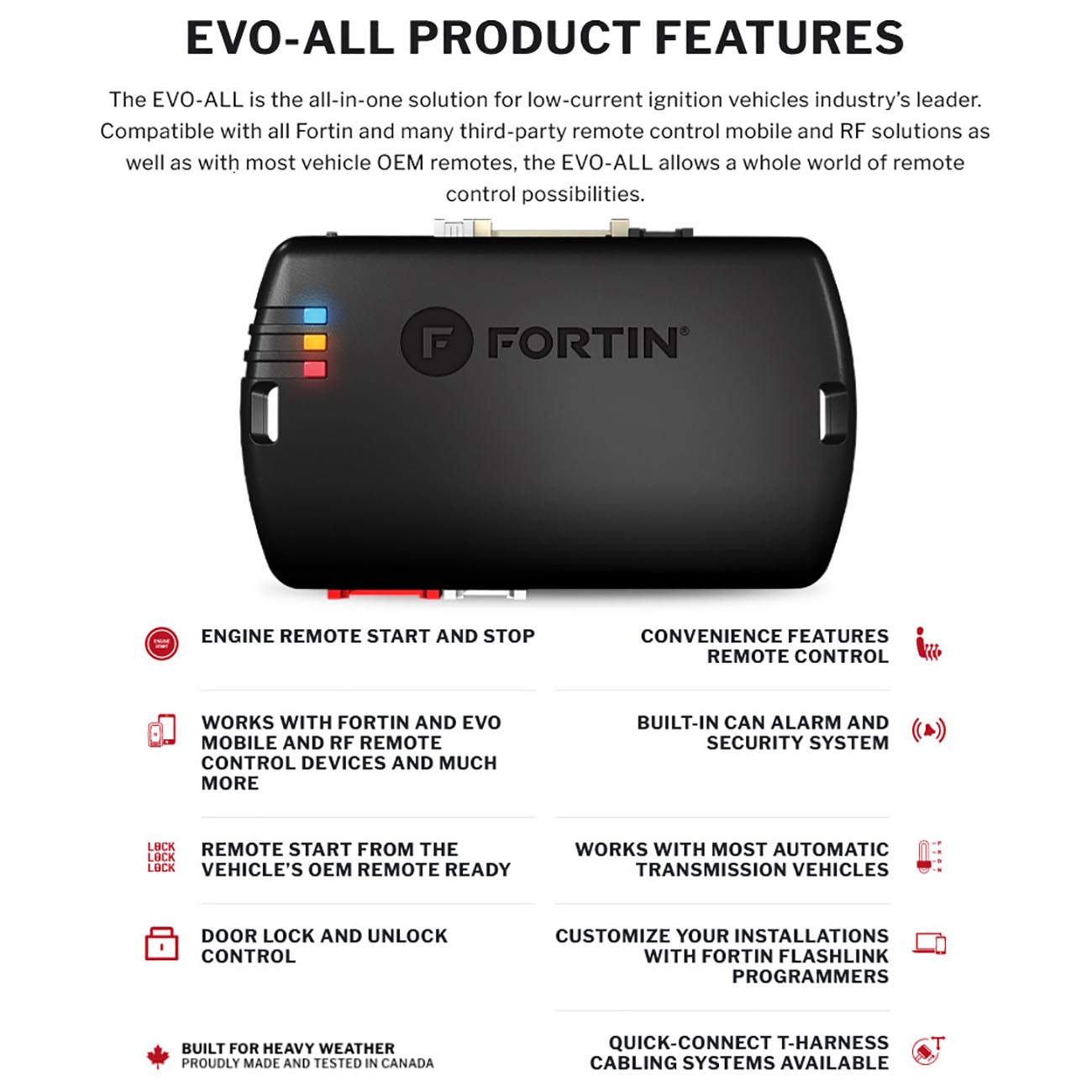

Product features:

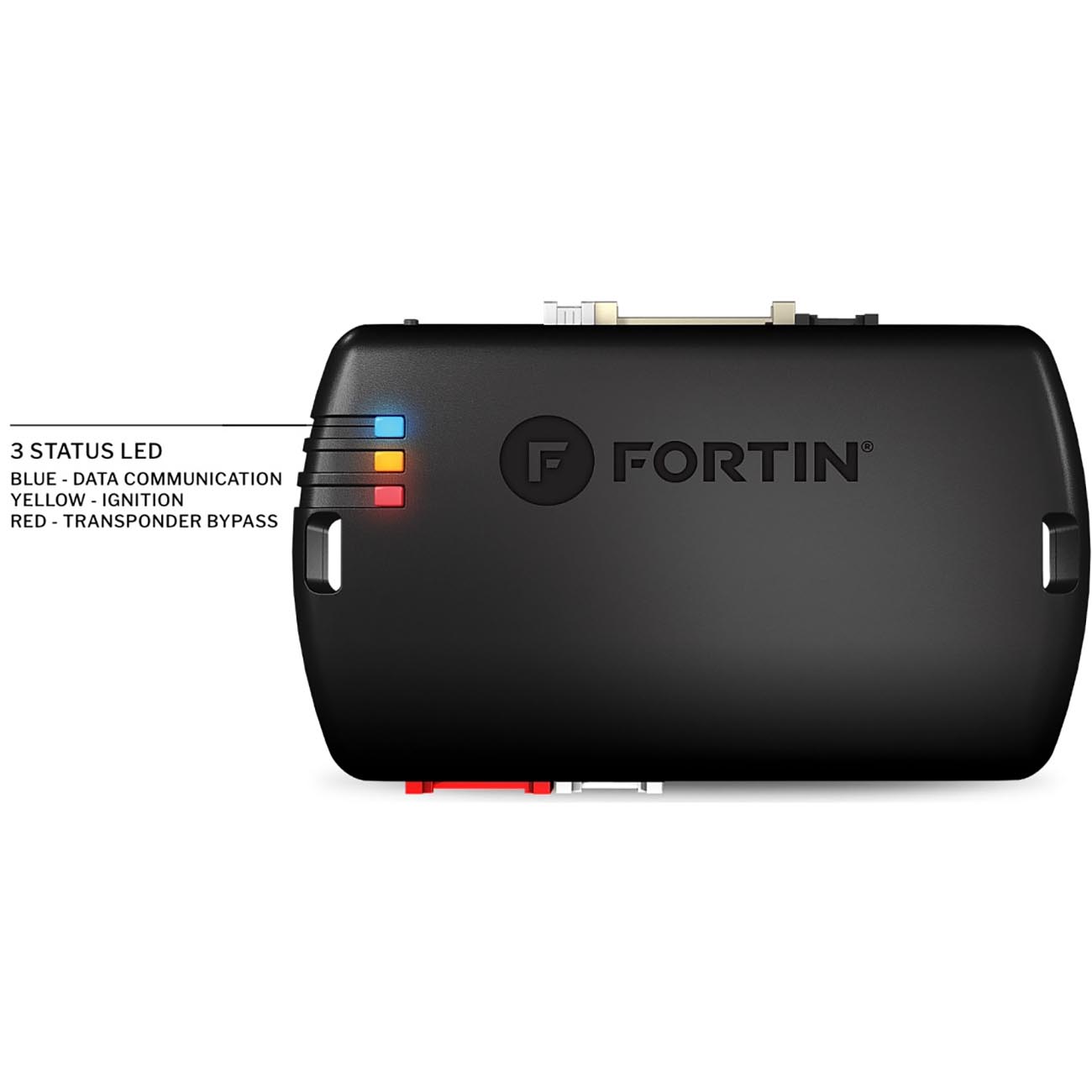

3 x On-board LEDs for simplified programming and diagnostics
1 x Factory Fit T-Harness for easy install

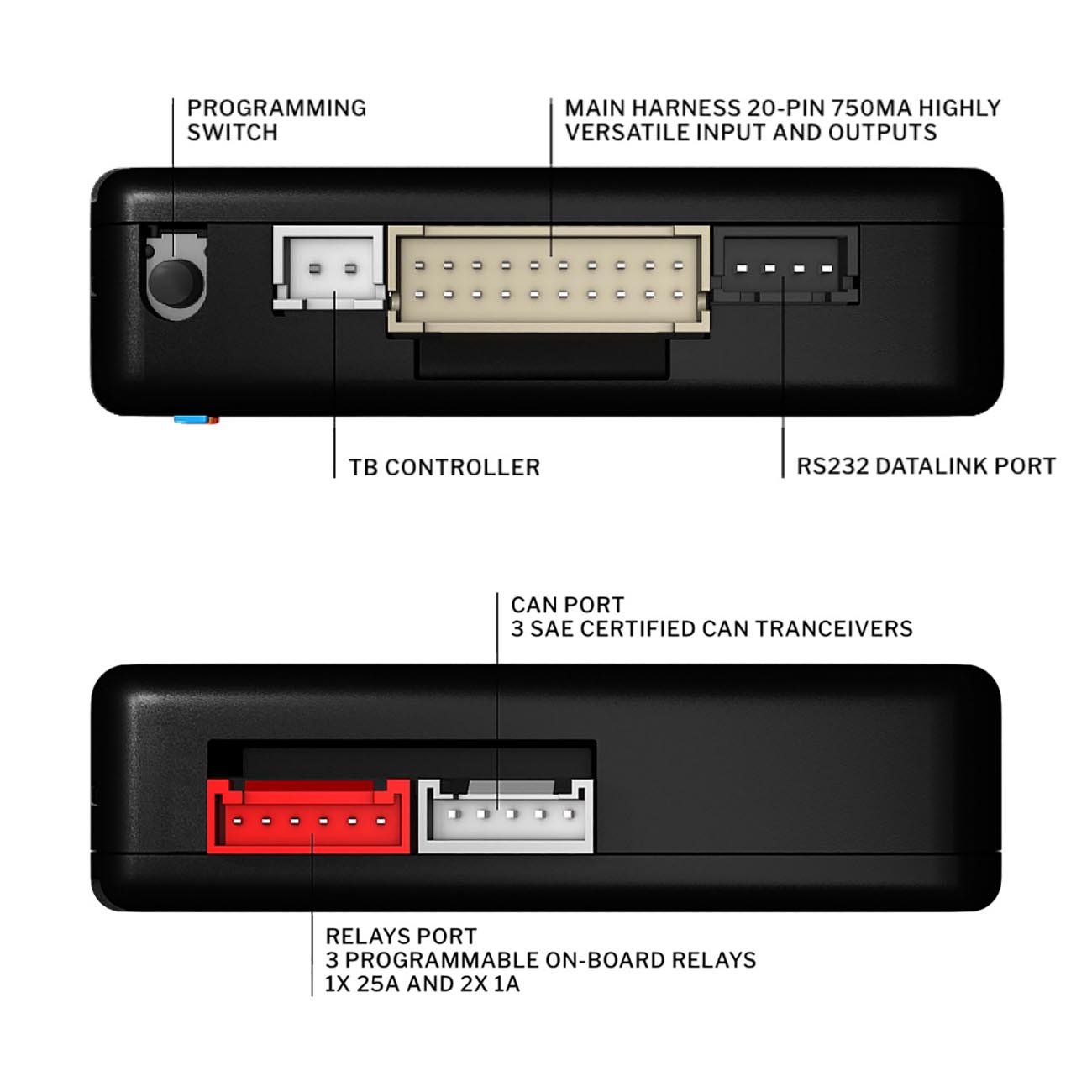

1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly
Product features:
3 x CAN-Bus controllers
3 x General purpose controllers (J1850, Class 2, encrypted key etc.)
1 x On-board relay (SPDT)
1 x On-board relay (DPDT)
1 x Analog controller 0-12VDC @ 20mV steps (MUX)

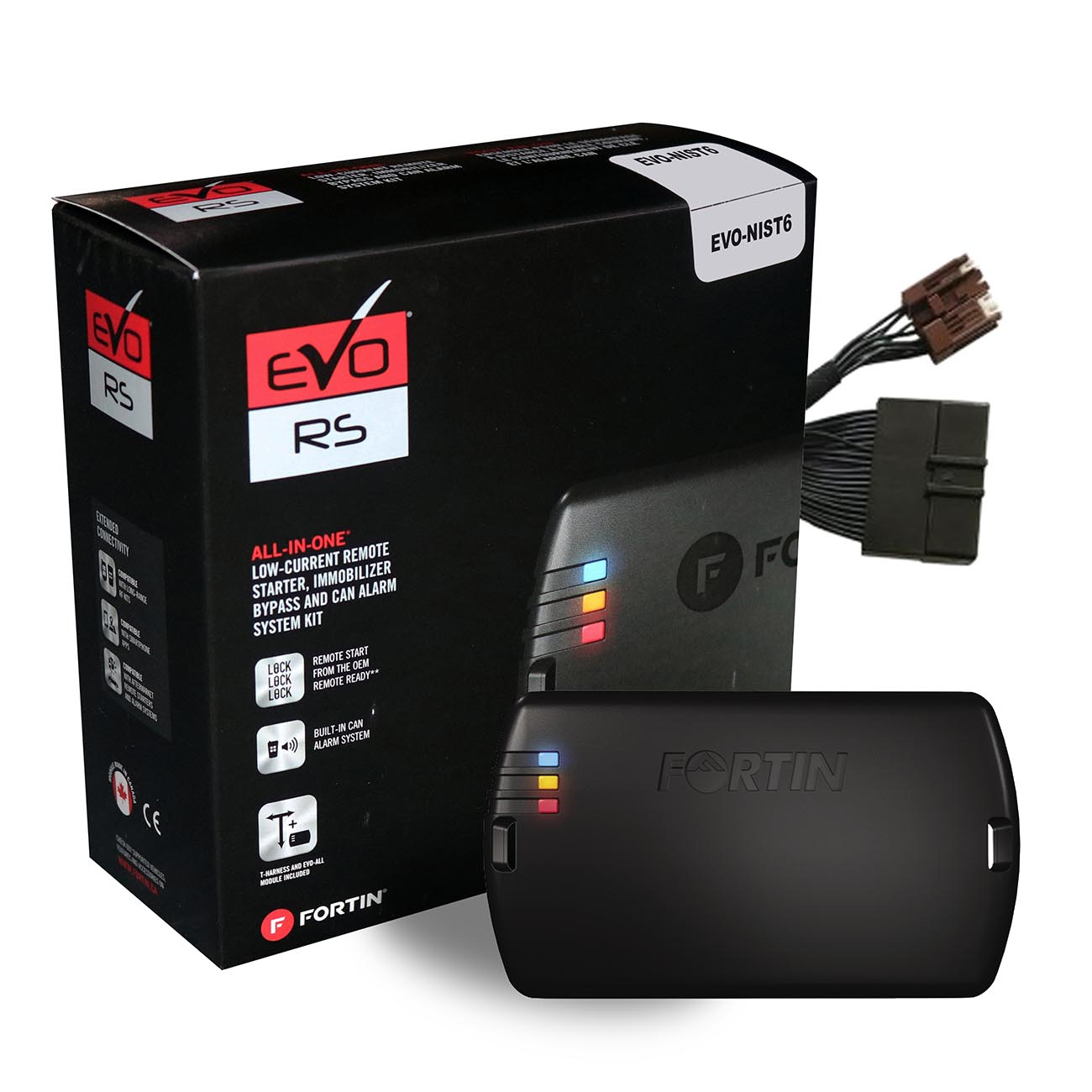

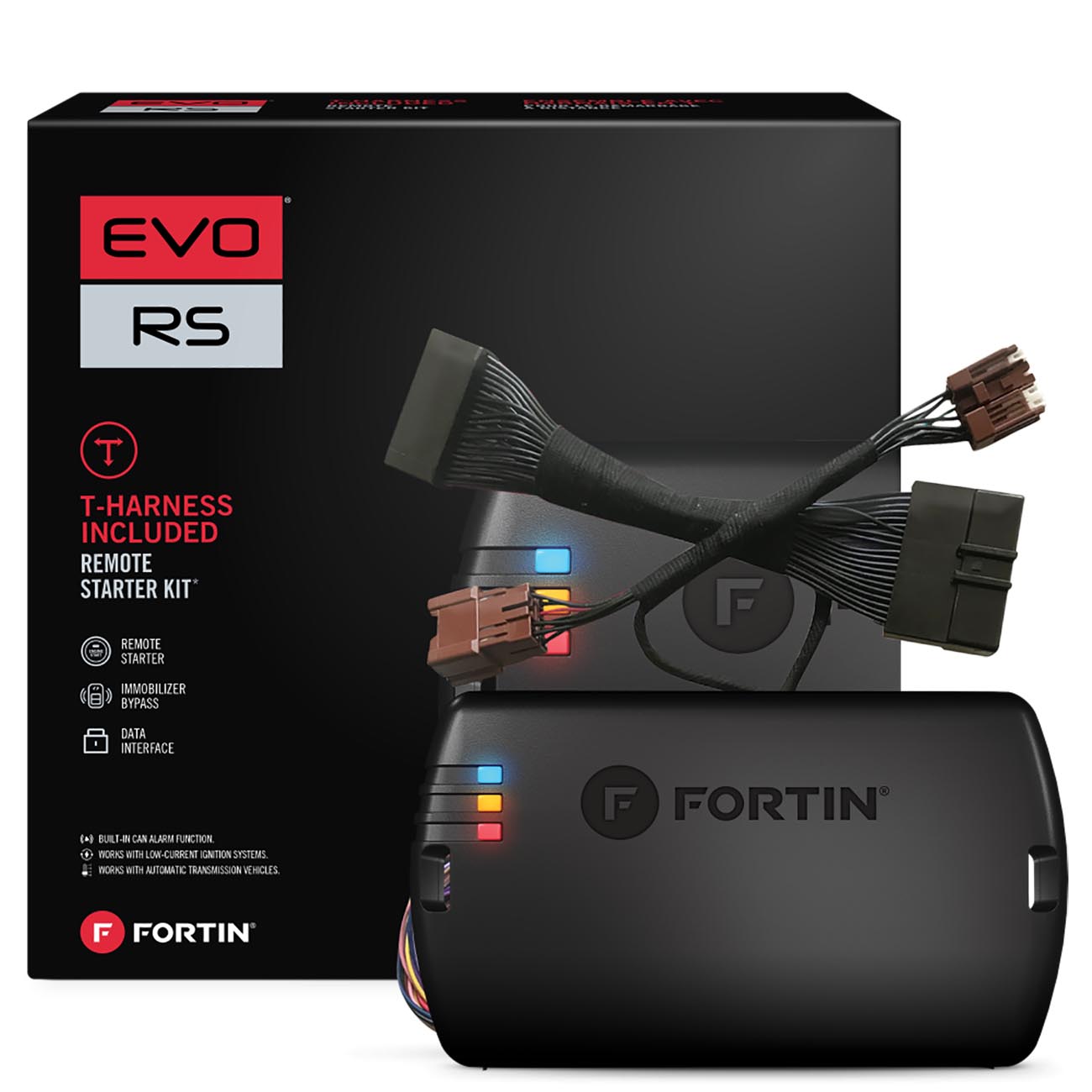

Includes:
1 x EVO-ALL control module (firmware preloaded)
1 x Warning label
1 x 20 Pin general purpose harness
1 x 4 Pin Fortin 2-way data-link harness
1 x Factory Fit T-Harness
