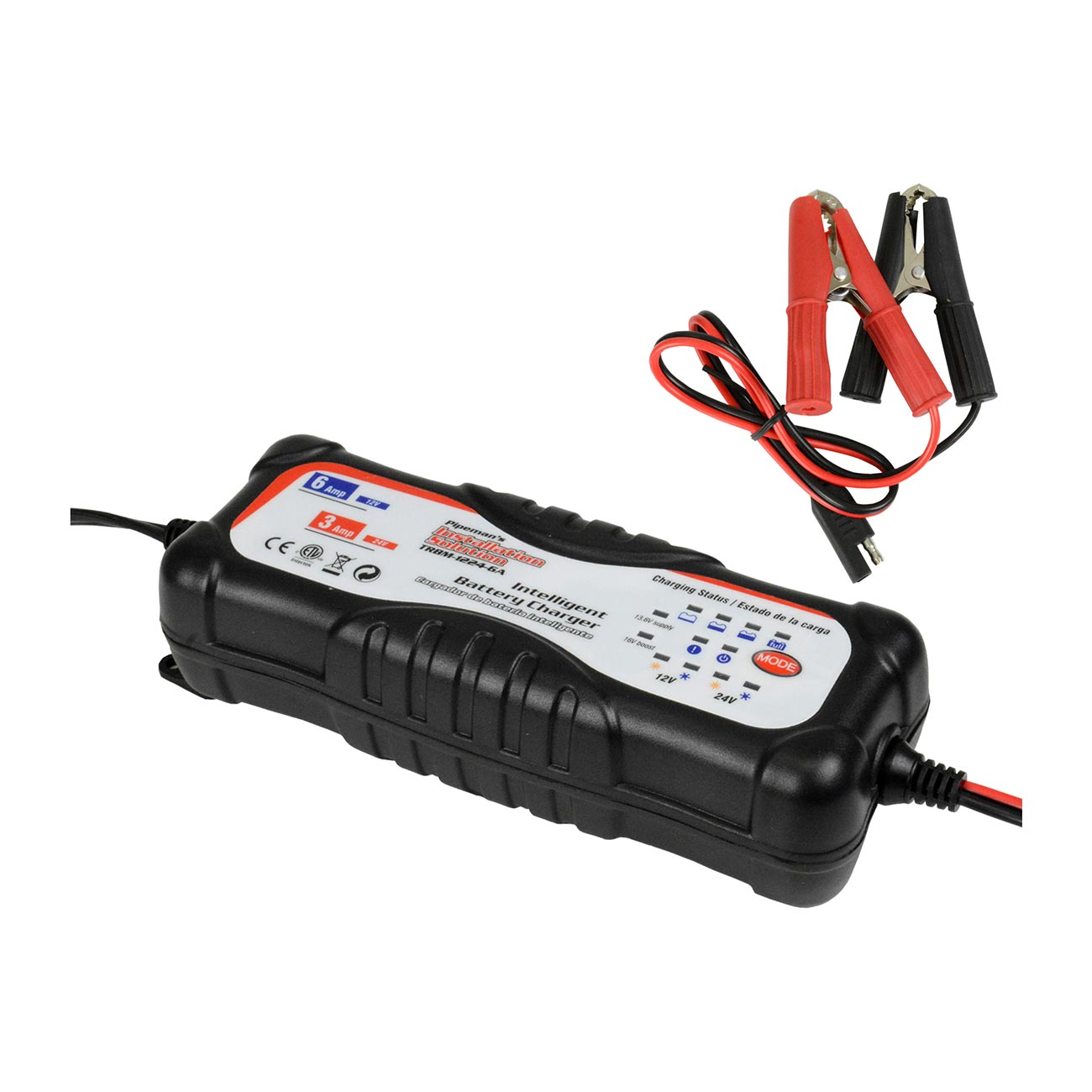

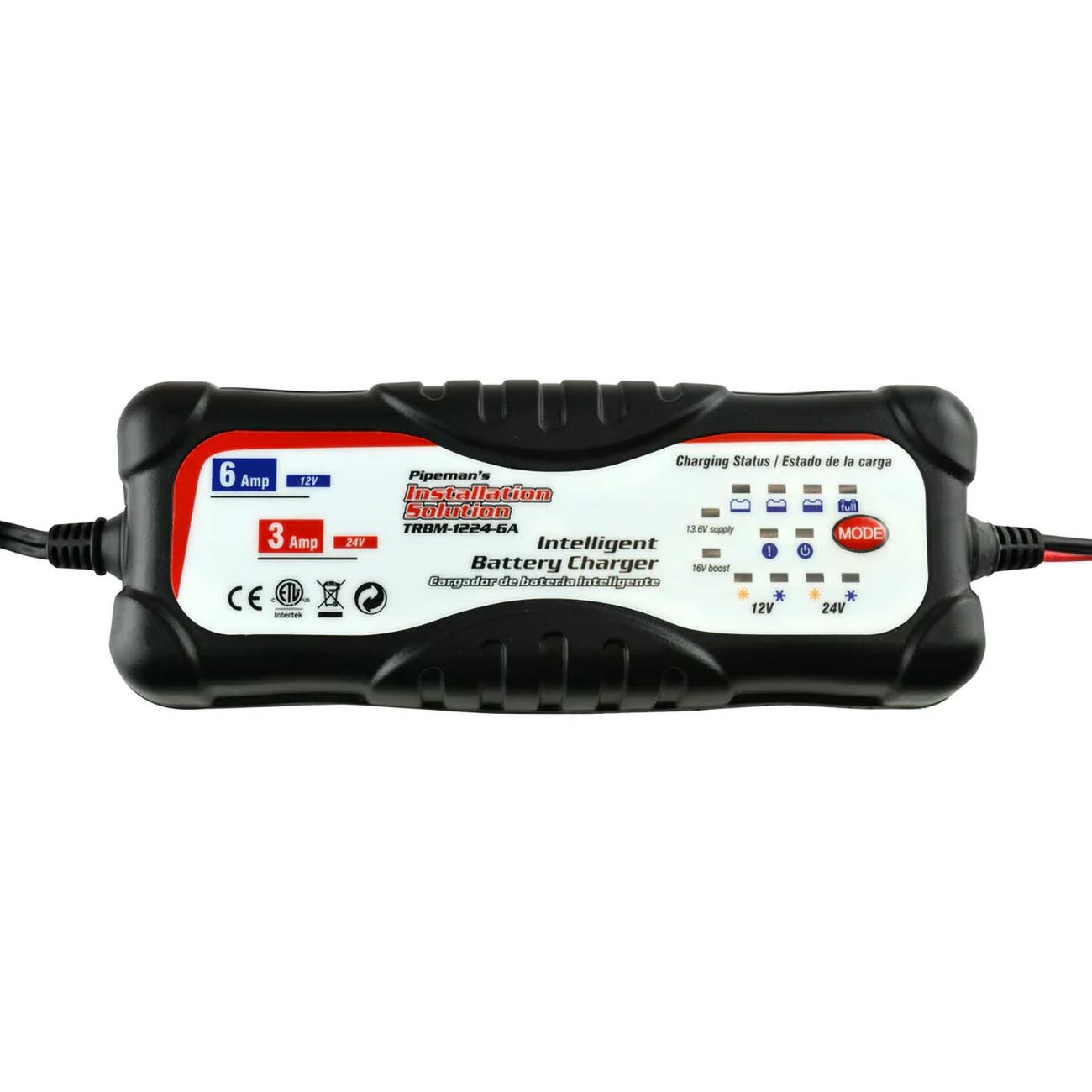

Installation Solution Intelligent Battery Charger – 12V / 24V Output
Input Voltage: 110V AC, 60Hz or 230V AC, 50Hz
Output Voltage: 12V & 24V (auto – select)
Efficiency: > 75%
Charging Voltage: 28.8V ± 0.25V, or 29.4V ± 0.25V or 14.4V ± 0.25V or 13.6V ± 0.25V or 16.5V ± 0.25V
Charging Current: 6.0A ± 10% or 4.0A ± 10% or 3.0A ± 10% or 2.5A + 10% or 1.5A + 10%
Back Drain Current: <5mA
Ripple: Max 150mV, 0.3A
Ambient Temp: -20°C – +40°C / -4°F – 104°F, Reduced output power at higher temperature
Battery Types: 12V & 24V lead-acid batteries (WET, MF, AGM and GEL)
Housing Protection: IP65 (Dust and Splash proof)
