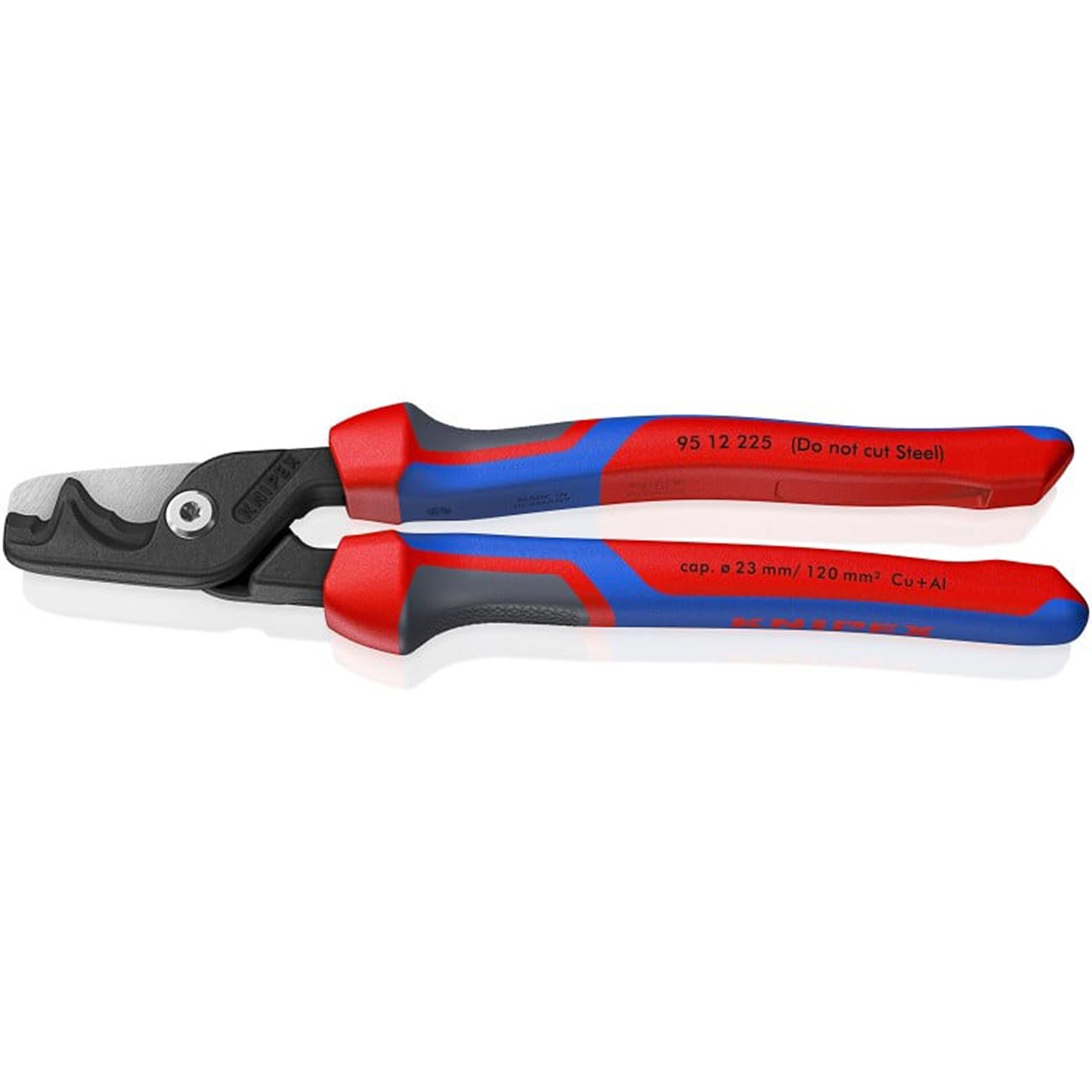

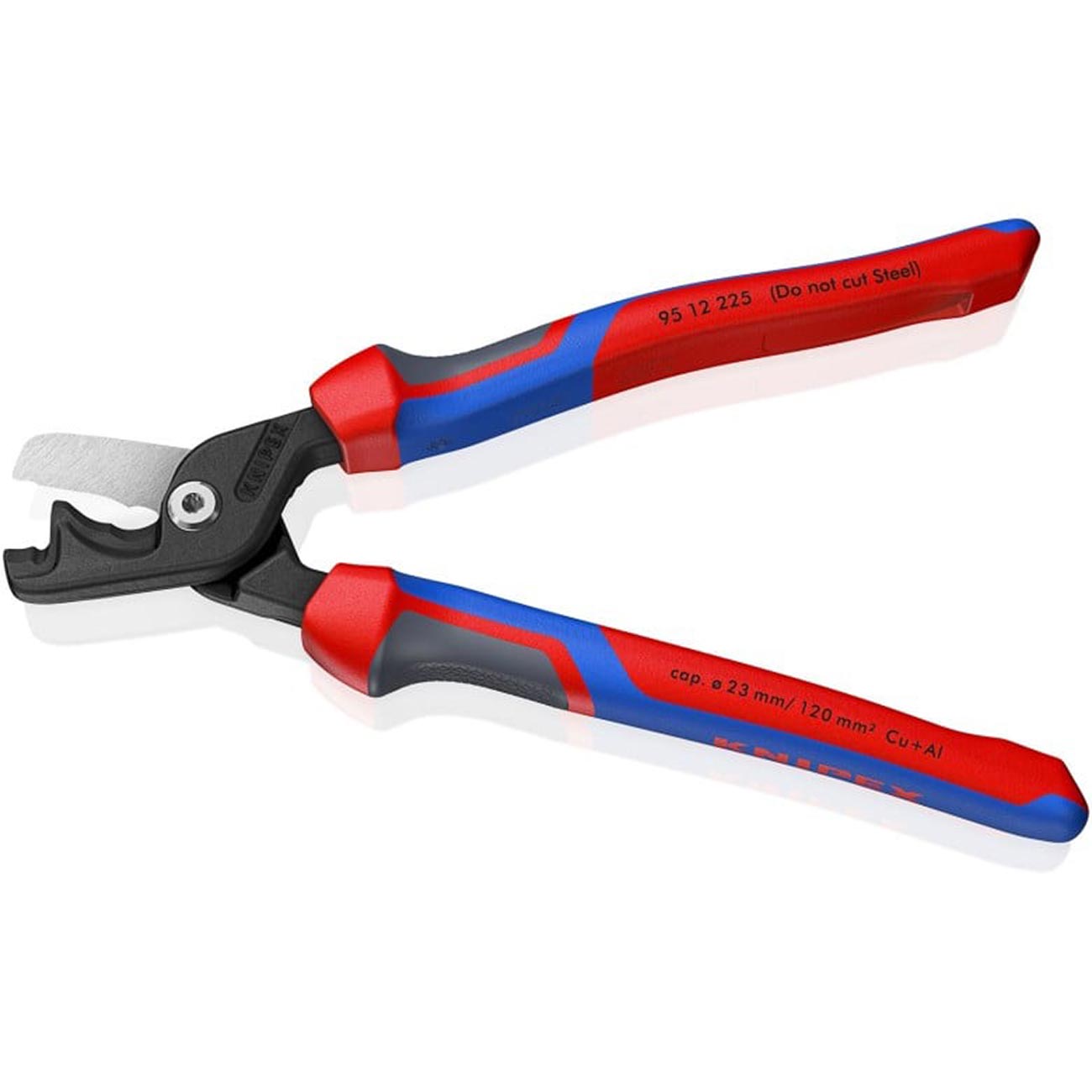

Knipex StepCut XL Cable Shears (9″) (Retail Packaging)
- High-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears
- Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

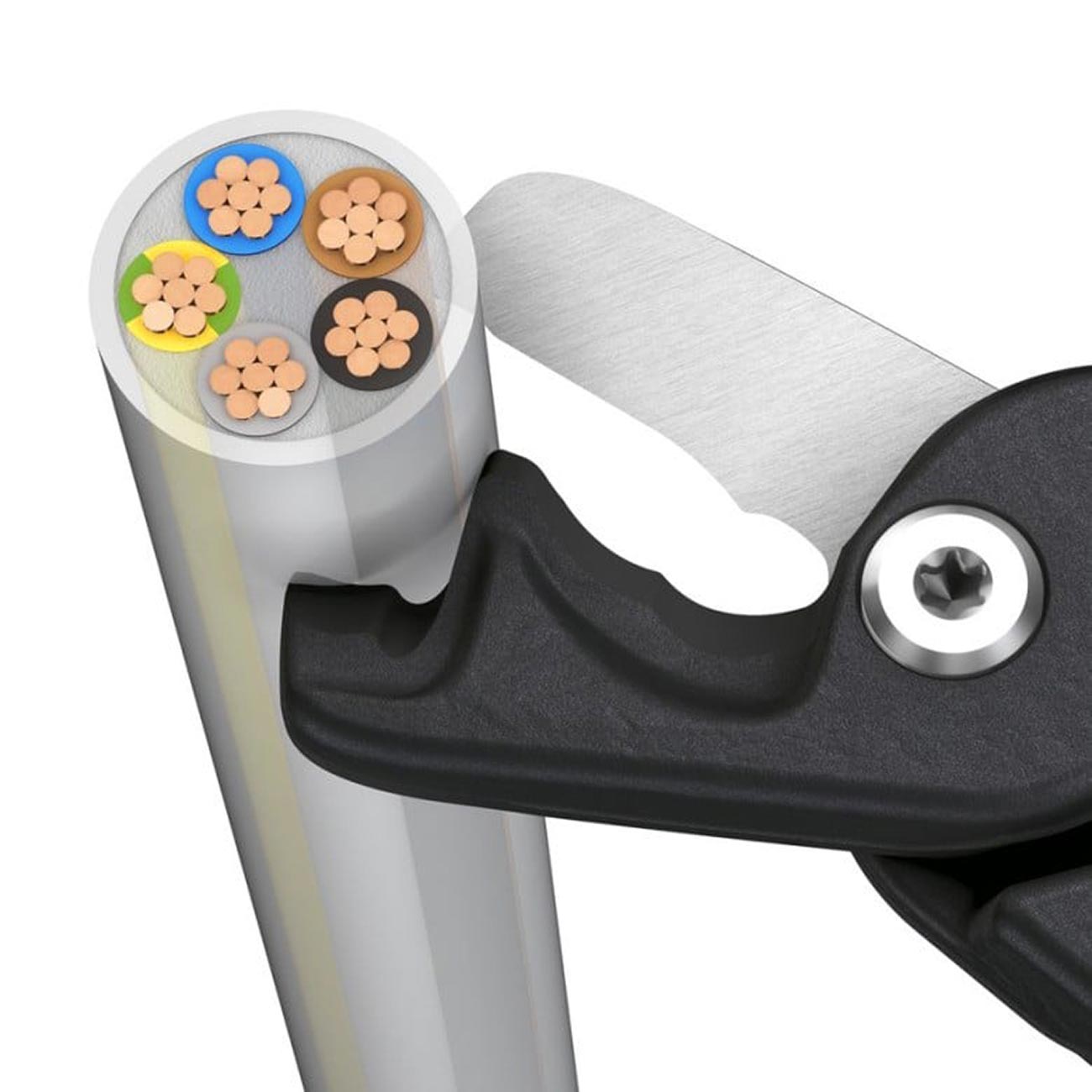

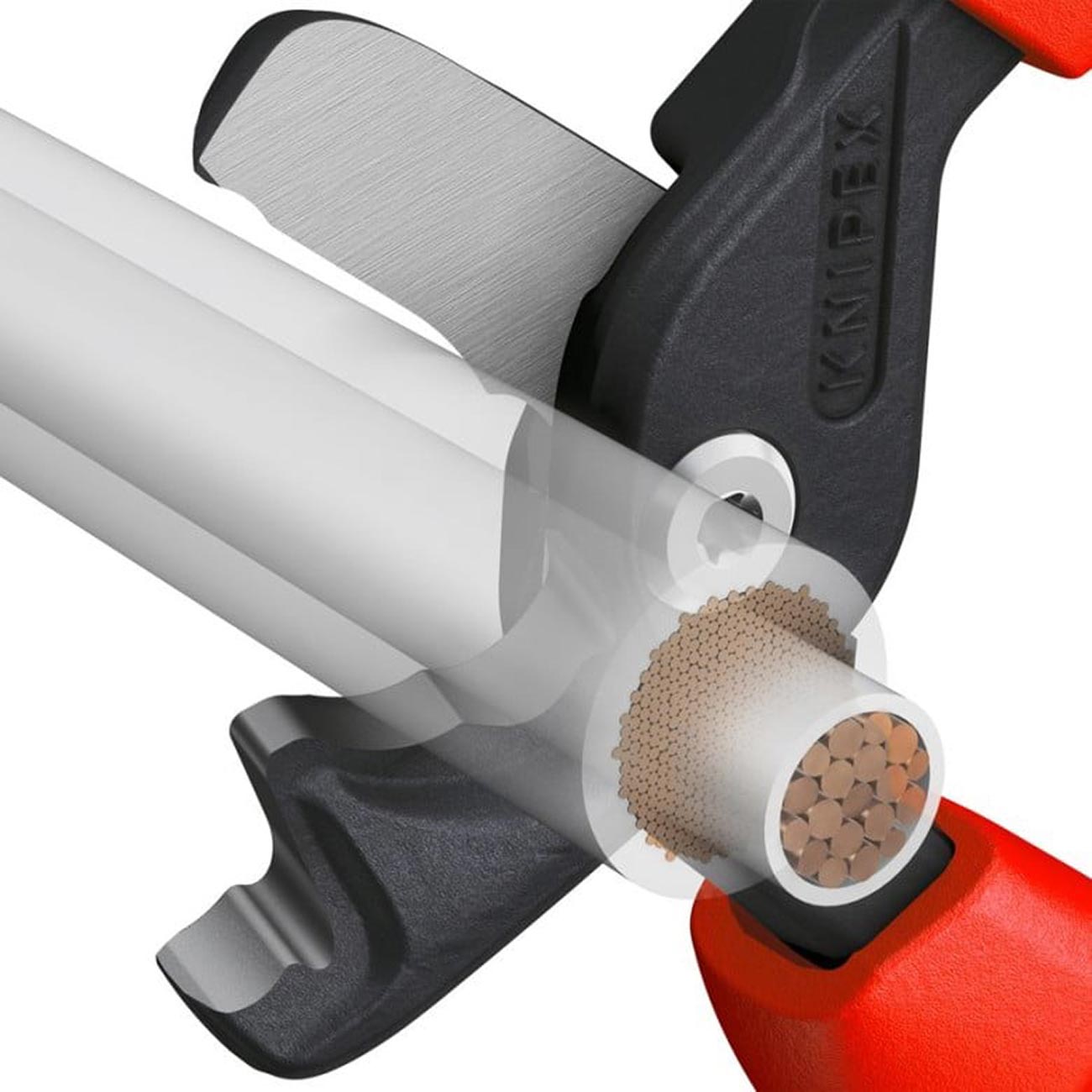

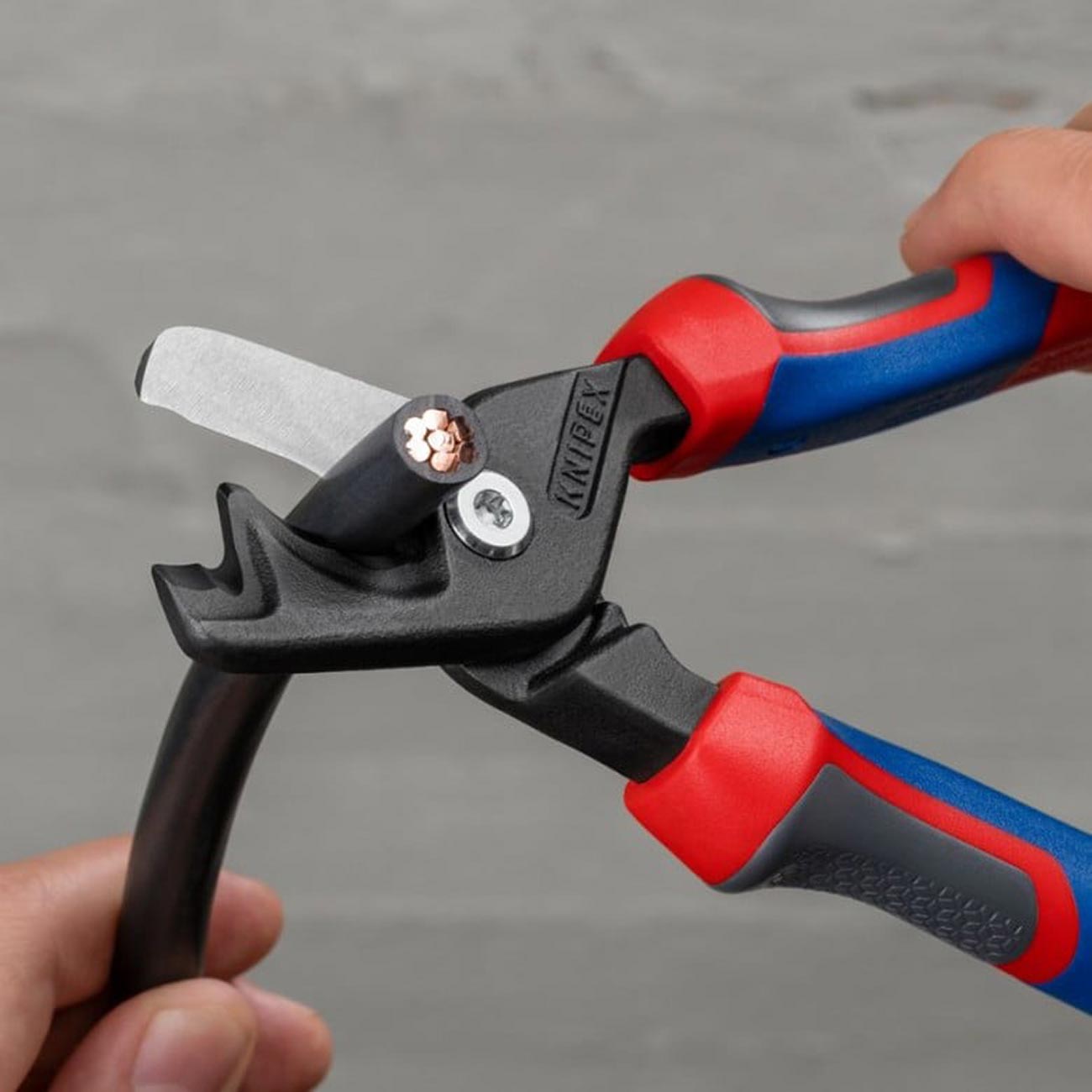

- Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting (“nibbling”) of larger cables
- Easy one- or two-handed operation with minimal handle opening for large cable diameters
- Slim head for better accessibility
- Not suitable for steel-reinforced cables, e.g. ACSR
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Pinch guard prevents operators’ fingers being pinched
- High-grade special tool steel; forged; oil-hardened
- Laser-hardened cutting edges (approx. 56 HRC)
Wire Size: Up to 2/0 AWG (solid and stranded cables), Up to 4/0 AWG (fine stranded cables)
Cable Type: Stranded Cables / Fine Stranded Cables / Solid Cable
Length: 9″
Width: 2-1/4″
Height: 1″
Weight: 0.925 lbs.
Material Type: High-grade special tool steel, forged, oil-hardened
Handle Type: KNIPEXTEND Comfort Handle
Surface Finish: Burnished
Joint Type: Bolted
Cutting Edge Shape: Shear
Jaw Length: 1-1/4″
Jaw Width: 1-1/4″
Jaw Thickness: 1/2″
Tip Thickness: 1/4″
Tip Width: 1″
Cable Cutting Capacity: 29/32″

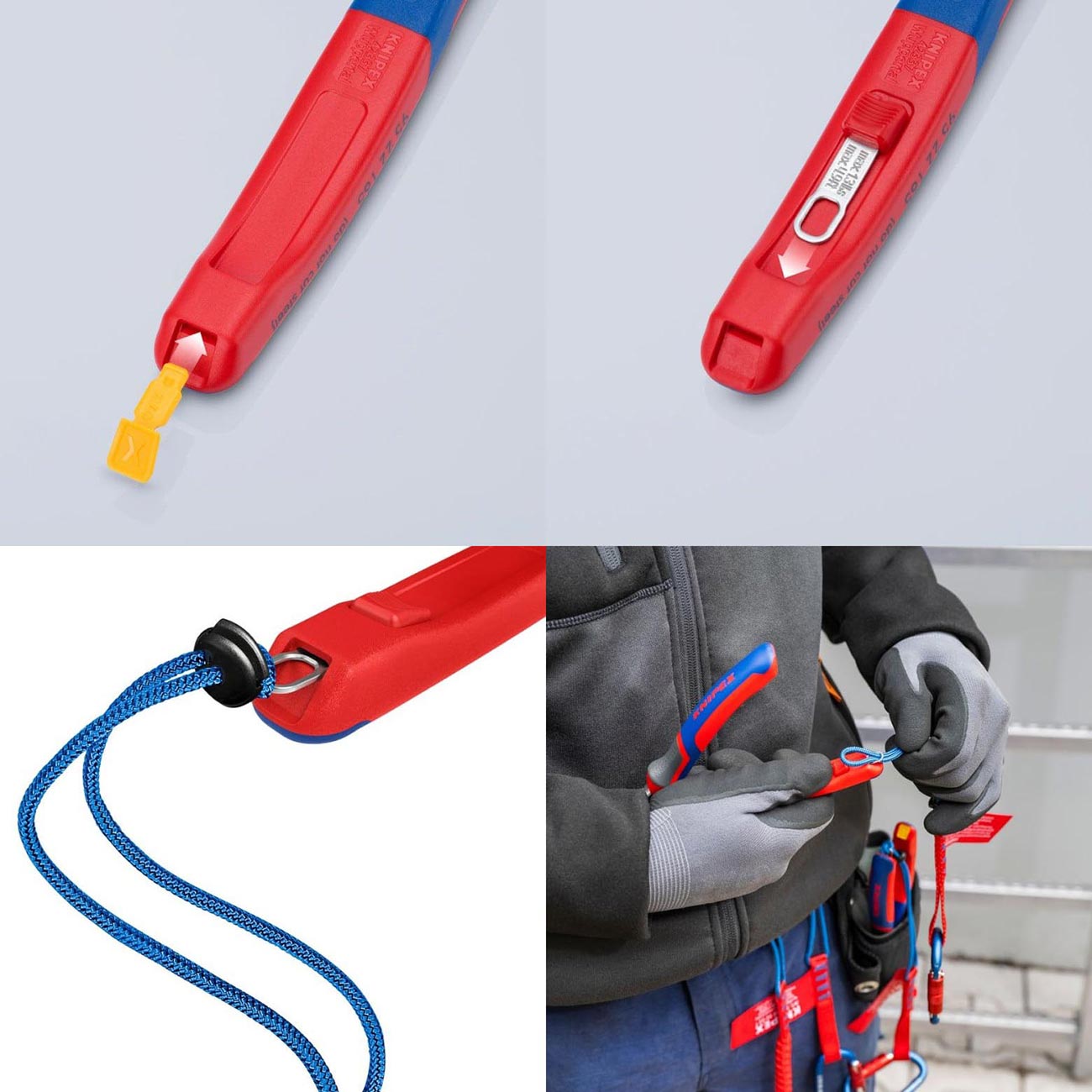

TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)
