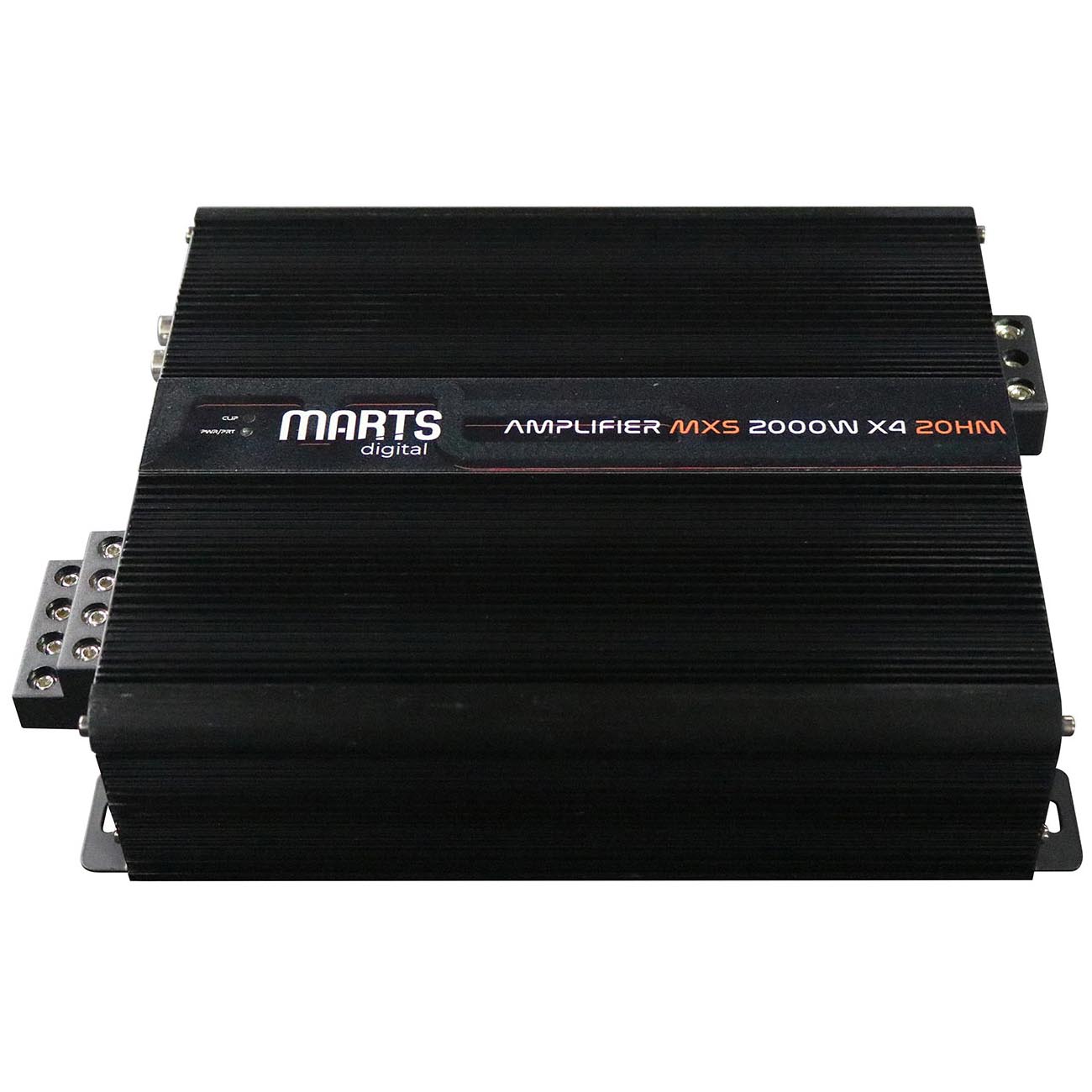

Marts 4 Channel Amplifier, 2000W RMS
4 x 530W RMS @ 2 Ohm (14.4V)
4 x 490W RMS @ 2 Ohm (12.6V)
4 x 330W RMS @ 4 Ohm (14.4V)
4 x 300W RMS @ 4 Ohm (12.6V)
2 x 1010W RMS @ 2 Ohm Bridged (14.4V)
2 x 975W RMS @ 4 Ohm Bridged (12.6V)
(W x H x L) 7-3/4″ x 2-1/4″ x 9-3/4″
Class D
2 Ohm Stable
Supply Voltage 9.5 – 16V
Frequency Response 10Hz – 20KHz
High Pass Crossover: 50 Hz – 2 KHz
Low Pass Crossover: 15 Hz – 2 KHz
Bass Boost: 0 – +12 dB
RCA Inputs
Signal to Noise Ratio 95dB
Harmonic Distortion 1% THD
Input Sensitivity 0.2V
| You must use 100% oxygen free copper wire at its maximum size. Copper clad aluminum wire, CCA, will cause failure. |
