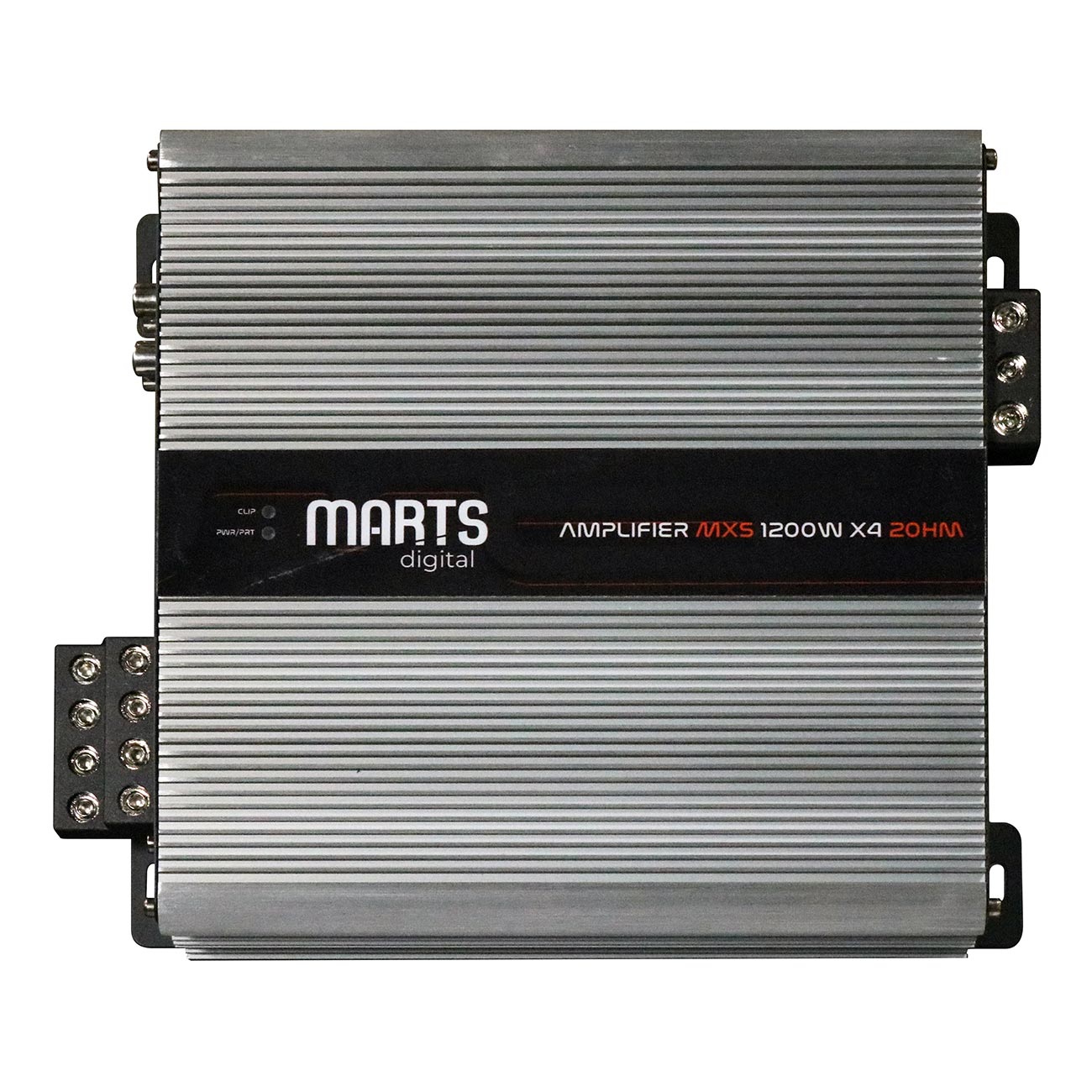

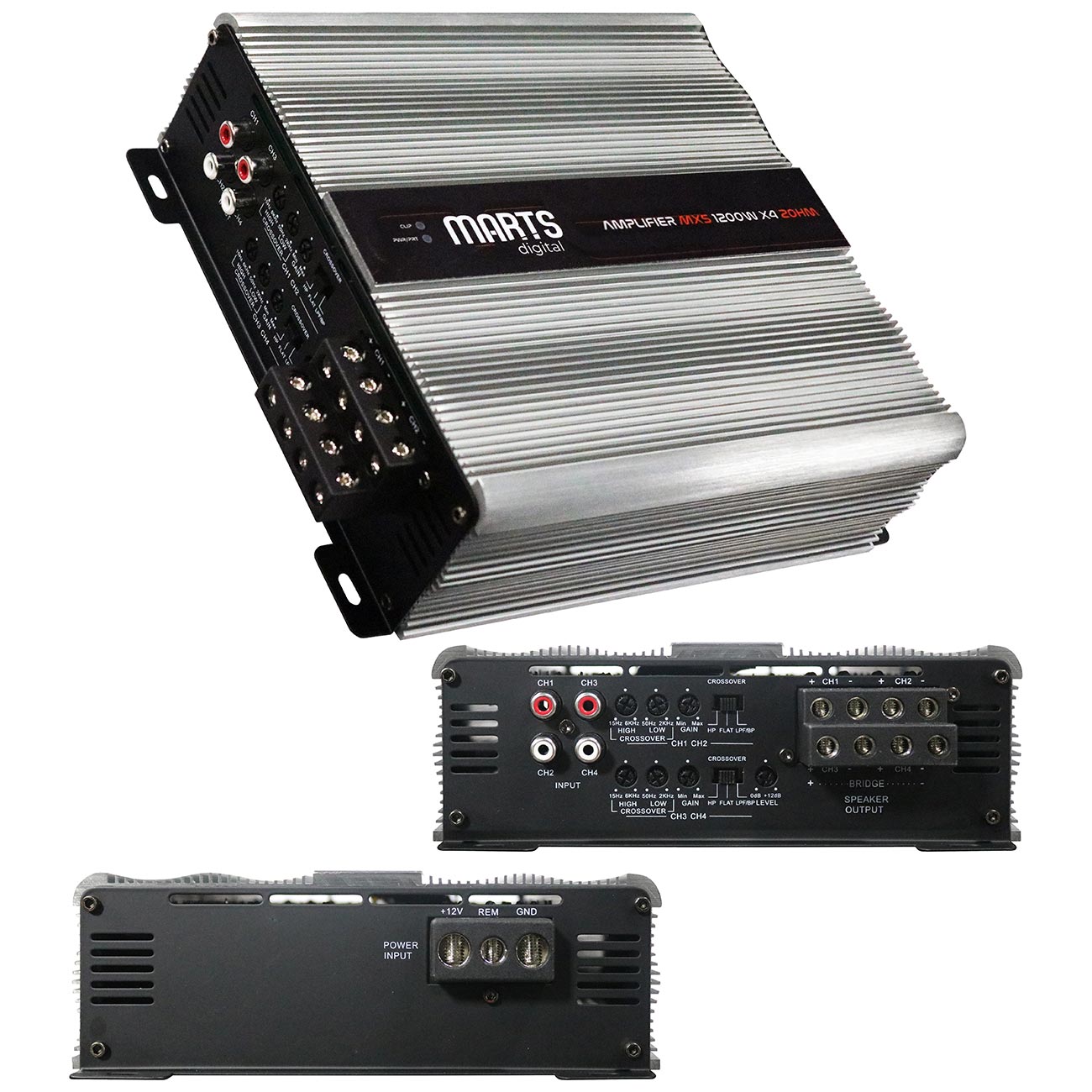

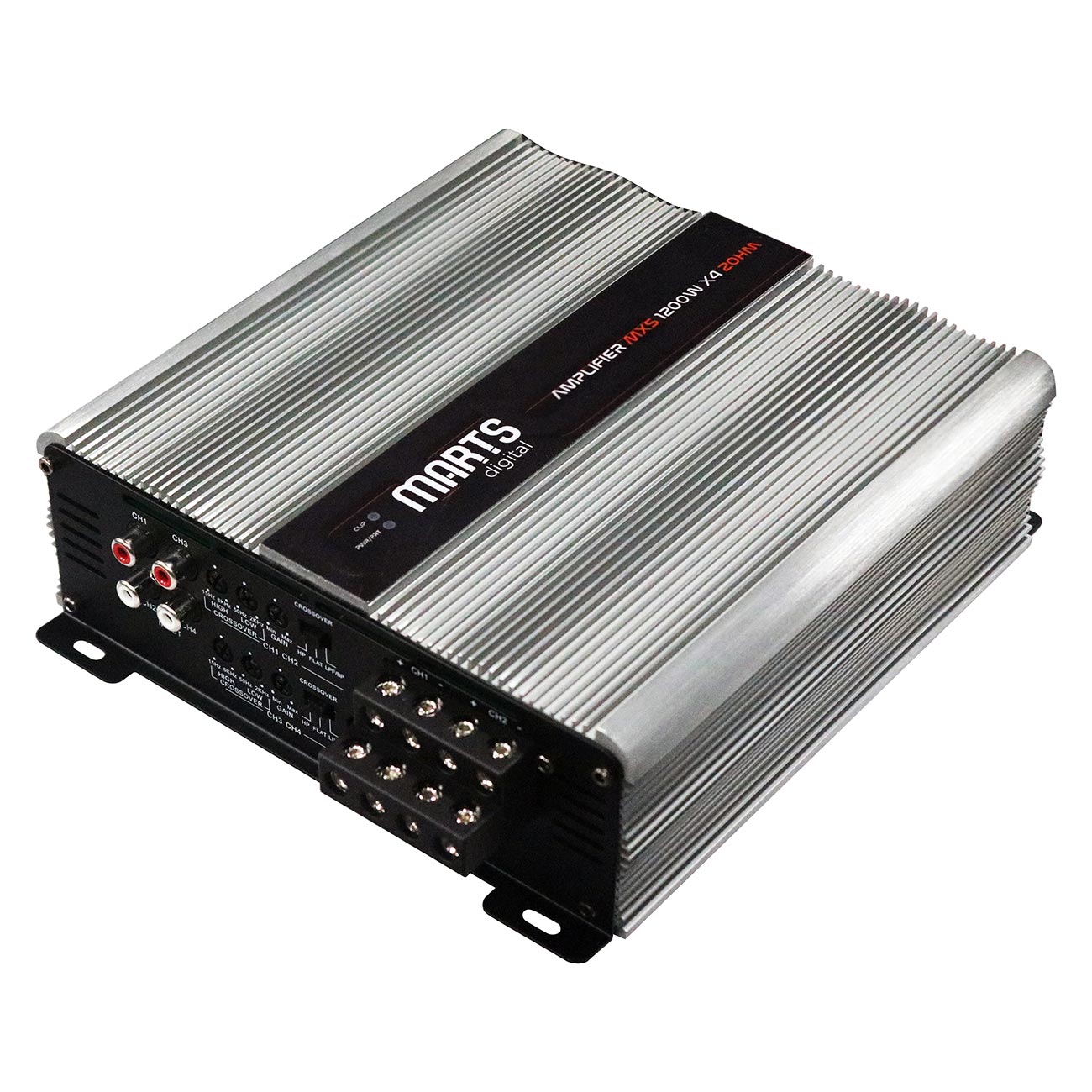

Marts Digital Amplifier 4 Channel, 1200W RMS (2 Ohm)
4 x 280W RMS @ 2 Ohm (14.4V)
4 x 290W RMS @ 2 Ohm (12.6V)
4 x 280W RMS @ 4 Ohm (14.4V)
4 x 275W RMS @ 4 Ohm (12.6V)
2 x 505W RMS @ 2 Ohm Bridged (14.4V)
2 x 487W RMS @ 4 Ohm Bridged (12.6V)
(W x H x L) 9″ x 2-1/2″ x 7-1/2″
Class D
2 Ohm Stable
Supply Voltage: 9.5 – 16 Volts
Frequency Response: 10Hz – 20KHz
LP Pass Crossover: 50Hz – 2KHz
HP Pass Crossover: 15Hz – 2KHz
Bass Boost: 0 to 12 dB
Signal to Noise Ratio: 95 dB
Harmonic Distortion: 1% THD
Input Sensitivity: 0.2v
High-Level Input: 6v
You must use 100% oxygen free copper wire at its maximum size.
Copper clad aluminum wire, CCA, will cause failure.
