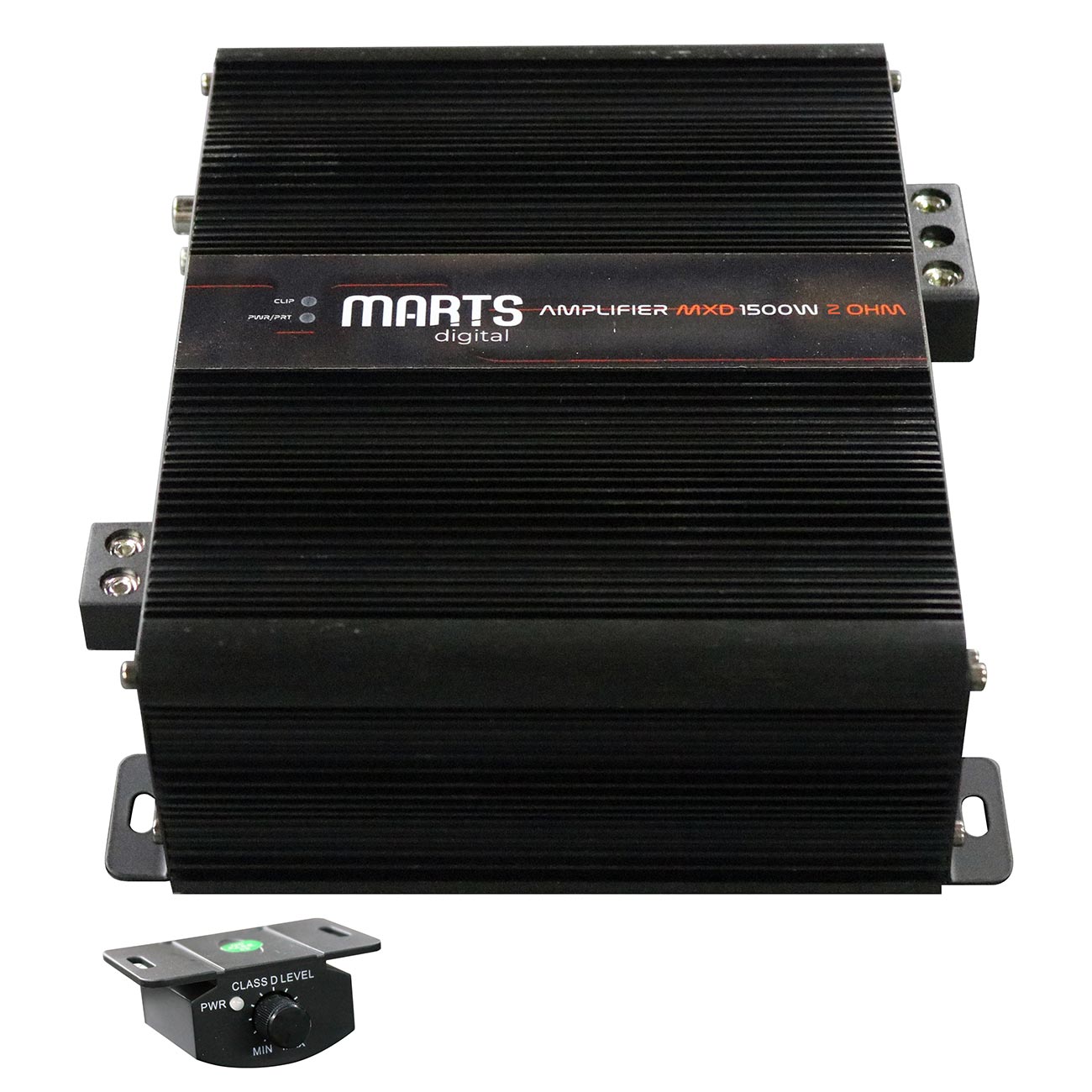

Marts Full Range Monoblock Amplifier, 1500W RMS
1 x 1620W RMS @ 2 Ohm (14.4V)
1 x 1500W RMS @ 2 Ohm (12.6V)
1 x 900W RMS @ 4 Ohm (14.4V)
1 x 850W RMS @ 4 Ohm (12.6V)
(W x H x L) 7-1/2″ x 2-5/8″ x 6-3/4″
Class D
2 Ohm Stable
Supply Voltage 9.5 – 16V
Frequency Response 10Hz – 20KHz
High Pass Crossover: 15 Hz – 1 KHz
Low Pass Crossover: 40 Hz – 20 KHz
Bass Boost: 0 – +12 dB
RCA In/Outputs
Signal to Noise Ratio 95dB
Harmonic Distortion 1% THD
Input Sensitivity 0.2V
Remote Bass Control
| You must use 100% oxygen free copper wire at its maximum size. Copper clad aluminum wire, CCA, will cause failure. |
