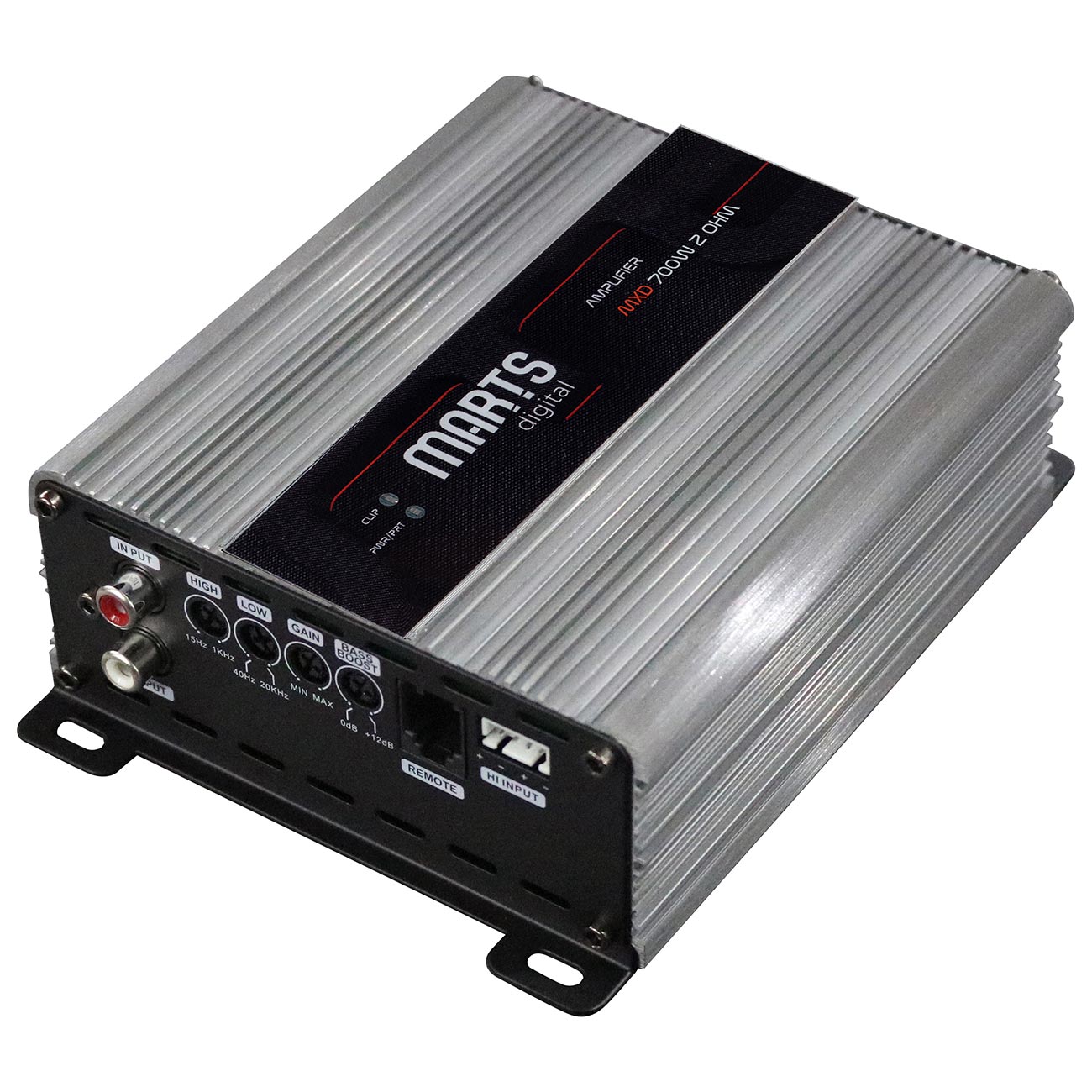

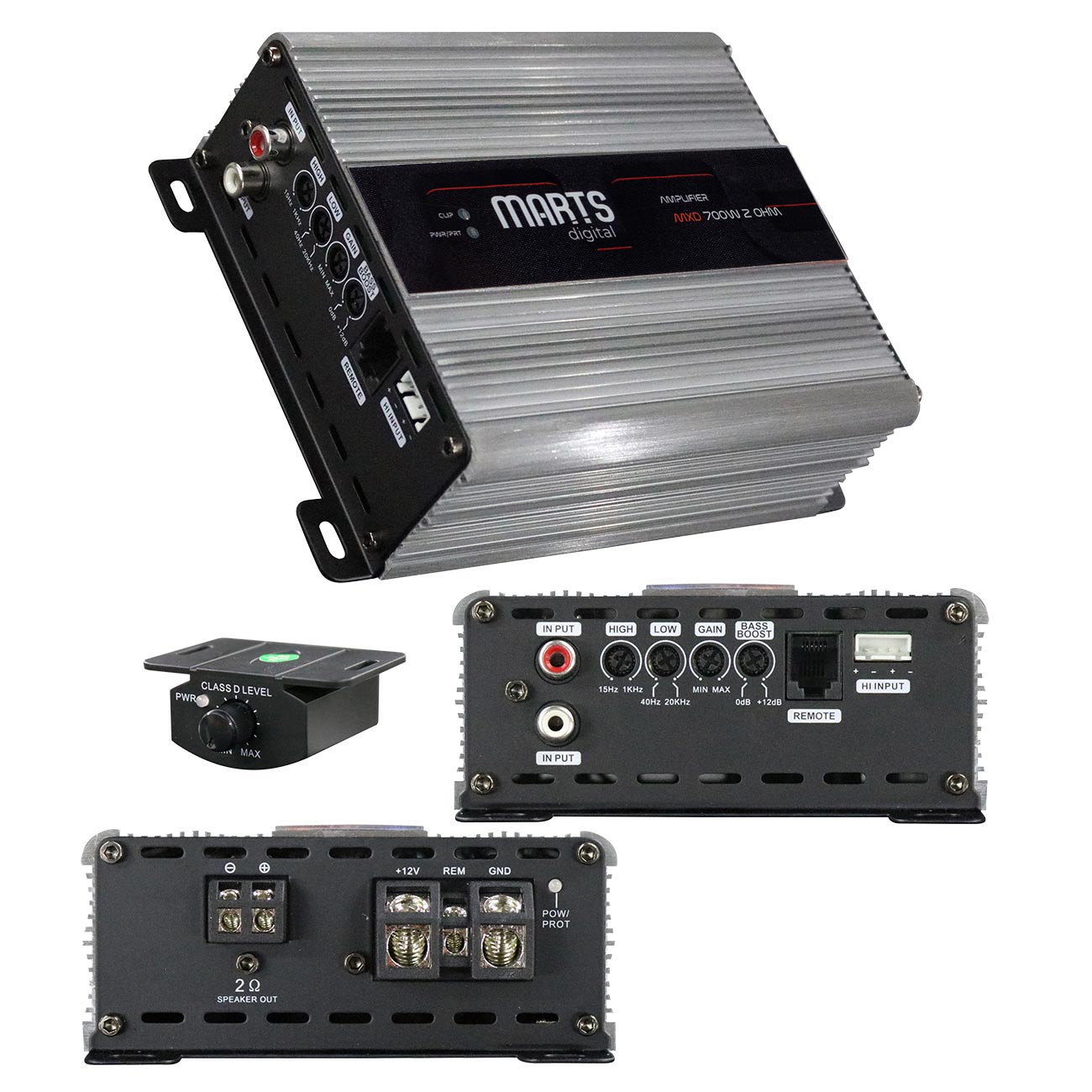

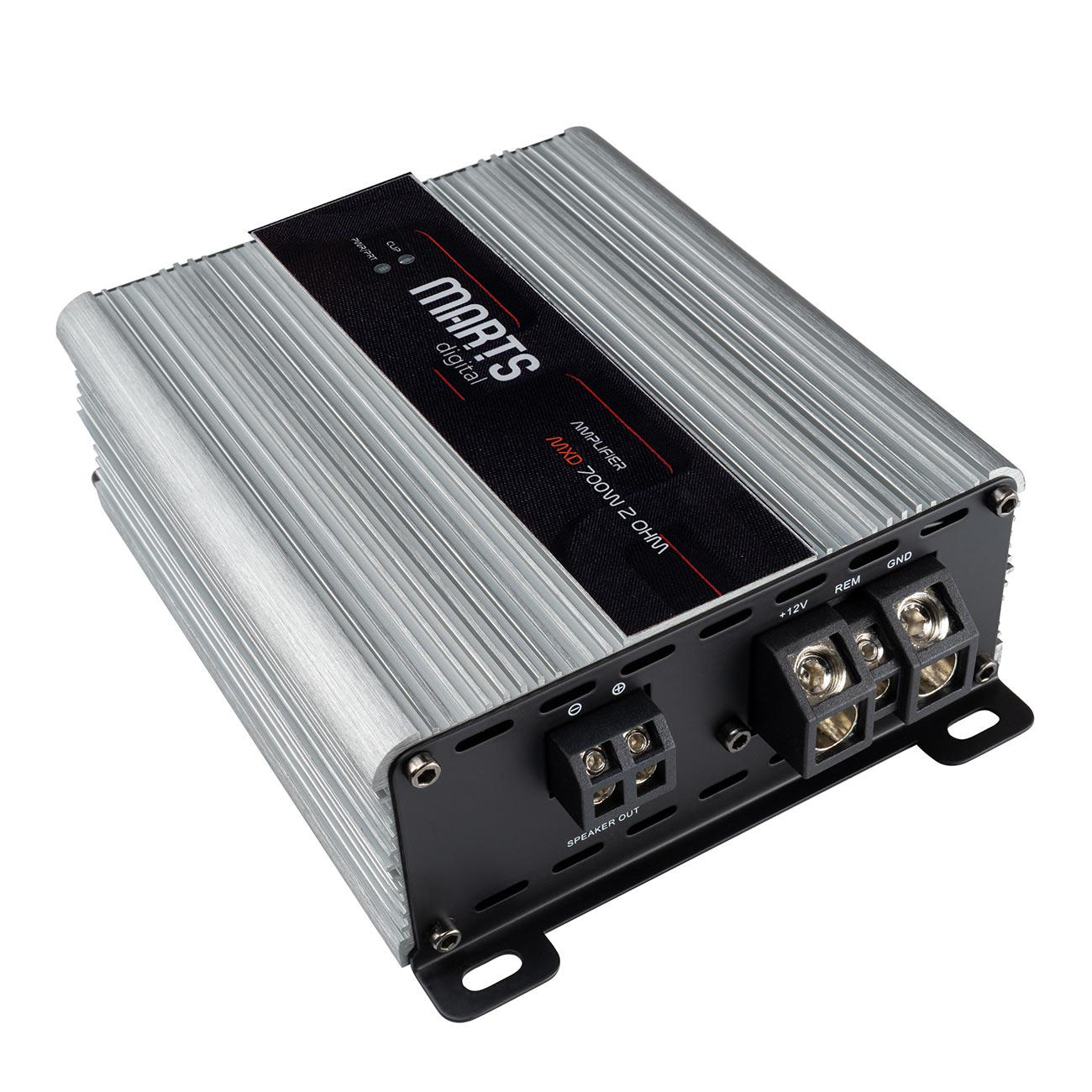

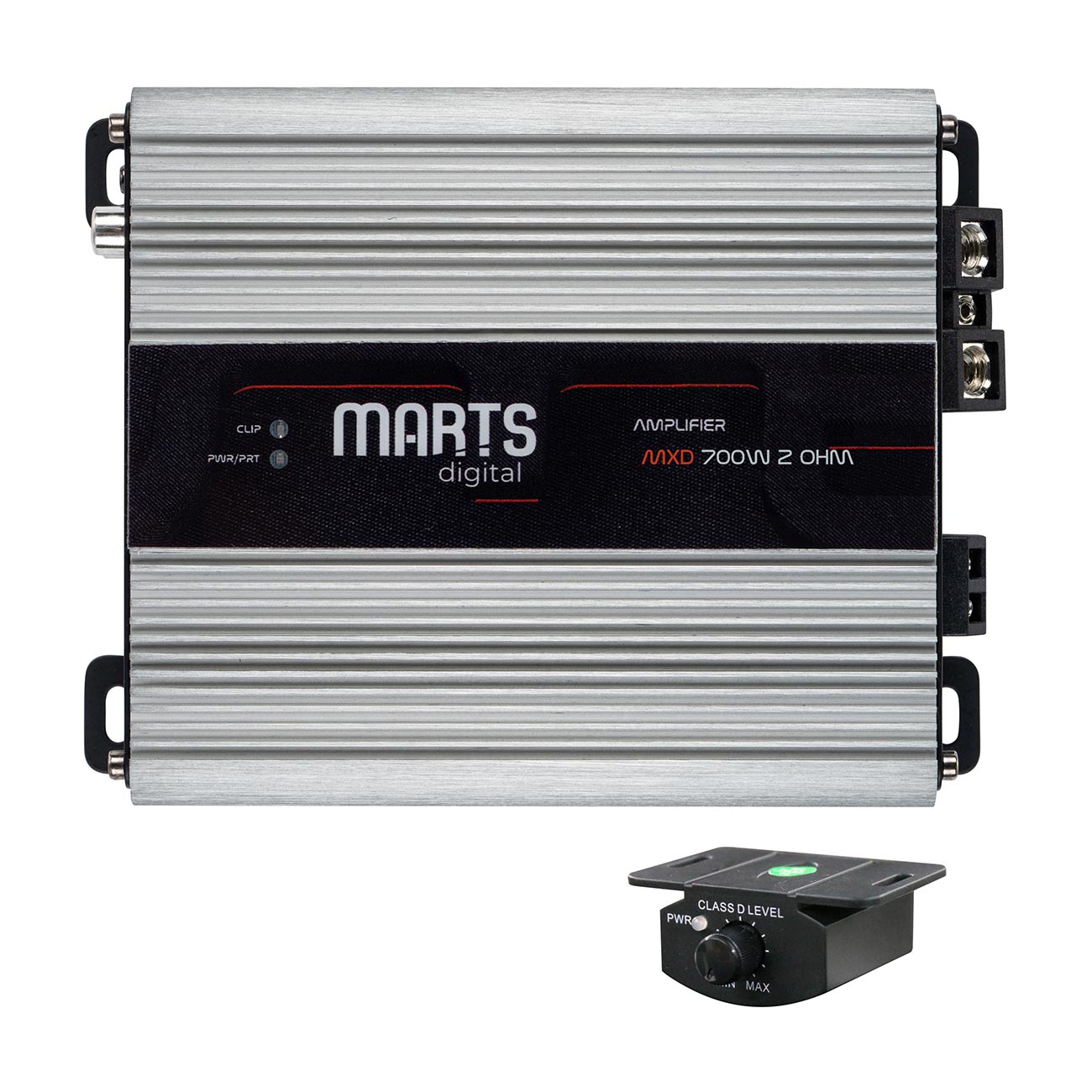

Marts Full Range Monoblock Amplifier, 700W RMS
1 x 720W RMS @ 2 Ohm (14.4V)
1 x 660W RMS @ 2 Ohm (12.6V)
1 x 450W RMS @ 4 Ohm (14.4V)
1 x 430W RMS @ 4 Ohm (12.6V)
(W x H x L) 4-3/4″ x 2-1/8″ x 6-1/4″
Class D
2 Ohm Stable
Supply Voltage 9.5 – 16V
Frequency Response 10Hz – 20KHz
High Pass Crossover: 15 Hz – 1 KHz
Low Pass Crossover: 40 Hz – 20 KHz
Bass Boost: 0 – +12 dB

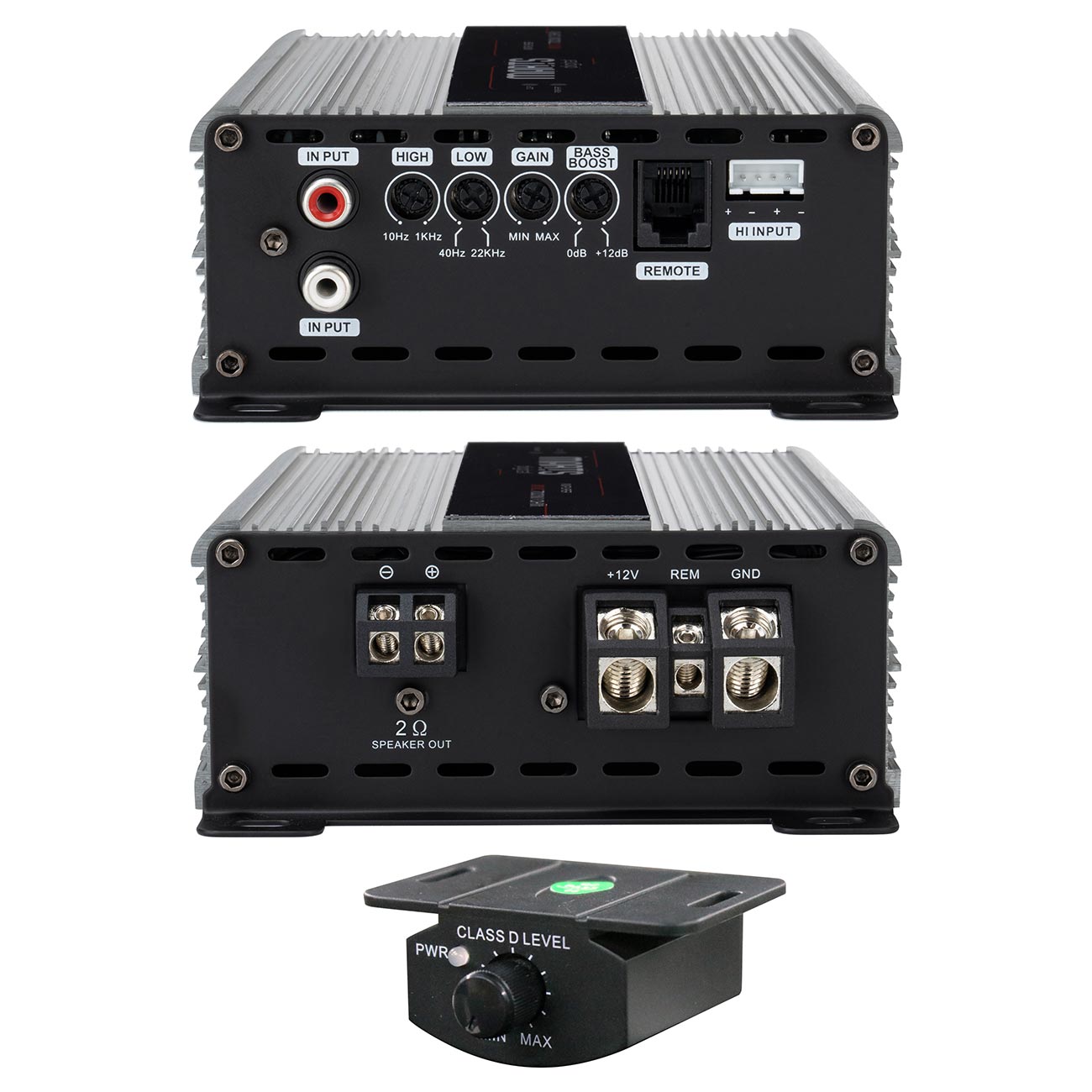

RCA In/Outputs
Signal to Noise Ratio 95dB
Harmonic Distortion 1% THD
Input Sensitivity 0.2V

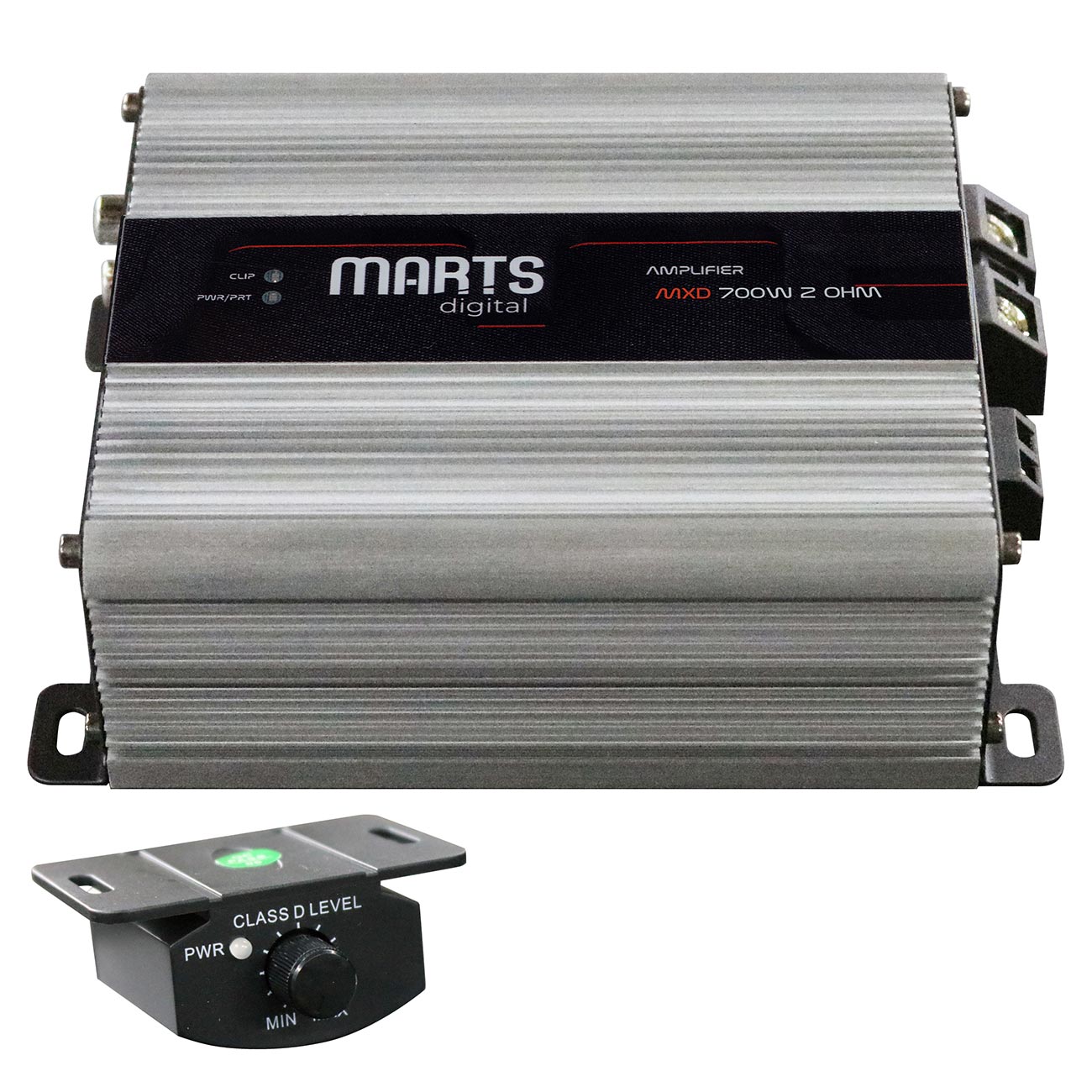

Remote Bass Control
| You must use 100% oxygen free copper wire at its maximum size. Copper clad aluminum wire, CCA, will cause failure. |
