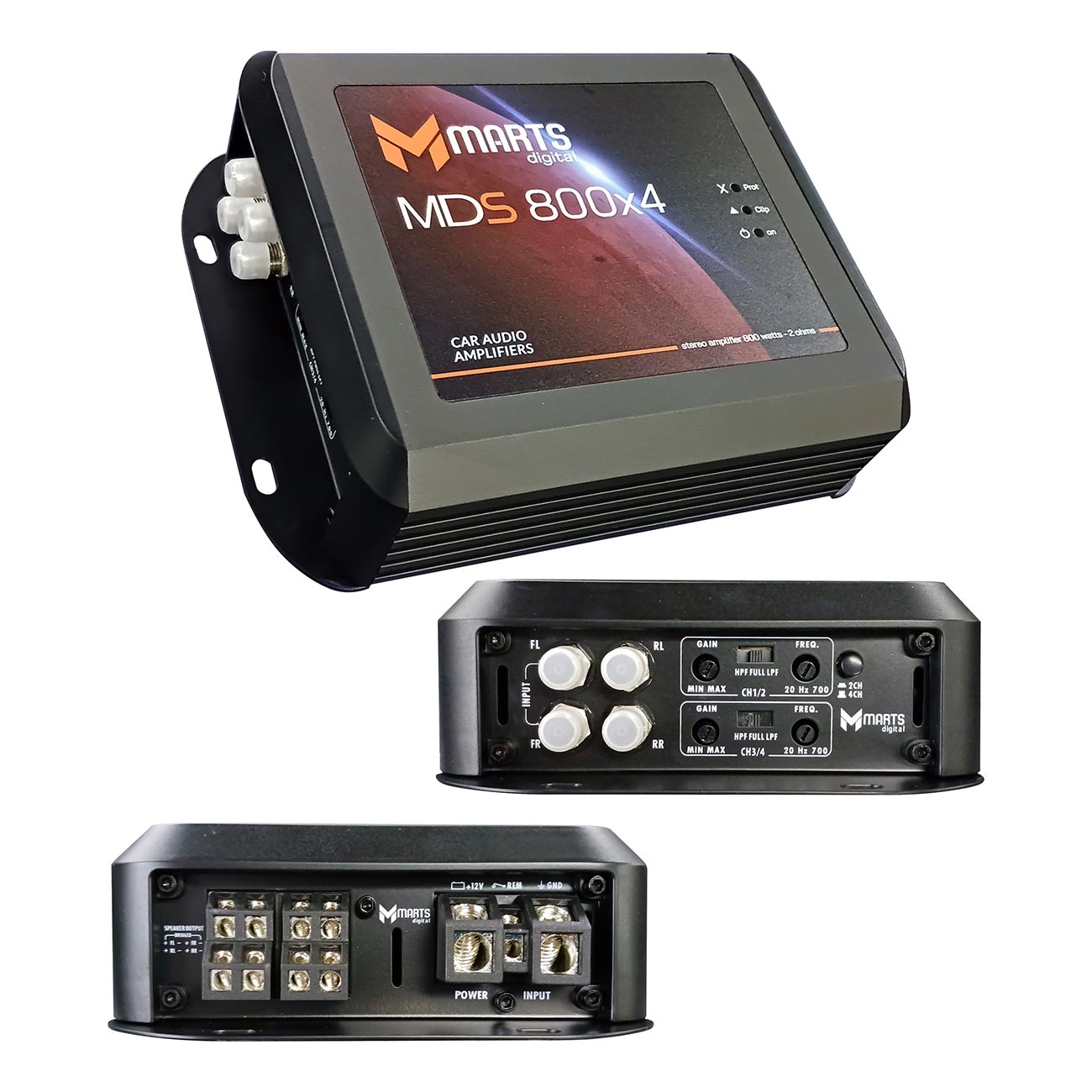

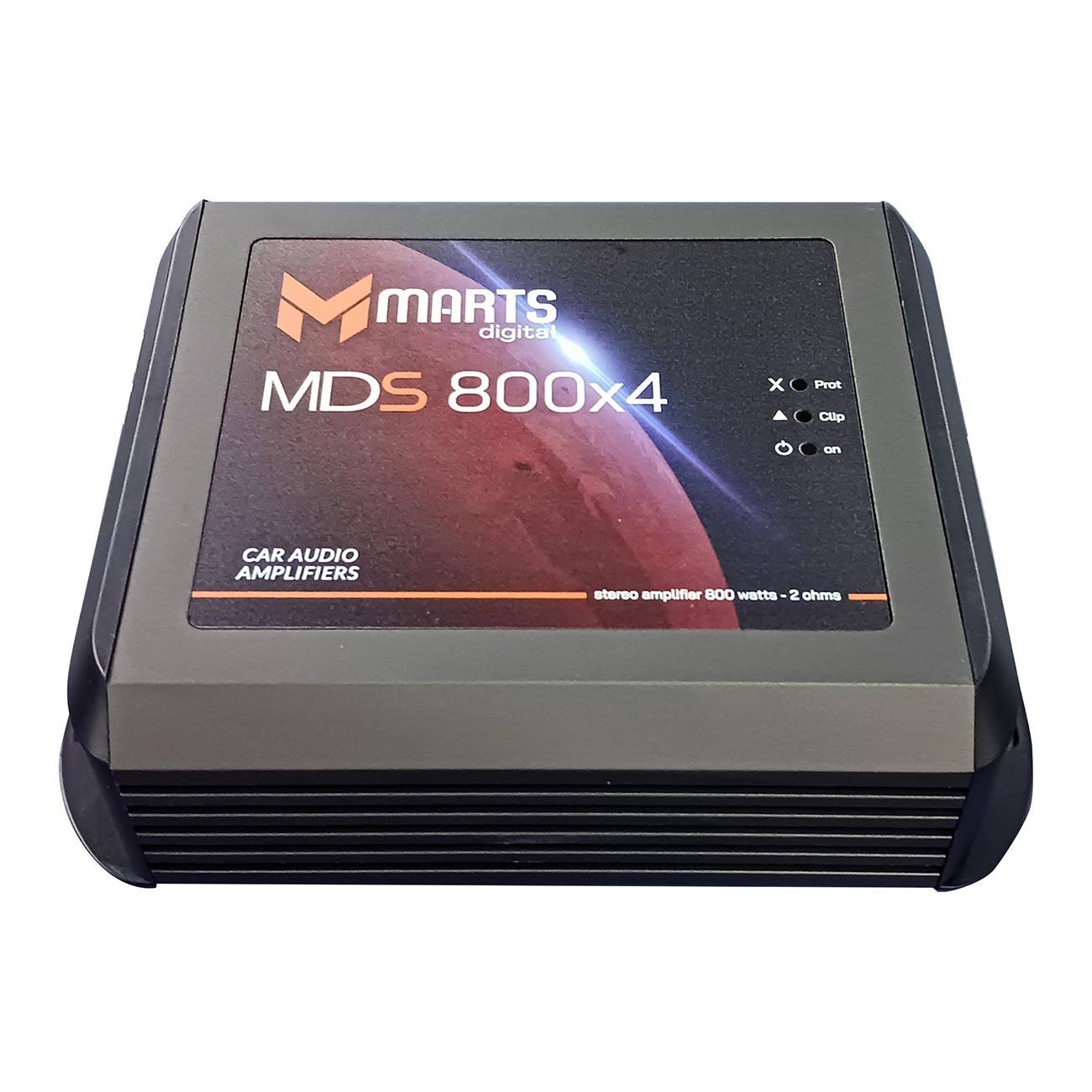

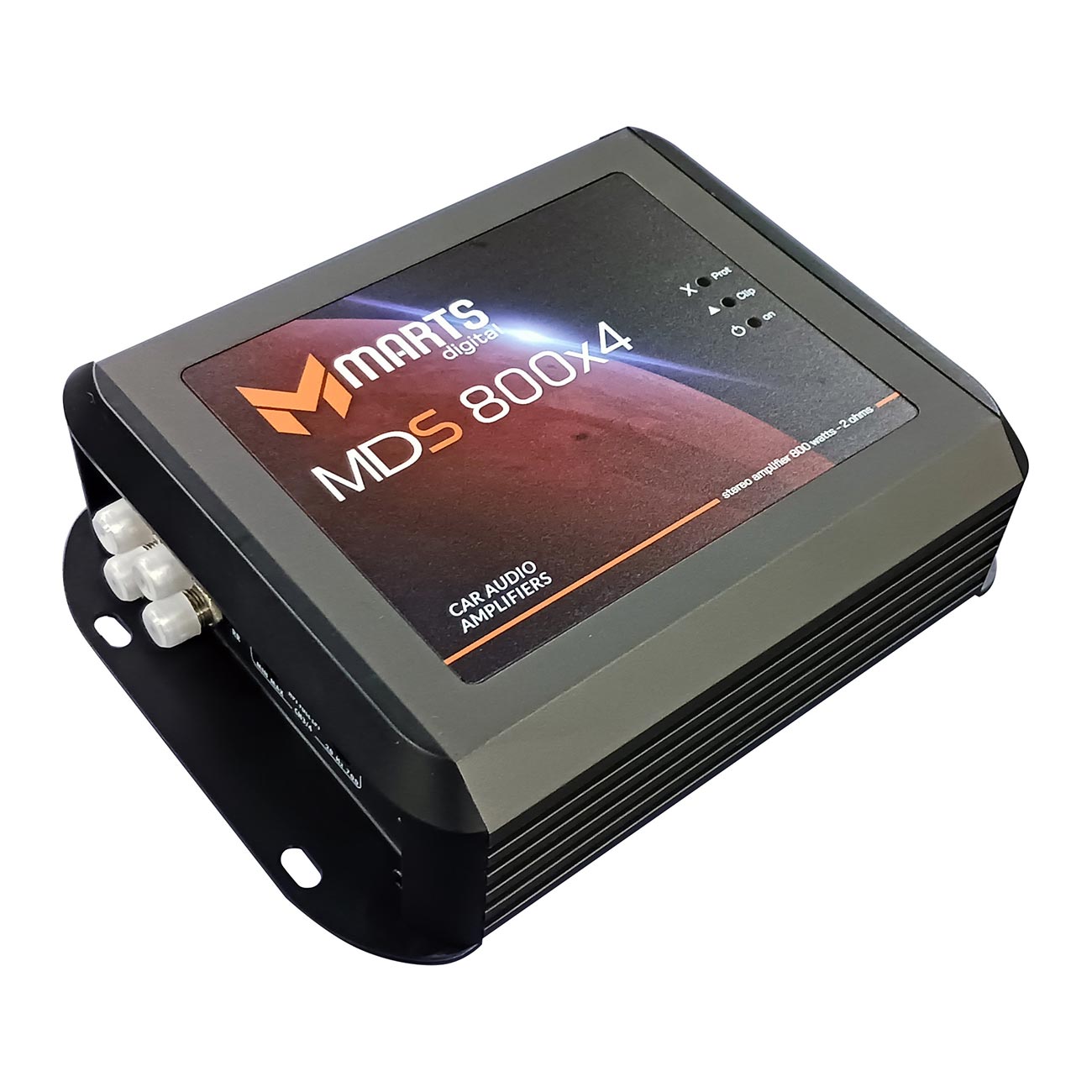

Marts Compact Digital Pulse 4 Channel Amplifier, 800W RMS
4 x 120W RMS @ 2 Ohm (14.4V)
4 x 200W RMS @ 4 Ohm (14.4V)
(W x H x L) 5-3/4″ x 2″ x 7.4″
Class D
2 Ohm Stable
Supply Voltage: 9-16V
Frequency Response: 10 Hz – 40 KHz
Low Pass Crossover: 20 Hz – 700 Hz
High Pass Crossover: 20 Hz – 700 Hz
Signal to Noise Ratio: 90dB
Harmonic Distortion: 1% THD
Input Sensitivity: 400mV-4V

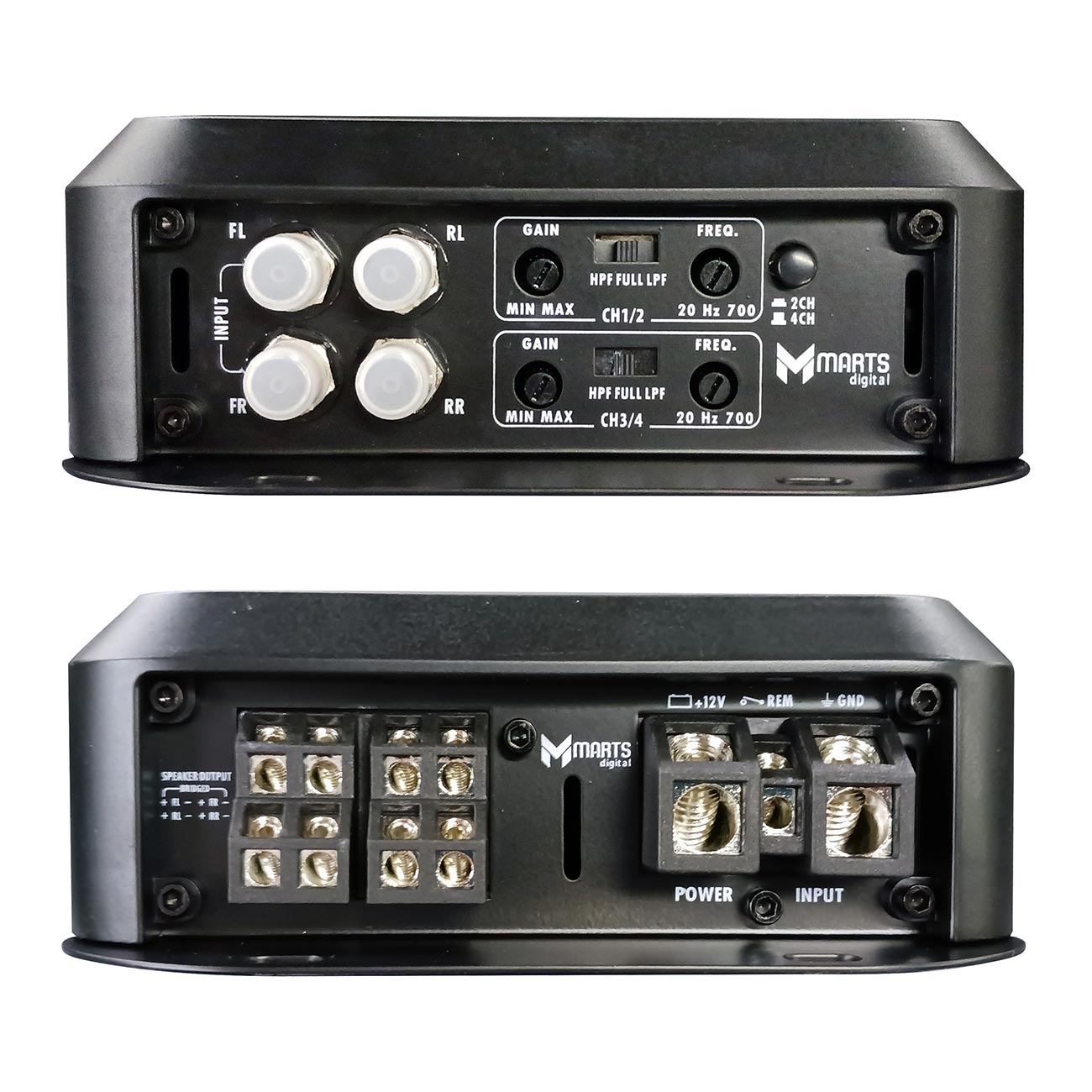

Hi and Low Level Inputs
LED Power/Clipping/Protect Indicators
Recommended Fuse: 70A
You must use 100% oxygen free copper wire at its maximum size.
Copper clad aluminum wire, CCA, will cause failure.
