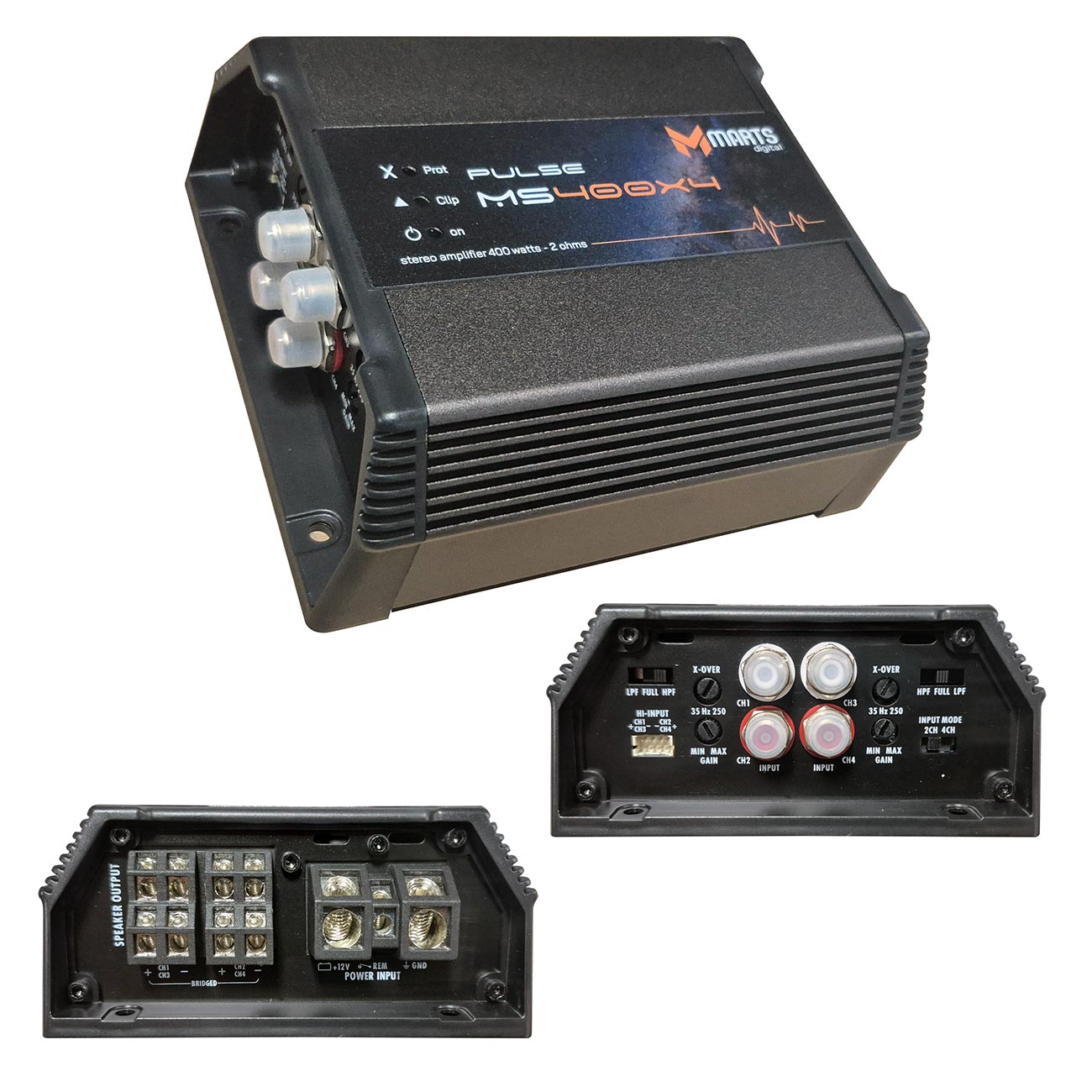

Marts Digital Pulse 4 Channel Amplifier, 400W RMS
4 x 100W RMS @ 2 Ohm (14.4V)
4 x 50W RMS @ 4 Ohm (14.4V)
(W x H x L) 4.75″ x 2.13″ x 5.31″
Class D
2 Ohm Stable
Supply Voltage 9 – 16V
Frequency Response 10Hz – 20KHz
High Pass Crossover: 35 Hz – 250Hz
Low Pass Crossover: 35 Hz – 250Hz
Hi/Low Level Inputs
Signal to Noise Ratio >90dB
Efficiency: 91%
Input Sensitivity 400mv – 6V
You must use 100% oxygen free copper wire at its maximum size.
Copper clad aluminum wire, CCA, will cause failure.
