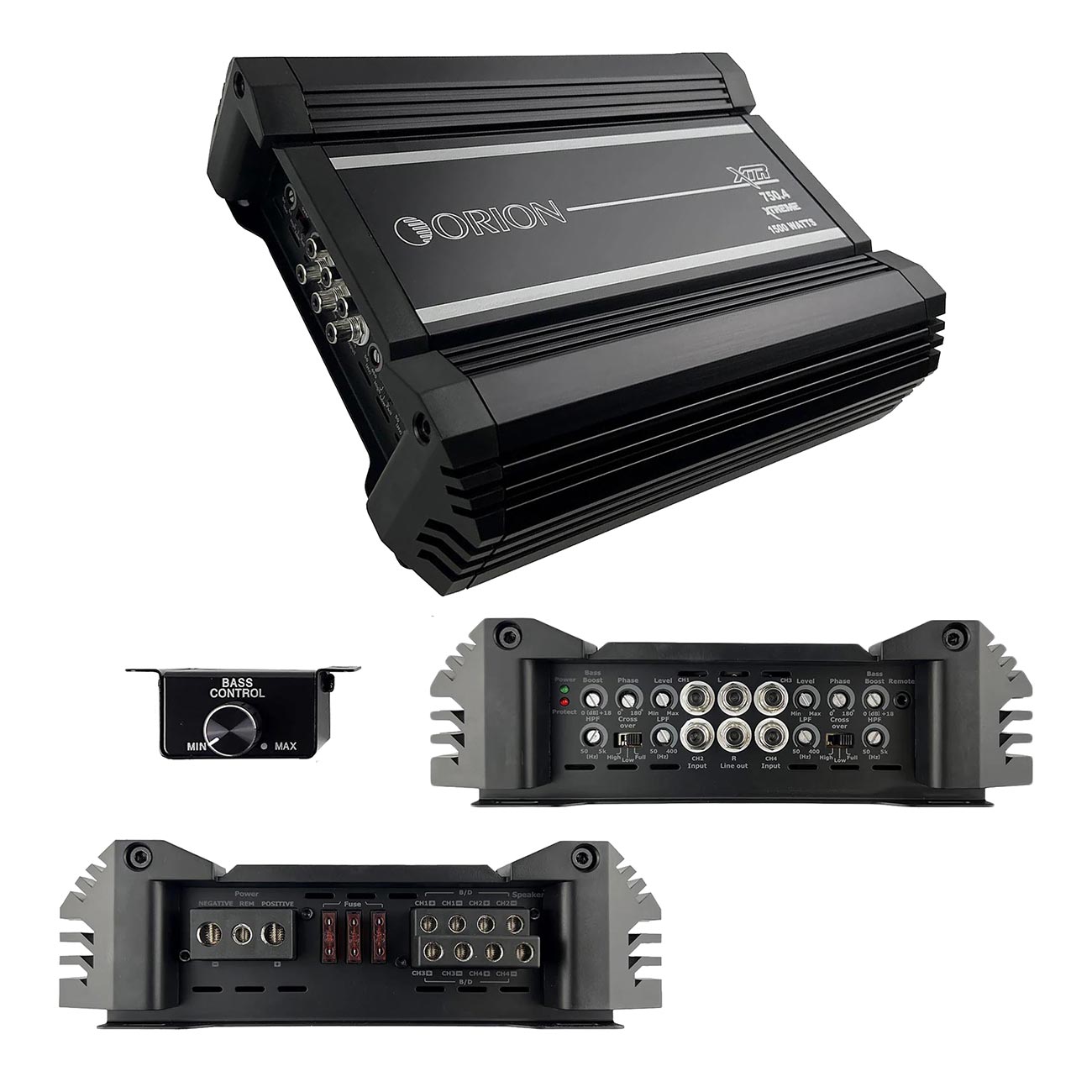

Orion XTR Series 4 Channel Amplifier, 750W RMS
750 Watts RMS
4 x 188 Watts RMS @ 2 Ohms
4 x 135 Watts RMS @ 4 Ohms
2 x 375 Watts RMS @ 4 Ohms Bridged
CEA-2006 compliant
Class A/B
DIM (W X H X L) 9.3″ x 2.75″ x 11.5″
Fuses: 3 x 40A (ATC Fuses)
2 Ohm Stable
Frequency Response: 20Hz – 35kHz
Linear Bandwidth 20Hz to 65kHz +/- 3 dB
High Pass Crossover: 50 – 5kHz
Low Pass Crossover: 50 – 400Hz
Supply Voltage: 9 – 16V
Amplifier Efficiency: >60%
Damping Factor: 100dB
Signal to Noise Ratio: >95dB
T.H.D. & Noise: 0.5%
Phase Shift: 0 – 180
Bass Boost: 0-18dB Variable
Variable Input Level Control: 0.2V – 6.0V
Wire Specifications:
Positive Terminals: 1 x 4 AWG
Negative Terminals: 1 x 4 AWG
Remote Turn-ON Signal: 10 AWG
Speaker Output Terminals: 10 AWG
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter
Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
