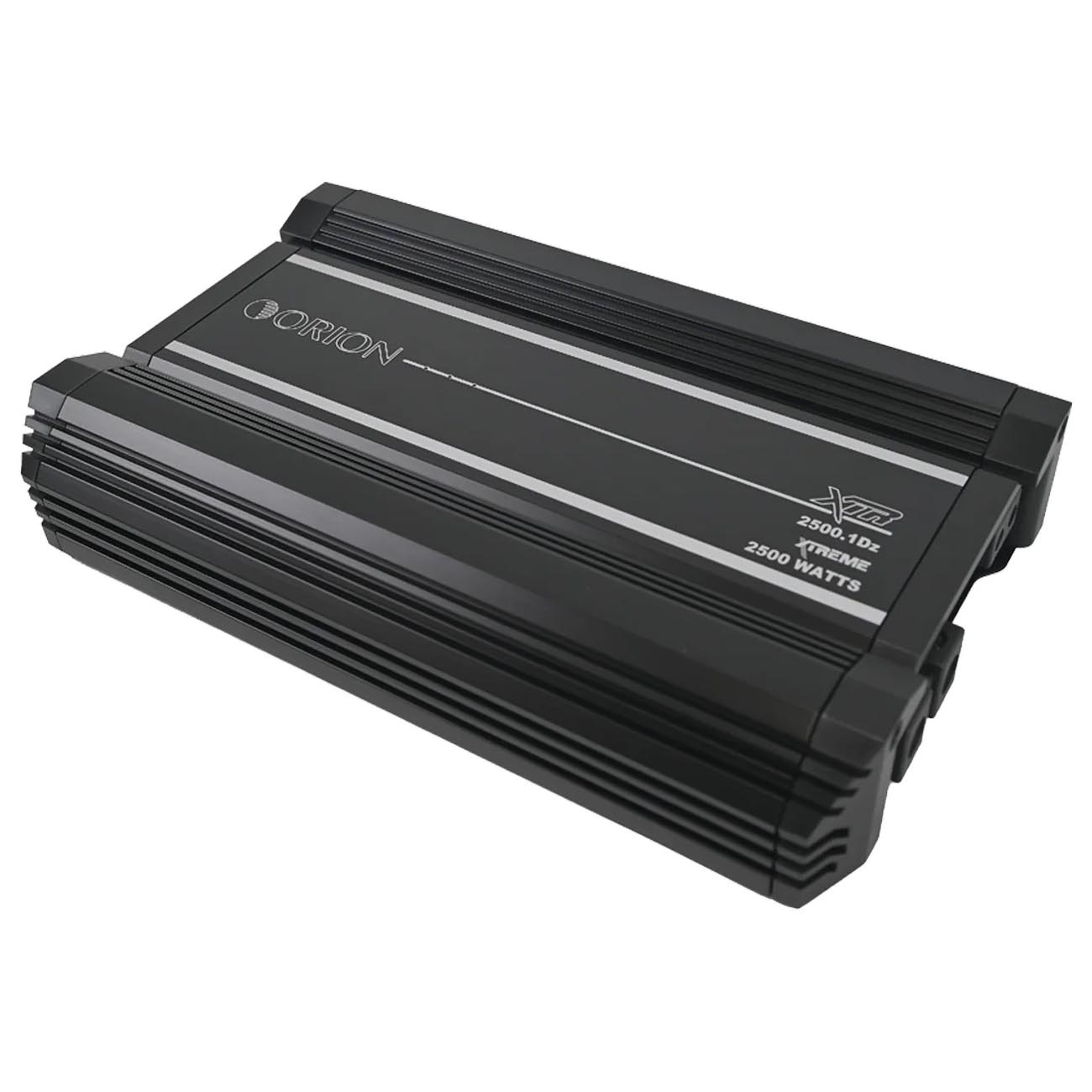

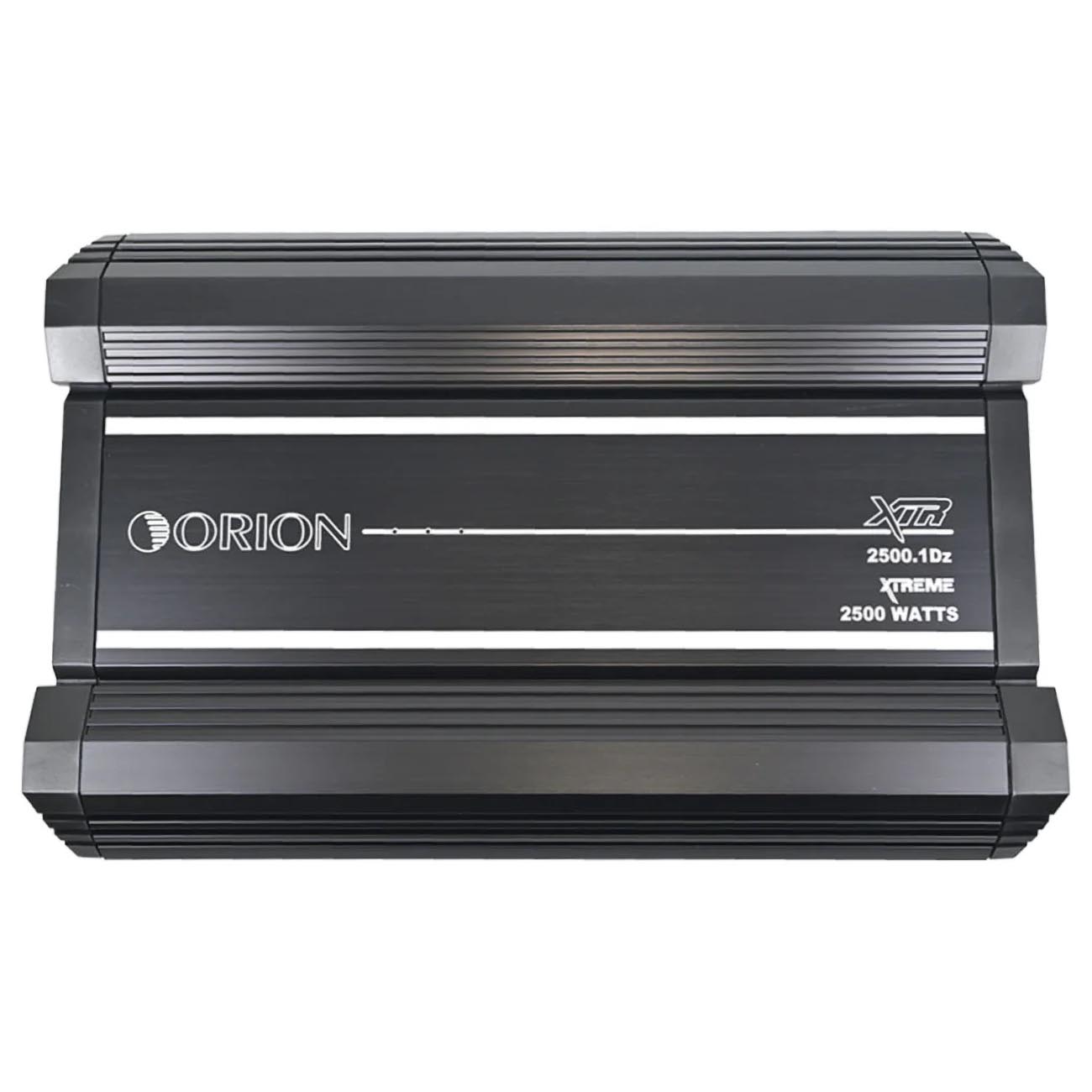

Orion XTR Series Class D Monoblock Amplifier, 2500W RMS/10000W MAX
2500 Watts RMS/10000 Watts MAX
2500 x 1 RMS @ 1 Ohm (12.6V)
1600 x 1 RMS @ 2 Ohms (12.6V)
1050 x 1 RMS @ 4 Ohms (12.6V)
DIM (W X H X L) 9.3″ x 2.5″ x 14.5″
Fuses: 200A external fuse required (not included)
1 Ohm Stable
MOSFET Power supply and output stage

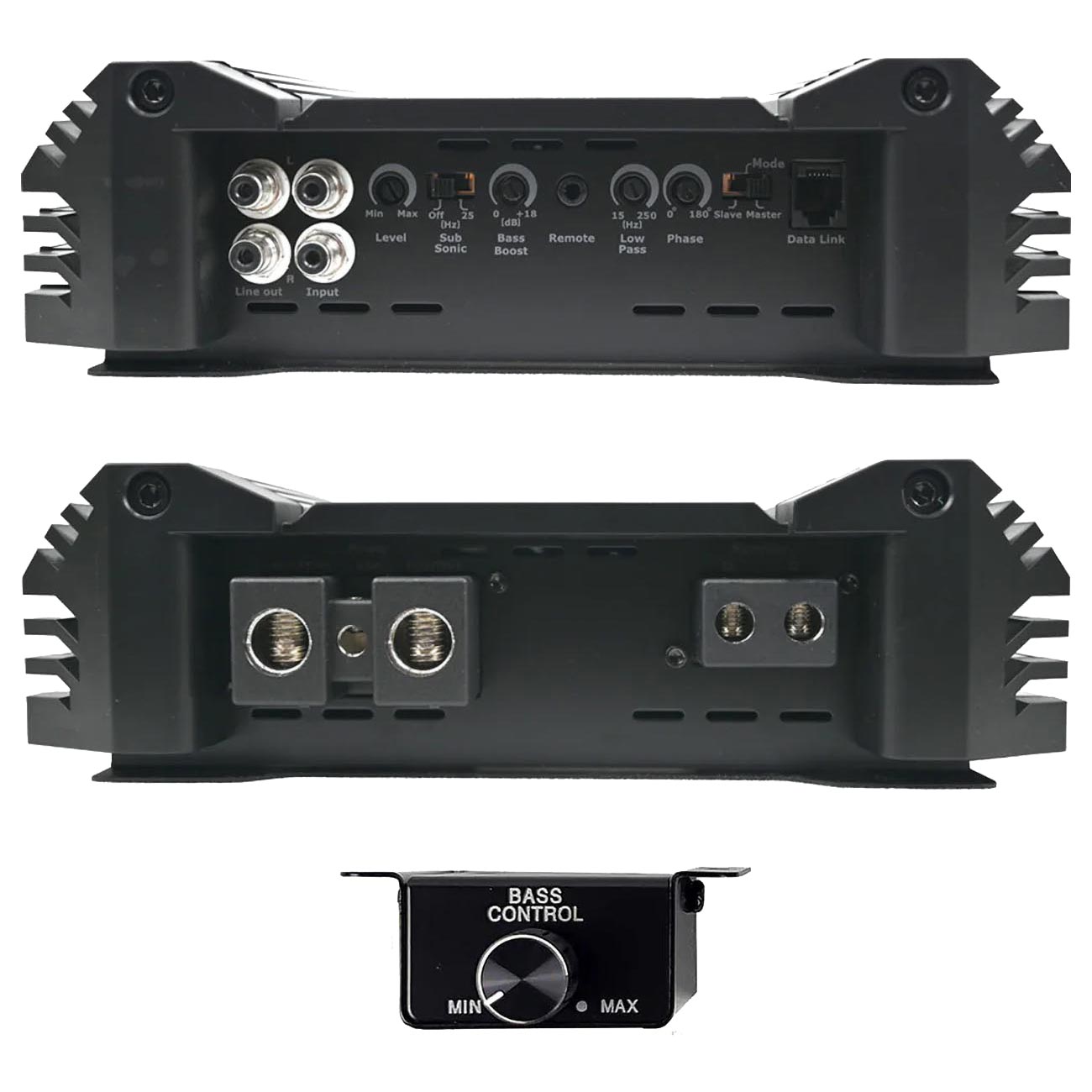

RCA In/Outputs
Low Pass Crossover
Bass Boost
Phase Control
Subsonic Filter: 25Hz
Silver-plated Connections
Power and protection LED Indicators
4-Way Protection
Master/Slave Configuration
Remote Sub Control
