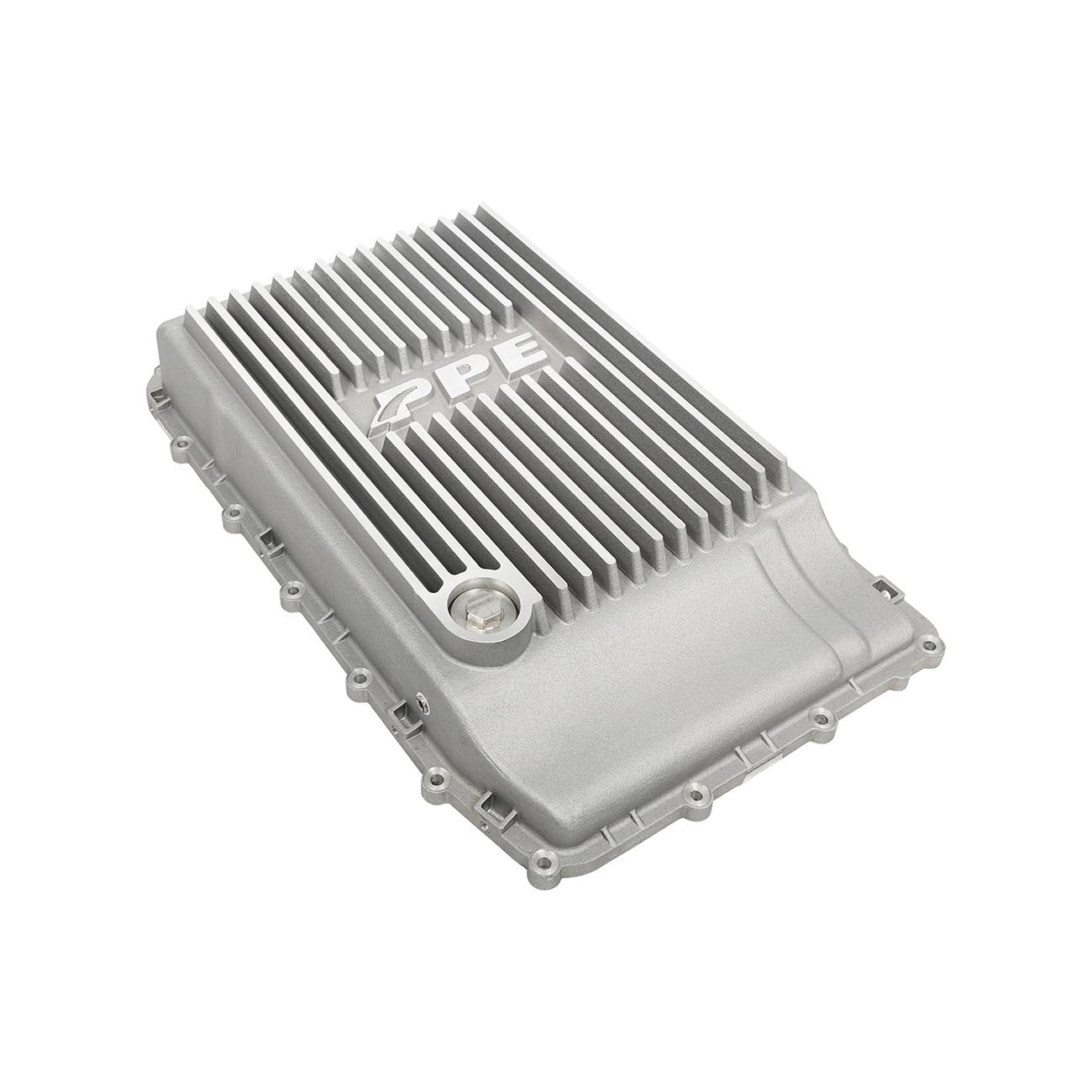

Pacific Performance Heavy-Duty Cast Aluminum Transmission Pan for ’17-25 FORD with 10R80 Transmission (Raw Finish)
Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy

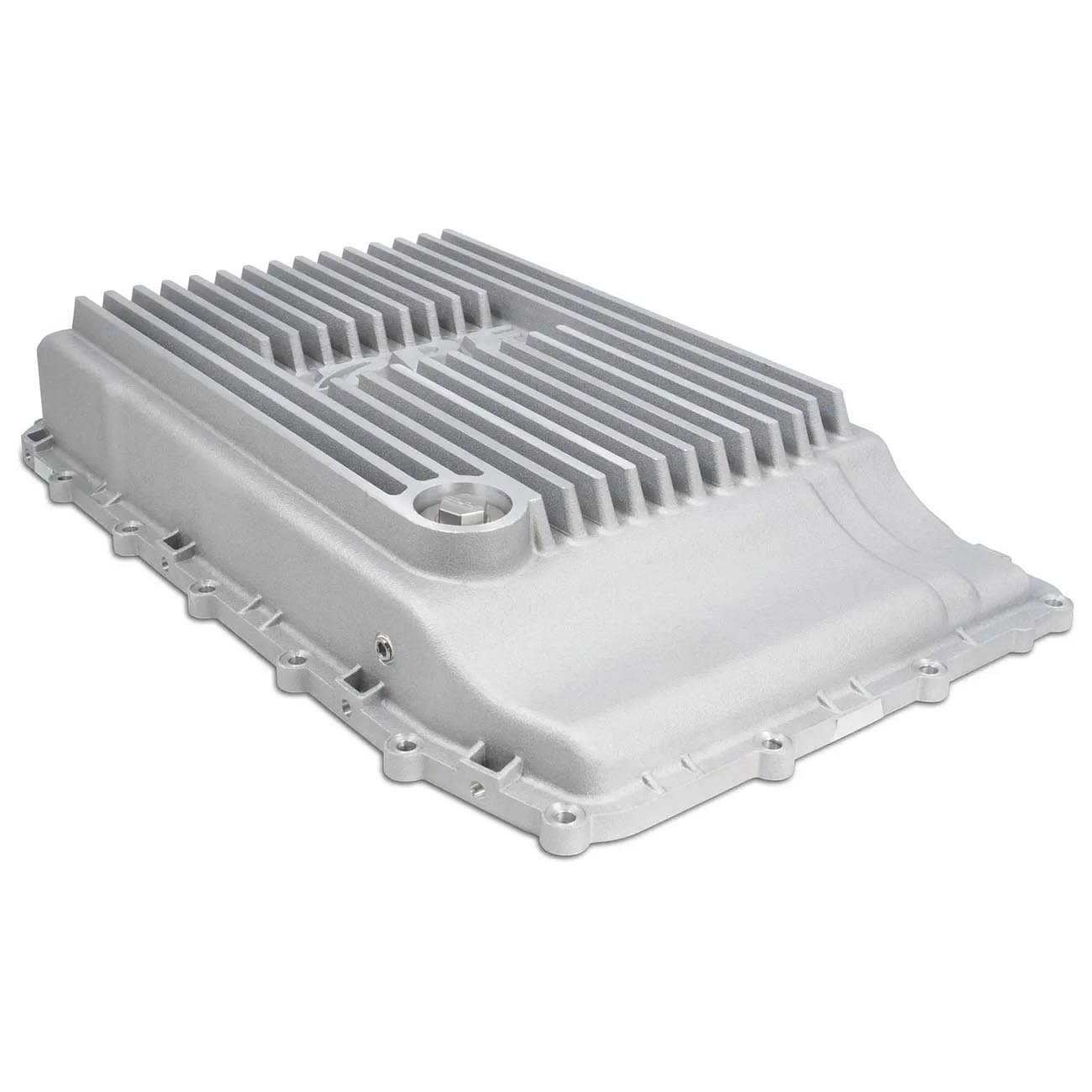

Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance

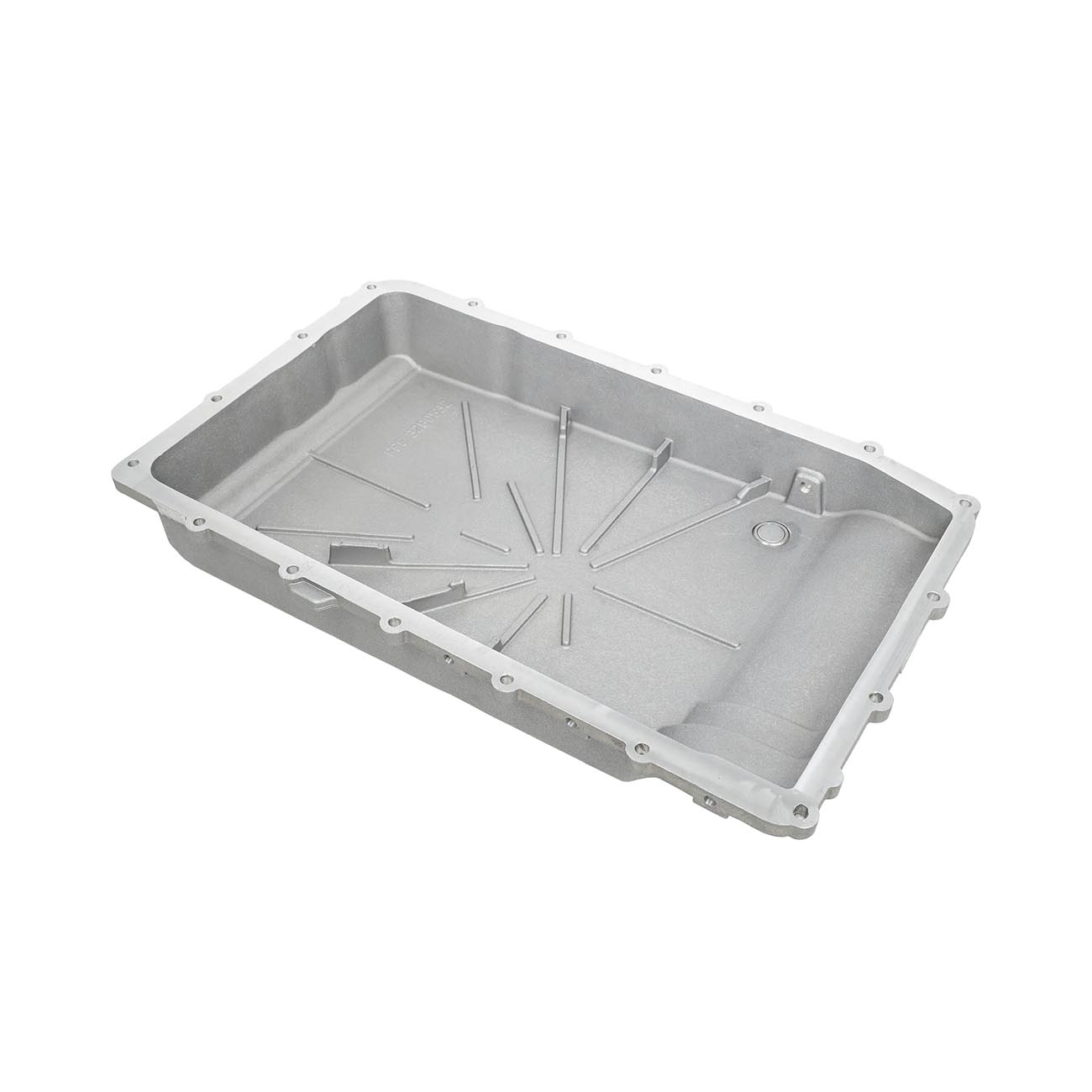

External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
Cast-in gussets for additional transmission housing flange support and increased rigidity

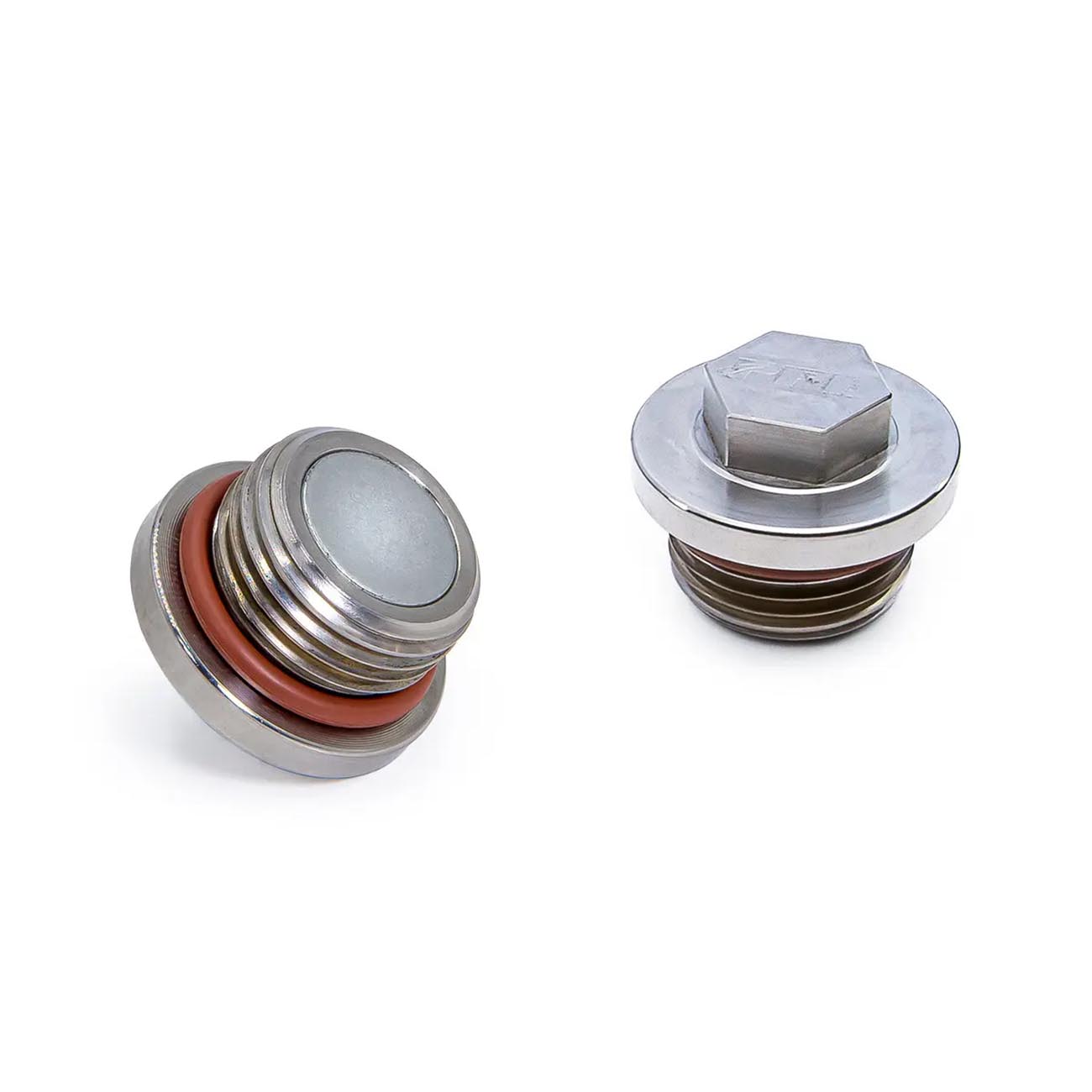

304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
Equipped with a 1/8-inch NPT port with pre-installed NPT plug
Compatible with OEM gasket and filter
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy ensures long-lasting heat management and performance.
The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.
The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Keep your 10 speed transmission running longer, healthier, and cooler with PPE.
Note: not compatible with F-150 3.5L Hybrid PowerBoost models
OEM Part Number for Reference: Ford HL3Z7A194C
