Pacific Performance Heavy-Duty Cast Aluminum Transmission Pan for ’07-24 RAM Cummins Diesel 68RFE (Brushed Finish)
Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
Increases fluid capacity by 3 quarts for higher thermal capacity
Tall 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
Deep one-inch internal baffles enhance heat absorption and minimize fluid sloshing
External fins and internal baffles work together to form an ultra-strong Cross-Bracing structure
Cast-in gussets for additional transmission housing flange support and increased rigidity
304 Stainless steel drain plug with built-in high temperature rated neodymium magnet and Viton O-ring
Equipped with a 1/8-inch NPT port with pre-installed NPT plug
Integrated filter supports ensure proper filter placement
Compatible with OEM gasket and filter
New deep spin-on filter included
Excessive heat kills transmission life. As temperature rises, transmission fluid viscosity decreases, weakening the lubricating film that protects gears and bearings. This could cause premature wear and potential failure.
Cast from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan offers 3 quarts of additional fluid capacity, ensuring long-lasting heat management and performance.

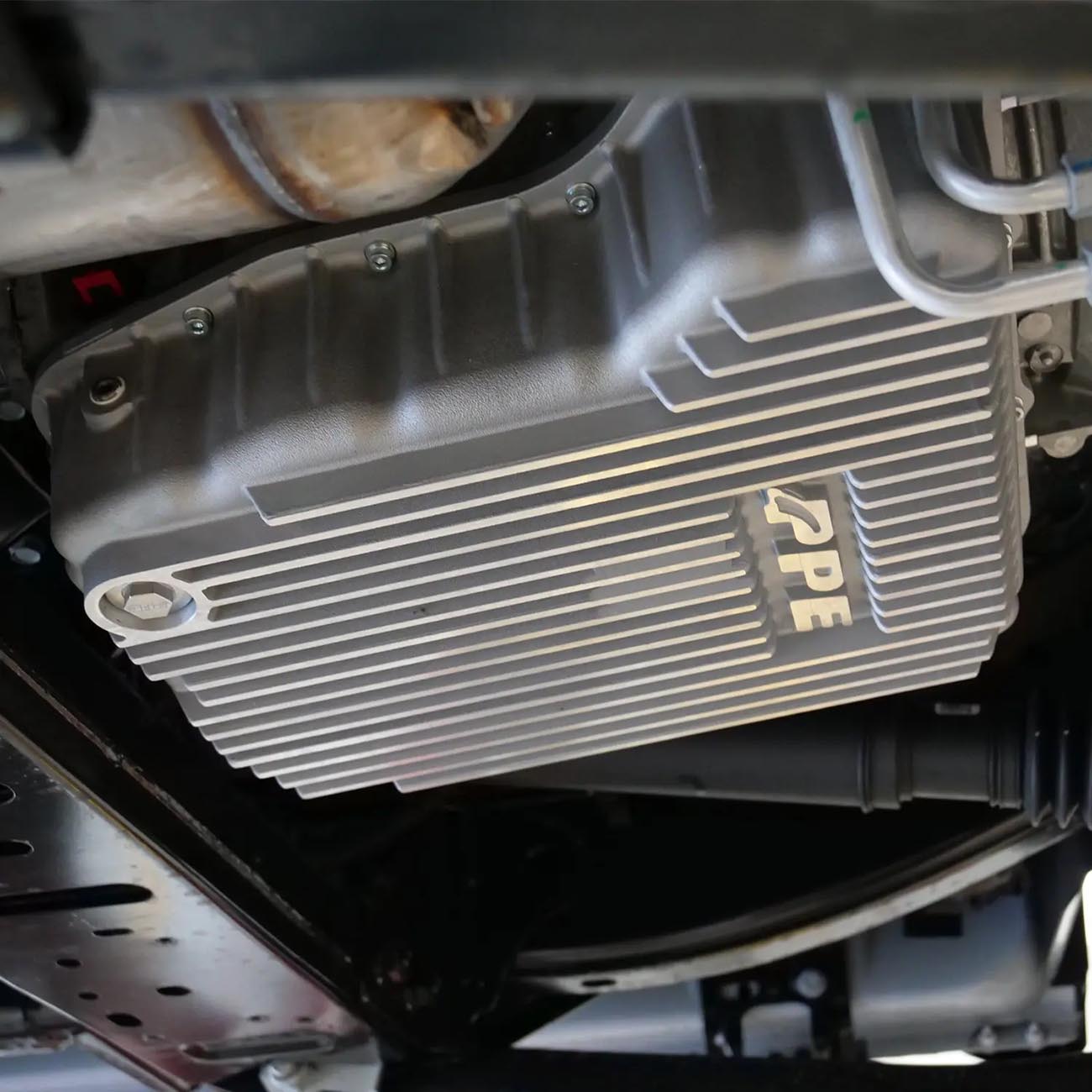

The deep external cooling fins maximize the heat-wicking surface area, effectively dissipating heat to keep your transmission cool under pressure. These fins also add strength to the bottom of the pan and enhance impact resistance.

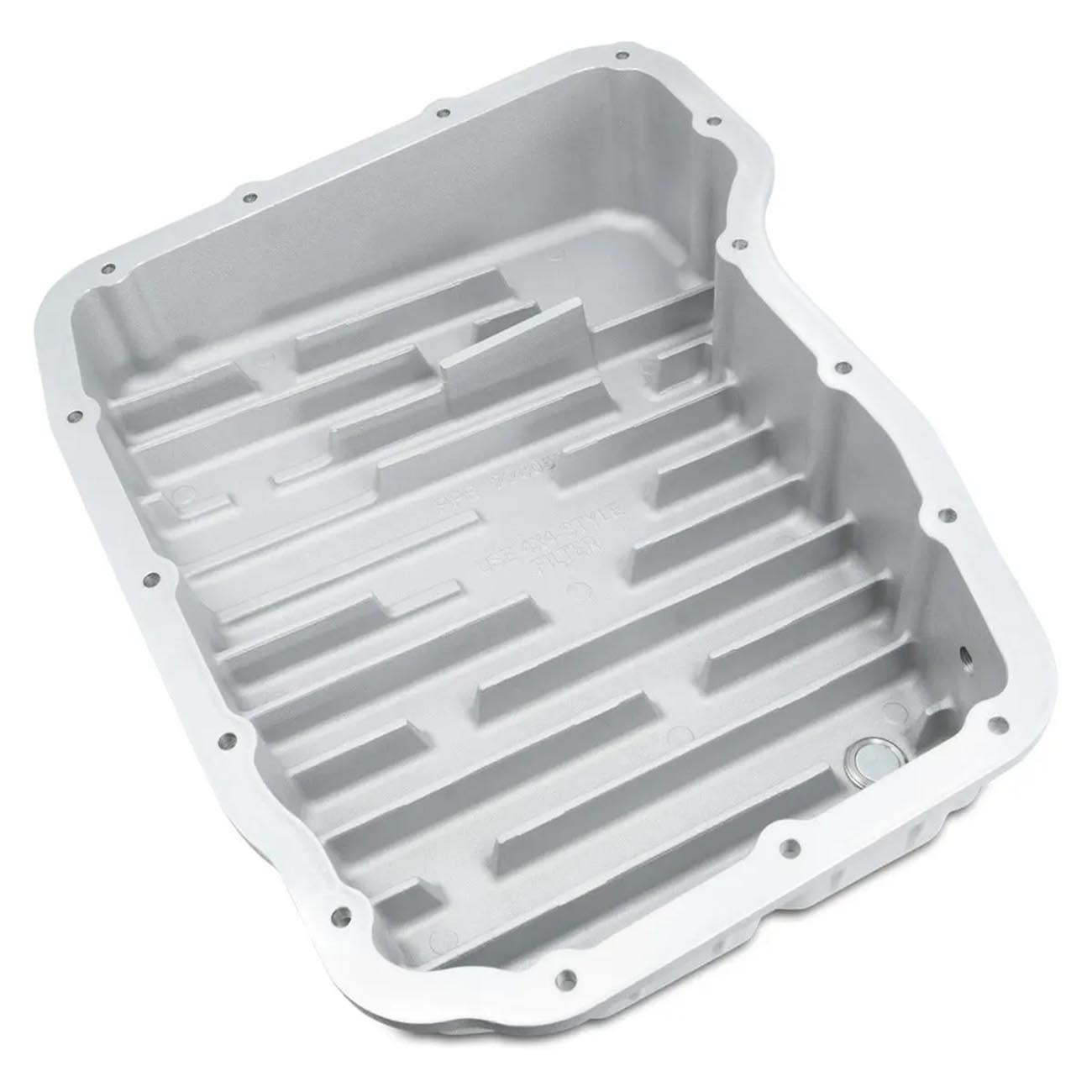

The built-in baffles at the bottom of the pan increase contact between the fluid and the cast-aluminum surfaces, enhancing heat transfer. These baffles also reduce fluid sloshing, ensuring consistent fluid pickup and stable transmission performance. Together with the longitudinal external fins, they form a stiff, cross-bracing structure, distributing loads better and increasing impact resistance.

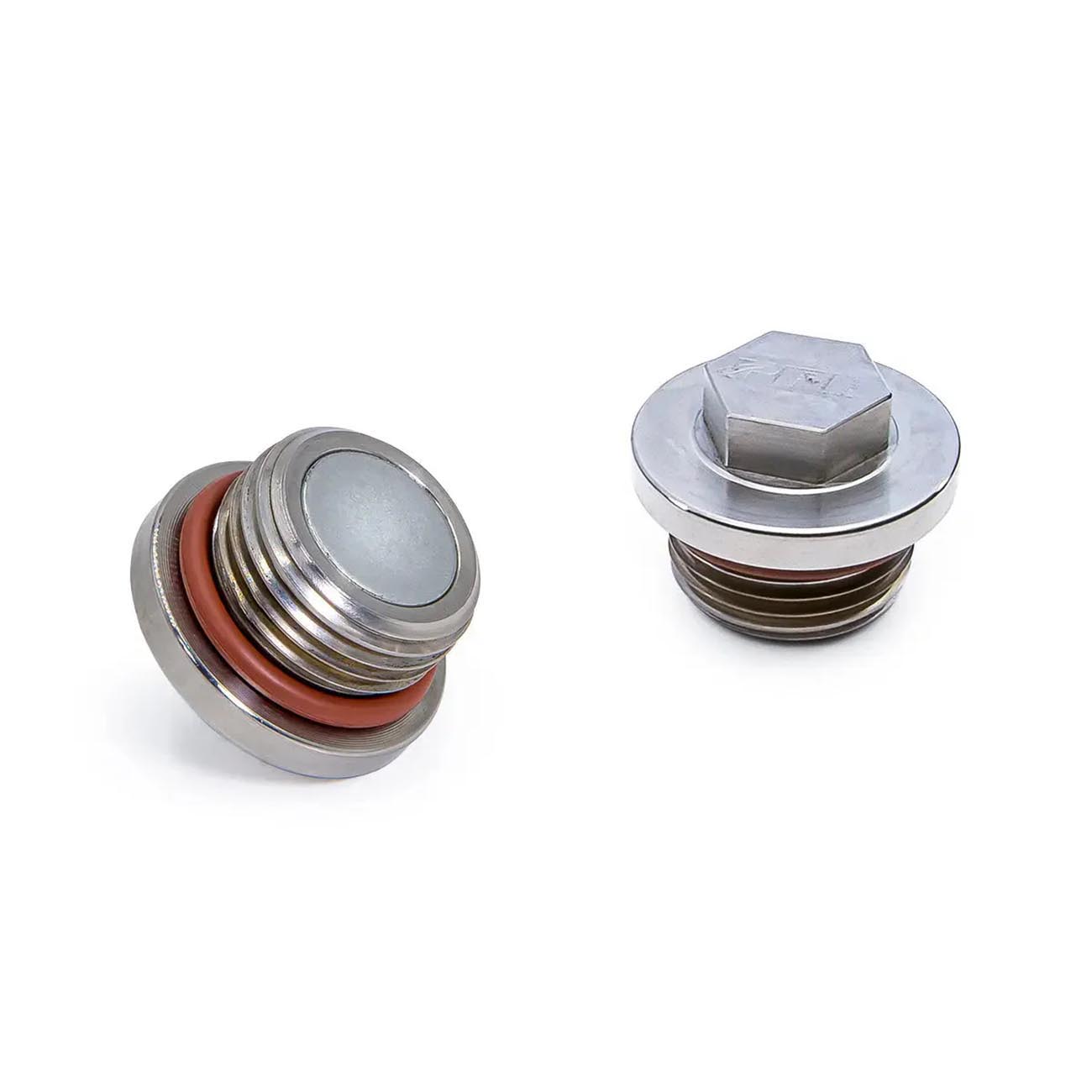

The drain plug is equipped with a powerful, high-temperature-rated neodymium magnet that captures ferrous metal particles, providing additional protection for your transmission.
Each transmission pan comes with a PPE Deep Spin-On Filter, SKU 228052150, featuring finer filtration and 57% larger media.
OEM P/N REFERENCE: MOPAR 4736676AA
