Pioneer Single DIN Modular 10.1″ Floating Display Mechless Digital Media Receiver, Apple CarPlay®, Android Auto™, Amazon Alexa via Pioneer Vozsis, Bluetooth®, Wifi®
Features:

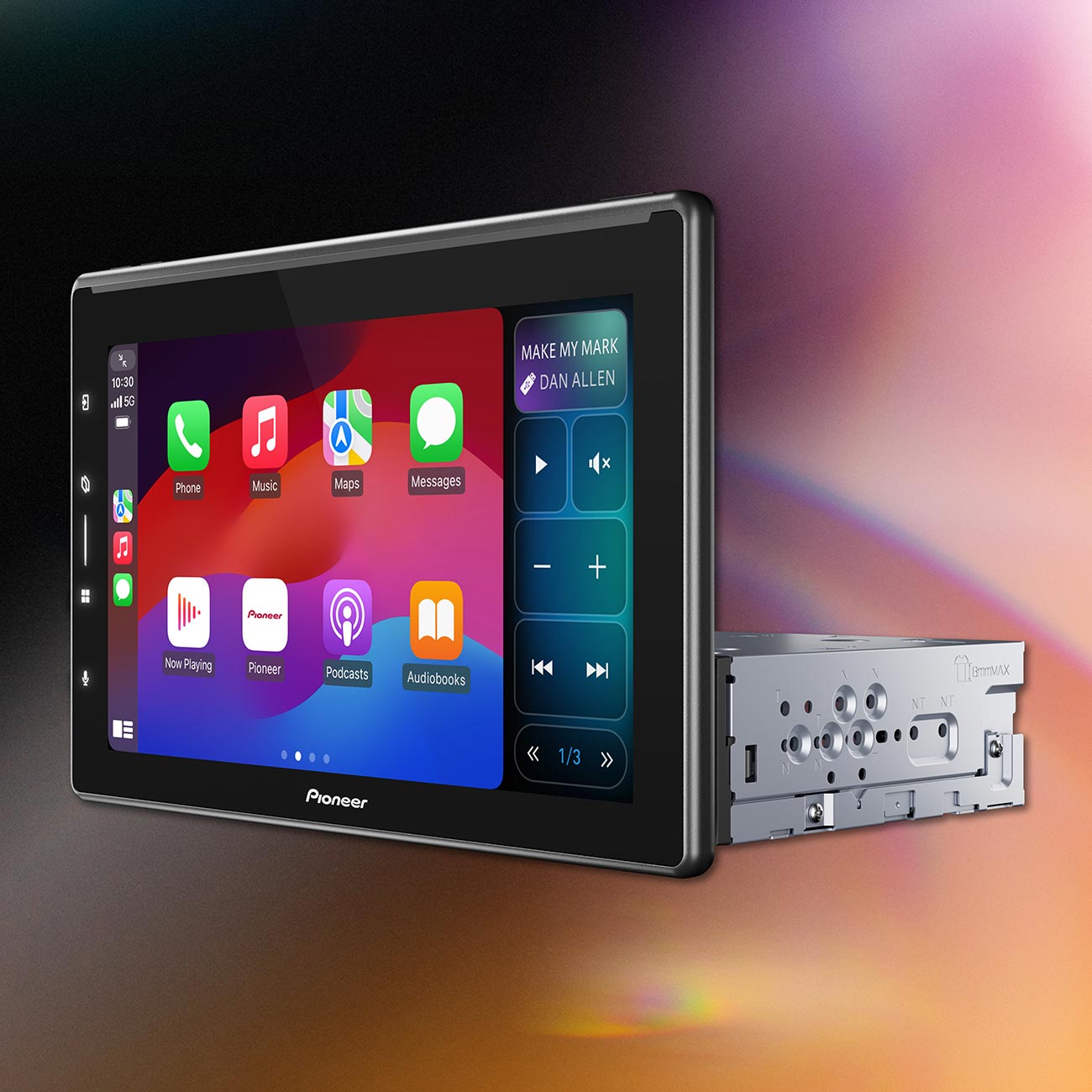

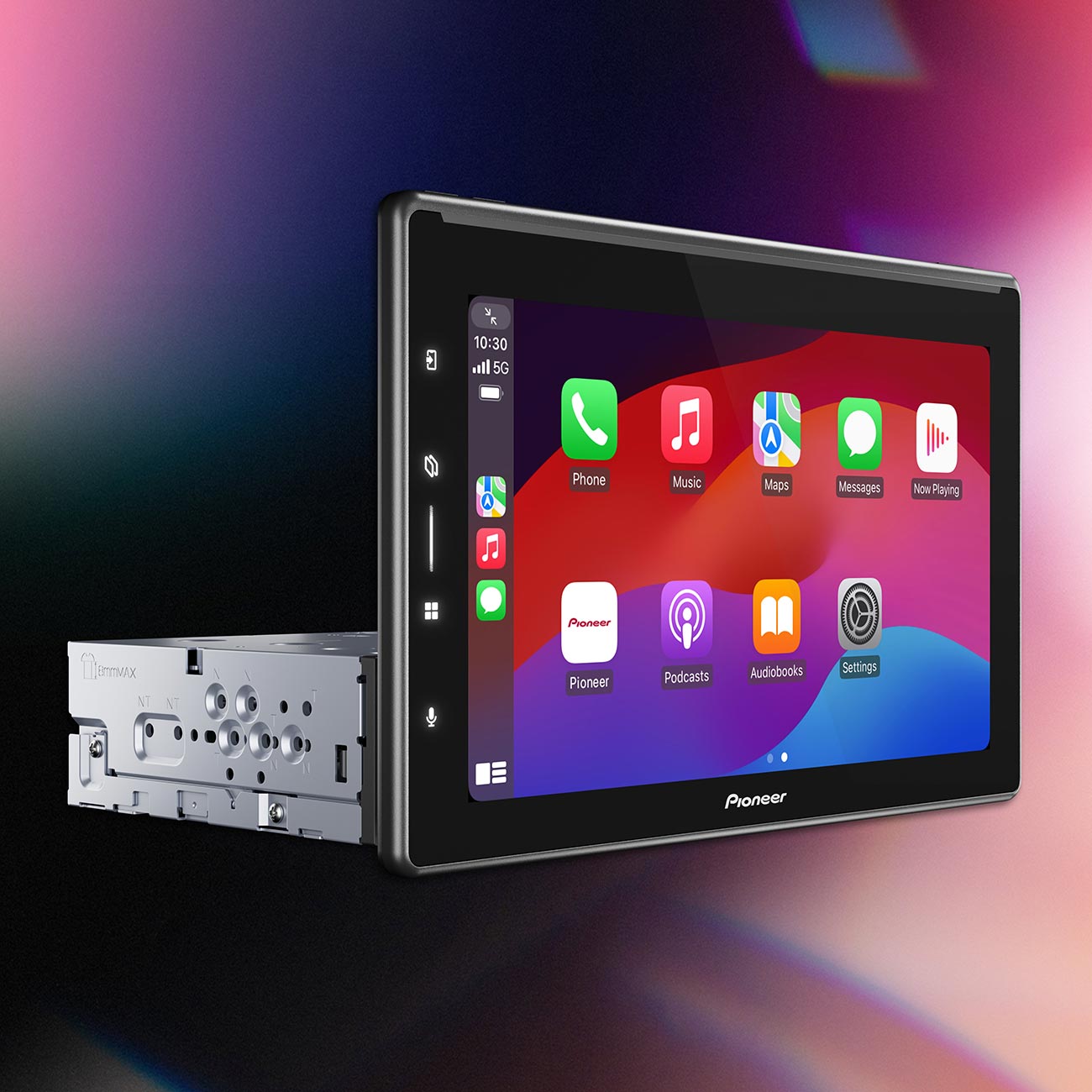

Modular Chassis with 10.1″ Floating-screen (1 DIN Chassis) HD-720 capacitive display
Apple CarPlay® (Wired, Wireless)
Android Auto™ (Wired, Wireless)
Amazon Alexa via Pioneer Vozsis
Built-in Wifi®
HD Radio™
SiriusXM-Ready™ (Tuner Sold Separately)
iDatalink® Maestro™ and Metra Axxess™ compatible
Remote Control Wireless control with PxLink
PRODUCT PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Max Power: 50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
RCA Preout Voltage: 4V
RCA Preamp Outputs: 6 Channel
GENERAL
Fixed
Music Browser: USB
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Steering Wheel Control Ready (Adapter Sold Separately)
Remote Control Wireless control with PxLink
Display:
Back Light: LCD
Brightness Control
Color Customization: 5 display colors, 112 key colors
Device (Non-DIN/Modular Unit): 1-DIN, Floating
Dimmer Control: Automatic with vehicle illumination, Timer Controlled, Manual
Display Off Mode
Home Screen Customization
Monitor Mechanism: Adjustable, Floating
Resolution: 1024 x 600
Screen Size/Aspect Ratio: 9″/16:9
Touch Screen: Capacitive
NAVIGATION
External GPS Antenna
BLUETOOTH
Advanced Audio Distribution Profile (A2DP)
AVRCP: 1.6
Built-in Bluetooth®
Dual Phone Connection
Hands-Free
Microphone Included
Phone Registation: 5-phone
Secure Simple Pairing (SSP)
Serial Port Profile (SPP)
TUNER
Best Station Memory
HD Radio™: Built In, Artist Experience, Multicasting
Hybrid Radio
Local Seek tuning
Presets: 18 FM / 6 AM
RDS Tuner
SiriusXM-Ready™ (Tuner Sold Separately)
INTEGRATION
Amazon Alexa: Paired with Pioneer Vozsis on Weblink
Android Auto™: Wireless Connection or Wired USB Connection
Apple® CarPlay: Wireless Connection or Wired USB Connection
Mobile Operating System: Android – Wired/Wireless, Apple iOS – Wired/Wireless
Pandora®: With Apple CarPlay or Android Auto
Pioneer App Compatibility: PxLink
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: With Apple CarPlay or Android Auto
Voice Control
Weblink: 3.0
Wi-Fi: (for wireless Apple CarPlay / wireless Android Auto, PxLink connection)
DIGITAL MEDIA PLAYBACK
Audio Playback via USB: MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi Res files playable with downsampling), AAC Audio Playback, FLAC Audio Playback (Hi Res files playable with downsampling)
Audio Video Playback via USB: .avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
Image Display Via USB: BMP, JPEG, PNG
AUDIO
Advanced Sound Retriever: Mode-1/Mode-2/Off
Audio Bass Boost
Auto Sound Levelizer (ASL)
Balance Control
Built-in Amplifier: MOSFET 50 W x 4
Crossover Network Mode: HPF/Band Pass/LPF
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: Pioneer Dual-Core 48-Bit DSP/DAC
Digital Signal Processor: Built-in Pioneer Dual-Core 48-Bit DSP/DAC
Easy EQ (EEQ) Preset Equalizer
Listening Position Selector
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Spectrum Analyzer: Yes (Luminous Bar & Background image)
Subwoofer Control
Time Alignment: Manual
EXPANDABILITY
Audio Video Inputs: Input 1 – Backup Camera Dedicated, Input 2 – AUX (Minijack), Input 3 – 2nd Camera
OEM Integration: iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess
OTA Update Compatible
Parking Assist Lines
USB: Single Rear Type-A (5 V, 1.5 A)
