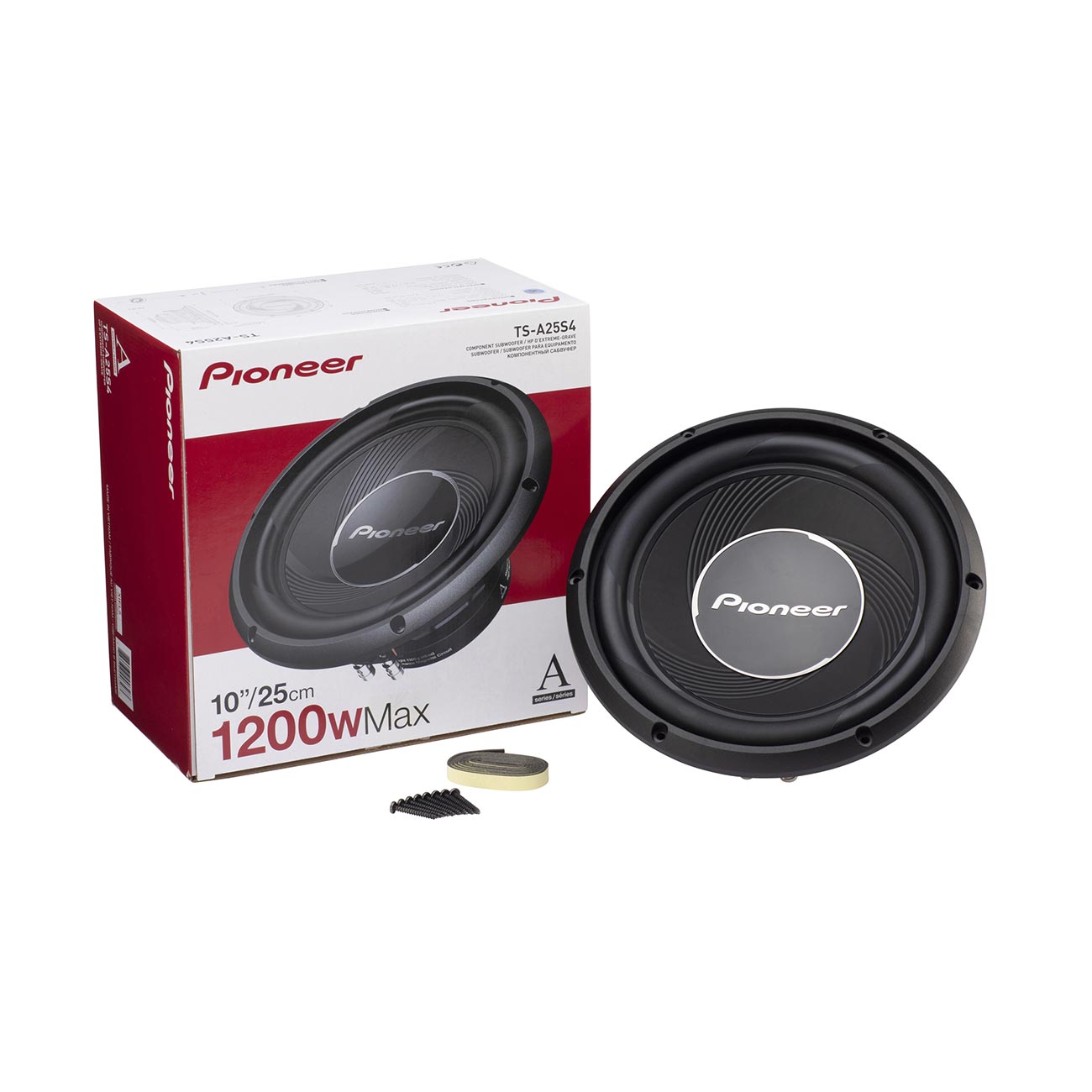

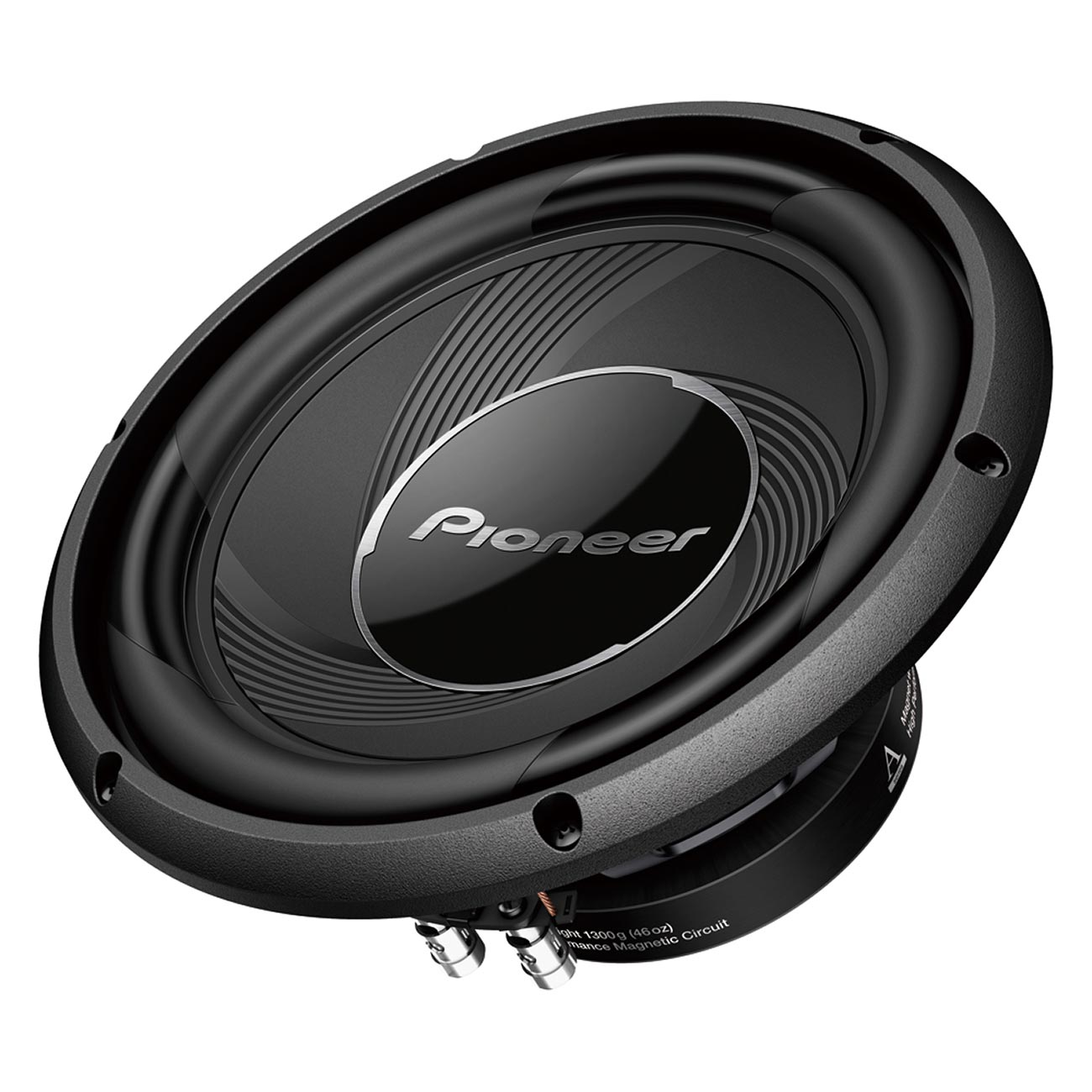

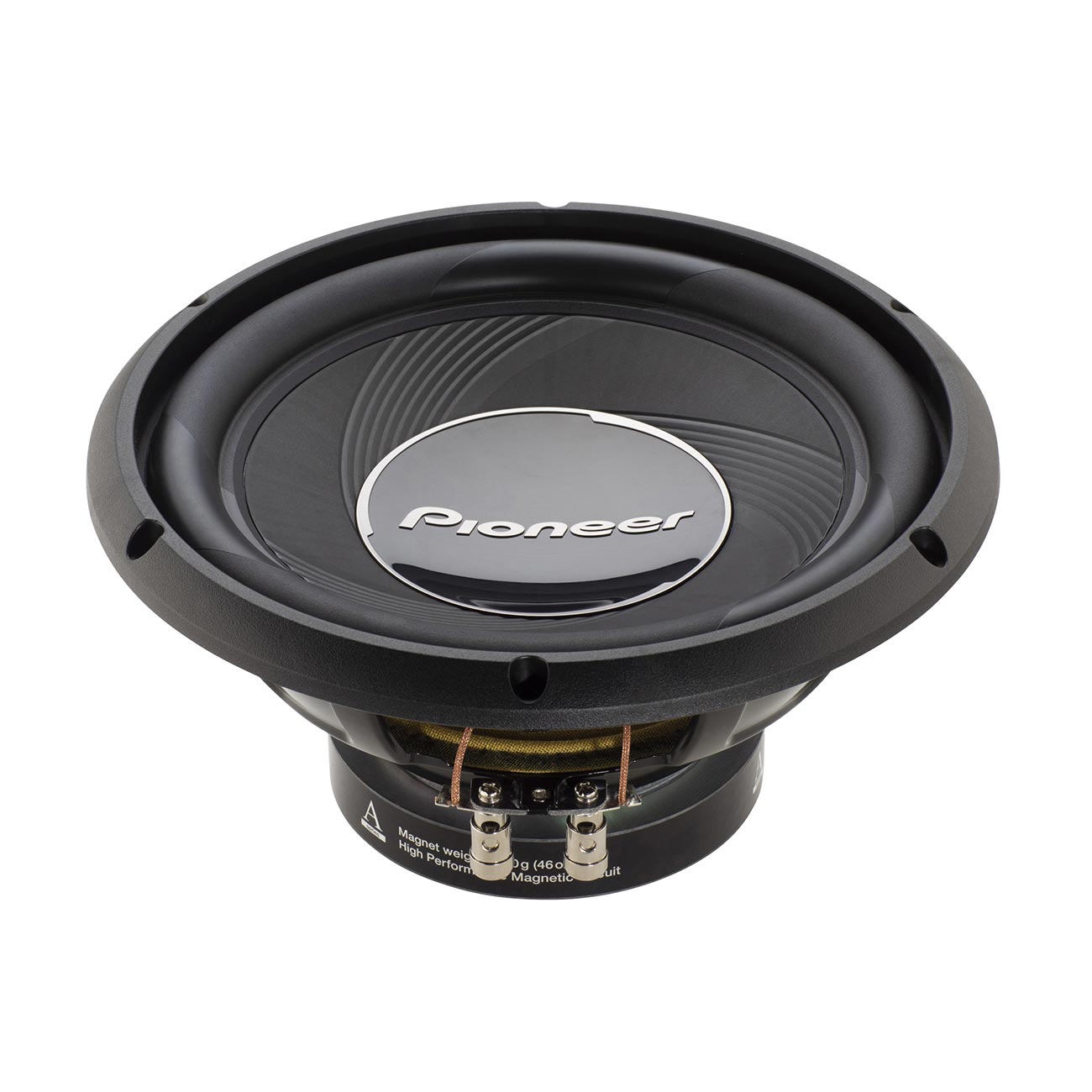

Pioneer 10″ Woofer, 1200W Max / 350W RMS, Single 4 Ohm Voice Coil
1200 Watts Max. Power / 350 Watts Nominal Power

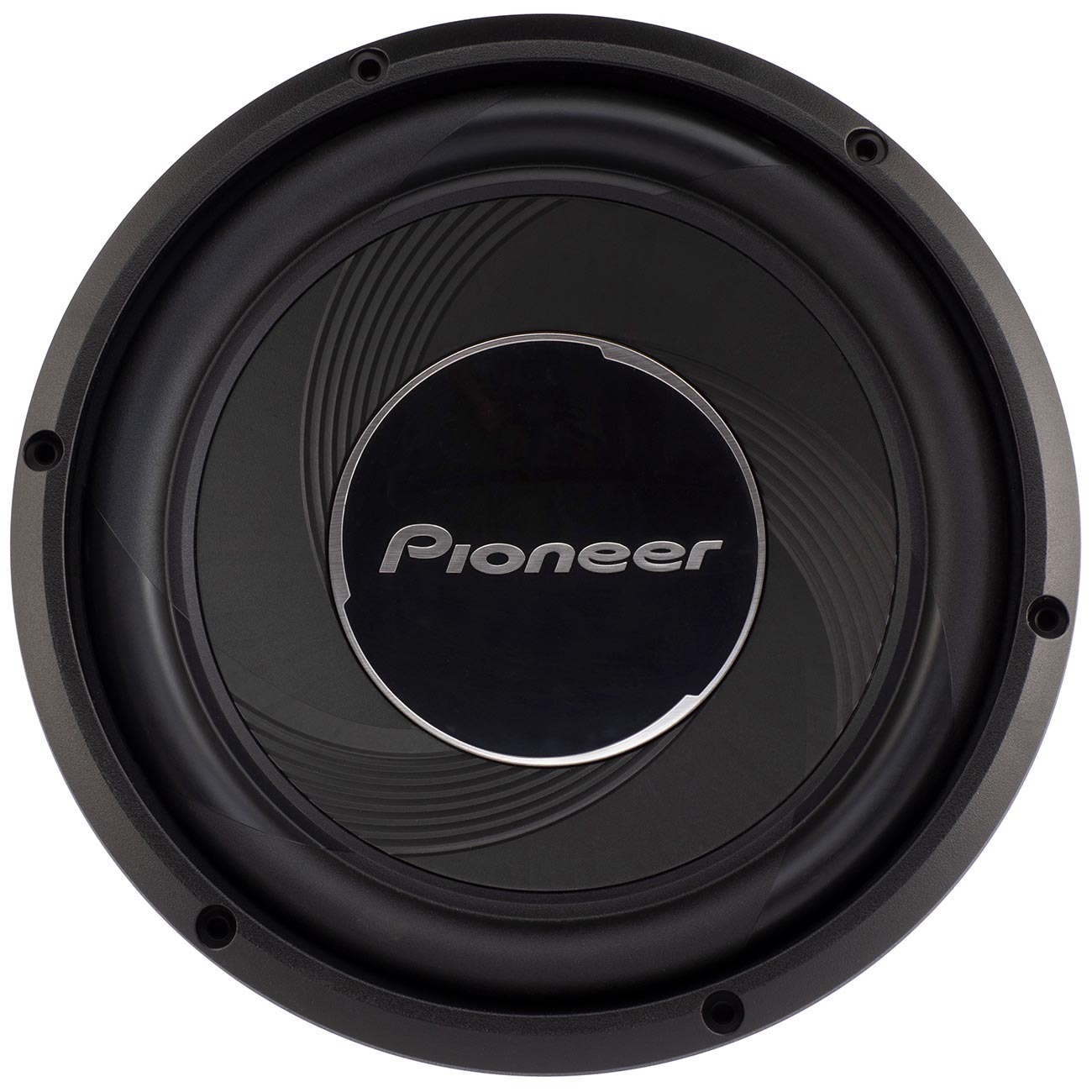

10″ IMPP™ Composite Cone
Elastic polymer Surround & polycotton spider
Frequency range: 22 Hz – 1.4 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 85 dB (1W/1M)
Recommended Box volume : 1.1cu.ft (vented) / 0.8cu.ft. (sealed)
CarSoundFit
Mounting depth: 5-5/8”
Cut Out dimensions: 9″, 23 cm
Equivalent Compliance (VAS): 23 Liters, 0.8 Cu. Ft.
Free Air ResoNAnce (Fs): 39.2
Linear Excursion (Xmax): 8.7 mm, 0.34″
Port Diameter: 3″, 8 cm
Port Length: 6-1/2″, 17 cm
Recommended Ported Box Internal volume: 31.1 Liters, 1.09 Cu. Ft.
Recommended Sealed Enclosure Volume: 22.6 Liters, 0.8 Cu Ft
Total Speaker “Q” (Qts): 0.72
Basket Material: Metal
Center Cap Material: ABS
Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
Custom Fit Basket: Yes
Damper: Poly cotton
Gasket: Polypropylene
Installation Ring: Polypropylene

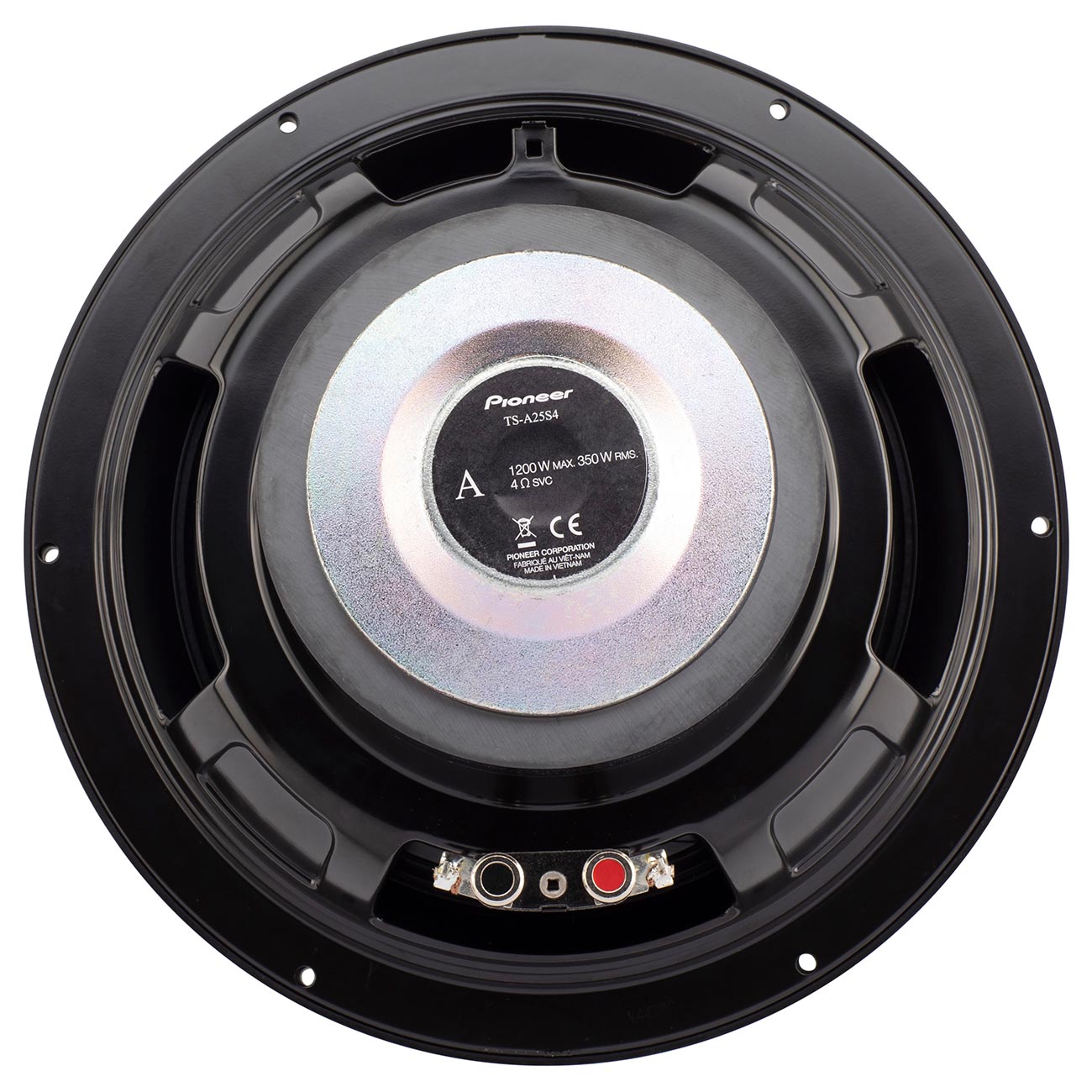

Magnet Material: Ferrite
Magnet Weight: 46 oz
Surround Material: Rubber
Surround Type: Rolled
Voice Coil Bobbin: Aluminum
Voice Coil Type: Single Voice Coil 4-ohm
Voice Coil wire: Copper
Wire Terminals: Push Type
