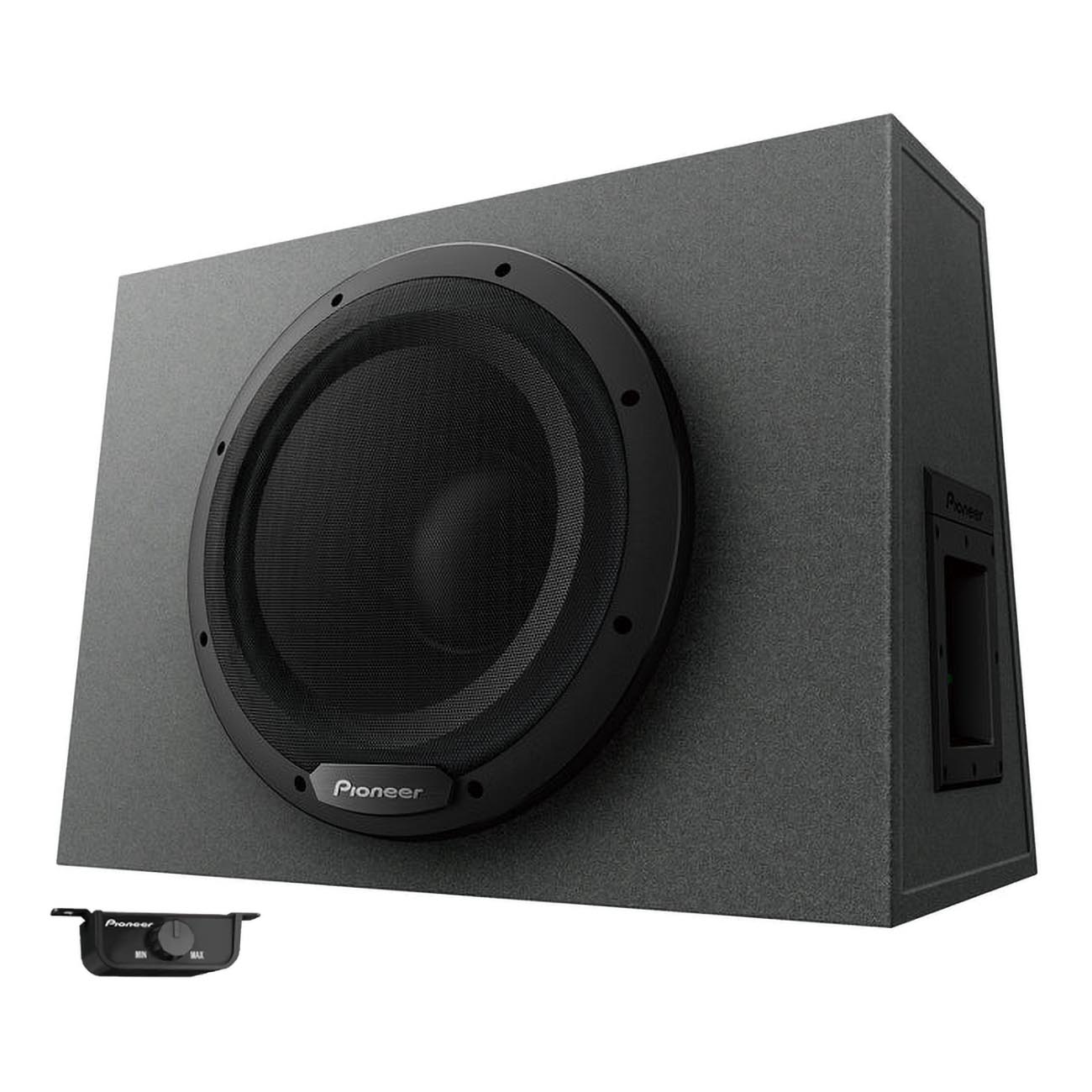

Pioneer Single 10″ Amplified Subwoofer Enclosure – 1100W MAX / 300W RMS
10″ Woofer: 1100 Watts Max. Power / 300 Watts Nominal Power
Built-in Class-D Amplifier
Frequency Response: 20 Hz – 125 Hz
Built-in cross-over : 50 Hz to 125 Hz @ 12dB/Oct.
Variable Bass Boost : 40 Hz to 100 Hz
Nominal Impedance: 4 Ohm
Sensitivity (1W/1M): 112dB
Trapezoidal shape to match rear seat angle

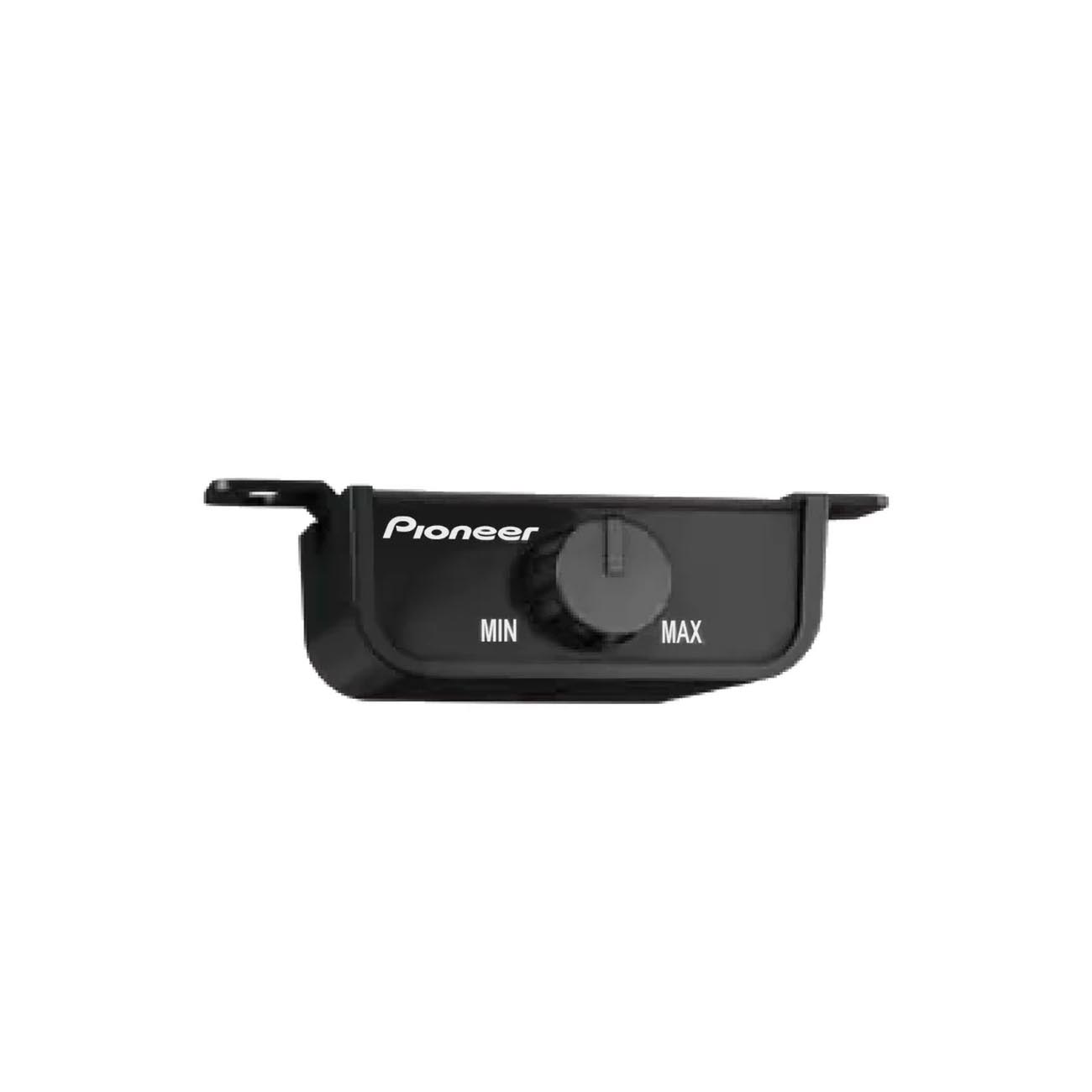

Wired Bass Remote volume control (included)
(W x H x D) 17.75″ x 13.25″ x 9.375″
(W x H x D) 450 x 338 x 238mm
Amp Class: D
Amp – Max Current Consumption: 13 A
Amp – Power Source: 14.4 V DC (10. 6 V to 15.1 V)
Bass Boost
Bass Boost – Frequency: 40Hz to 100Hz
Bass Boost Knob – Wired
Bass Boost – Level: 0 to +12 dB
Input Level @Gain Max: 2V to 6V
Speaker Line Input Sensor: 2V+3V/5kOhm
System-Type: Powered
Amp – Grounding: Negative
Built In Amp
CarSoundFit

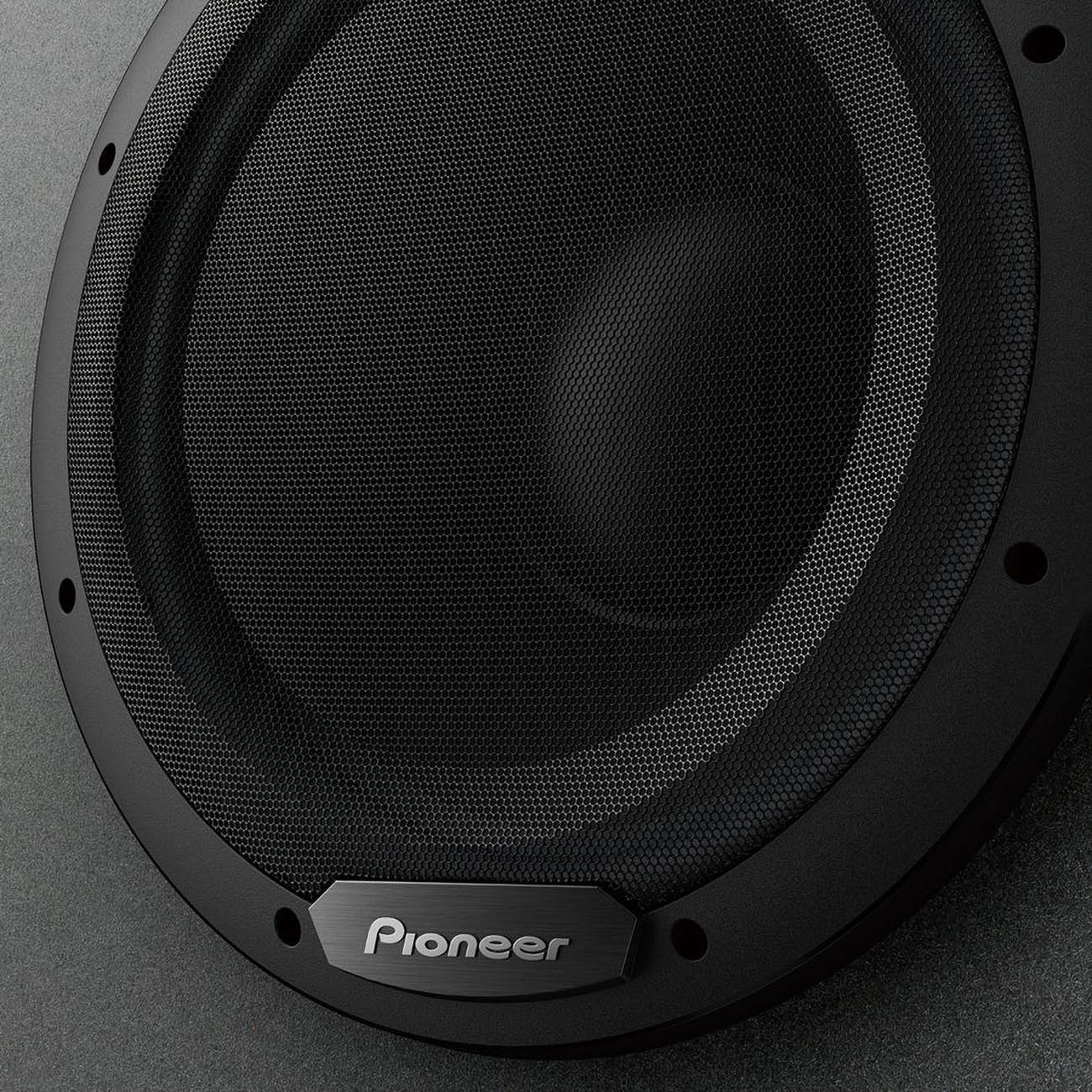

Subwoofer Grill: Fully Covered Steel Mesh
Woofer Material
Basket Material: Metal
Center Cap Material: Polypropylene
Cone Material: Cellulose fiber
Damper: Aramid Fiber
Installation Ring: ABS
Magnet Material: Ferrite
Magnet Weight: 29.6 oz
Surround Material: Urethane
Surround Type: Rolled
Voice Coil Bobbin: Polyimide
Voice Coil Type: Single Voice Coil
Voice Coil wire: Copper
