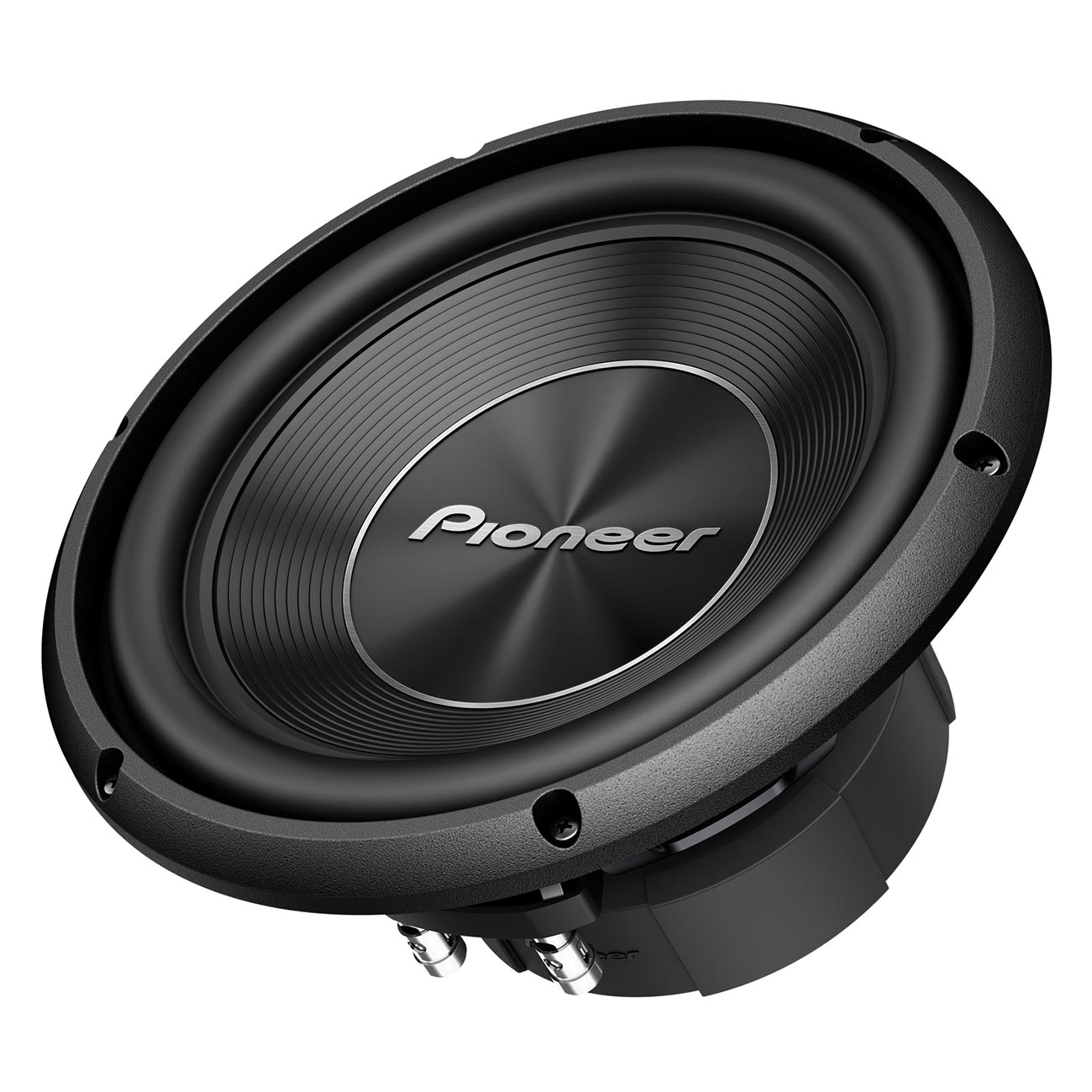

Pioneer 10″ Woofer, 1300W Max / 400W RMS, Dual 4 Ohm Voice Coils
1300 Watts Max. Power / 400 Watts Nominal Power

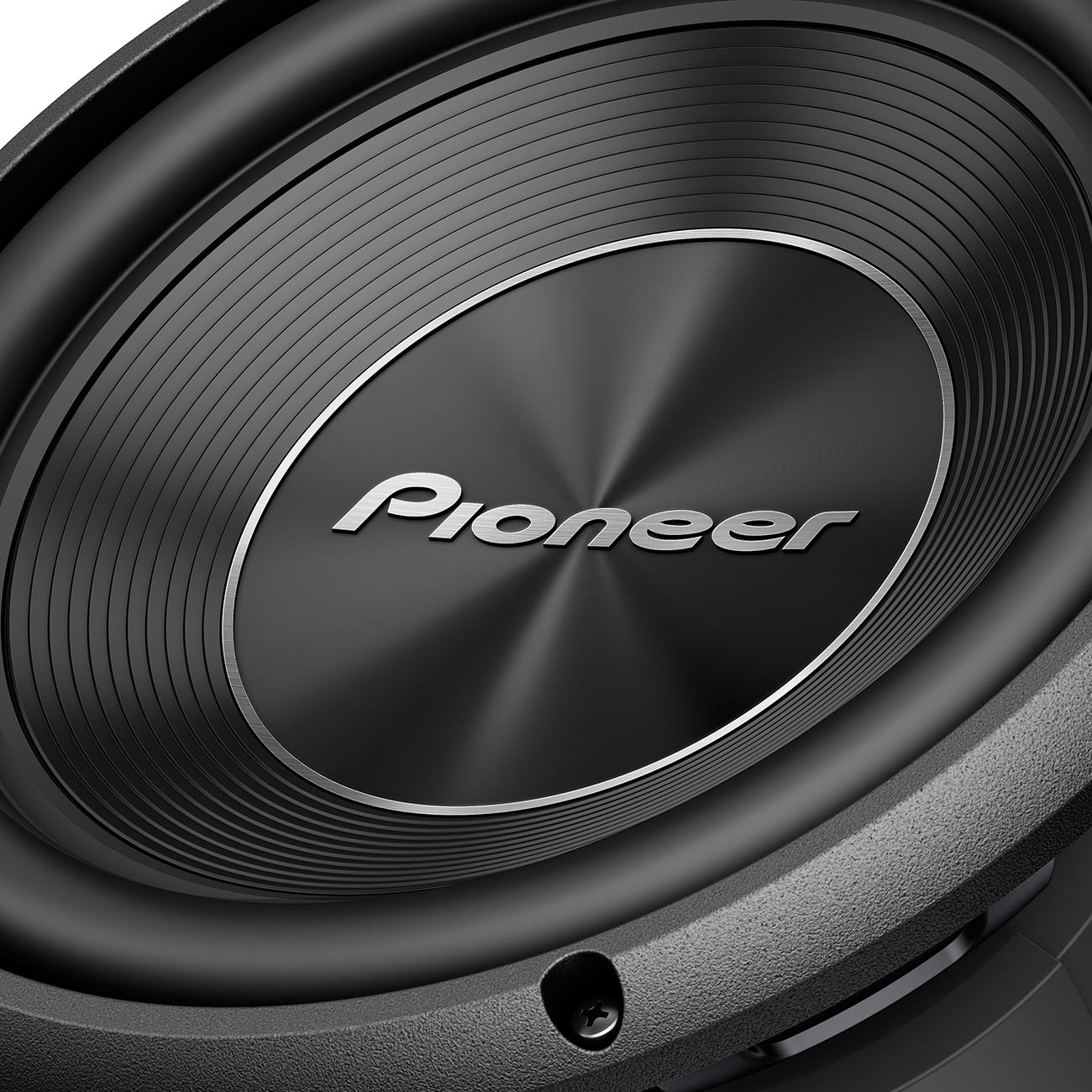

10″ Glass-fiber & Mica reinforced IMPP™ Cone

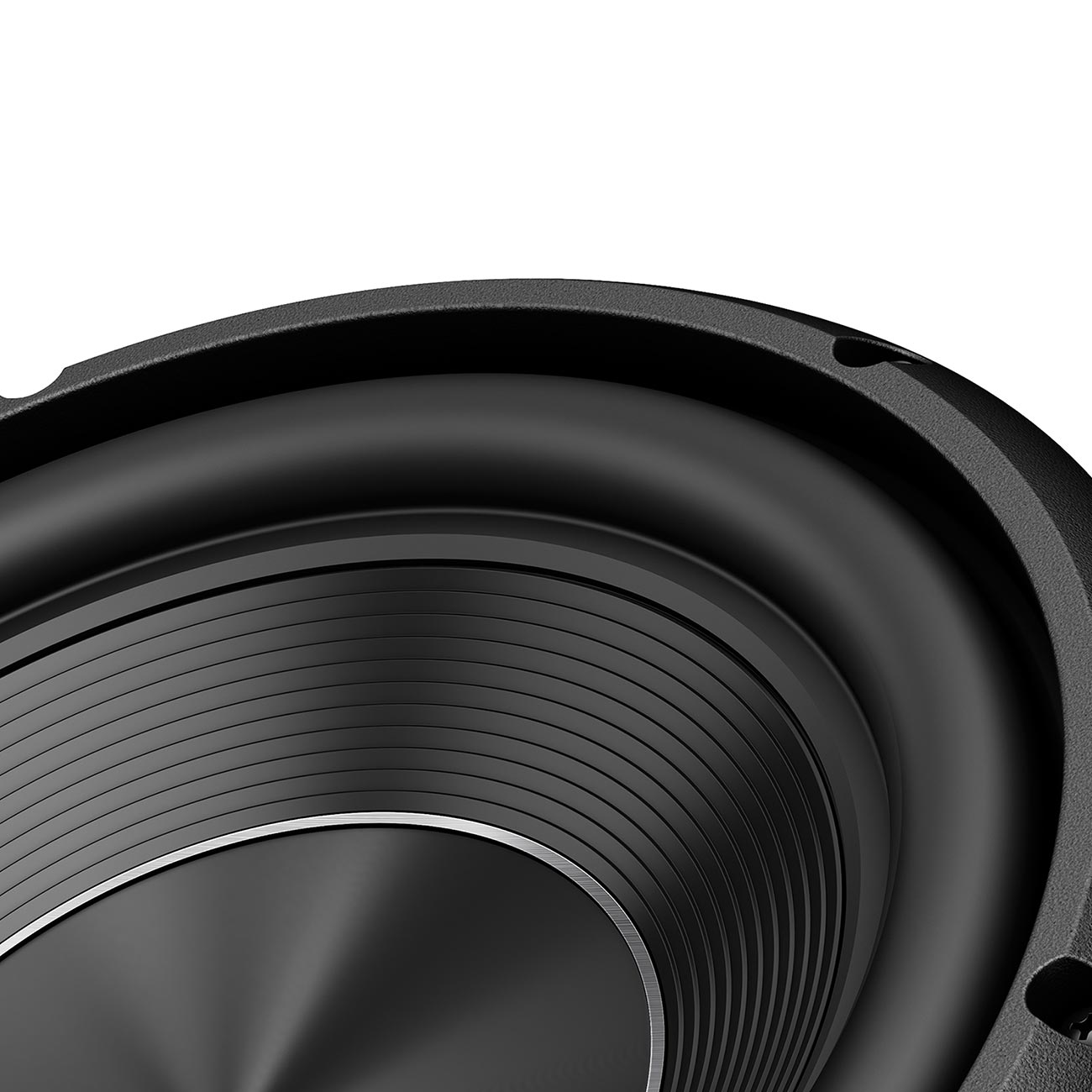

Rubber Surround & Aramid-fiber spider
Frequency range: 20 Hz – 2.0 kHz
Speaker Impedance: 2x 4 ohms
Speaker Efficiency: 74 dB (1W/1M)
Mounting depth: 5.875” (149mm)
Recommended Box volume : 1.0cu.ft (vented) / 0.7cu.ft. (sealed)
CarSoundFit
Mounting depth: 5-1/4”
Cut Out dimensions: 9″, 23 cm
Equivalent Compliance (VAS): 36.6 Liters, 1.3 Cu. Ft.
Free Air ResoNAnce (Fs): 30
Linear Excursion (Xmax): 10.8 mm, 0.43″
Port Diameter: 2″, 5 cm
Port Length: 5″, 13 cm
Recommended Ported Box Internal volume: 19.8 Liters, 0.7 Cu. Ft.
Recommended Sealed Enclosure Volume: 19.8 Liters, 0.7 Cu Ft
Total Speaker “Q” (Qts): 0.59
Basket Material: Metal
Center Cap Material: ABS
Cone Material: Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
Custom Fit Basket: Yes
Damper: Poly cotton
Gasket: Polypropylene
Installation Ring: Polypropylene
Magnet Material: Ferrite
Magnet Weight: 56.4 oz
Surround Material: Rubber
Surround Type: Rolled
Voice Coil Bobbin: Aluminum
Voice Coil Type: Dual Voice Coils 4-ohm
Voice Coil wire: Copper

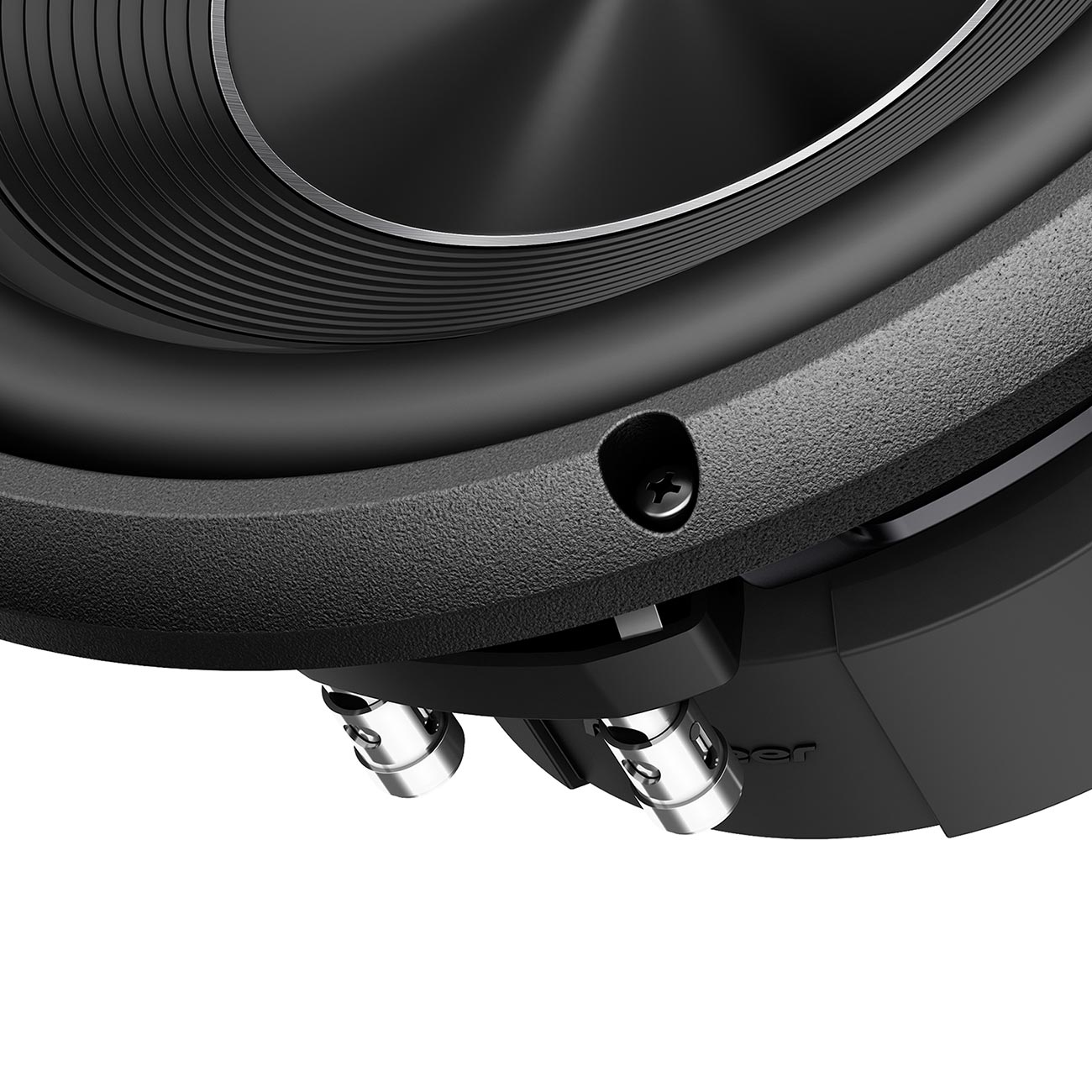

Wire Terminals: Push Type
